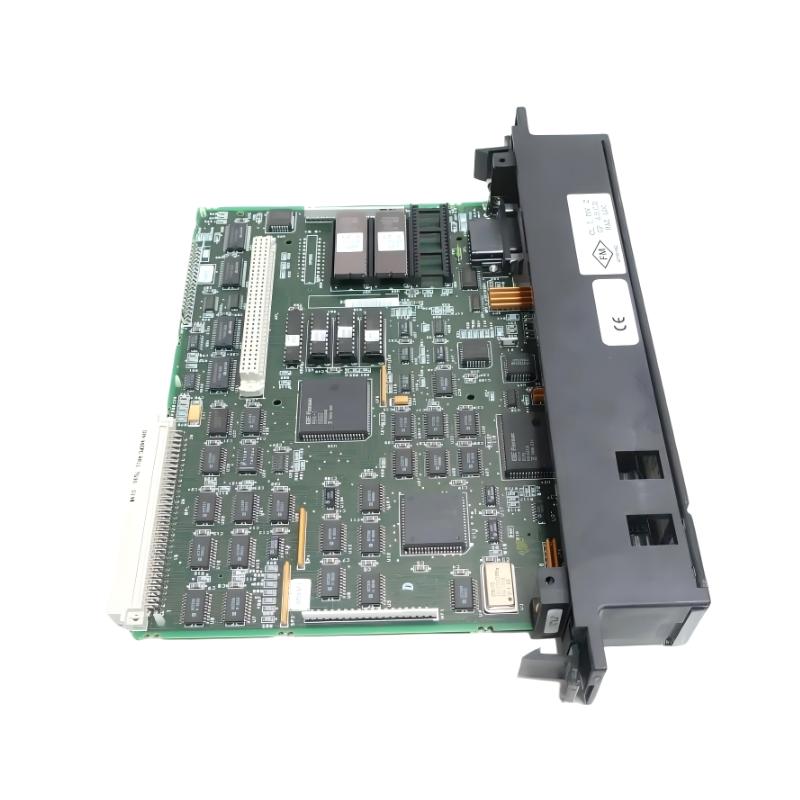

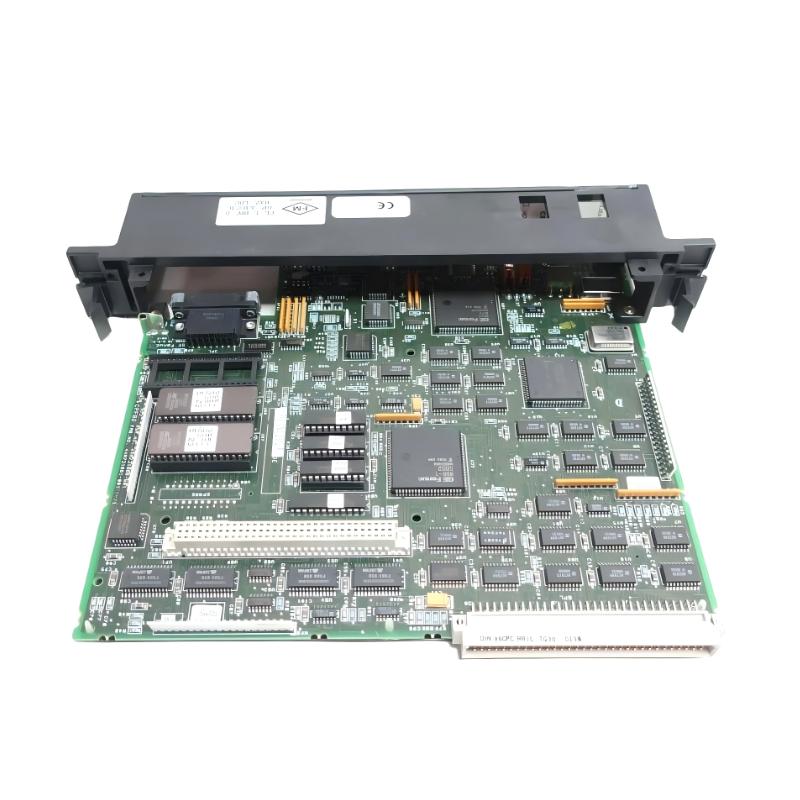

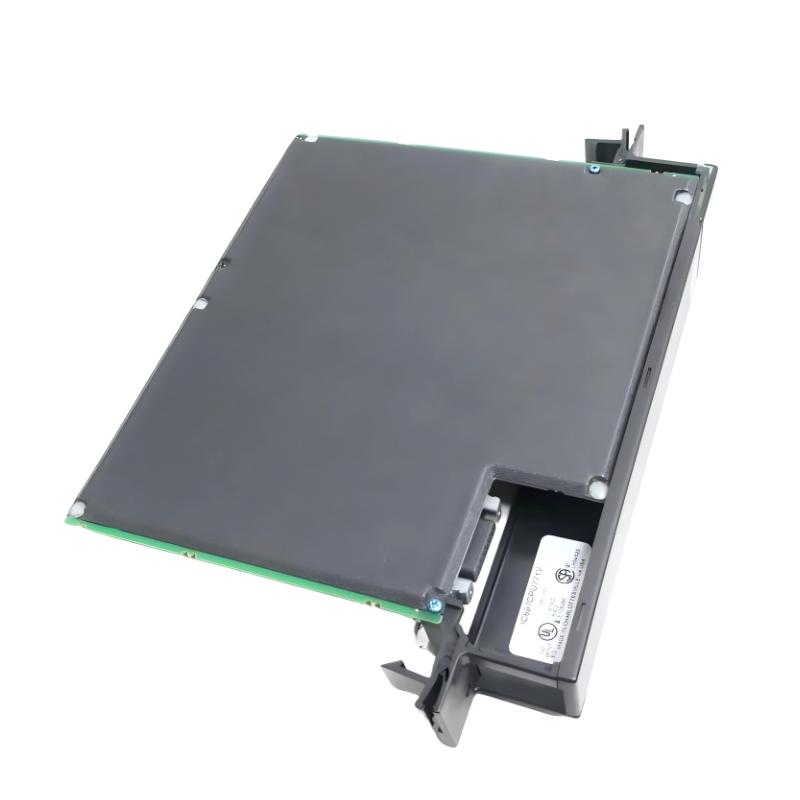

GE Fanuc IC697CPU771 Expandable PLC CPU Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | IC697CPU771 |
| Product Type | Expandable PLC CPU Module |
| Series | GE Fanuc Series 90-70 |
| Function | Central processing unit for real-time industrial automation and machine control |
| Processor | Intel 80C186 microprocessor |
| Clock Speed | 12 MHz |
| Architecture | 16-bit PLC control architecture |
| I/O Capacity | Up to 2K discrete I/O (any mix) |
| Analog I/O Capacity | Up to 8K analog I/O |
| Memory | Up to 512 KB battery-backed CMOS RAM (with expansion) |
| Base Memory | Low onboard memory, expandable via memory module |
| Execution Speed | Approx. 0.4 µs per Boolean instruction |
| Communication Port | 1 × 15-pin serial port |
| Protocol Support | RS-422 / RS-485 |
| Programming Interface | GE Logicmaster / VersaPro / Proficy Machine Edition |
| Backplane | VME C.1 rack backplane system |
| Power Supply | 5 VDC via rack backplane |
| Current Consumption | ~1.1 A |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (W × H × D) | Approx. 135 mm × 285 mm × 290 mm |
| Weight | Approx. 0.48 kg |
| Installation Type | Single-slot Series 90-70 rack module |
| Status Indicators | RUN, OK, FAULT LEDs |
FAQ
What is IC697CPU771 used for?
It is a general-purpose expandable CPU module used in GE Fanuc Series 90-70 PLC systems for controlling industrial machinery and process automation.
What processor does IC697CPU771 use?
It uses an Intel 80C186 16-bit microprocessor running at 12 MHz.
Does IC697CPU771 support floating-point math?
No. Unlike higher-end CPU variants in the same series, this model does not include dedicated floating-point processing hardware.
How much memory does it support?
It supports up to 512 KB of battery-backed CMOS RAM when equipped with an expansion memory module.
What is the I/O capacity?
It supports up to 2,000 discrete I/O points in mixed configuration and up to 8,000 analog I/O points.
What communication interfaces are available?
It provides one serial port supporting RS-422 and RS-485 protocols for programming and diagnostics.
Is IC697CPU771 still used in modern systems?
It is primarily found in legacy GE Fanuc Series 90-70 installations and is generally replaced in new systems by modern PLC/PAC platforms.
What is the power requirement?
It operates on 5 VDC supplied through the rack backplane, with a typical consumption of about 1.1 A.
GE Fanuc IC697CPU771 Expandable PLC CPU Module is in stock. Please contact us for a quick quote and competitive pricing.
