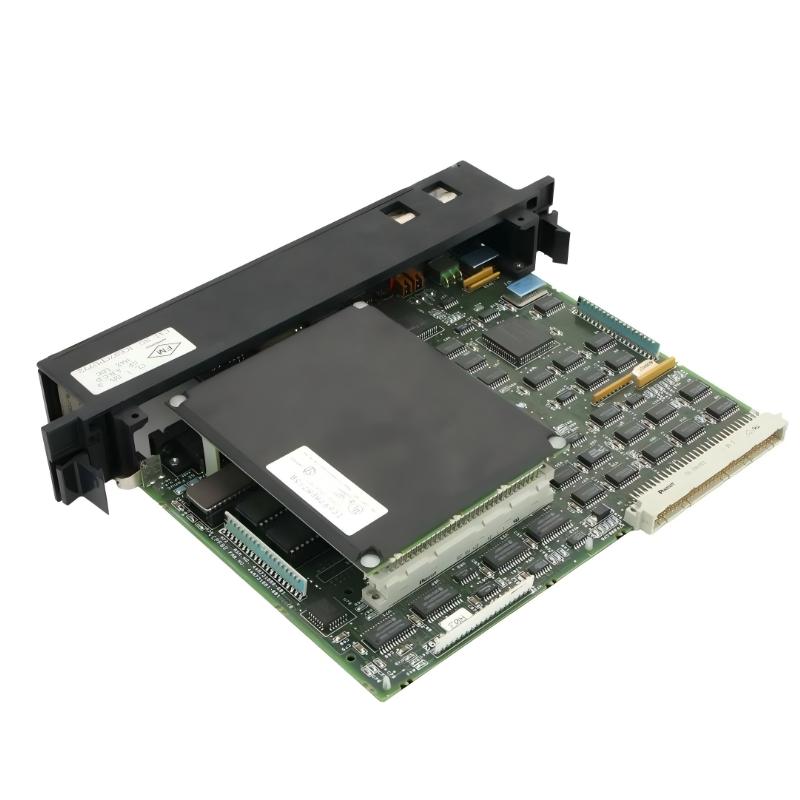

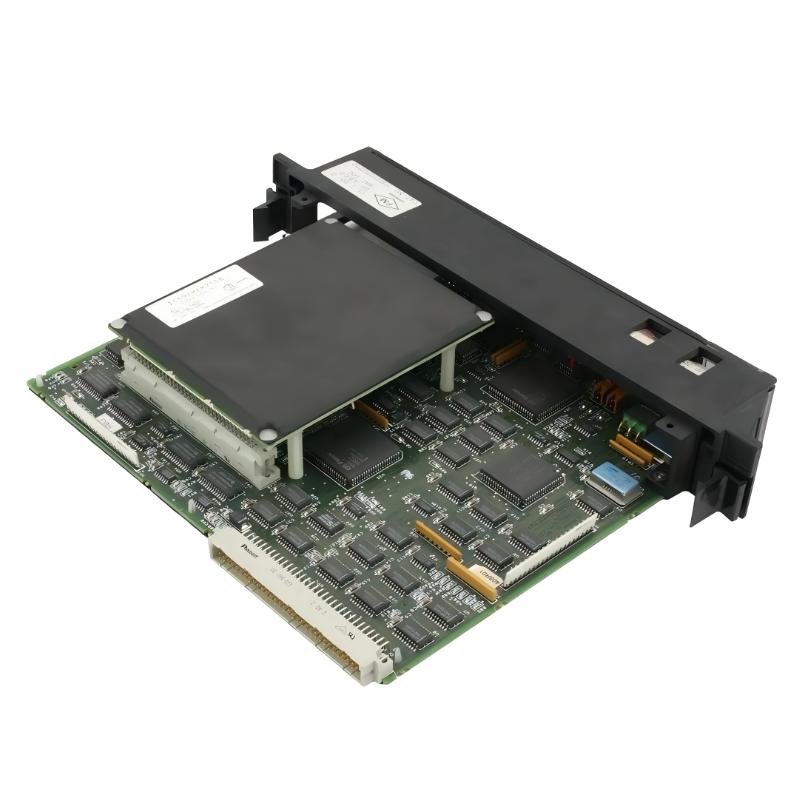

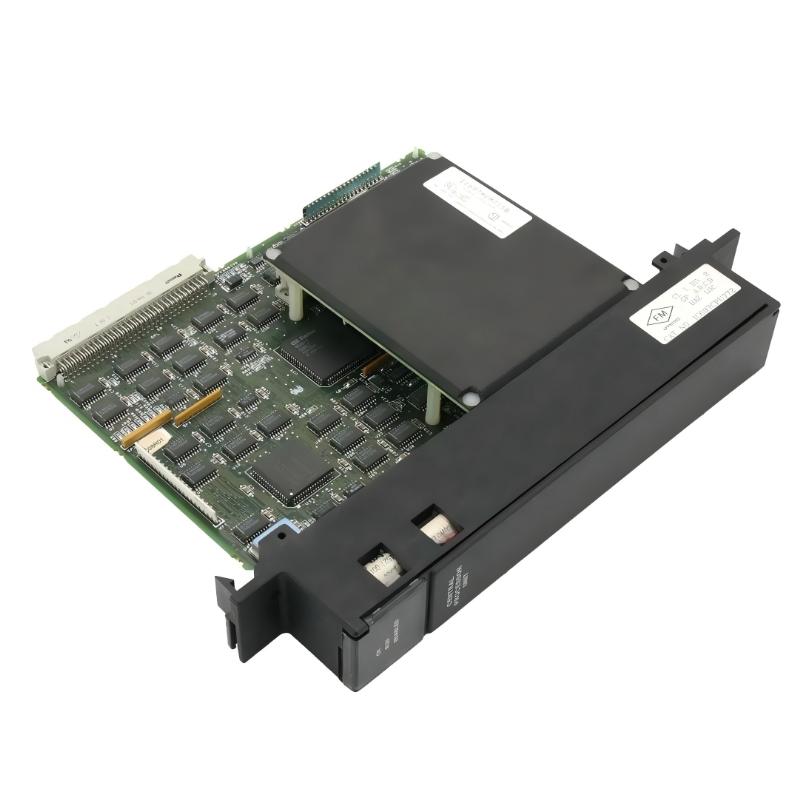

GE Fanuc IC697CPU772 High-performance Floating Point CPU Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | IC697CPU772 |
| Product Type | High-performance Floating Point CPU Module |
| Series | GE Fanuc Series 90-70 |
| Function | Central processing unit for real-time industrial automation and process control |
| Processor | Intel 80C186 microprocessor |
| Clock Speed | 12 MHz |
| Architecture | 16-bit PLC control architecture with floating point support |
| Execution Speed | ~0.4 µs per Boolean instruction |
| Memory | Up to 512 KB battery-backed CMOS RAM (with expansion module) |
| Base Memory | 32 KB–64 KB internal system memory (configuration dependent) |
| I/O Capacity | Up to 2K discrete I/O points (any mix) |
| Analog I/O Capacity | Up to 8K analog I/O points |
| Communication Port | 1 × 15-pin serial interface |
| Protocol Support | RS-422 / RS-485 (programming and diagnostics) |
| Backplane Interface | VME C.1 Series 90-70 rack system |
| Programming Software | GE Logicmaster / VersaPro / Proficy Machine Edition |
| Power Supply | 5 VDC via rack backplane |
| Current Consumption | ~1.2 A |
| Battery Backup | Lithium battery for CMOS memory retention |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (W × H × D) | Approx. 135 mm × 285 mm × 290 mm |
| Weight | Approx. 0.6–0.9 kg (varies by revision) |
| Installation Type | Single-slot Series 90-70 rack module |
| Status Indicators | RUN, OK, FAULT LEDs |
FAQ
What is IC697CPU772 used for?
It is a floating-point capable CPU module used in GE Fanuc Series 90-70 PLC systems for controlling complex industrial automation processes in real time.
Does IC697CPU772 support floating-point operations?
Yes. It includes floating-point math capability, making it suitable for analog-heavy and process control applications.
What processor does IC697CPU772 use?
It is based on an Intel 80C186 16-bit microprocessor running at 12 MHz.
How many I/O points can it handle?
It supports up to 2,000 discrete I/O points and up to 8,000 analog I/O points depending on system configuration.
What memory capacity does it have?
It supports up to 512 KB of battery-backed CMOS RAM when used with an expansion memory module.
What communication interface is available?
It has one 15-pin serial port supporting RS-422 and RS-485 protocols for programming and diagnostics.
Is IC697CPU772 still used in modern systems?
It is mainly used in legacy GE Fanuc Series 90-70 installations, as most modern systems have migrated to newer PLC/PAC platforms.
What is the power requirement?
It operates on 5 VDC supplied via the rack backplane with typical consumption around 1.2 A.
GE Fanuc IC697CPU772 High-performance Floating Point CPU Module is in stock. Please contact us for a quick quote and competitive pricing.
