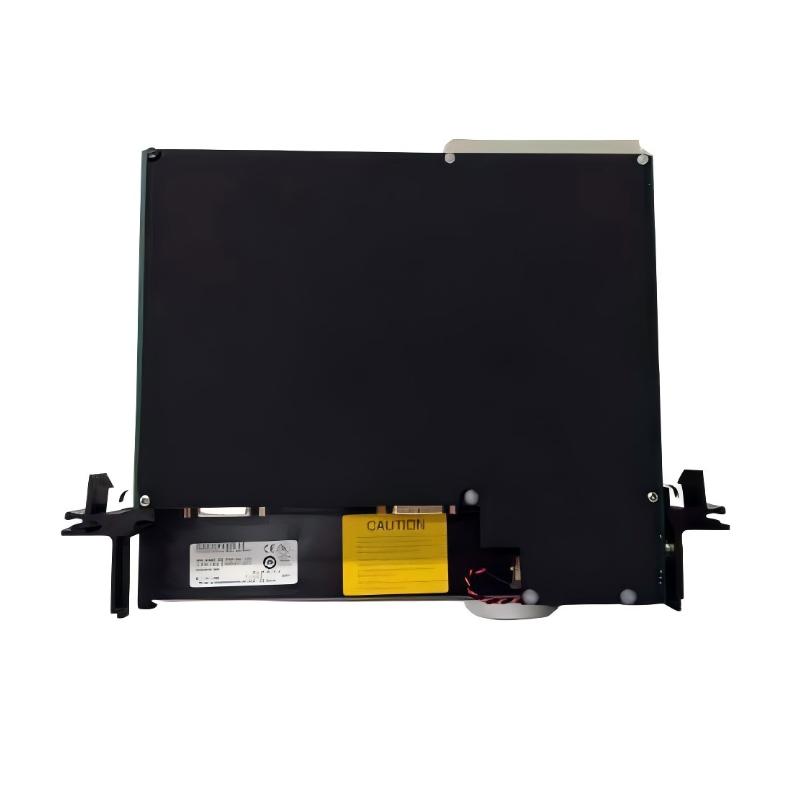

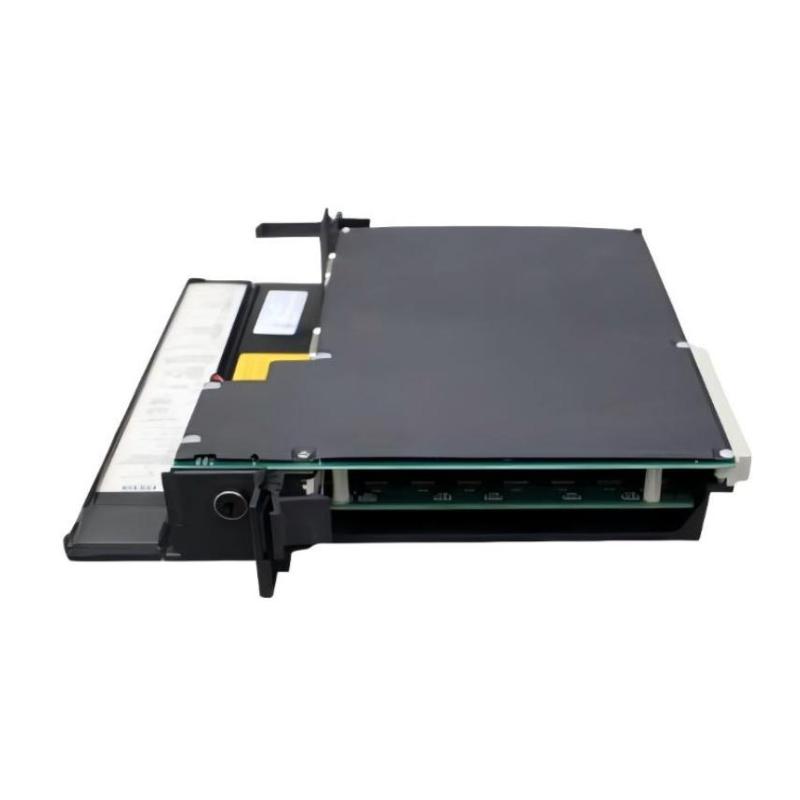

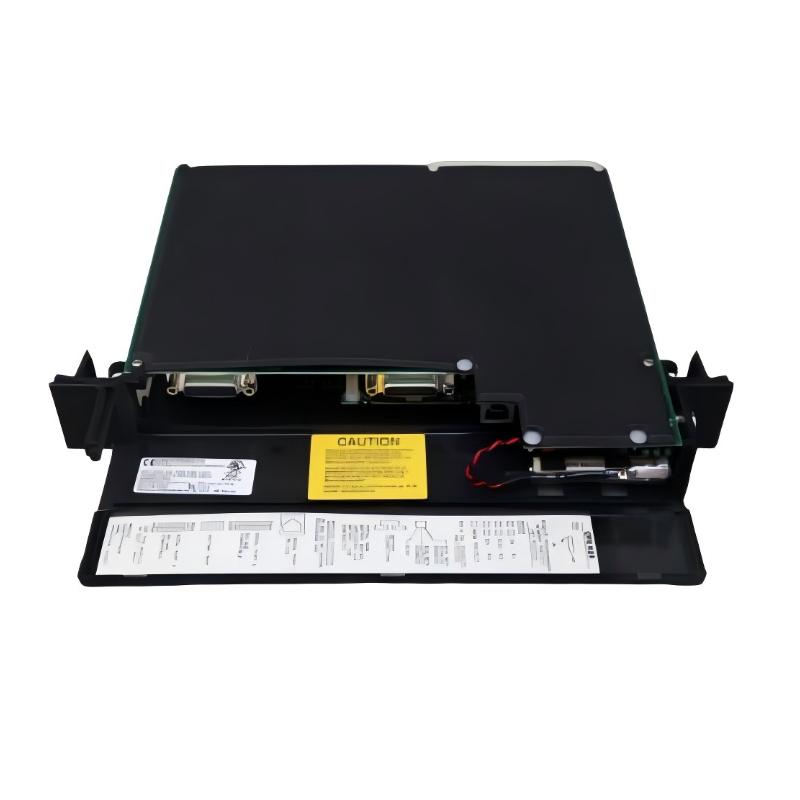

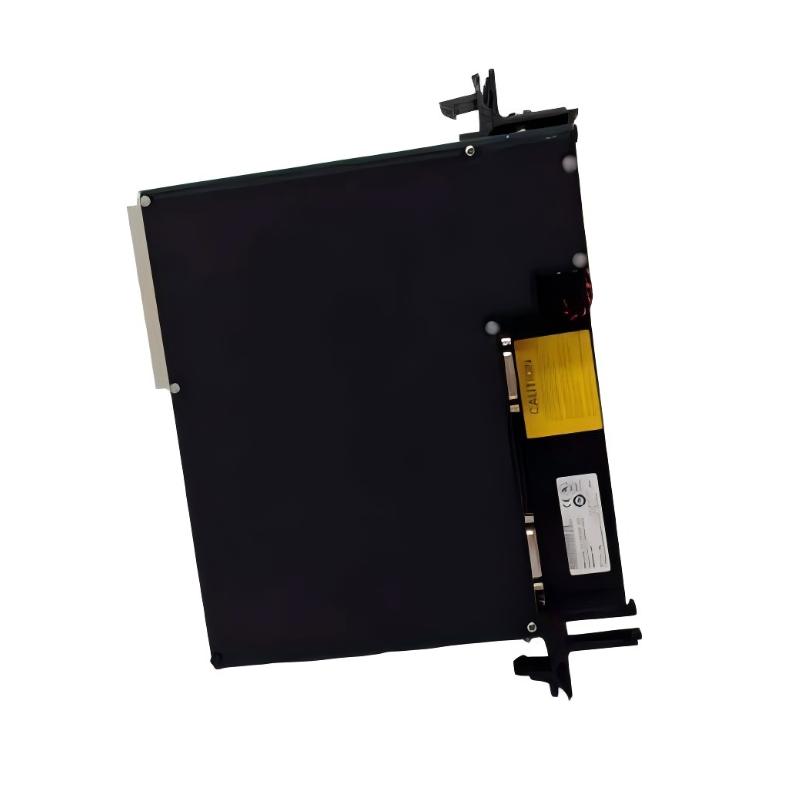

GE Fanuc IC697CPX928 High-performance PLC CPU Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | IC697CPX928 |
| Product Type | High-performance PLC CPU Module (Series 90-70) |
| Series | GE Fanuc Series 90-70 |
| Function | Central processing unit for large-scale, high-speed industrial automation and process control |
| Processor | Intel 80486DX4 |
| Clock Speed | 96 MHz |
| Architecture | 32-bit CPU with floating-point processing support |
| Memory | 6 MB battery-backed RAM |
| Non-Volatile Memory | 256 KB user flash memory |
| I/O Capacity | Up to 12,000 discrete I/O points (any mix) |
| Analog I/O Capacity | Up to 8,000 channels |
| Execution Speed | ~0.4 µs per Boolean instruction |
| Communication Ports | 1 × RS232, 2 × RS485, 1 × factory reset port |
| Programming Software | Logicmaster / VersaPro / Proficy Machine Edition |
| Backplane System | GE Series 90-70 VME C.1 rack architecture |
| Power Supply | 5 VDC via rack backplane |
| Current Consumption | ~3.1 A |
| Battery Backup | Lithium battery for memory and real-time clock retention |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (W × H × D) | Approx. 135 mm × 285 mm × 290 mm |
| Weight | Approx. 0.85 kg |
| Installation Type | Single-slot rack-mounted CPU module |
| Status Indicators | RUN, OK, FAULT, COMM LEDs |
FAQ
What is IC697CPX928 used for?
It is a high-end CPU module used in GE Fanuc Series 90-70 PLC systems for large-scale industrial automation, process control, and complex machine control applications.
What makes IC697CPX928 one of the most powerful CPUs in the 90-70 series?
It features a 96 MHz 80486DX4 processor, 6 MB RAM, high-speed scan performance, and support for large I/O systems, making it one of the top-tier CPUs in the series.
Does IC697CPX928 support floating-point operations?
Yes. It supports floating-point calculations, which improves accuracy in analog and process-intensive control applications.
How many communication ports does it have?
It includes one RS232 port, two RS485 ports, and one factory reset/maintenance port.
What is the memory capacity?
It provides 6 MB of battery-backed RAM and 256 KB of non-volatile flash memory for firmware and user data.
What is the I/O capacity?
It supports up to 12,000 discrete I/O points and up to 8,000 analog channels depending on system configuration.
What is the power requirement?
It operates on 5 VDC supplied via the rack backplane with a typical current draw of about 3.1 A.
Is IC697CPX928 still used today?
It is primarily used in legacy GE Fanuc Series 90-70 installations and is maintained in existing systems rather than used in new automation projects.
GE Fanuc IC697CPX928 High-performance PLC CPU Module is in stock. Please contact us for a quick quote and competitive pricing.
