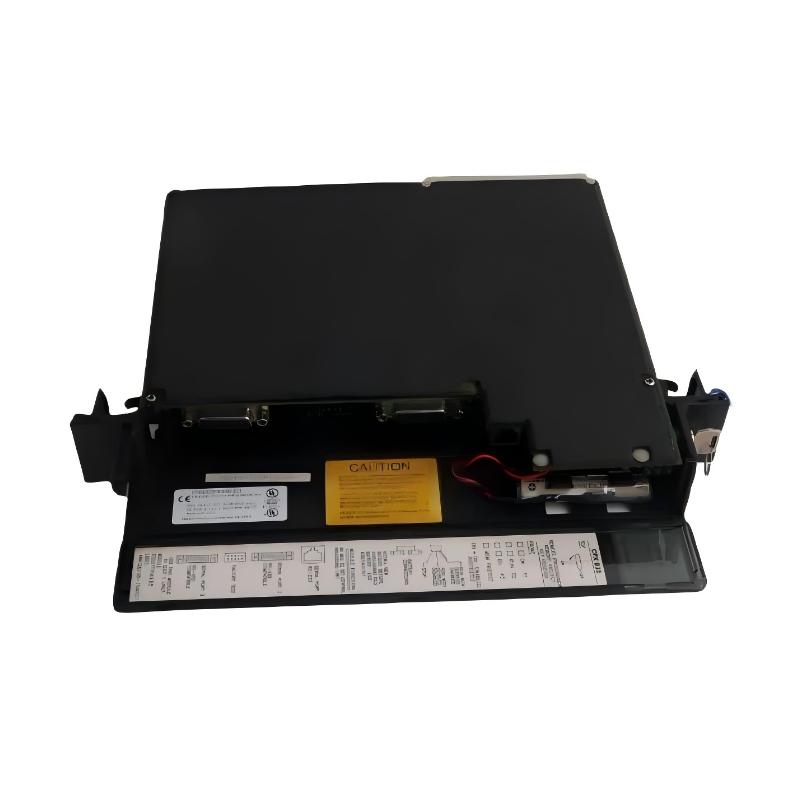

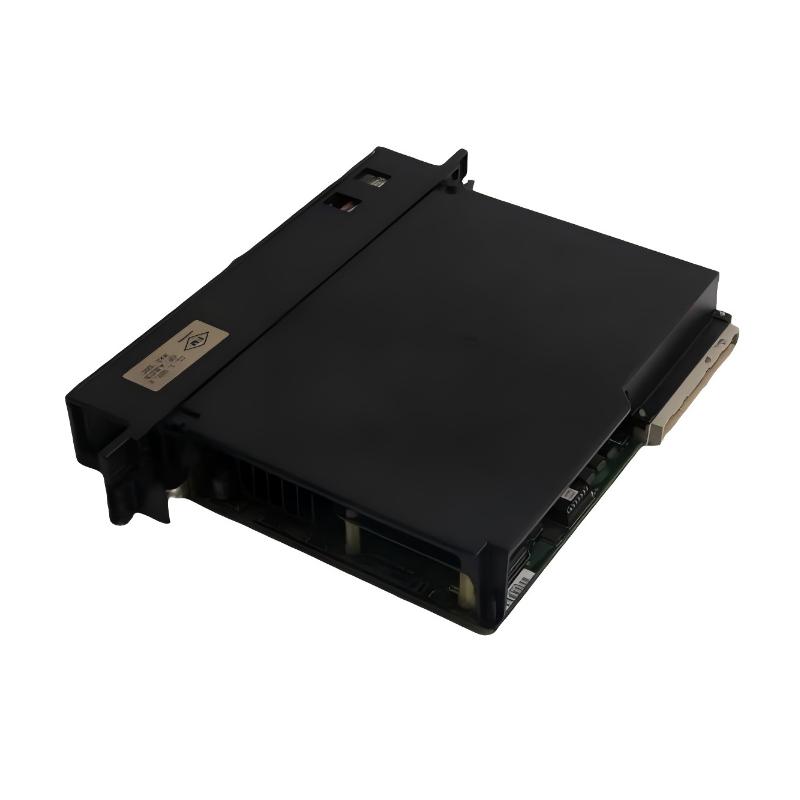

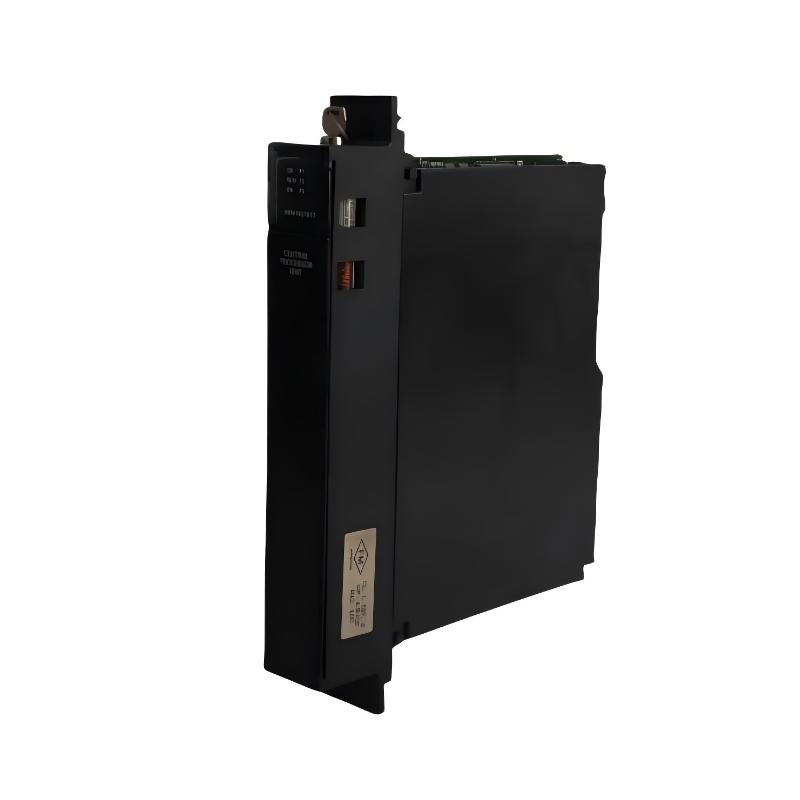

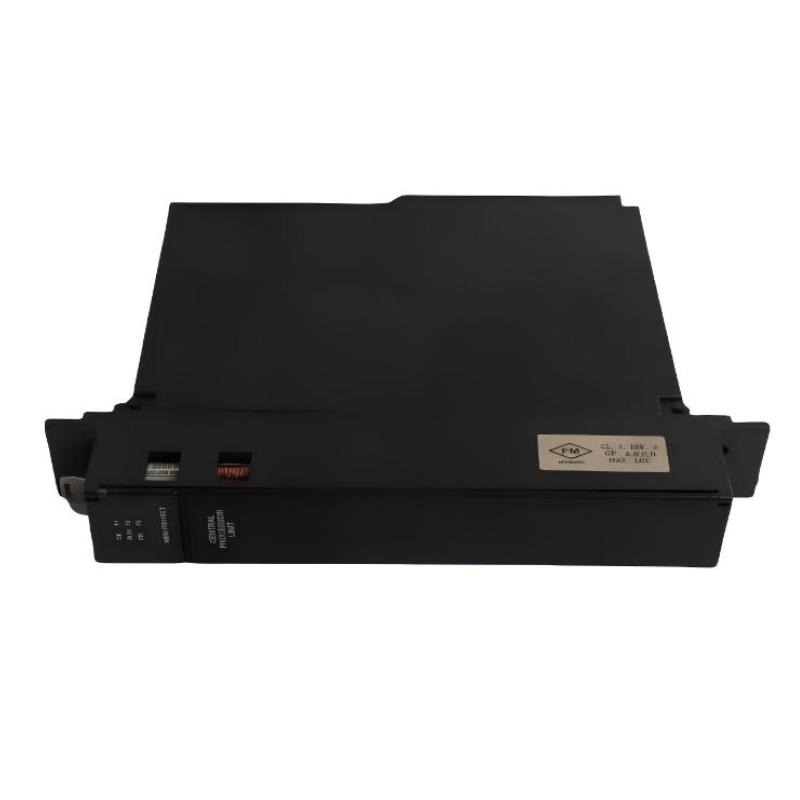

GE Fanuc IC697CPX935 High-performance PLC CPU Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | IC697CPX935 |
| Product Type | High-performance PLC CPU Module |
| Series | GE Fanuc Series 90-70 |
| Function | Central processing unit for large-scale industrial automation and process control |
| Processor | Intel 80486DX4 |
| Clock Speed | 96 MHz |
| Architecture | 32-bit floating-point CPU |
| Memory | 1 MB battery-backed CMOS RAM |
| Non-Volatile Memory | 256 KB flash memory |
| User Program Capacity | Up to ~512 KB (system dependent) |
| I/O Capacity | Up to 12,000 discrete I/O points (any mix) |
| Analog I/O Capacity | Up to 8,000 channels |
| Execution Speed | ~0.4 µs per Boolean instruction |
| Communication Ports | 1 × RS-232, 2 × RS-485 serial ports |
| Protocol Support | SNP, RTU, GE proprietary protocols |
| Backplane System | GE Series 90-70 VME C.1 rack architecture |
| Power Supply | 5 VDC via rack backplane |
| Current Consumption | ~3.1 A |
| Battery Backup | Lithium battery for memory retention and real-time clock |
| Programming Software | Logicmaster / VersaPro / Proficy Machine Edition |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (W × H × D) | Approx. 135 mm × 285 mm × 290 mm |
| Weight | Approx. 0.45–1.0 kg |
| Installation Type | Single-slot rack-mounted CPU module |
| Status Indicators | RUN, OK, FAULT, COMM LEDs |
FAQ
What is IC697CPX935 used for?
It is a high-end CPU module used in GE Fanuc Series 90-70 PLC systems for complex industrial automation, process control, and large I/O applications.
What processor does IC697CPX935 use?
It uses an Intel 80486DX4 processor running at 96 MHz, providing high-speed Boolean execution and floating-point capability.
How much memory does IC697CPX935 have?
It includes 1 MB of battery-backed RAM and 256 KB of flash memory for firmware and user data storage.
How many communication ports does it have?
It provides three serial communication ports: one RS-232 and two RS-485 interfaces.
What is the I/O capacity?
It supports up to 12,000 discrete I/O points and up to 8,000 analog I/O channels depending on system configuration.
Does IC697CPX935 support floating-point operations?
Yes. It supports floating-point calculations, making it suitable for process-heavy industrial applications.
What is the power requirement?
It operates on 5 VDC supplied through the rack backplane with a typical current draw of about 3.1 A.
Is IC697CPX935 still used today?
It is primarily used in legacy GE Fanuc Series 90-70 systems and is typically maintained rather than installed in new automation projects.
GE Fanuc IC697CPX935 High-performance PLC CPU Module is in stock. Please contact us for a quick quote and competitive pricing.
