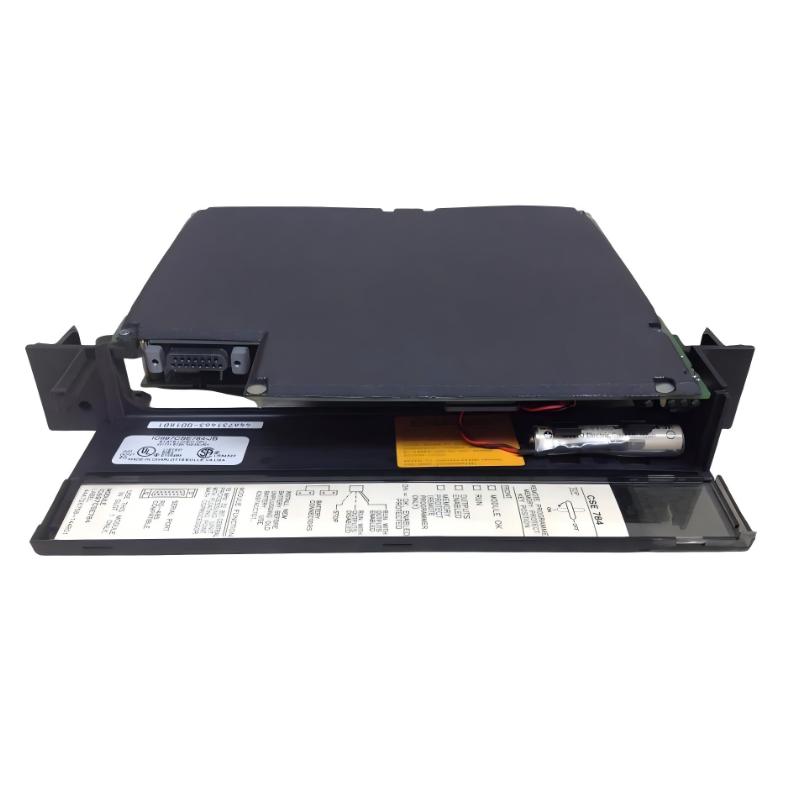

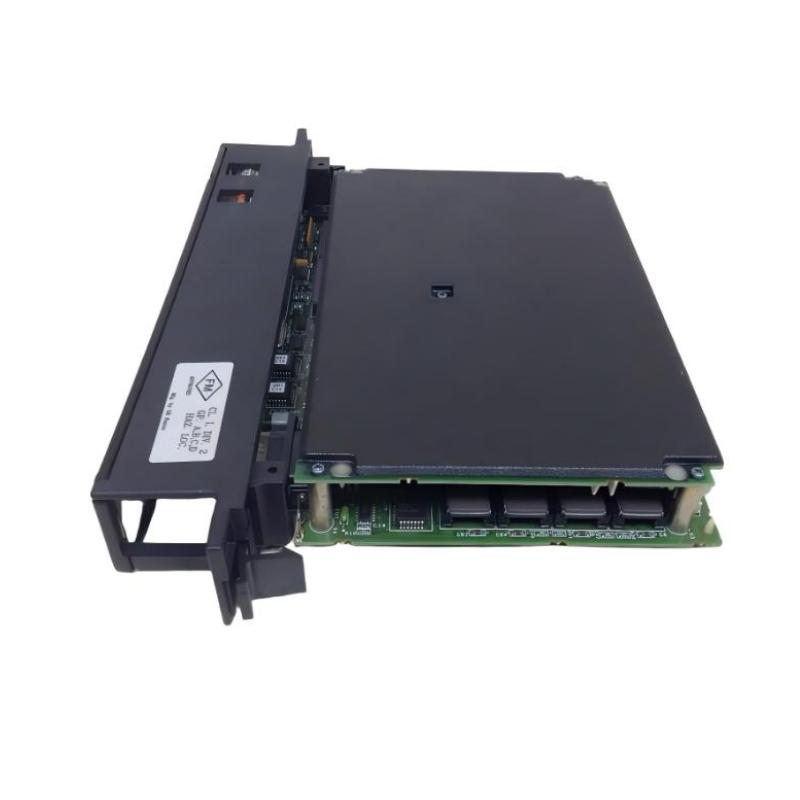

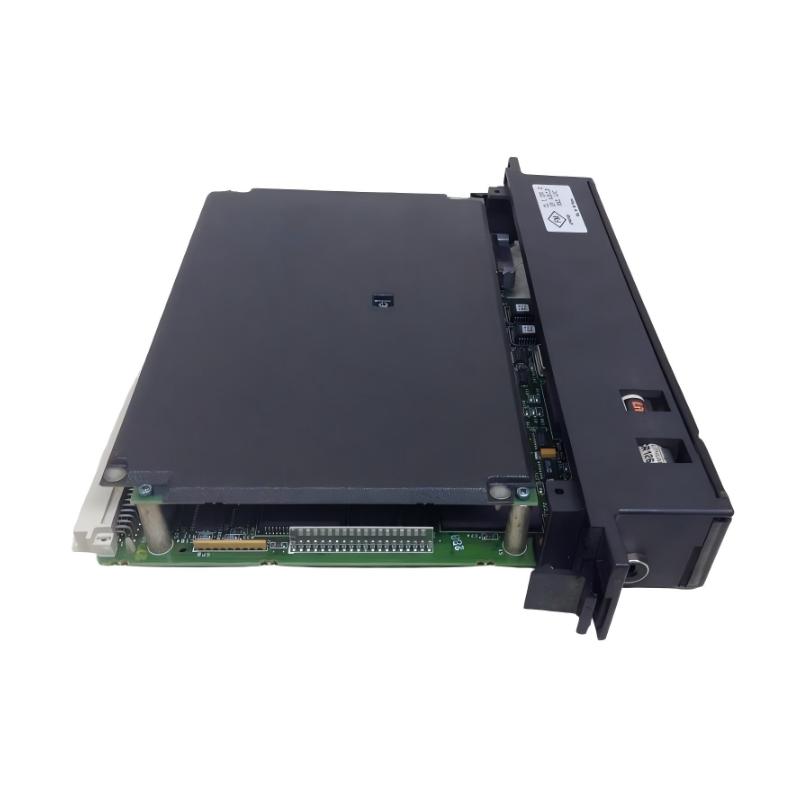

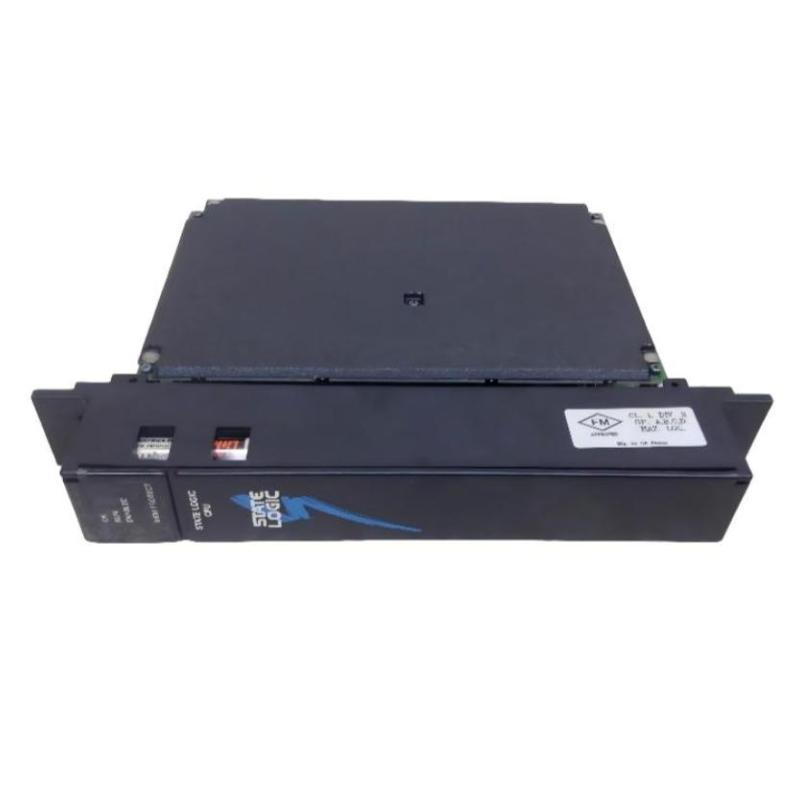

GE Fanuc IC697CSE784 State Logic / Floating Point PLC CPU Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | IC697CSE784 |
| Product Type | State Logic / Floating Point PLC CPU Module |
| Series | GE Fanuc Series 90-70 |
| Function | Central processing unit for advanced state logic control, machine automation, and process systems |
| Processor | Intel 80386DX |
| Clock Speed | 16 MHz |
| Architecture | 32-bit floating point CPU |
| Control Languages | State Logic, Ladder Logic, and C |
| Memory | 512 KB battery-backed CMOS RAM (integrated memory board) |
| Program Storage | Configurable data & program memory via internal memory board |
| I/O Capacity | Up to 12,000 discrete I/O points (any mix) |
| Analog I/O Capacity | Up to 8,000 channels |
| Execution Speed | ~0.4 µs per Boolean instruction |
| Communication Port | 1 × RS-422 / RS-485 serial port |
| Programming Software | AD641 (State Logic), IC641 / Logicmaster (Ladder & C) |
| Backplane System | GE Series 90-70 VME C.1 rack architecture |
| Power Supply | 5 VDC via rack backplane |
| Current Consumption | ~1.6 A |
| Battery Backup | Lithium battery for memory and real-time clock retention |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (W × H × D) | Approx. 135 mm × 285 mm × 290 mm |
| Weight | Approx. 0.8–1.0 kg |
| Installation Type | Single-slot rack-mounted CPU module |
| Status Indicators | RUN, OK, FAULT LEDs |
FAQ
What is IC697CSE784 used for?
It is a state logic CPU used in GE Fanuc Series 90-70 PLC systems for complex machine control, process automation, and high-speed industrial applications.
What makes IC697CSE784 different from standard PLC CPUs?
It supports State Logic programming in addition to ladder logic and C, allowing more flexible and high-level control strategies.
Does IC697CSE784 support floating-point calculations?
Yes. It includes floating-point processing capability for more precise analog and process control tasks.
What processor does IC697CSE784 use?
It uses an Intel 80386DX 32-bit processor running at 16 MHz.
How much memory does it have?
It includes 512 KB of battery-backed CMOS RAM integrated via an internal memory board.
What is the I/O capacity?
It supports up to 12,000 discrete I/O points and up to 8,000 analog channels depending on system configuration.
What programming tools are required?
It can be programmed using AD641 for State Logic and IC641/Logicmaster software for ladder logic and C programming.
Is IC697CSE784 still used today?
It is primarily found in legacy GE Fanuc Series 90-70 installations and is typically maintained rather than used in new system deployments.
GE Fanuc IC697CSE784 State Logic / Floating Point PLC CPU Module is in stock. Please contact us for a quick quote and competitive pricing.
