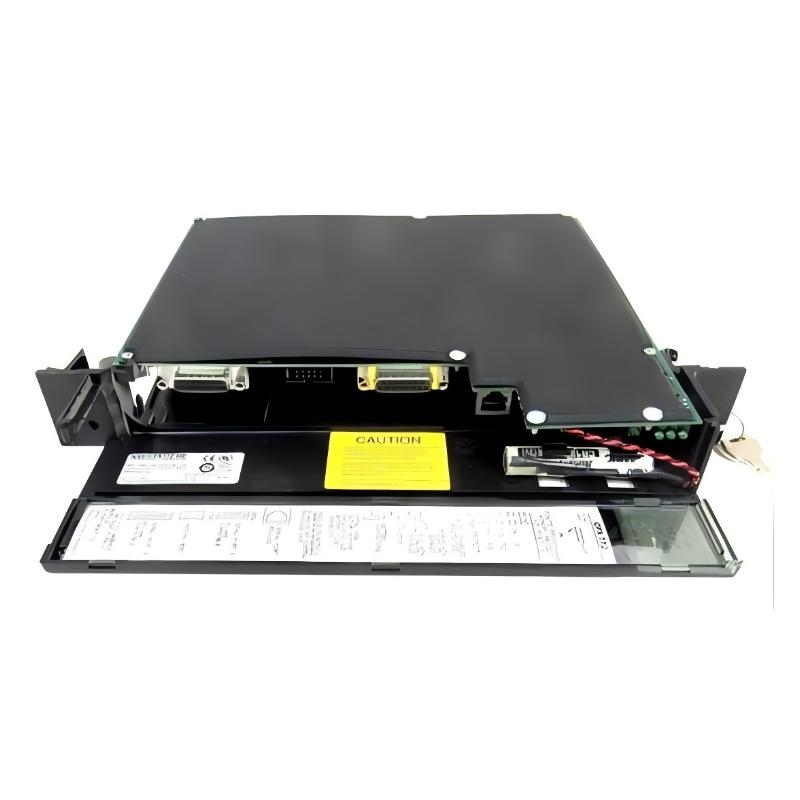

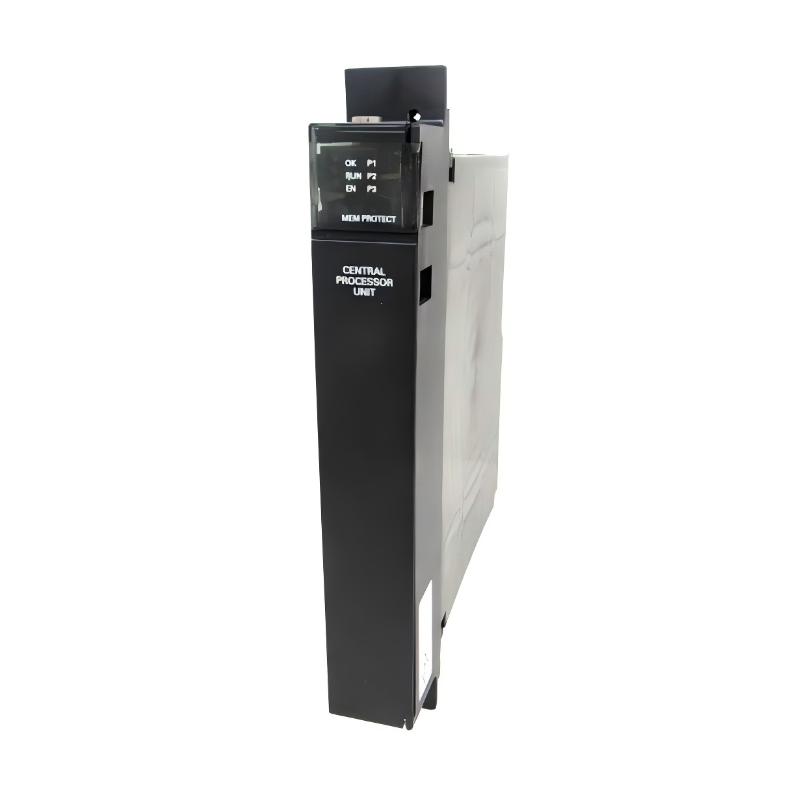

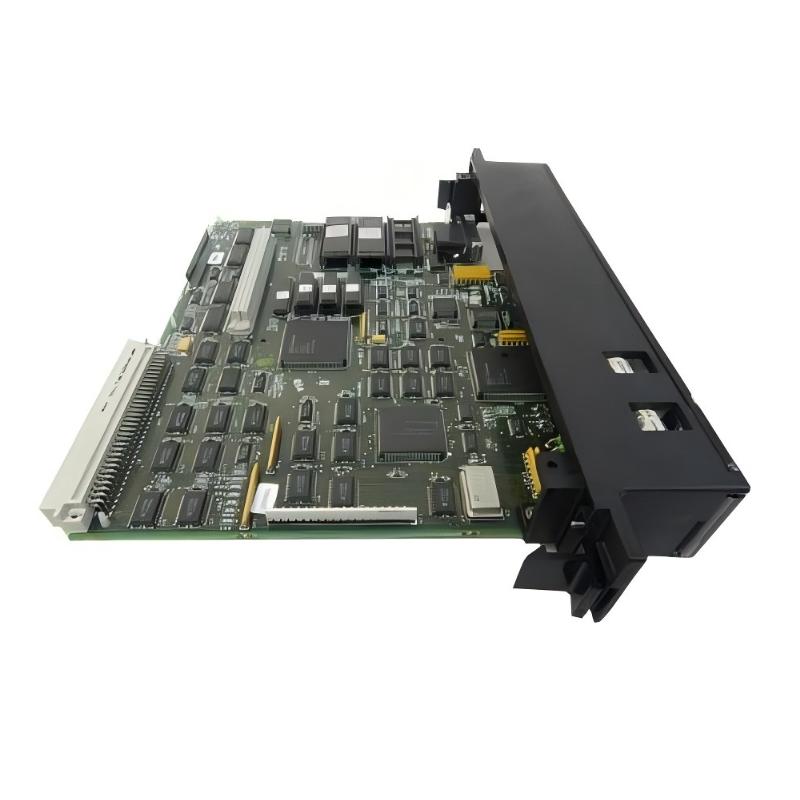

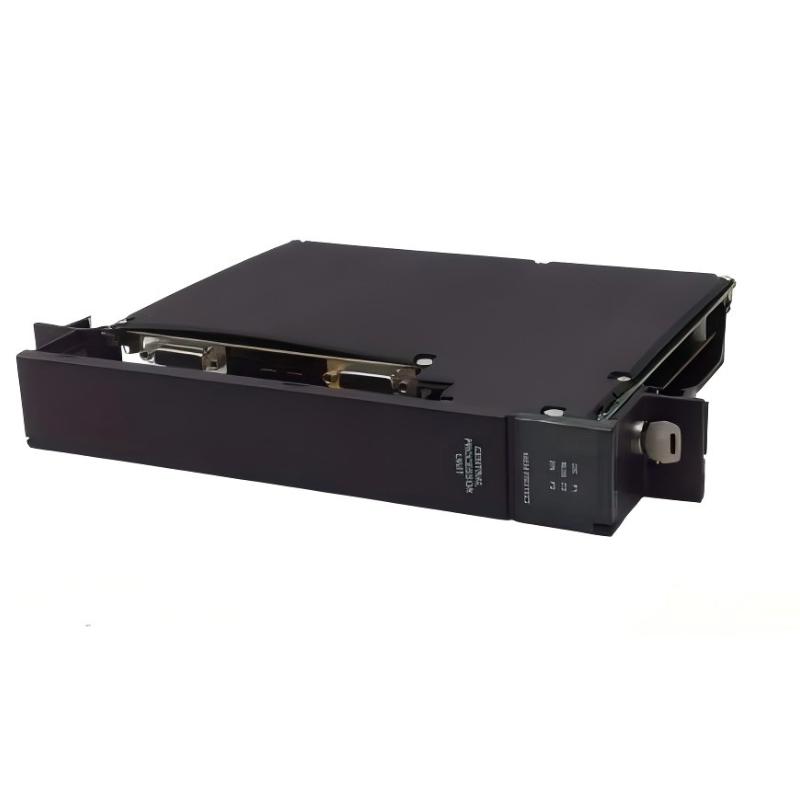

GE Fanuc IC697CSE925 State Logic CPU Module / High-level control processor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | IC697CSE925 |
| Product Type | State Logic CPU Module / High-level control processor |
| Series | GE Fanuc Series 90-70 |
| Function | Central processing unit for advanced state logic, process control, and machine automation |
| Processor | Intel 80486DX2 |
| Clock Speed | 64 MHz |
| Architecture | 32-bit floating-point CPU with state logic execution support |
| Control Language Support | State Logic, Ladder Logic, and C programming |
| Memory | 1 MB battery-backed RAM |
| I/O Capacity | Up to 12,000 discrete I/O points (any mix) |
| Analog I/O Capacity | Up to 8,000 channels |
| Execution Speed | ~0.4 µs per Boolean instruction |
| Communication Port | 1 × RS-485 serial port |
| Backplane System | GE Series 90-70 VME C.1 rack architecture |
| Power Supply | 5 VDC via rack backplane |
| Current Consumption | ~3.0–3.3 A |
| Battery Backup | Lithium battery for memory retention and real-time clock |
| Programming Software | AD641 (State Logic), IC641 / Logicmaster (Ladder & C) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (W × H × D) | Approx. 135 mm × 285 mm × 290 mm |
| Weight | Approx. 0.8–1.0 kg |
| Installation Type | Single-slot rack-mounted CPU module |
| Status Indicators | RUN, OK, ENABLED, FAULT LEDs |
FAQ
What is IC697CSE925 used for?
It is a state logic CPU module used in GE Fanuc Series 90-70 PLC systems for high-level industrial automation, process sequencing, and complex machine control applications.
What makes IC697CSE925 different from standard PLC CPUs?
It supports State Logic programming in addition to ladder logic and C, allowing more structured and high-level control strategies compared to traditional PLC programming methods.
Does IC697CSE925 support floating-point operations?
Yes. It includes floating-point processing capability, making it suitable for process control and analog-heavy applications.
What processor does IC697CSE925 use?
It is based on an Intel 80486DX2 32-bit processor running at 64 MHz.
How much memory does it have?
It provides 1 MB of battery-backed RAM for program execution, data storage, and system operations.
What is the I/O capacity?
It supports up to 12,000 discrete I/O points and up to 8,000 analog channels depending on system configuration.
What programming tools are required?
It is programmed using AD641 for State Logic and IC641/Logicmaster for ladder logic and C programming.
Is IC697CSE925 still used today?
It is mainly found in legacy GE Fanuc Series 90-70 installations and is typically maintained rather than used in new automation deployments.
GE Fanuc IC697CSE925 State Logic CPU Module / High-level control processor is in stock. Please contact us for a quick quote and competitive pricing.
