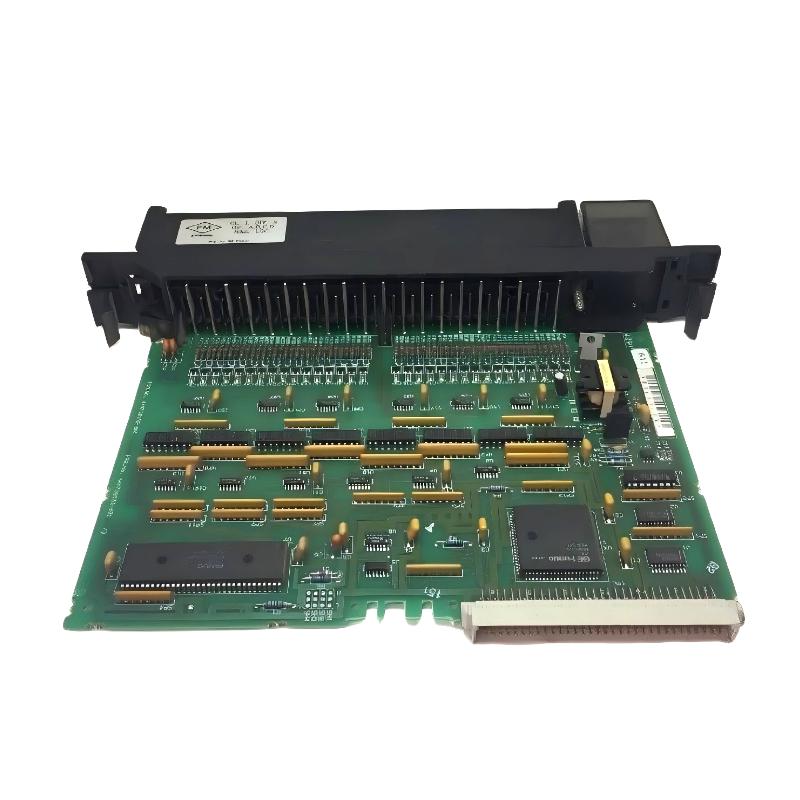

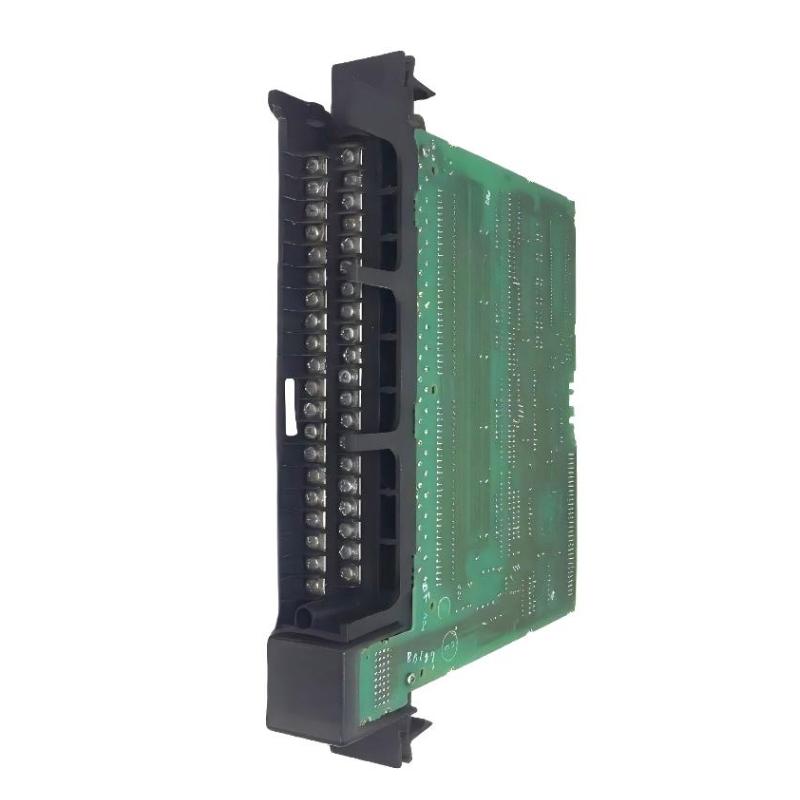

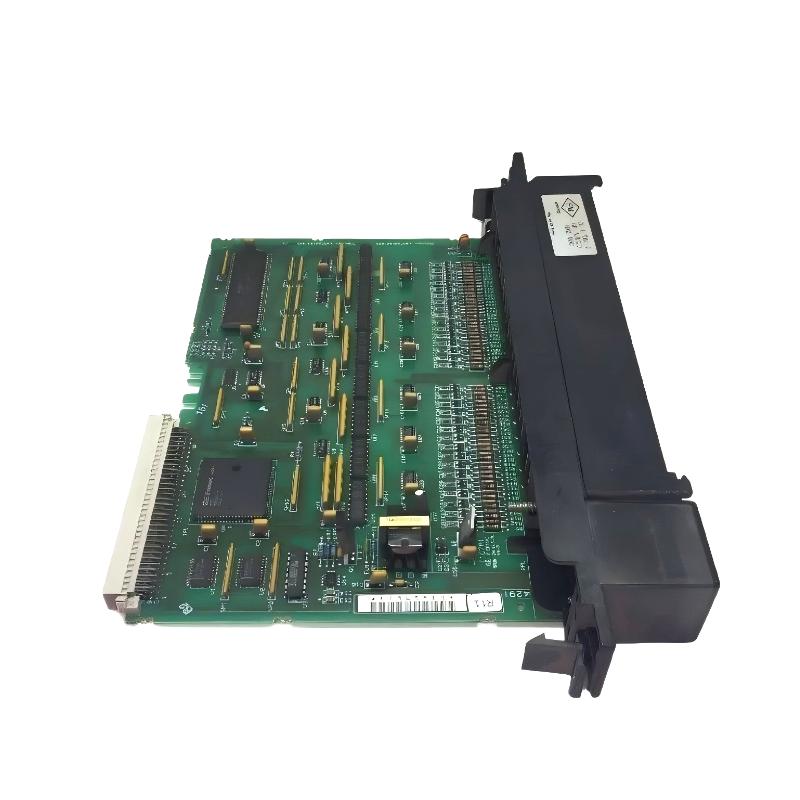

GE Fanuc IC697MDL651 DC Discrete Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | IC697MDL651 |
| Product Type | DC Discrete Input Module (TTL / High-Speed Input) |
| Series | GE Fanuc Series 90-70 |
| Function | High-speed digital input module for reading low-voltage DC/TTL signals in PLC systems |
| Input Channels | 32 points |
| Input Voltage Range | -3 to +7 VDC |
| Rated Voltage | 5 VDC logic level |
| Input Type | TTL-compatible, high-speed DC input |
| Input Configuration | 4 isolated groups of 8 inputs each |
| Input Impedance | ~5.9 kΩ (typical) |
| On-State Voltage | -3 to 0.5 VDC |
| Off-State Voltage | 2 to 7 VDC |
| On-State Current | ~1.7 mA (typical) |
| Off-State Current | ~1.1 mA (max) |
| Input Filtering | Selectable 1 ms or 10 ms filter |
| Cable Length | Up to 30 m (recommended max) |
| Backplane Power Consumption | ~0.53 A at 5 VDC |
| Isolation | 1500 VAC field-to-backplane isolation |
| Status Indicators | 32 LED indicators (one per input channel) |
| Compatibility | GE Series 90-70 VME C.1 rack system |
| Mounting Type | Single-slot rack-mounted module |
| Power Supply | 5 VDC via rack backplane |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Weight | Approx. 0.75–0.85 kg |
| Dimensions (W × H × D) | Approx. 135 mm × 285 mm × 290 mm |
FAQ
What is IC697MDL651 used for?
It is a 32-point high-speed TTL/DC input module used in GE Fanuc Series 90-70 PLC systems for reading fast digital signals such as encoders, sensors, and electronic switches.
What type of signals does it accept?
It accepts low-voltage DC/TTL-compatible signals in the range of -3 to +7 VDC.
How is IC697MDL651 different from standard DC input modules?
Unlike standard 24 VDC input modules, IC697MDL651 is designed for high-speed TTL-level signals and offers faster response with selectable filtering.
Does it support filtering?
Yes. It provides selectable input filtering options of 1 ms or 10 ms depending on application requirements.
How many input channels does it have?
It provides 32 digital input points divided into four isolated groups of eight channels each.
What devices are typically connected to it?
It is commonly used with TTL devices, high-speed sensors, encoders, and low-voltage electronic signal sources.
Is IC697MDL651 still used today?
It is mainly found in legacy GE Fanuc Series 90-70 installations and is typically replaced during modernization or control system upgrades.
GE Fanuc IC697MDL651 DC Discrete Input Module is in stock. Please contact us for a quick quote and competitive pricing.
