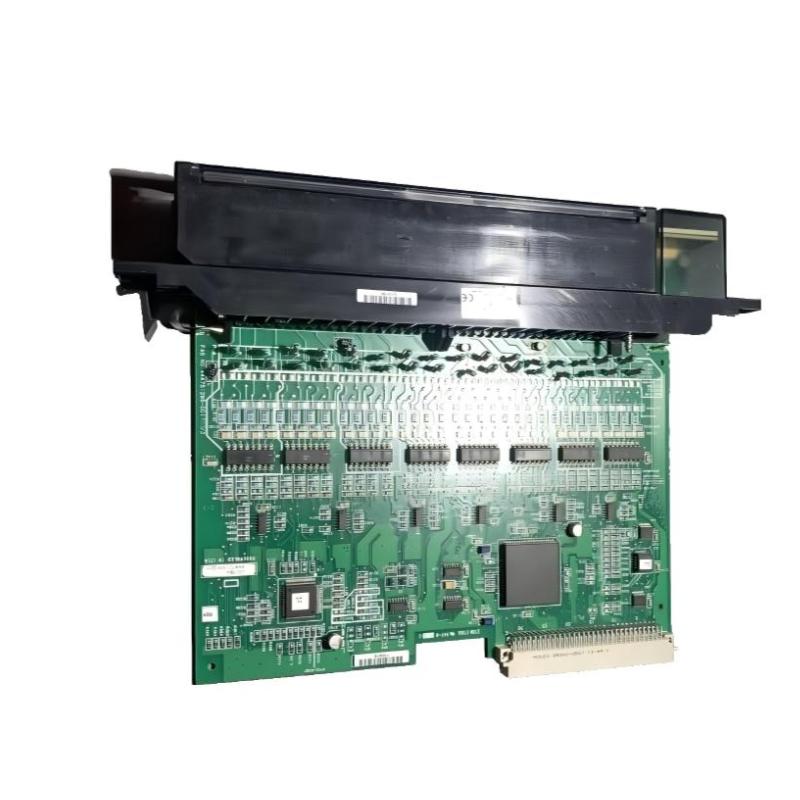

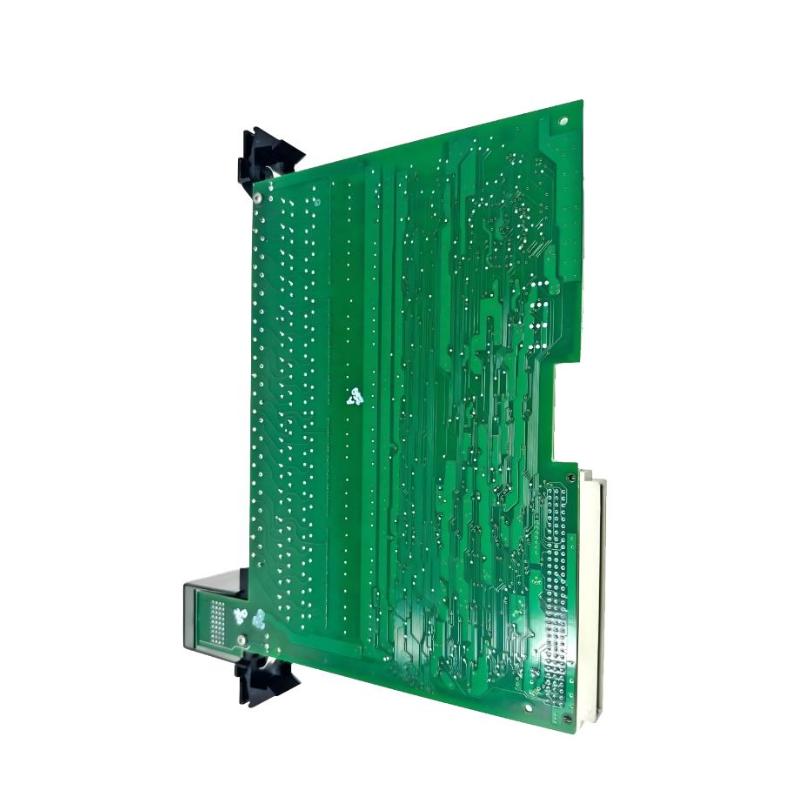

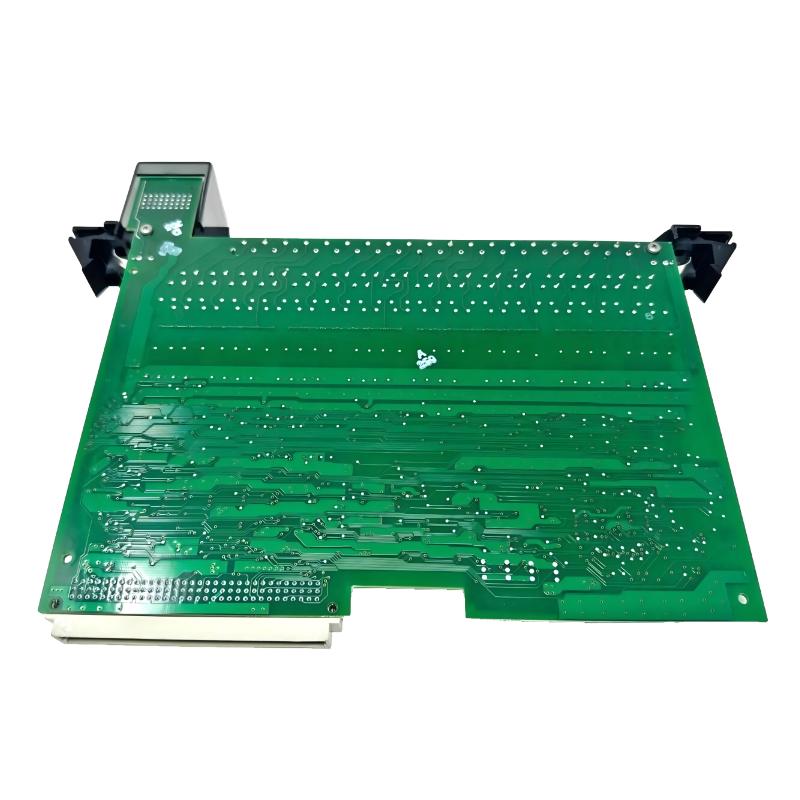

GE Fanuc IC697MDL652 DC Discrete Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | IC697MDL652 |
| Product Type | DC Discrete Input Module |
| Series | GE Fanuc Series 90-70 |
| Function | Digital input module used to read ON/OFF signals from DC field devices in PLC systems |
| Input Channels | 32 points |
| Input Voltage Range | -3 to +30 VDC |
| Nominal Voltage | 24 VDC |
| Input Configuration | 4 isolated groups of 8 inputs each |
| Input Type | Positive/negative logic compatible DC input |
| Input Current | Approx. 7–10 mA per point (at rated voltage) |
| On-State Voltage | Approx. 11.5–30 VDC |
| Off-State Voltage | 0–5 VDC |
| Input Filtering | Hardware filtering (~1–10 ms typical depending on noise conditions) |
| Backplane Power Consumption | ~0.3 A at 5 VDC |
| Isolation | 1500 VAC RMS field-to-backplane isolation, group isolation between input banks |
| Status Indicators | 32 LED indicators (one per channel) |
| Compatibility | GE Series 90-70 rack I/O system |
| Mounting Type | Single-slot rack-mounted module |
| Power Supply | 5 VDC via rack backplane |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (W × H × D) | Approx. 135 mm × 285 mm × 290 mm |
| Weight | Approx. 0.7–1.0 kg |
FAQ
What is IC697MDL652 used for?
It is a 32-point DC input module used in GE Fanuc Series 90-70 PLC systems to monitor ON/OFF signals from DC-powered field devices such as sensors, switches, and relay contacts.
What is the input voltage range of IC697MDL652?
It supports a wide DC input range from -3 to +30 VDC, with a nominal operating level of 24 VDC.
How many input channels does it have?
It provides 32 digital input points arranged in four isolated groups of eight channels each.
Is IC697MDL652 compatible with AC signals?
No. It is strictly designed for DC input applications.
What devices are commonly connected to it?
Typical devices include proximity sensors, limit switches, pushbuttons, and industrial relay contacts.
Does IC697MDL652 support both logic polarities?
Yes. It supports positive and negative logic configurations depending on field wiring.
Does it include signal filtering?
Yes. It includes internal hardware filtering, typically in the range of 1–10 ms depending on signal conditions.
Is IC697MDL652 still used today?
It is mainly found in legacy GE Fanuc Series 90-70 systems and is typically replaced during modernization or system upgrades.
GE Fanuc IC697MDL652 DC Discrete Input Module is in stock. Please contact us for a quick quote and competitive pricing.
