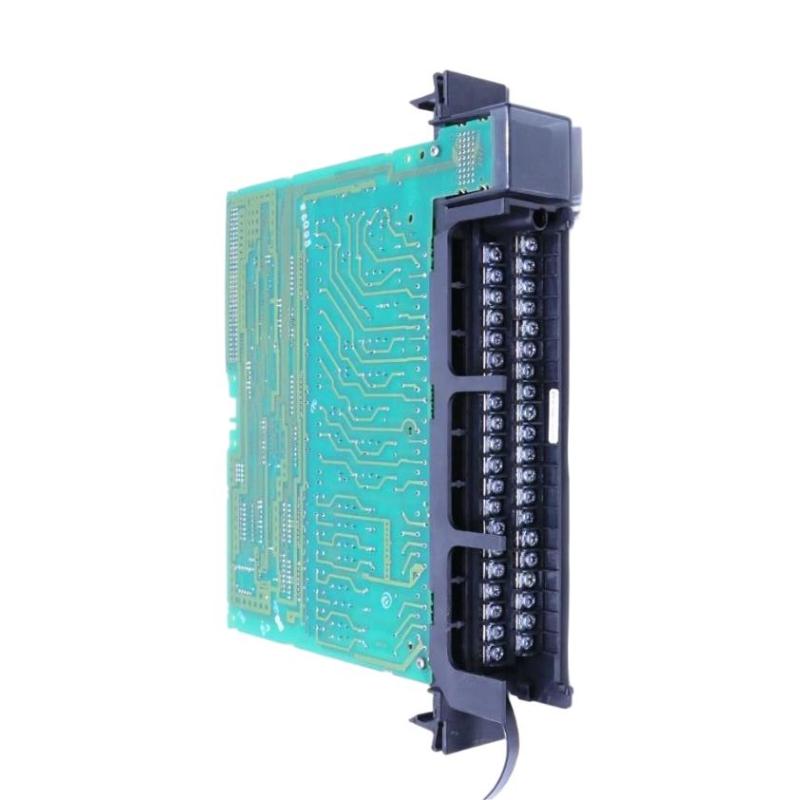

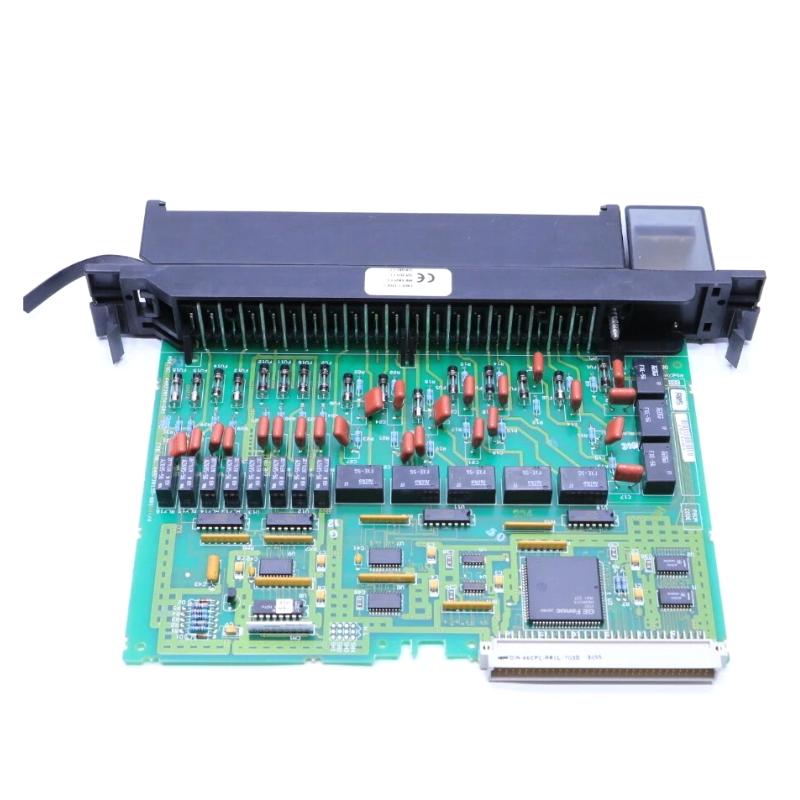

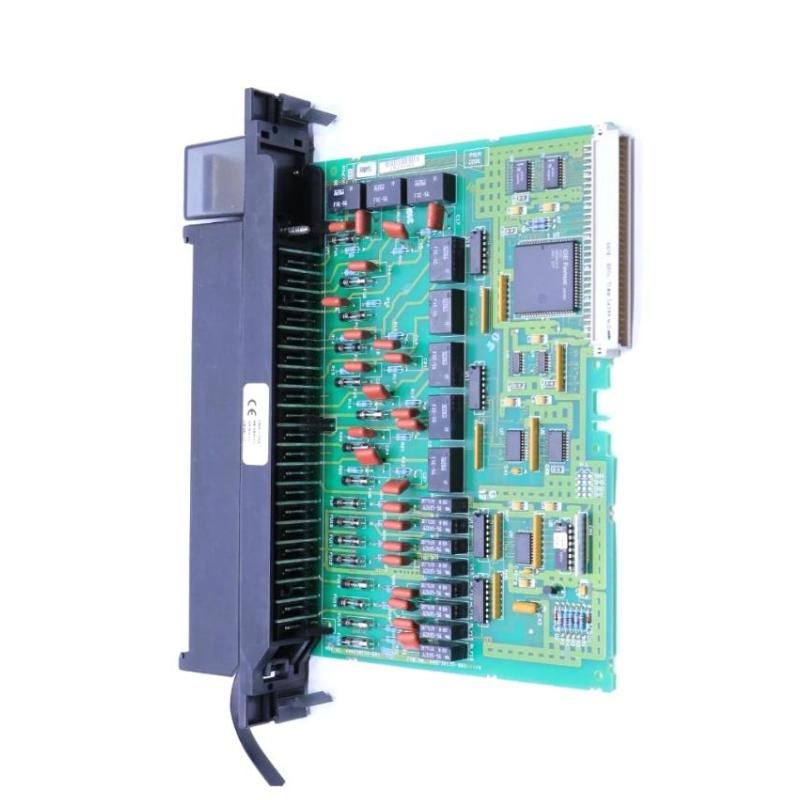

GE Fanuc IC697MDL970 Relay Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | IC697MDL970 |
| Product Type | Relay Output Module |
| Series | GE Fanuc Series 90-70 |
| Function | High-capacity relay output module used to switch AC and DC field loads in industrial PLC systems |
| Output Channels | 16 points |
| Output Configuration | Electromechanical relay outputs (Form C / Form A depending on channel grouping) |
| Output Voltage Range | 5–250 VAC / 5–125 VDC |
| Output Current | Up to 2 A per point (resistive load dependent) |
| Grouping | Typically 2 groups of 8 outputs |
| Switching Type | Mechanical relay contacts |
| Contact Material | Silver alloy (industrial grade) |
| Expected Electrical Life | 100,000+ operations (load dependent) |
| Mechanical Life | Up to several million operations |
| Response Time | ~10–15 ms ON / ~10–15 ms OFF |
| Minimum Load | ~10 mA required for stable contact performance |
| Backplane Power Consumption | ~0.7–0.9 A at 5 VDC |
| Isolation | 1500 VAC field-to-backplane isolation |
| Protection | External snubber recommended for inductive loads |
| Status Indicators | 16 LED indicators (one per output channel) |
| Compatibility | GE Series 90-70 rack I/O system |
| Mounting Type | Single-slot rack-mounted module |
| Power Supply | 5 VDC via rack backplane |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (W × H × D) | Approx. 135 mm × 285 mm × 290 mm |
| Weight | Approx. 0.8–1.2 kg |
FAQ
What is IC697MDL970 used for?
It is a relay output module used in GE Fanuc Series 90-70 PLC systems to control both AC and DC field devices such as contactors, solenoids, motor starters, and industrial alarms.
What type of outputs does IC697MDL970 use?
It uses electromechanical relay contacts, allowing it to switch both AC and DC loads.
How many output channels does it provide?
It typically provides 16 output channels, arranged in grouped relay configurations.
What is the main advantage of relay outputs?
Relay outputs are electrically isolated and can handle a wide range of voltages, making them suitable for mixed AC/DC industrial applications.
What is the output current rating?
Each relay contact supports up to approximately 2 A depending on load type and environmental conditions.
Does IC697MDL970 support inductive loads?
Yes, but inductive loads require external suppression (snubber circuits or diodes) to reduce contact wear and extend relay life.
How fast is the switching speed?
Typical switching time is around 10–15 ms for both ON and OFF operations.
Is IC697MDL970 still used today?
It is mainly found in legacy GE Fanuc Series 90-70 installations and is typically replaced during system modernization or migration projects.
GE Fanuc IC697MDL970 Relay Output Module is in stock. Please contact us for a quick quote and competitive pricing.
