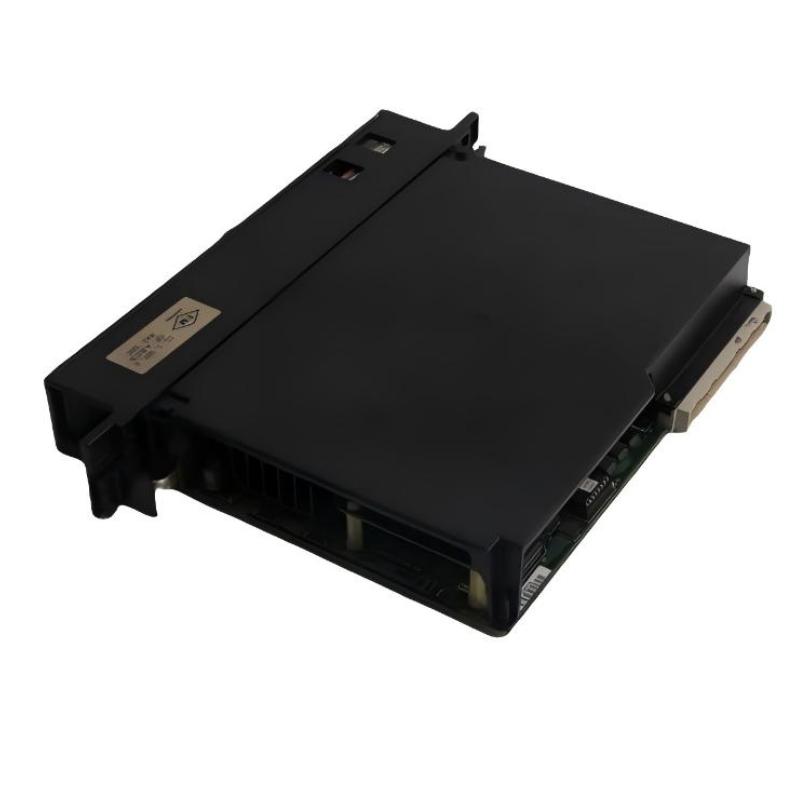

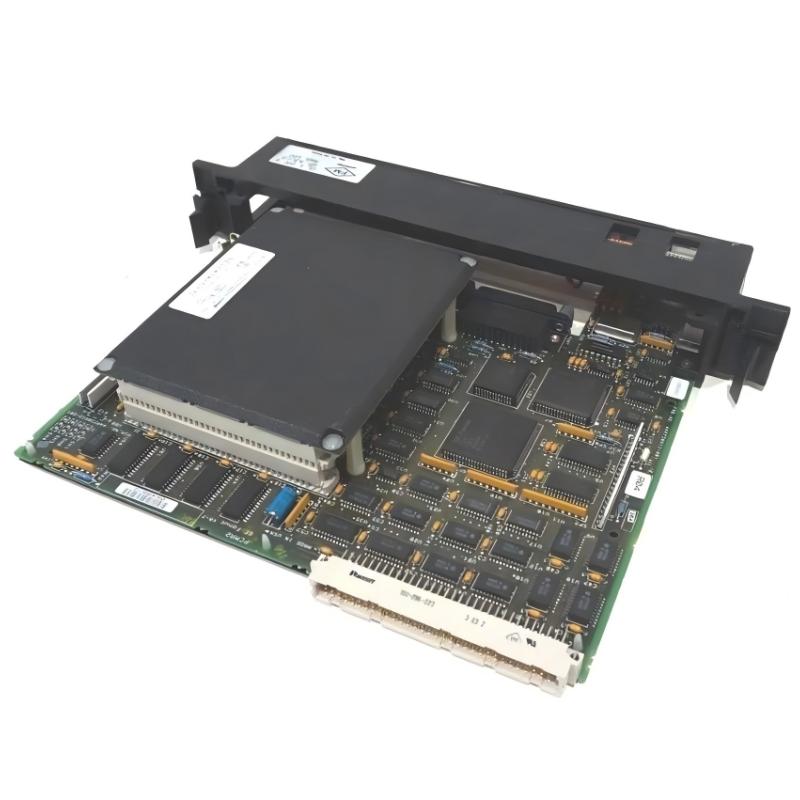

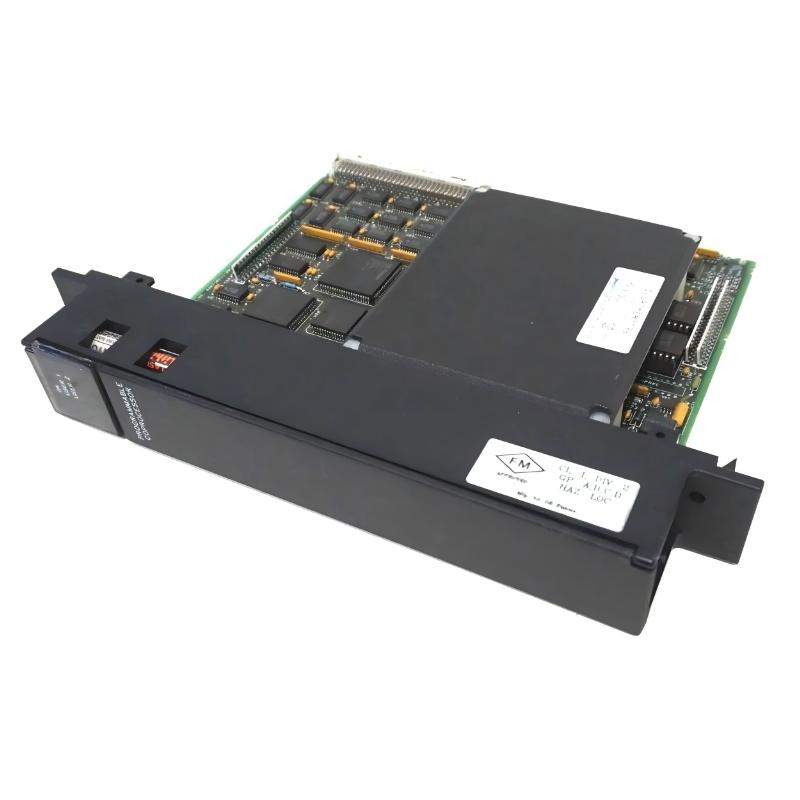

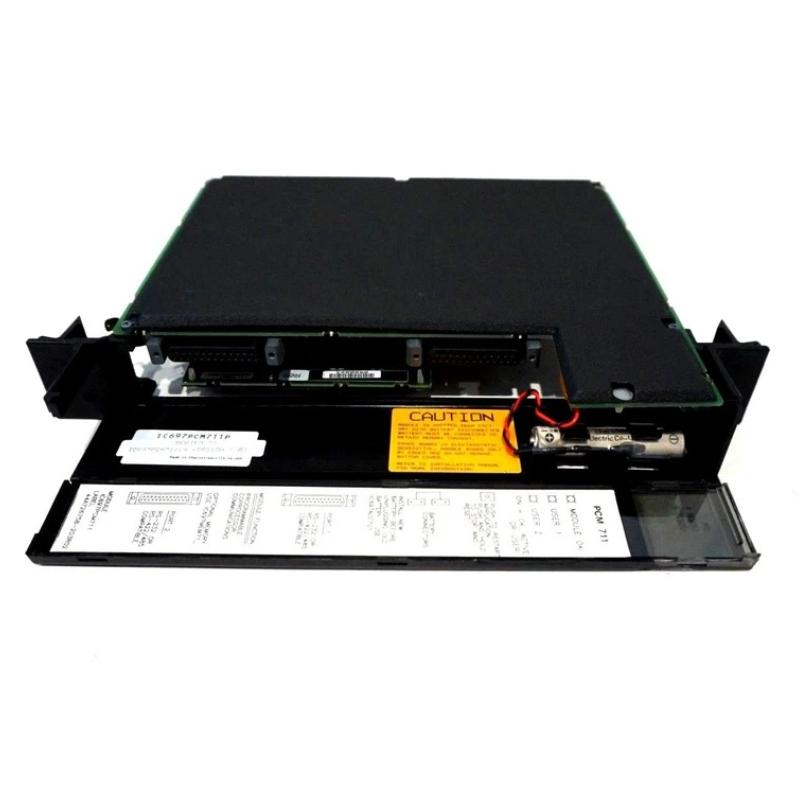

GE Fanuc IC697PCM711 Programmable Coprocessor Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC697PCM711 |
| Manufacturer | GE Fanuc |
| Product Series | Series 90-70 PLC |
| Module Type | Programmable Coprocessor Module (PCM) |
| Function | High-speed auxiliary processing for PLC CPU (real-time computing, data handling, communication) |
| Processing Role | Offloads complex tasks from main CPU to improve system performance |
| Programming Method | PCM Development Software (PC-based configuration required) |
| Communication Interface | PLC backplane (internal rack communication) |
| Serial Ports | Dual serial communication ports (independent operation supported) |
| Memory Support | Base memory ~95 KB user memory; expandable up to 512 KB |
| Expansion Memory | Optional daughter board (64 KB / 128 KB / 256 KB / 512 KB) |
| Tasking Capability | Dual-task execution (real-time multi-function processing) |
| Battery Backup | Lithium battery supported for memory retention |
| Power Supply | 5 V DC from backplane |
| Power Consumption | Approx. 1.0 A @ 5 V DC |
| Installation Type | Single-slot rack-mounted module |
| Programming Hardware | IBM-compatible PC (XT/AT class or equivalent industrial PC) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5%–95% non-condensing |
| Dimensions (W × H × D) | 165 mm × 100 mm × 35 mm (approx.) |
| Weight | 2.0 kg (approx.) |
| Application Area | Industrial automation, motion control support, data acquisition systems |
FAQ
What is the IC697PCM711 used for?
It is a programmable coprocessor module designed to extend the processing capability of GE Fanuc Series 90-70 PLC systems.
Does the module replace the main PLC CPU?
No. It works alongside the CPU and handles specific tasks such as data processing, communication, and real-time computations.
How does IC697PCM711 communicate with the PLC system?
It communicates through the PLC backplane and does not require external wiring for CPU interaction.
Can the IC697PCM711 be programmed independently?
Yes, it is configured using PCM Development Software on a compatible PC.
What is the memory capacity of this module?
It provides approximately 95 KB base memory, expandable up to 512 KB with an optional daughter board.
Does it support multiple tasks?
Yes, it supports dual-tasking, allowing simultaneous execution of different processing functions.
Is battery backup required?
Yes, a lithium battery is used to retain memory data when power is removed.
What happens if the module fails?
If it fails, the PLC may lose auxiliary processing capability, which can reduce system performance or disrupt specific advanced functions relying on the coprocessor.
