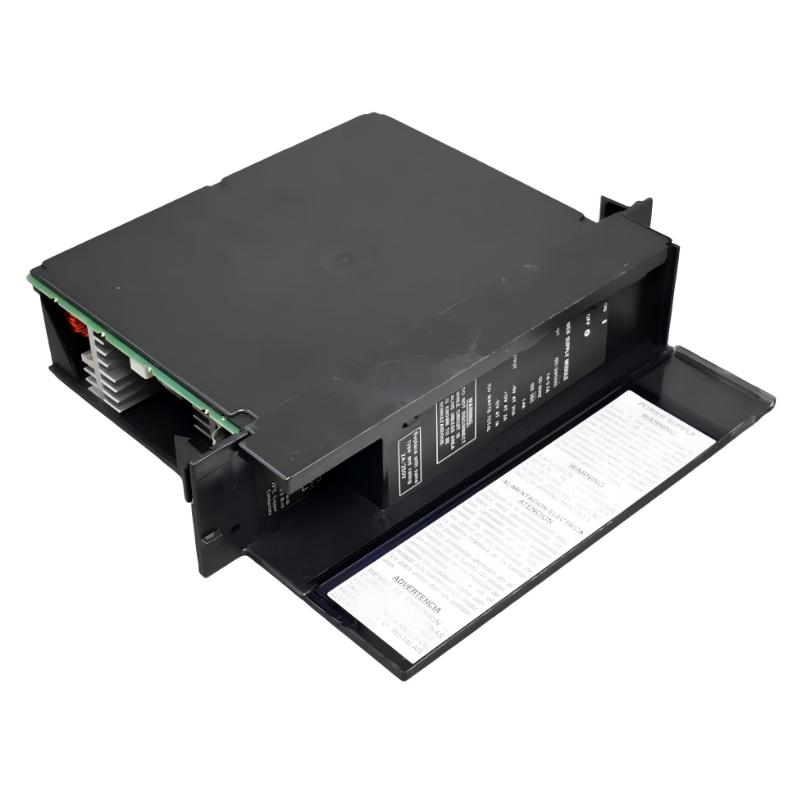

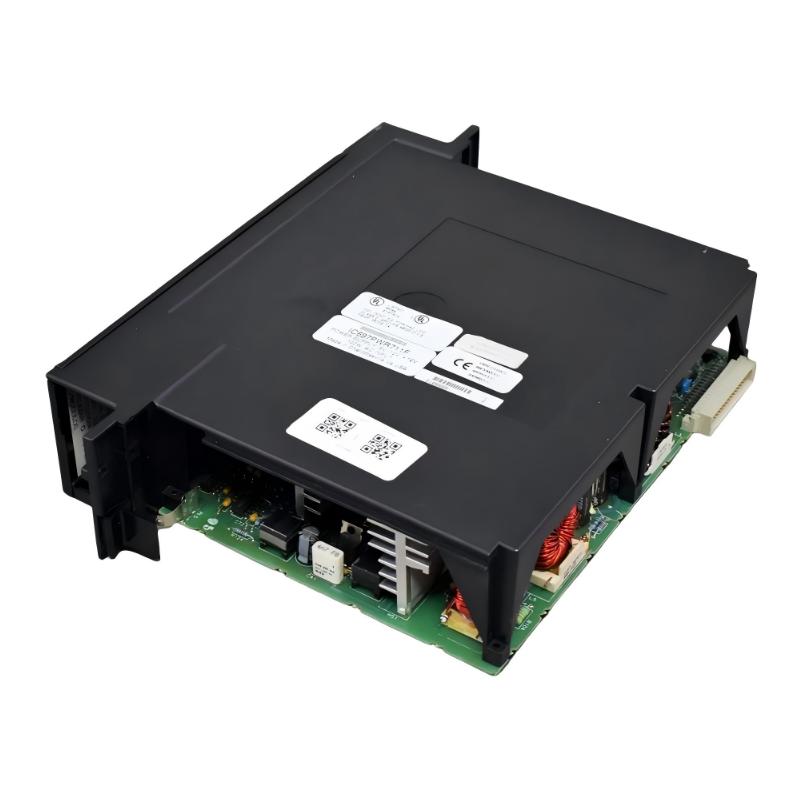

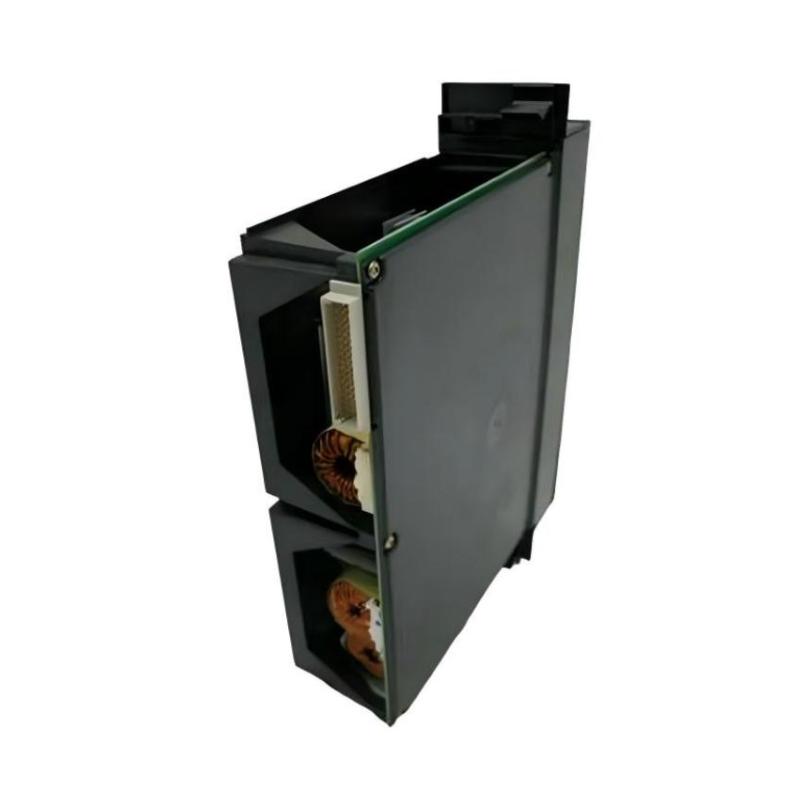

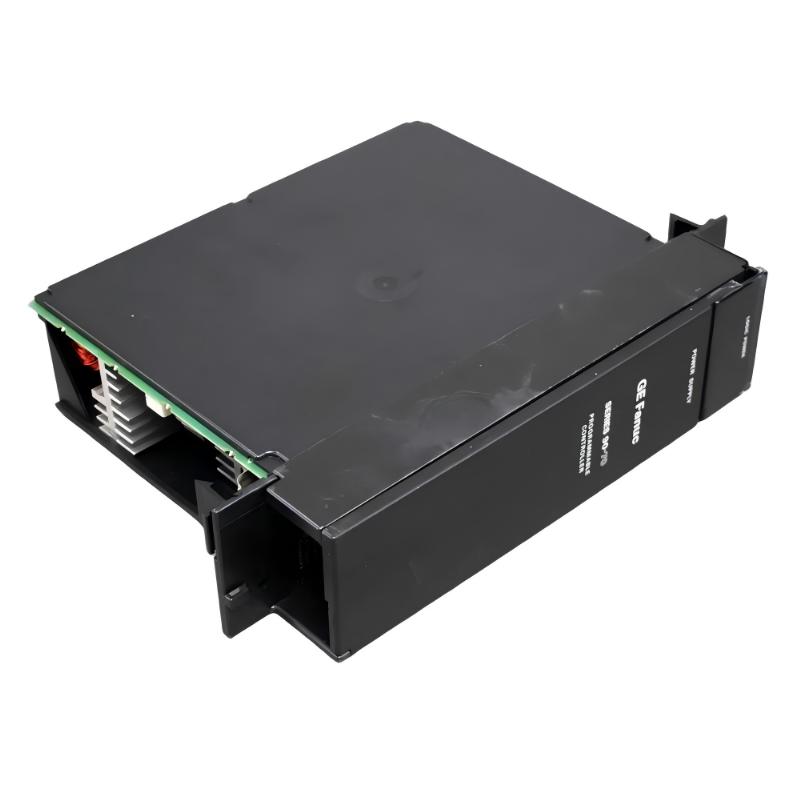

GE Fanuc IC697PWR711 Power Supply Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC697PWR711 |
| Manufacturer | GE Fanuc |
| Product Series | Series 90-70 PLC |
| Module Type | Power Supply Module |
| Function | Provides regulated DC power to PLC backplane and modules |
| Input Voltage (AC) | 120 / 240 VAC nominal |
| Input Voltage Range (AC) | 90 – 264 VAC, 47–63 Hz |
| Input Voltage (DC) | 125 VDC nominal |
| Input Voltage Range (DC) | 100 – 150 VDC |
| Input Power | Approx. 135 W typical, 160 W max |
| Output Power | 100 W total |
| Output Voltages | +5 VDC, +12 VDC, -12 VDC |
| +5 VDC Output Current | Up to ~20 A |
| +12 VDC Output Current | Up to ~2 A |
| -12 VDC Output Current | Up to ~1 A |
| Power Factor | > 0.93 |
| Holdup Time | ≥ 21 ms (minimum) |
| Protection Features | Overvoltage, overcurrent, short-circuit protection |
| Interface | 48-pin backplane connector |
| Mounting Type | Leftmost slot (rack-mounted) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5%–95% non-condensing |
| Dimensions (W × H × D) | 165 mm × 100 mm × 35 mm (approx.) |
| Weight | 1.8 kg (approx.) |
| Application | Industrial PLC power distribution for automation systems |
FAQ
What is the IC697PWR711 used for?
It is a power supply module used in GE Fanuc Series 90-70 PLC systems to provide stable DC power to the backplane and all connected modules.
What input voltages does IC697PWR711 support?
It supports 120/240 VAC as well as 125 VDC input, with a wide operating range suitable for industrial environments.
How much power can the module deliver?
It provides up to 100 W total output across +5 VDC, +12 VDC, and -12 VDC rails.
Where is the module installed in the rack?
It is installed in the leftmost slot of the Series 90-70 rack to supply power to the entire backplane.
Does IC697PWR711 support dual-rack operation?
Yes, it can supply power to a second rack if the total load remains within rated limits.
What protection features does it have?
It includes overvoltage protection, overcurrent protection, and short-circuit protection for system safety.
What happens if the power supply fails?
A failure will shut down the PLC backplane, causing all connected modules and CPU operations to stop.
Is this module still commonly used?
It is mainly found in legacy industrial automation systems that still operate GE Fanuc Series 90-70 PLC hardware.
GE Fanuc IC697PWR711 Power Supply Module is in stock. Please contact us for a quick quote and competitive pricing.
