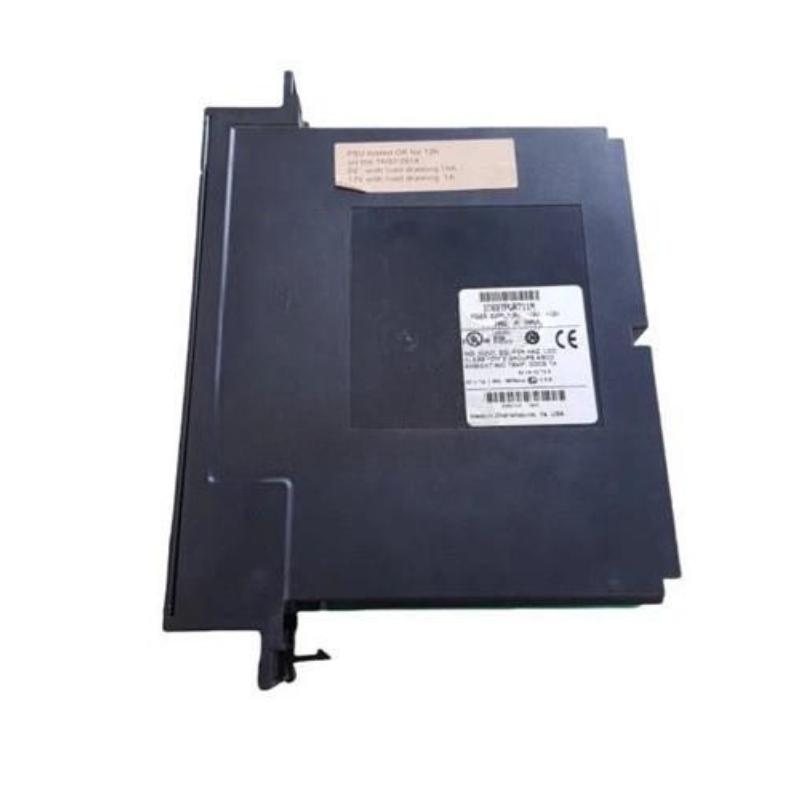

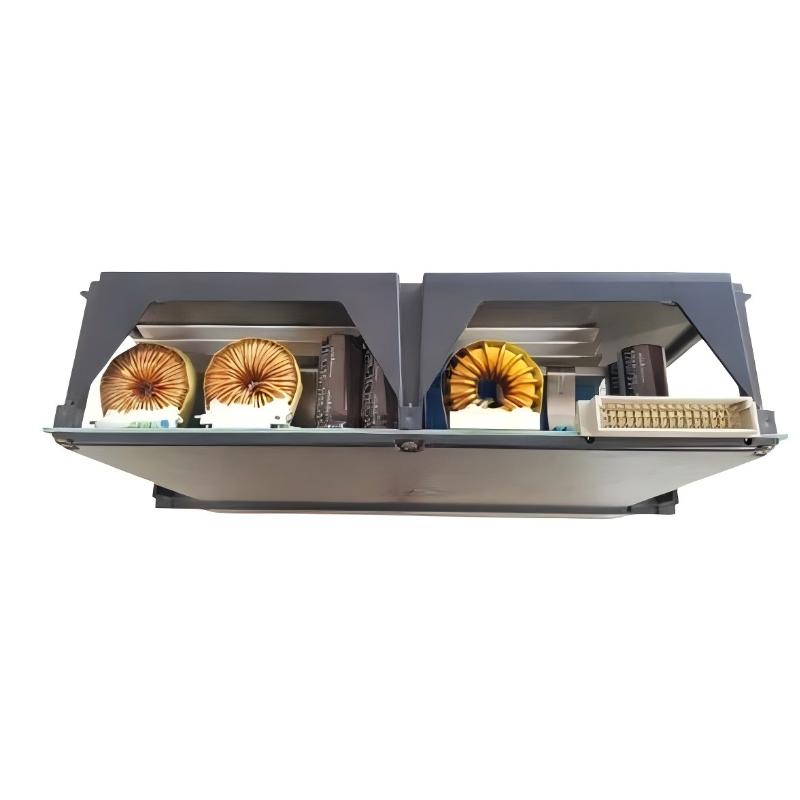

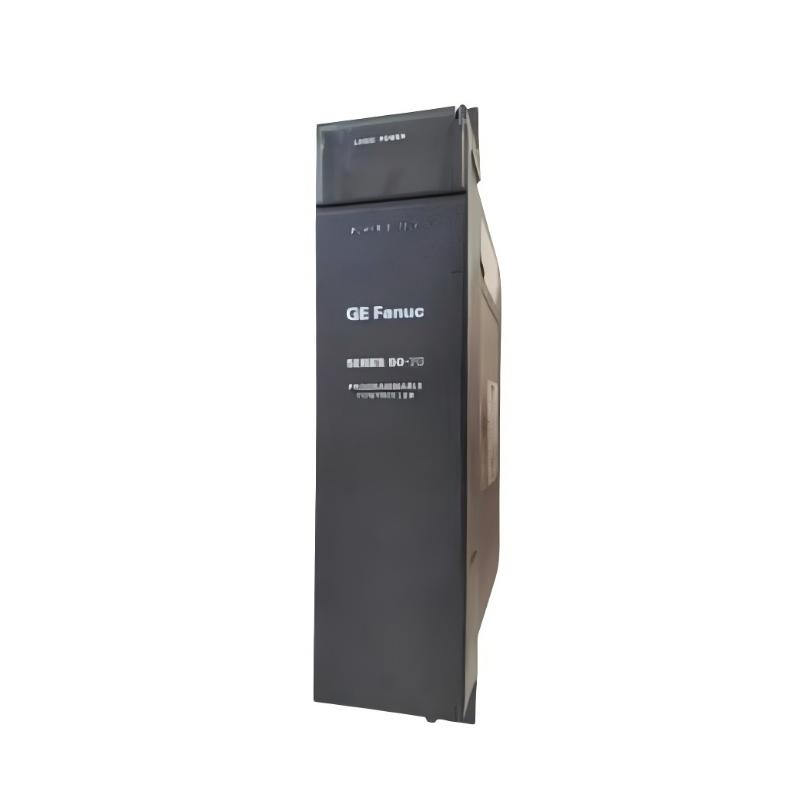

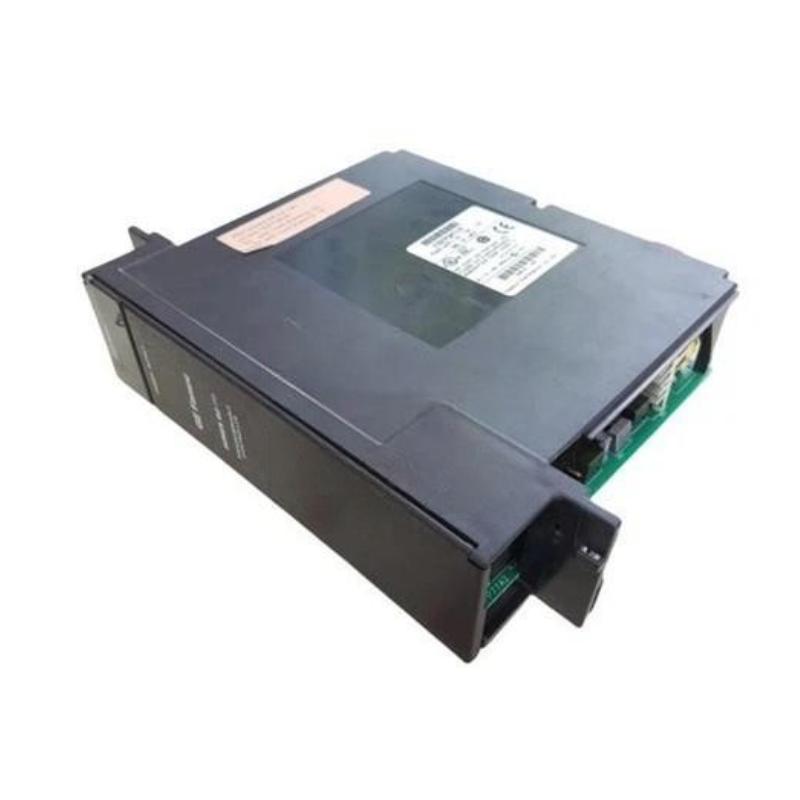

GE Fanuc IC697PWR713 Power Supply Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC697PWR713 |
| Manufacturer | GE Fanuc |
| Product Series | Series 90-70 PLC |
| Module Type | Power Supply Module |
| Function | Converts AC/DC input into regulated DC power for PLC backplane and modules |
| Input Voltage (AC) | 120 / 240 VAC nominal |
| Input Voltage Range (AC) | 90 – 264 VAC, 47–63 Hz |
| Input Voltage (DC) | 125 VDC nominal |
| Input Voltage Range (DC) | 100 – 150 VDC |
| Input Power | 135 W typical, 160 W max |
| Output Power | 100 W total |
| Output Voltages | +5 VDC, +12 VDC, -12 VDC |
| +5 VDC Output Current | Up to 20 A |
| +12 VDC Output Current | Up to 2 A |
| -12 VDC Output Current | Up to 1 A |
| Power Factor | > 0.93 |
| Holdup Time | ≥ 21 ms |
| Protection Features | Overvoltage, overcurrent, short-circuit protection |
| Interface | 48-pin backplane connector |
| Mounting Position | Leftmost slot of rack |
| Rack Capability | Supports single rack or dual-rack power (within load limits) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5%–95% non-condensing |
| Dimensions (W × H × D) | 165 mm × 100 mm × 35 mm (approx.) |
| Weight | 1.8 kg (approx.) |
| Application Area | Industrial PLC power distribution systems |
FAQ
What is the IC697PWR713 used for?
It is a power supply module used in GE Fanuc Series 90-70 PLC systems to provide regulated DC power to all rack-mounted modules.
What input power types does it support?
It supports both AC (120/240 VAC) and DC (125 VDC) input with a wide industrial operating range.
How much output power does it provide?
The module delivers up to 100 W total across +5 VDC, +12 VDC, and -12 VDC outputs.
Where is IC697PWR713 installed in the PLC rack?
It is installed in the leftmost slot of the Series 90-70 rack.
Can it power more than one rack?
Yes, it can supply power to two racks if the total load remains within rated limits.
What protections are built into the module?
It includes overvoltage, overcurrent, and short-circuit protection to ensure system safety.
What happens if the module fails?
A failure will shut down the PLC backplane, causing all connected modules and CPU operations to stop.
Is IC697PWR713 still widely used?
It is mainly found in legacy industrial automation systems using GE Fanuc Series 90-70 PLC platforms.
GE Fanuc IC697PWR713 Power Supply Module is in stock. Please contact us for a quick quote and competitive pricing.
