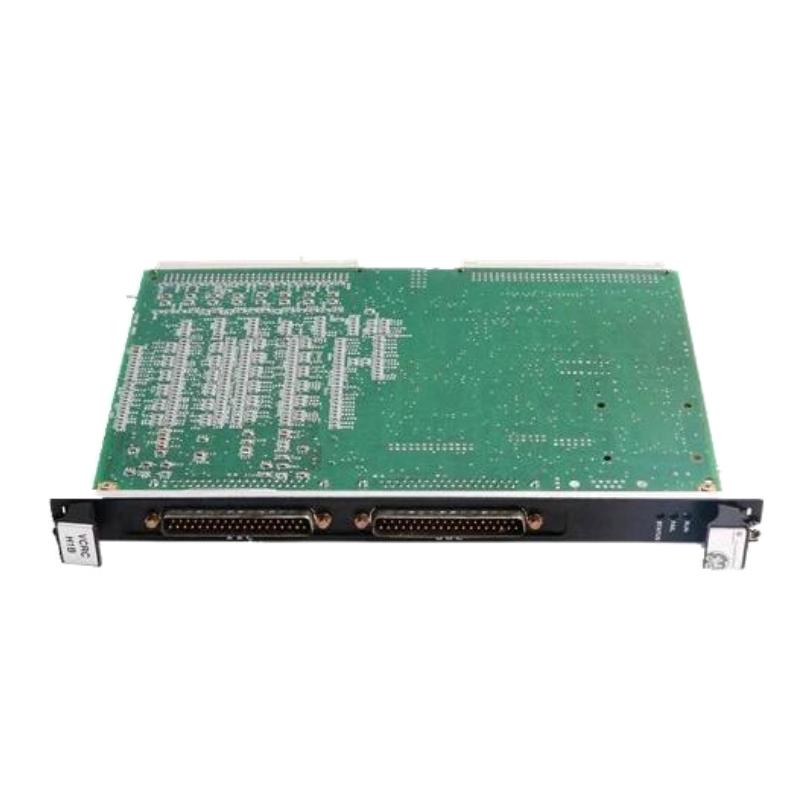

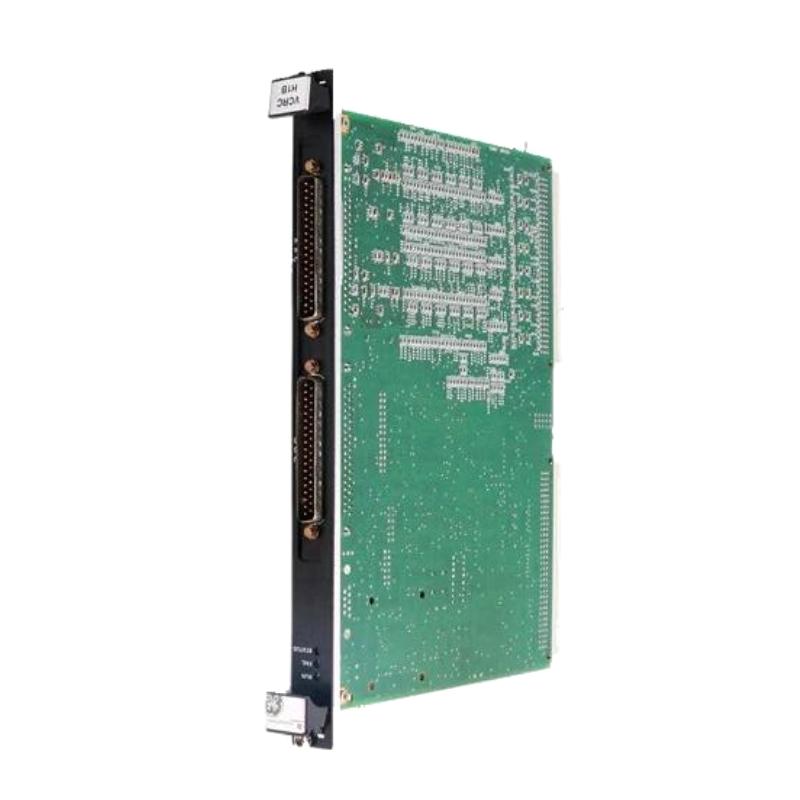

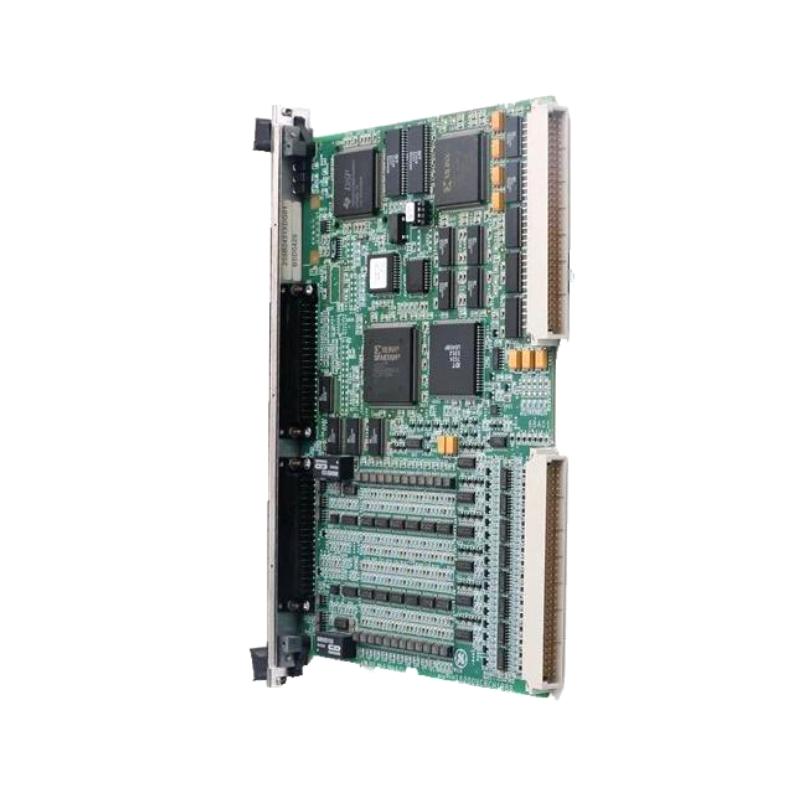

GE Fanuc IS200AECPH1CCB Exciter ISBus Communication Board
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||

Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IS200AECPH1CCB |
| Manufacturer | GE Industrial Systems |
| Product Family | EX2100 Excitation Control System / Mark VI |
| Product Type | Exciter ISBus Communication Board |
| Module Type | AECP Communication Interface Board |
| Function | Communication Interface Between Excitation Control Modules |
| Board Type | 3U Module |
| Communication Medium | Fiber-Optic Communication |
| Supported Modules | M1 and M2 Control Modules |
| Interface Function | ISBus Data Exchange and Signal Processing |
| Front Panel Indicators | 6 Status Indicators |
| Monitored Signals | Generator Field Voltage, Generator Field Current, Exciter Voltage, Exciter Current, Ground Detection Input and Output |
| Signal Transmission | Fiber-Optic Signal Transmit and Receive |
| Ground Detection Support | Interface to EGDM (Ground Detection Module) |
| Installation | Single-Slot Rack Installation |
| Backplane Interface | EX2100 Control Backplane |
| Diagnostics | Built-In Communication and Status Diagnostics |
| LED Indicators | Communication Status and Fault Indicators |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -30°C to +65°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Dimensions (H × W × D) | 133 × 20 × 160 mm |
| Weight | 0.80 kg |
| Typical Applications | Generator Excitation Systems, Turbine Control Systems, Power Generation Control Networks |
| Lifecycle Status | Obsolete / Legacy Product |
FAQ
Q1: What is the IS200AECPH1CCB?
A1: The IS200AECPH1CCB is an Exciter ISBus communication board used in GE EX2100 and Mark VI control systems to facilitate communication between excitation control components.
Q2: What is the primary function of this board?
A2: Its primary function is to provide a dedicated communication interface for exchanging control data and status information between M1/M2 control modules and other excitation system devices.
Q3: What type of communication does it use?
A3: The board transmits and receives fiber-optic communication signals across the excitation control network.
Q4: What indicators are available on the front panel?
A4: The board includes six front-panel indicators associated with generator field voltage/current, exciter voltage/current, and ground detection input/output monitoring.
Q5: Does the board support ground detection functions?
A5: Yes. It communicates with the EGDM (Ground Detection Module) and transfers related monitoring signals.
Q6: Where is the module installed?
A6: The module is a 3U board that occupies a single slot within the EX2100 excitation control cabinet.
Q7: What are the typical applications?
A7: It is commonly used in generator excitation systems, turbine control systems, and utility power generation facilities.
Q8: Is the IS200AECPH1CCB still available?
A8: The module is considered a legacy GE control-system component. Refurbished, surplus, and replacement units remain available through industrial automation suppliers.
GE Fanuc IS200AECPH1CCB Exciter ISBus Communication Board is in stock. Please contact us for a quick quote and competitive pricing.
