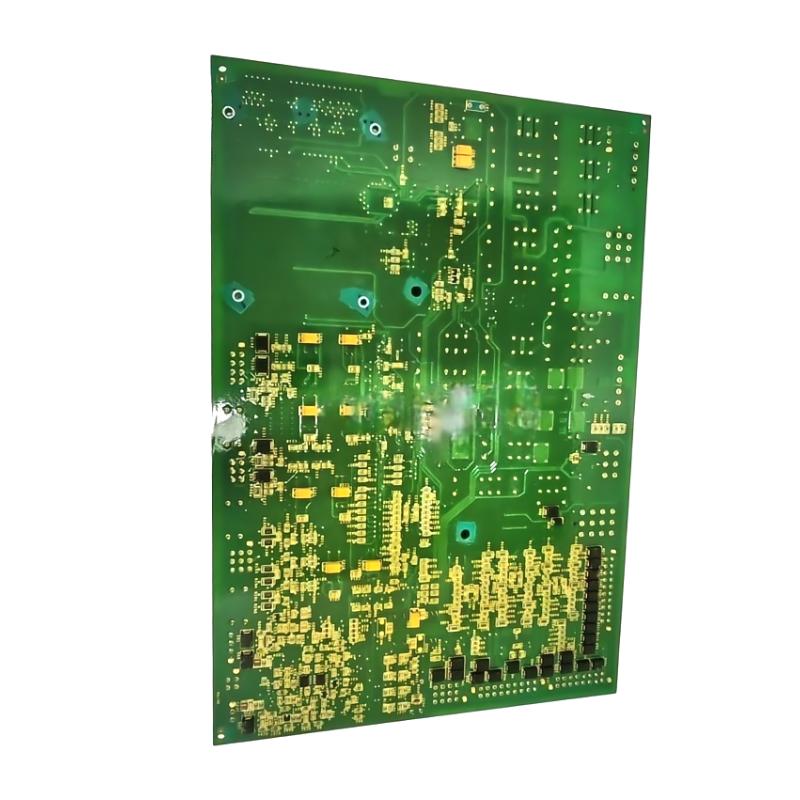

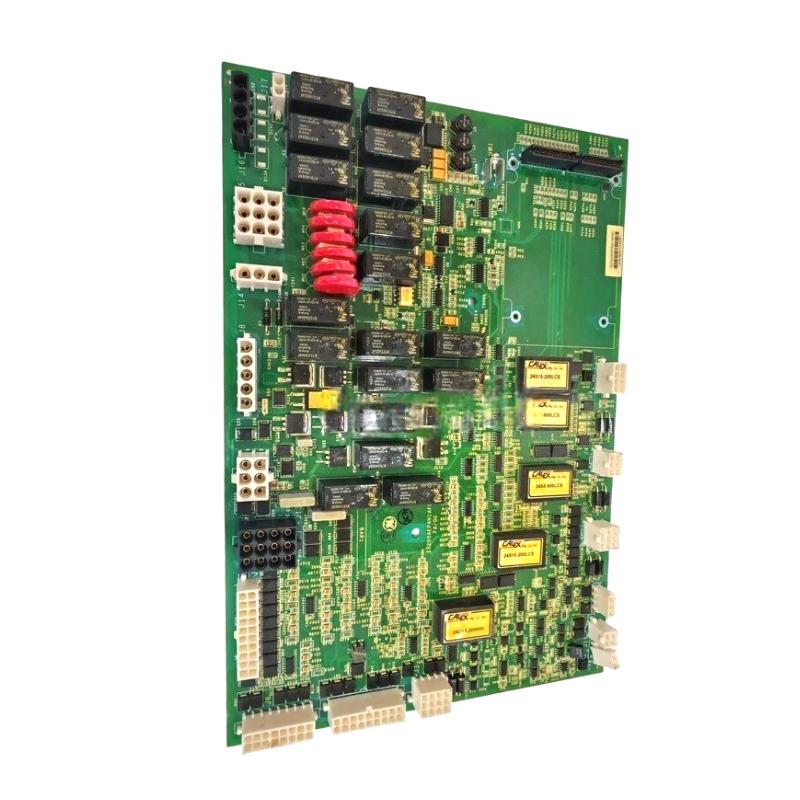

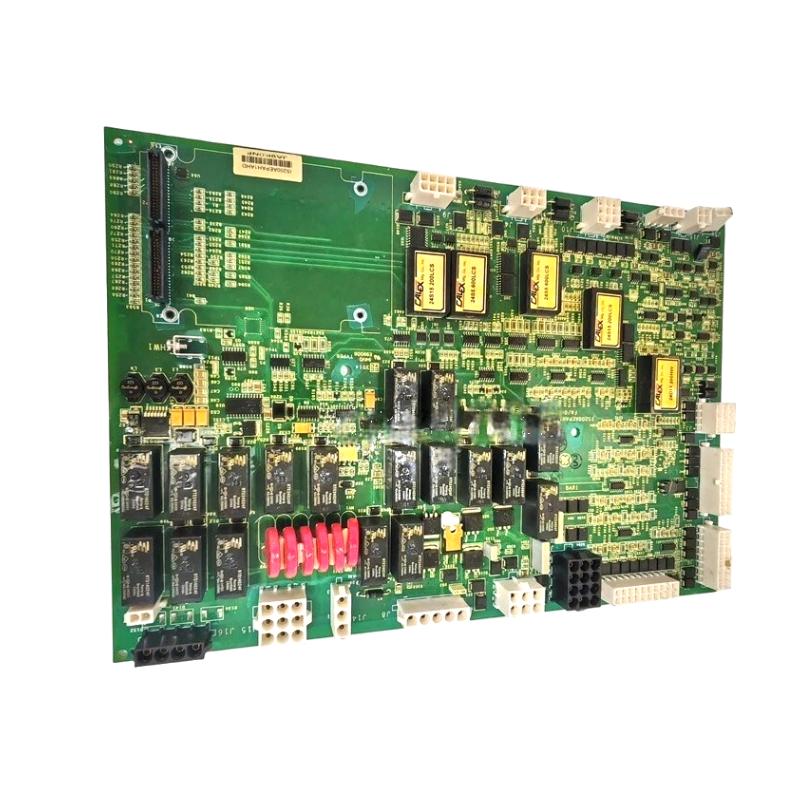

GE Fanuc IS200AEPAH1A Analog Input/Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IS200AEPAH1A |
| Manufacturer | GE Industrial Systems |
| Product Family | EX2100 / Mark VI Excitation Control System |
| Product Type | Analog Input/Output Module |
| Module Type | AEPAH1 Analog Module |
| Function | Provides high-speed analog input and output for excitation and turbine control systems |
| Input Channels | 8 Differential Analog Inputs |
| Input Range | ±10 VDC, ±5 VDC, 0–10 VDC |
| Input Resolution | 16-Bit ADC |
| Input Accuracy | ±0.1% of Full Scale |
| Output Channels | 4 Analog Outputs |
| Output Range | 0–20 mA, 4–20 mA, 0–10 VDC |
| Output Resolution | 16-Bit DAC |
| Output Accuracy | ±0.1% of Full Scale |
| Sample Rate | Up to 1 kHz per channel |
| Isolation | Channel-to-Channel and Channel-to-Backplane Isolation |
| Communication | ISBus / Backplane |
| LED Indicators | Module Status, Fault, Channel Activity |
| Backplane Slot | Single Slot Installation |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -30°C to +65°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Dimensions (H × W × D) | 147 × 35 × 120 mm |
| Weight | 0.65 kg |
| Typical Applications | Generator Excitation, Turbine Control, High-Speed Analog Data Acquisition, Process Control |
| Lifecycle Status | Legacy / Obsolete Product |
FAQ
Q1: What is the IS200AEPAH1A?
A1: The IS200AEPAH1A is a high-speed analog I/O module used in GE EX2100 and Mark VI excitation/control systems, providing precise analog input and output channels for advanced control applications.
Q2: How many input and output channels does it have?
A2: It provides 8 differential analog inputs and 4 analog outputs.
Q3: What are the input and output ranges?
A3: Inputs support ±10 VDC, ±5 VDC, or 0–10 VDC; outputs support 0–20 mA, 4–20 mA, or 0–10 VDC.
Q4: What resolution and accuracy does the module provide?
A4: Both input and output channels have 16-bit resolution with ±0.1% full-scale accuracy.
Q5: What is the sampling rate?
A5: Each channel can be sampled at up to 1 kHz, suitable for high-speed control applications.
Q6: Where is the module installed?
A6: It is installed in a single backplane slot within EX2100 or Mark VI control racks.
Q7: What are typical applications?
A7: The module is used for generator excitation, turbine control, process control, and high-speed analog data acquisition.
Q8: Is the IS200AEPAH1A still available?
A8: The module is a legacy/obsolete product. Refurbished, surplus, or replacement units may be sourced through industrial automation suppliers.
GE Fanuc IS200AEPAH1A Analog Input/Output Module is in stock. Please contact us for a quick quote and competitive pricing.
