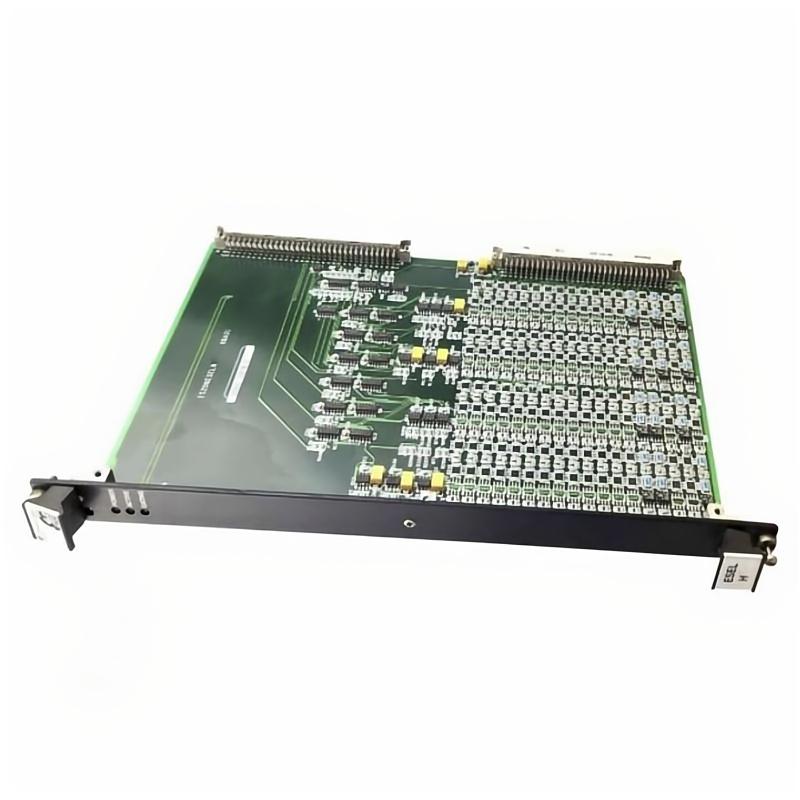

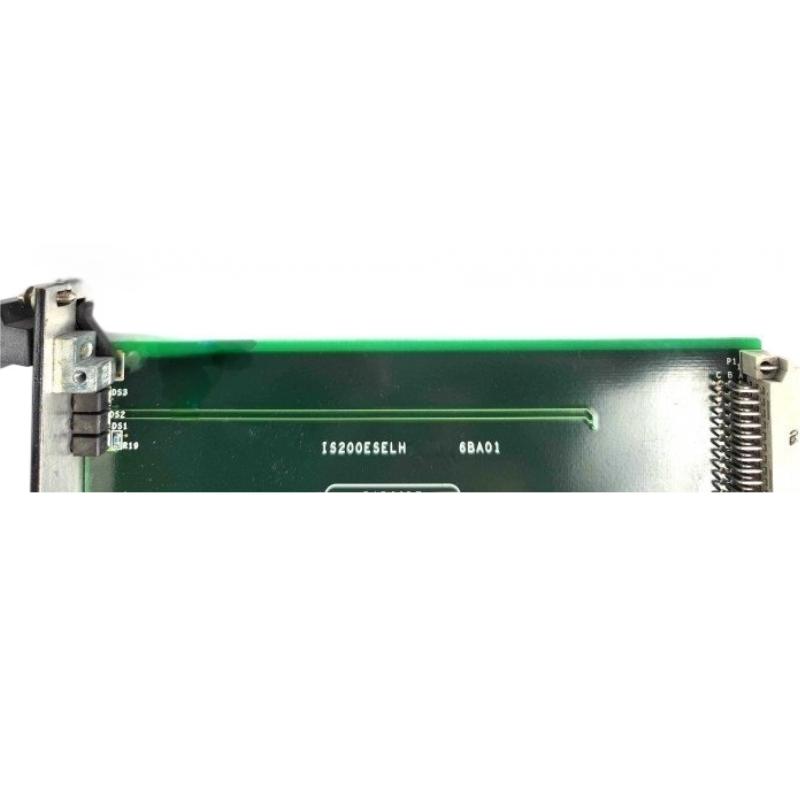

GE Fanuc IS200ESELH1AAA Exciter Selector Board
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | IS200ESELH1AAA |
| Series | GE EX2100 Excitation System / Mark VI Speedtronic |
| Product Type | Exciter Selector Board (ESEL) |
| System Application | Generator excitation control system |
| Platform | EX2100 / Mark VI control architecture |
| Main Function | Selects and routes logic-level gate pulse signals from control system to power bridge firing path |
| System Role | Signal selection and distribution module between EMIO and EGPA/EHPA boards |
| Input Signals | Six logic-level gate pulse commands from EMIO board |
| Output Function | Distributes selected gate commands to EGPA (gate pulse amplifier boards) |
| Controlled Devices | Up to 6 SCR gate channels (via EGPA interface) |
| Redundancy Function | Selects active controller path (M1/M2) under supervision of controller C |
| Communication | Internal EX2100 backplane communication |
| System Integration | Works with EMIO, EGPA, DSPX, EPDM, and power conversion cabinet |
| Architecture Support | Supports simplex and redundant excitation control systems |
| Bridge Driver Level | H1 configuration: single bridge driver / single PCM support |
| Signal Flow | EMIO → ESEL → EGPA → SCR bridge firing |
| Isolation | Electrical isolation via backplane routing and signal conditioning |
| Power Supply | +5 V DC (via system backplane) |
| Board Type | Industrial VME-style control PCB |
| Mounting Type | 6U rack-mounted module in control cabinet |
| Diagnostics | LED indicators for power, active path, and gating status |
| Operating Environment | Power plant turbine / generator excitation systems |
| Operating Temperature | -40°C to +65°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (W × H × D) | Approx. 33 cm × 10 cm × 20 cm |
| Weight | Approx. 0.4–2 kg (depending on revision) |
FAQ
1. What is IS200ESELH1AAA used for?
It is used in GE EX2100 excitation systems to route and select gate pulse signals from the control system to the SCR firing path.
2. What is its main function?
It receives six logic-level gate commands from the EMIO board and distributes them to EGPA boards for SCR firing control.
3. What does “H1” mean in this model?
H1 indicates a single bridge driver configuration, typically used for a single Power Conversion Module (PCM).
4. Which system is it compatible with?
It is designed for GE EX2100 and Mark VI excitation control systems used in turbine-generator applications.
5. What happens in redundancy operation?
It works with M1/M2 controllers, while controller C selects which path (active or standby) is used.
6. Does it directly fire SCRs?
No, it only routes logic signals; EGPA boards perform the actual SCR gate amplification and firing.
7. What boards does it interact with?
It interfaces with EMIO (input), EGPA (output), and DSPX controller boards.
8. Why is this board important?
Because it ensures correct and reliable routing of gate pulse signals, which is critical for stable excitation and generator operation.
