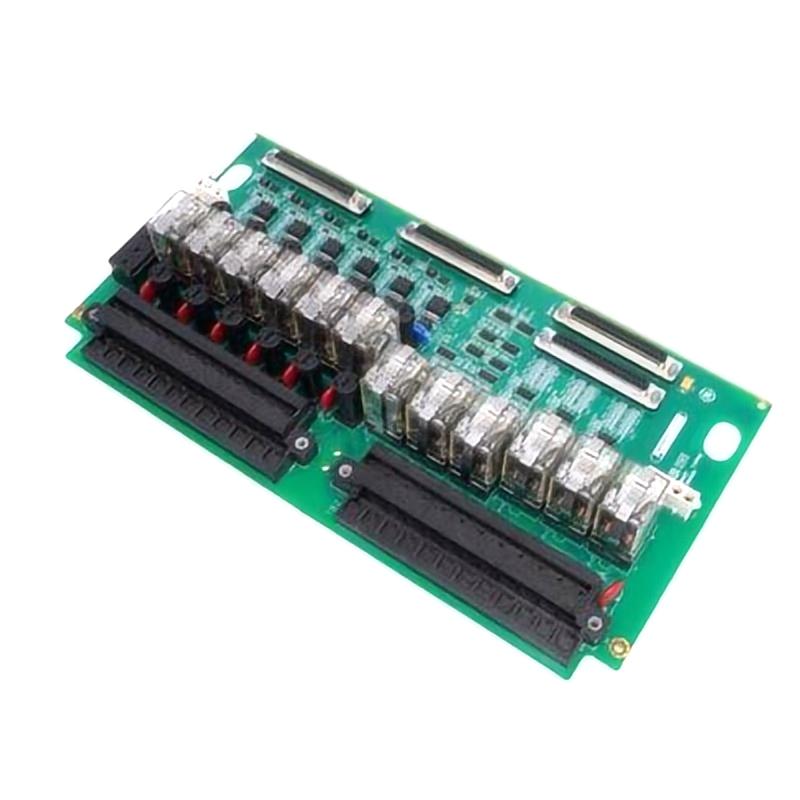

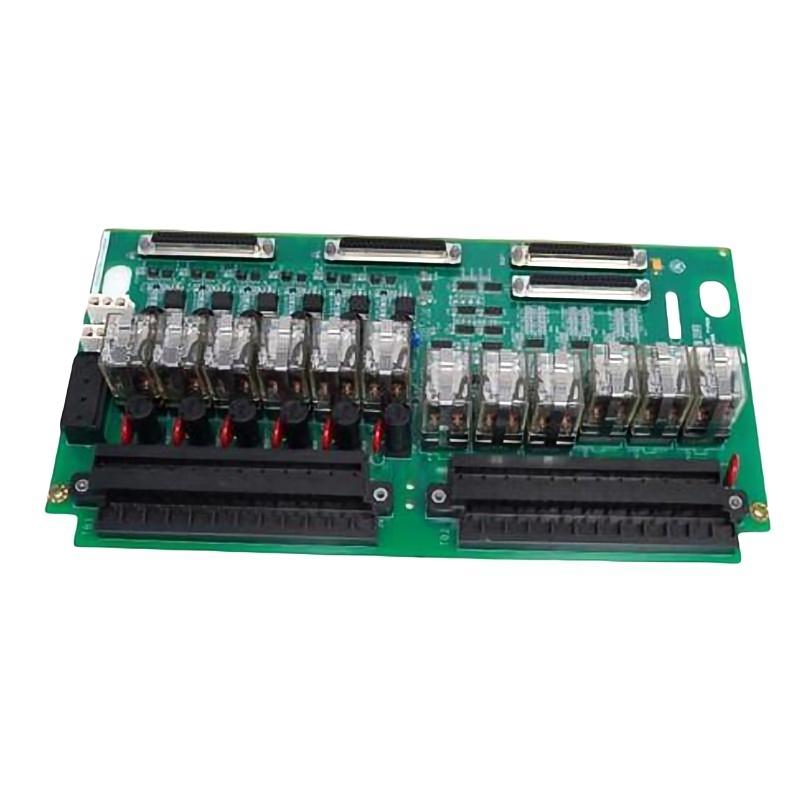

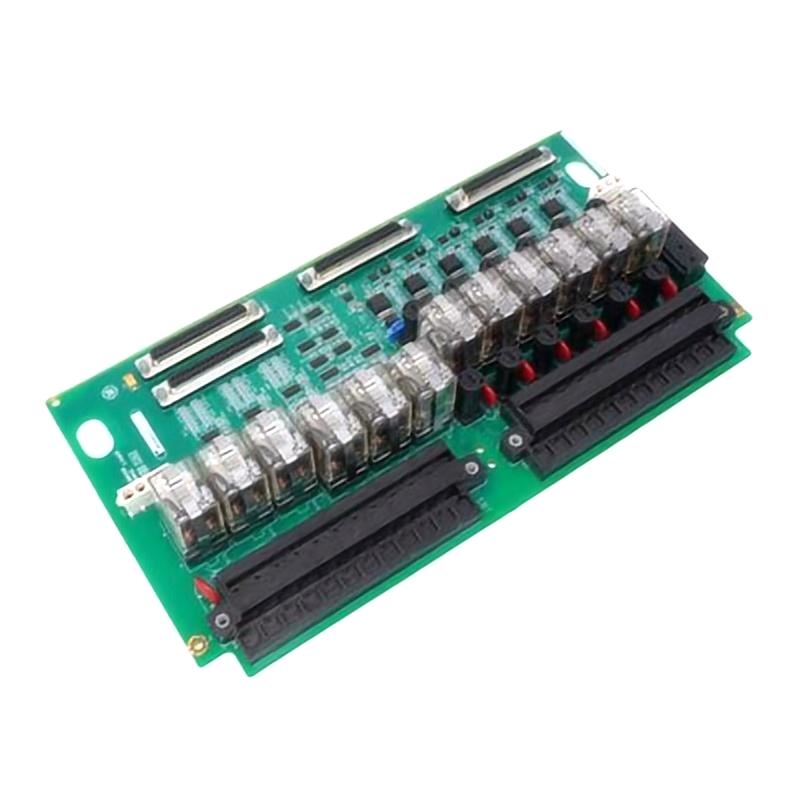

GE Fanuc IS200TREGH1BDC Turbine Emergency Trip Terminal Board
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IS200TREGH1BDC |
| Manufacturer | GE Industrial Systems |
| Product Family | Mark VI Turbine Control System |
| Product Type | Turbine Emergency Trip Terminal Board |
| Module Type | TREG Board |
| Function | Provides interface and power distribution for turbine emergency trip solenoids and protection circuits within the Mark VI system |
| Application | Gas Turbine Control, Steam Turbine Control, Generator Protection, Emergency Shutdown Systems |
| Input Signals | Trip commands, interlock signals, protection logic outputs, status feedback |
| Output Signals | 125 VDC trip solenoid drive signals, shutdown outputs, alarm/status signals |
| Signal Types | Safety-critical discrete DC trip circuits |
| Channel Function | Emergency Trip Distribution, Solenoid Control, Voting Logic Interface |
| Signal Conditioning | Isolation, relay switching, arc suppression, diagnostic monitoring |
| Field Interface | Trip solenoids, economizing resistors, interlock contacts |
| Communication Interface | Interfaces with VPRO / TRPG / protection I/O modules |
| Isolation Type | Galvanic isolation between control logic and high-energy trip circuits |
| Diagnostic Features | Relay status monitoring, fuse monitoring, wiring verification, board ID/config detection |
| Connector Type | Mark VI high-density system connectors (rack interface connectors) |
| Mounting Type | Rack-mounted Mark VI terminal/interface board |
| Power Supply | 125 VDC trip bus (typically 70–145 VDC range) |
| System Compatibility | GE Mark VI turbine protection and emergency shutdown systems |
| Redundancy Support | Supports simplex, dual, and TMR architectures |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Dimensions (H × W × D) | 178 × 330 × 40 mm |
| Weight | 0.90 kg |
| Typical Applications | Emergency turbine trip systems, overspeed protection, shutdown solenoid actuation, safety interlock execution |
| Revision Level | H1BDC |
| Lifecycle Status | Obsolete / Legacy Product |
FAQ
Q1: What is the IS200TREGH1BDC?
A1: The IS200TREGH1BDC is a turbine emergency trip terminal board used in GE Mark VI systems to distribute trip power to solenoids that shut down the turbine during fault conditions.
Q2: What is the primary function of the board?
A2: It provides termination and power distribution for turbine trip solenoids and safety protection circuits.
Q3: Which systems use the IS200TREGH1BDC?
A3: It is used in GE Mark VI turbine and generator control systems.
Q4: What types of signals does it handle?
A4: It handles safety-critical discrete DC trip signals, mainly 125 VDC solenoid drive and shutdown circuits.
Q5: Does the board perform control logic?
A5: No. It only executes trip signal distribution. All logic and decision-making is handled by Mark VI controllers (e.g., VPRO/TRPG).
Q6: What diagnostic features are available?
A6: It supports relay status feedback, fuse monitoring, wiring verification, and board identification/configuration detection.
Q7: What are the typical applications?
A7: Emergency turbine shutdown, overspeed protection, turbine trip actuation, and safety interlock systems.
Q8: What does the “BDC” suffix mean?
A8: It indicates a specific hardware/configuration variant of the H1B revision, usually reflecting factory-level design or component differences.
GE Fanuc IS200TREGH1BDC Turbine Emergency Trip Terminal Board is in stock. Please contact us for a quick quote and competitive pricing.
