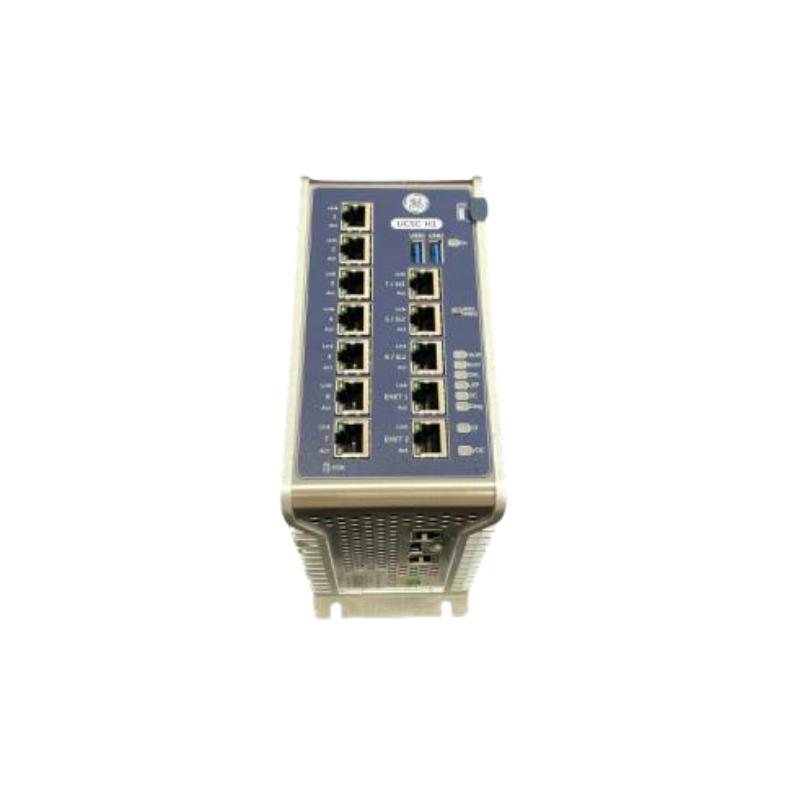

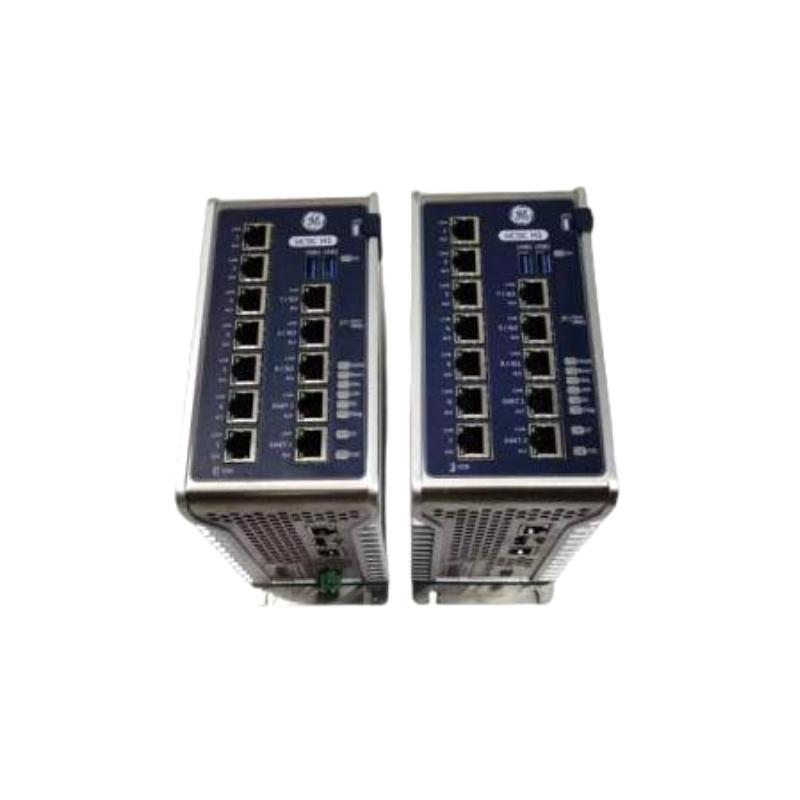

GE Fanuc IS420UCSCH1B UCSC Quad-Core Controller Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IS420UCSCH1B |
| Manufacturer | General Electric (GE) |
| Product Series | Mark VIe / Mark VIeS Control System |
| Product Type | UCSC Quad-Core Controller Module |
| Main Function | Executes real-time control applications, manages communication networks, and performs high-speed industrial control processing |
| Application | Gas turbine, steam turbine, power generation, industrial automation, and distributed control systems |
| Controller Type | Mark VIe Gateway Controller |
| Processor Type | AMD G-Series Quad-Core Processor |
| Processor Speed | 1.2 GHz |
| Processor Cores | 4 cores |
| Operating System | QNX Neutrino Real-Time Operating System |
| Memory | 4 GB DDR3-1333 SDRAM |
| Storage | Integrated flash storage / solid-state storage |
| Control Function | Executes control logic, sequencing, data processing, diagnostics, and system communication management |
| Communication Interface | Ethernet-based industrial communication architecture |
| Ethernet Ports | Multiple Ethernet ports for IONet, engineering communication, and system networking |
| IONet Support | Supports Mark VIe distributed I/O communication |
| Communication Protocol Support | Ethernet Global Data (EGD), TCP/IP, Modbus and related industrial communication functions |
| Redundancy Support | Supports simplex and dual controller configurations |
| Safety Application Support | Compatible with Mark VIeS system architectures |
| Programming Environment | ControlST / ToolboxST engineering software |
| Diagnostic Features | Controller health monitoring, fault diagnostics, communication status monitoring, and event reporting |
| Embedded Functions | Supports Embedded Field Agent (EFA) functions and advanced system diagnostics |
| Mounting Type | DIN rail / base-mounted industrial installation |
| Cooling Method | Convection cooling, fanless design |
| Power Supply | 24/28 VDC nominal |
| Input Voltage Range | 18–32 VDC |
| Maximum Power Consumption | Approximately 31 W |
| Protection Features | Reverse polarity protection and integrated fuse protection |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Rating | Up to 95% relative humidity, non-condensing |
| Dimensions | Approximately 168 mm × 150 mm × 55 mm |
| Weight | Approximately 1.327 kg |
| Installation Orientation | Vertical mounting orientation recommended |
| Compatibility | GE Mark VIe and Mark VIeS turbine control platforms |
FAQ
Q1: What is the main function of the IS420UCSCH1B?
A: The IS420UCSCH1B is a GE Mark VIe UCSC quad-core controller designed to execute real-time control logic, manage I/O communication, and provide processing capability for turbine and industrial automation systems.
Q2: What processor is used in the IS420UCSCH1B?
A: The controller uses a 1.2 GHz AMD G-Series quad-core processor, providing high-performance processing for continuous industrial control applications.
Q3: What operating system does the IS420UCSCH1B use?
A: The module uses the QNX Neutrino real-time operating system, which provides deterministic response and reliable execution of control applications.
Q4: How much memory does the IS420UCSCH1B provide?
A: The controller includes 4 GB DDR3-1333 SDRAM for application execution, system management, and real-time data processing.
Q5: What communication functions are supported by the IS420UCSCH1B?
A: The module supports Ethernet-based communication, IONet connectivity, engineering communication, and industrial data exchange functions required by Mark VIe systems.
Q6: What should be checked before replacing an IS420UCSCH1B module?
A: Users should verify hardware compatibility, controller configuration, power supply conditions, network connections, software version, and redundancy settings before replacement.
Q7: What factors may affect the performance of the IS420UCSCH1B?
A: Incorrect configuration, unstable DC power, communication network issues, excessive temperature, improper grounding, and damaged connectors may affect controller performance.
Q8: How can the reliability of the IS420UCSCH1B be maintained?
A: Regular diagnostic monitoring, proper cabinet installation, stable power supply, secure communication wiring, firmware management, and preventive maintenance help ensure reliable long-term operation.
