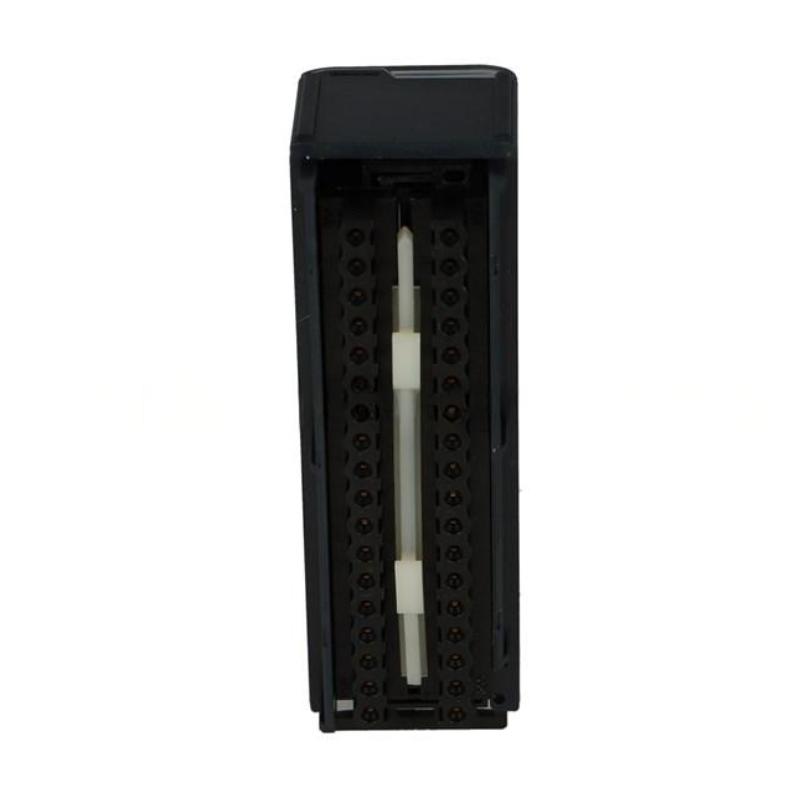

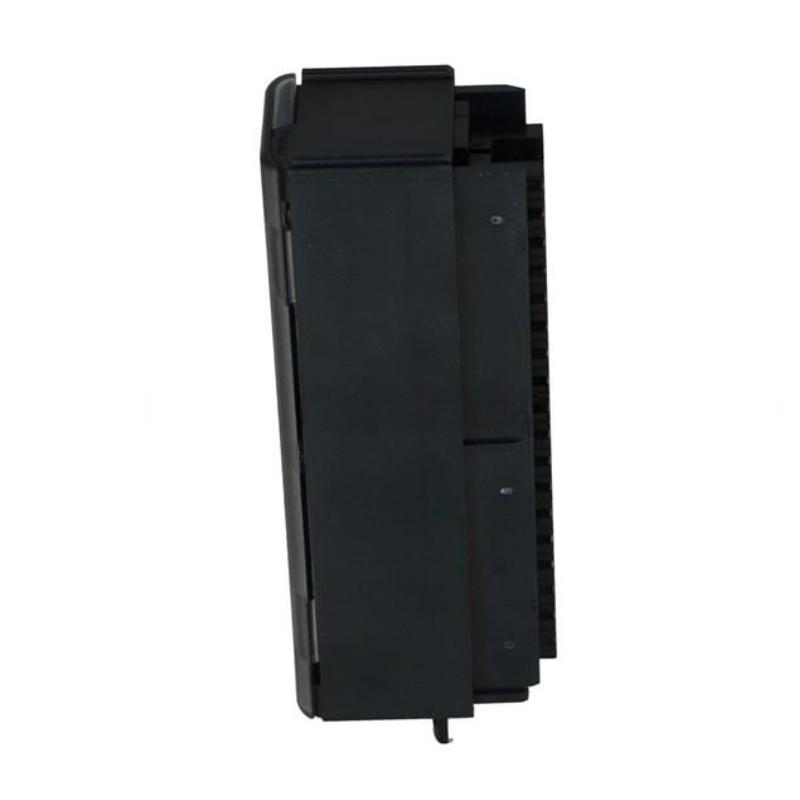

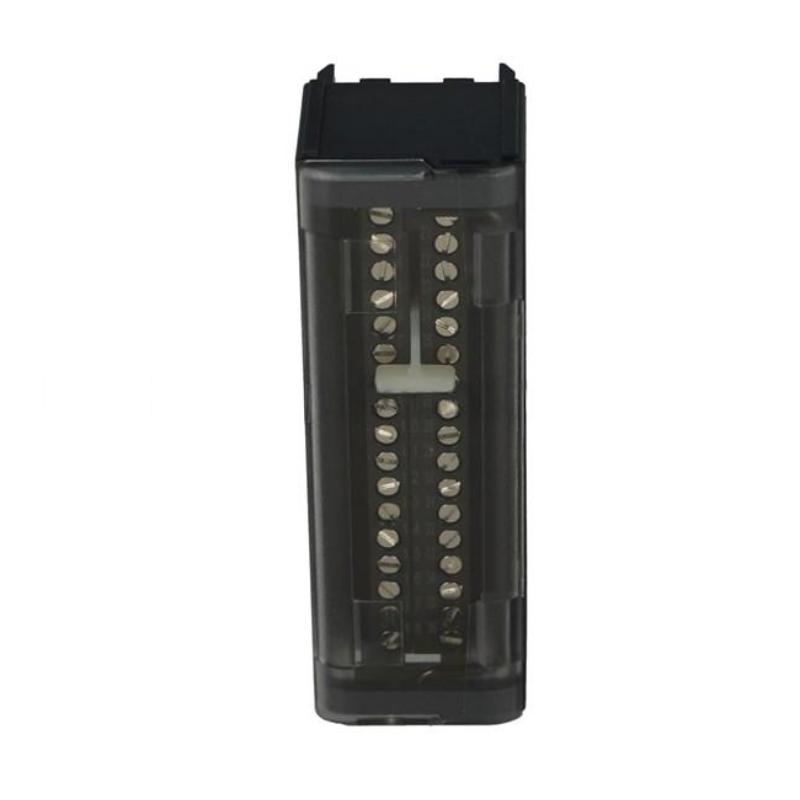

GE Fanuc IC086SLM082 Spring-Style Terminal Block
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC694TBS032 |
| Manufacturer | GE Fanuc / Emerson |
| Product Series | PACSystems RX3i / Series 90-30 Compatible Accessories |
| Product Type | Spring-Style Terminal Block |
| Main Function | Provides field wiring connection between high-density I/O modules and external devices |
| Application | Industrial automation, PLC I/O wiring, control panels, and distributed control systems |
| Terminal Type | Spring clamp terminal block |
| Number of Terminals | 36 terminals |
| Compatible Modules | High-density PACSystems RX3i I/O modules and equivalent Series 90-30 PLC modules |
| Connection Method | Spring-style wire clamp connection |
| Wire Type Support | Solid and stranded wire |
| Supported Wire Gauge | #14 to #28 AWG |
| Wire Strip Length | Approximately 7.87 mm |
| Terminal Block Cover Type | Standard-depth outer cover |
| Mounting Type | Direct attachment to compatible PLC I/O module |
| Wiring Function | Provides organized field signal termination and simplified module replacement |
| Terminal Design | High-density wiring interface |
| Electrical Application | Digital I/O and compatible high-density module field connections |
| Mechanical Interface | RX3i module terminal block interface |
| Torque Requirement | Approximately 7 lb-in |
| Operating Temperature | 0°C to +40°C |
| Storage Temperature | 0°C to +40°C |
| Relative Humidity | Up to 80%, non-condensing |
| Installation Altitude | Up to 1000 m above sea level |
| Dimensions | Approximately 115 mm × 50 mm × 30 mm |
| Weight | Approximately 0.03 kg |
| Compatibility | GE Fanuc / Emerson PACSystems RX3i and compatible Series 90-30 control platforms |
FAQ
Q1: What is the main function of the IC694TBS032?
A: The IC694TBS032 is a spring-style terminal block used to connect field wiring to high-density I/O modules in GE Fanuc and Emerson PACSystems control systems.
Q2: How many terminals does the IC694TBS032 provide?
A: The terminal block provides 36 spring-style terminals for field wiring connections.
Q3: Which modules are compatible with the IC694TBS032?
A: The terminal block is designed for use with high-density PACSystems RX3i I/O modules and compatible Series 90-30 PLC modules.
Q4: What type of wiring connection does the IC694TBS032 use?
A: The module uses spring-style clamp terminals, providing secure wire connections without requiring traditional screw tightening.
Q5: What wire sizes are supported by the IC694TBS032?
A: The terminal block supports solid and stranded wires ranging from #14 to #28 AWG, suitable for common industrial control wiring applications.
Q6: What is the difference between IC694TBS032 and IC694TBS132?
A: Both models provide 36 spring-style terminals. The main difference is the cover depth design, with IC694TBS132 offering a deeper cover option for applications requiring additional wiring space.
Q7: What should be checked before replacing an IC694TBS032 terminal block?
A: Users should verify module compatibility, terminal arrangement, field wiring identification, wire size, installation condition, and proper power isolation before replacement.
Q8: How can the reliability of the IC694TBS032 be maintained?
A: Proper wire insertion, regular inspection of terminal connections, protection against excessive vibration, correct cabinet installation, and suitable environmental conditions help ensure reliable long-term operation.
GE Fanuc IC086SLM082 Spring-Style Terminal Block is in stock. Please contact us for a quick quote and competitive pricing.
