1. What is the main function of the GE IC200CHS121 terminal base?

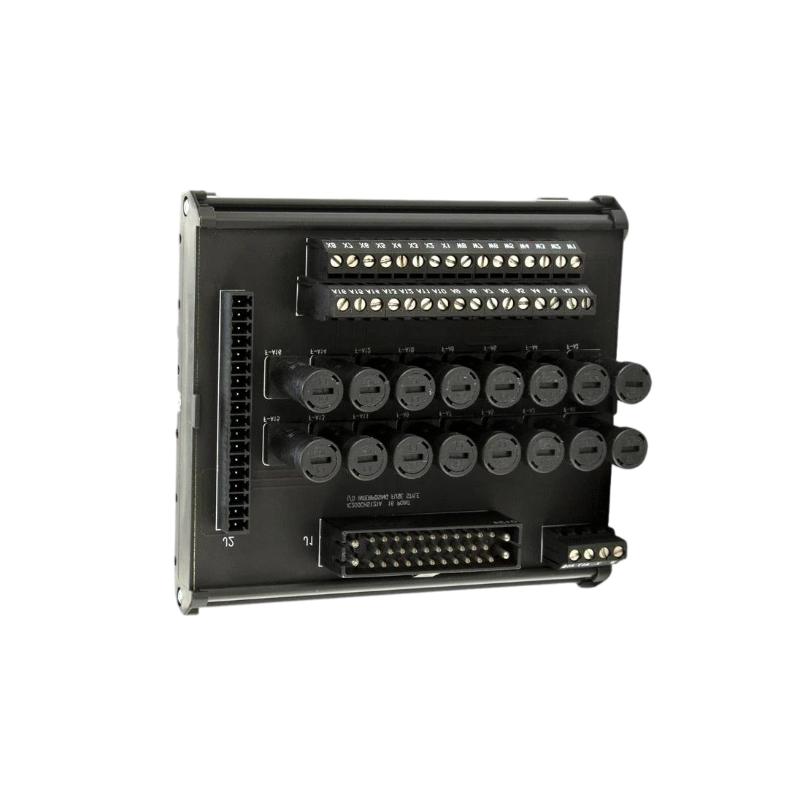

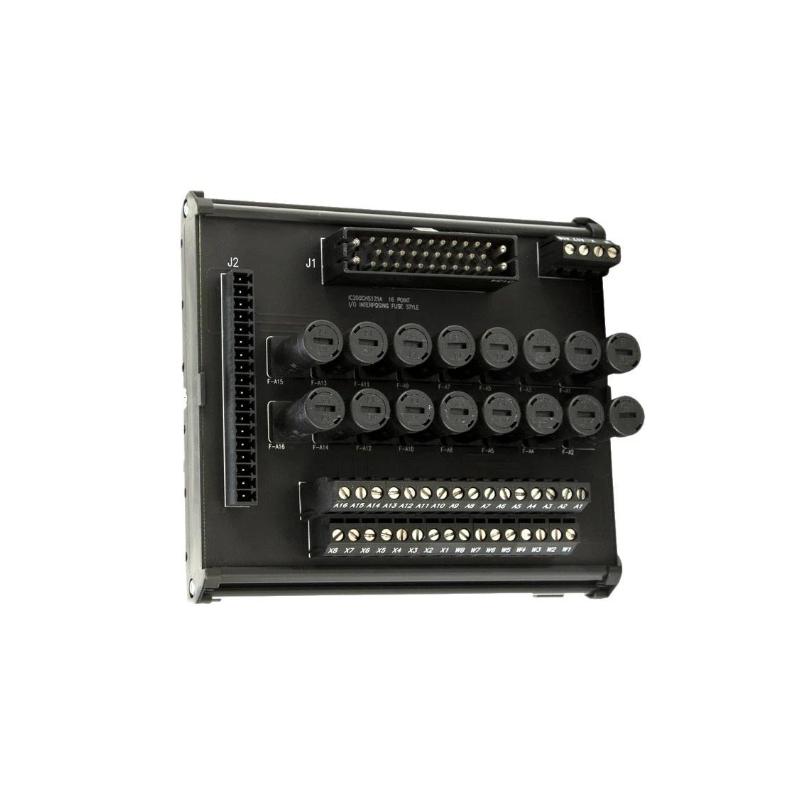

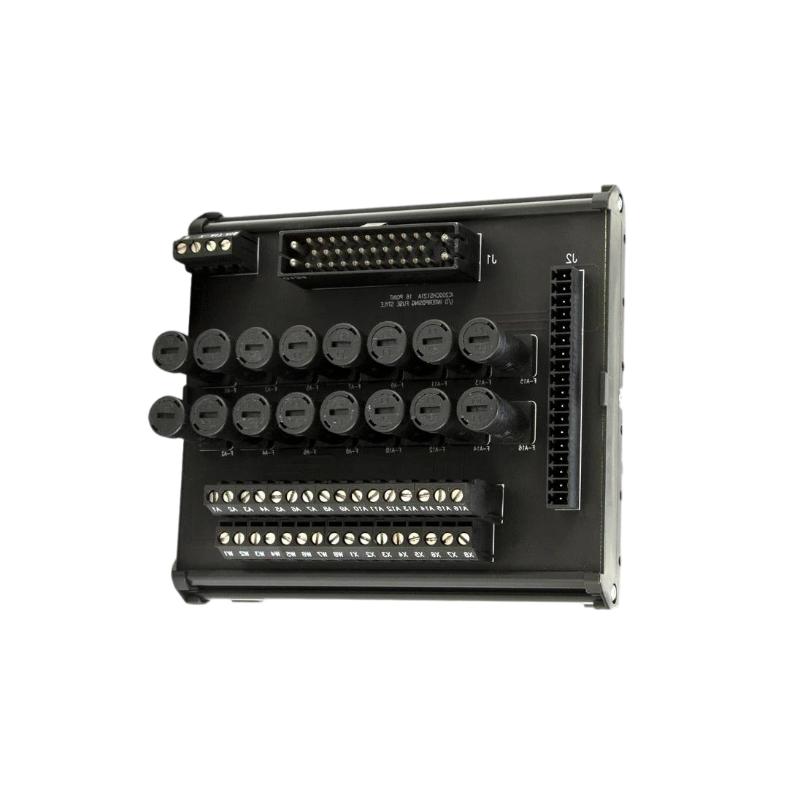

The GE IC200CHS121 is a fuse-type intermediate I/O terminal base designed for use with GE VersaMax I/O systems. Its primary purpose is to provide the electrical and field wiring interface between compatible I/O modules and external devices. The terminal base allows field signals to be connected in an organized manner while incorporating fuse-type circuit protection for applicable field circuits. It is commonly used in modular PLC and distributed I/O installations where reliable field wiring, signal distribution and convenient maintenance are required.

2. What type of VersaMax system is the IC200CHS121 intended for?

The IC200CHS121 is intended for GE VersaMax PLC and distributed I/O systems. It is used as part of a modular I/O arrangement where field devices need to be connected to VersaMax I/O modules. Before installation, the terminal base should be checked against the specific I/O module and system configuration to ensure that the mechanical and electrical interfaces are compatible. Correct module and terminal-base matching is important for reliable signal transmission and proper system operation.

3. What is the purpose of the fuse-type terminal arrangement?

The fuse-type arrangement provides an additional level of protection for applicable field circuits connected through the terminal base. A properly selected fuse can help limit fault current and reduce the possibility of damage to field wiring or connected equipment during an electrical fault. The fuse specification must match the circuit requirements and should not be replaced with an inappropriate rating. During maintenance, blown fuses should be investigated to determine the underlying cause instead of simply replacing the fuse repeatedly.

4. How should the IC200CHS121 be wired?

Field wiring should be connected to the appropriate screw terminals according to the system wiring diagram and the requirements of the installed VersaMax I/O modules. Before wiring, verify signal types, polarity, common connections, power circuits and fuse requirements. Wires should be properly secured in the terminal block to prevent loose connections and intermittent signals. After wiring, each terminal should be checked for correct identification and secure connection before the system is energized. Careful wiring is particularly important in industrial environments where vibration and electrical interference can affect connections.

5. What should be checked if a VersaMax I/O channel connected through the IC200CHS121 does not work?

Begin by checking the relevant fuse and determine whether it has opened. If a fuse is blown, inspect the connected field circuit for short circuits, excessive current or wiring errors before installing a replacement. Next, check the terminal connections, module seating and field device wiring. The associated VersaMax I/O module should also be checked for diagnostic indications. If the fuse and wiring are correct but the channel remains inactive, verify the PLC configuration and program logic. Checking the complete signal path from the field device through the terminal base to the I/O module can help identify the actual source of the fault.

6. What can cause an IC200CHS121 fuse to blow repeatedly?

Repeated fuse failures normally indicate an underlying electrical problem rather than a defective fuse. Possible causes include short circuits, incorrect field wiring, excessive load current, damaged field devices or an incorrectly selected fuse rating. The connected circuit should be isolated and tested before replacing the fuse again. Check the wiring for insulation damage, shorted conductors and incorrect polarity, and inspect the connected actuator or sensor for abnormal current consumption. The fuse should always be replaced with the correct type and rating specified for the application.

7. Does the IC200CHS121 require special maintenance?

Routine maintenance mainly involves inspecting the terminal connections, fuses, wiring and mechanical installation. During scheduled maintenance, check for loose screws, corrosion, overheating, damaged conductors and signs of electrical arcing. Fuses should be checked if the system reports a loss of field signal or circuit fault. If a fuse has opened, the reason for the fuse operation should be investigated before replacing it. Keeping the terminal area clean and maintaining proper cabinet environmental conditions can also help improve long-term reliability.

8. What should be considered when replacing the IC200CHS121?

Before replacement, verify the exact IC200CHS121 part number and confirm compatibility with the installed VersaMax I/O modules and system configuration. The control system should be placed into the appropriate maintenance state, and field wiring should be identified and documented before disconnecting the existing terminal base. After removing the old unit, inspect the mating components and field conductors for damage or contamination. Install the replacement terminal base carefully and reconnect each circuit according to the original wiring documentation. After restoration, verify fuse status, I/O operation, field signals and PLC diagnostics to confirm that the system is operating correctly.
