1. What is the main function of the GE IC200CHS122 Expansion Base?

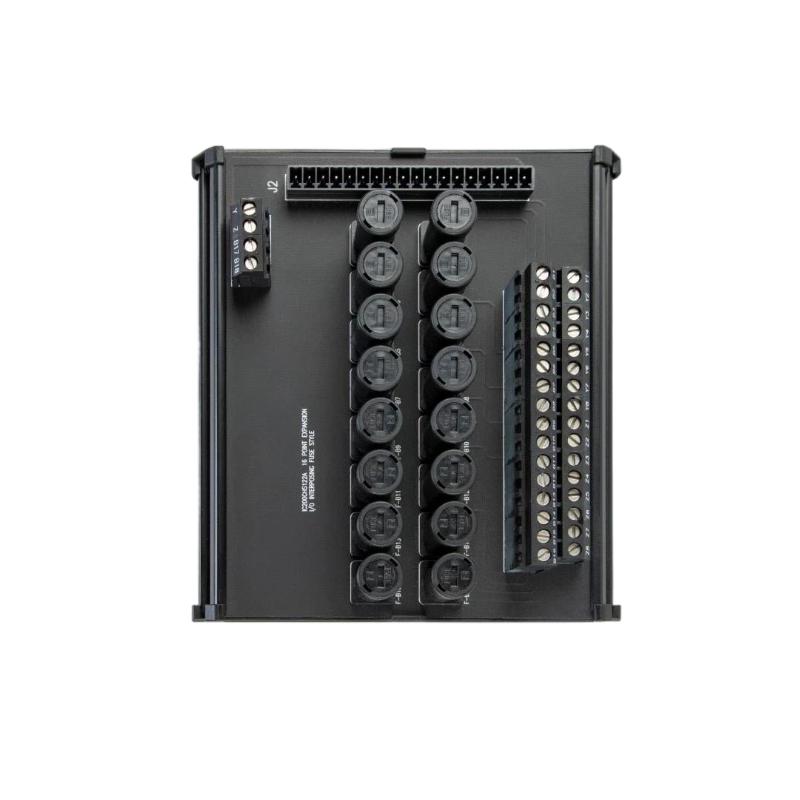

The GE IC200CHS122 is a fuse-type intermediate I/O terminal expansion base designed for GE VersaMax control and distributed I/O systems. Its primary purpose is to provide field wiring access for the B-side terminals of compatible VersaMax I/O modules. The expansion base connects to the IC200CHS121 main base through the J2 interface and provides 36 box-style terminals for field I/O signals and common connections. This arrangement allows field wiring to be organized separately from the main module connection and provides individual fuse protection for applicable circuits. The IC200CHS122 is particularly useful in industrial control panels where multiple field devices must be connected to VersaMax I/O modules in a structured and serviceable manner.

2. What is the difference between the IC200CHS122 and IC200CHS121?

The IC200CHS121 and IC200CHS122 serve complementary functions within a VersaMax intermediate I/O terminal arrangement. The IC200CHS121 is the main fuse-type intermediate I/O terminal base and is primarily associated with the A-side connections of compatible VersaMax I/O modules. The IC200CHS122 is the expansion base used for B-side connections. When a VersaMax I/O module requires access to both sides of its field connections, the IC200CHS122 can be connected to the IC200CHS121 through the J2 interface. The expansion base includes the required connection cable, allowing the B-side field terminals to be extended to a convenient wiring location. Using the two bases together provides a more organized approach to field wiring and circuit protection.

3. How many field wiring terminals are provided on the IC200CHS122?

The IC200CHS122 provides 36 box-style terminals for field wiring. The terminal arrangement includes B1 through B18, together with Y1 through Y8 and Z1 through Z8 common terminals. The B-side terminals are used for the corresponding field I/O connections, while the Y and Z common terminals provide convenient common connections for applicable two-wire field devices. In addition, the B1 through B16 circuits have individual 0.5 A fuse protection. This terminal arrangement allows field wiring to be organized directly at the expansion base rather than requiring a separate auxiliary terminal block for every connection.

4. What is the purpose of the 0.5 A fuses on the IC200CHS122?

The IC200CHS122 provides individual 0.5 A fuse protection for the B1 through B16 circuits. These fuses are intended to provide overcurrent protection for the associated field circuits. If a connected circuit develops a short circuit or excessive current condition, the corresponding fuse can open the circuit and help reduce the possibility of damage to field wiring or connected equipment. If one of the fuses has opened, the cause of the overcurrent condition should be investigated before installing a replacement. Common causes can include shorted field wiring, incorrect connections, damaged field devices, excessive load current or an incorrect circuit configuration. Replacing a blown fuse without correcting the underlying problem may result in another immediate fuse failure.

5. How is the IC200CHS122 connected to the IC200CHS121?

The IC200CHS122 is connected to the IC200CHS121 main base through the J2 interface. The expansion base includes the cable required for connection to the main base, simplifying the physical connection between the two terminal assemblies. Before installation, the control system should be placed into the appropriate maintenance state, and the connectors and cable should be inspected for damage, contamination or loose contacts. The cable should be connected in the correct orientation and fully seated at both ends. After installation, verify that the expansion base is mechanically secure and that the field wiring corresponds to the correct terminal numbers. An improperly connected expansion cable can result in missing field signals, unstable I/O operation or communication-related diagnostic conditions.

6. How should I troubleshoot an I/O signal that is not working through the IC200CHS122?

Start by identifying the exact I/O point and corresponding terminal on the IC200CHS122. Inspect the field wiring to make sure the conductor is properly secured and that there is no broken wire, loose screw terminal, short circuit or incorrect polarity. Next, check the corresponding 0.5 A fuse for B1 through B16 circuits. If the fuse is open, do not simply replace it immediately; first determine whether the field circuit has excessive current, a short circuit or a damaged connected device. The connection between the IC200CHS122 and IC200CHS121 should then be inspected, including the J2 interface and expansion cable. Finally, check the associated VersaMax I/O module and PLC diagnostics. Following the signal path from the field device through the terminal, fuse, expansion connection and I/O module makes it easier to distinguish between a wiring fault, protection fault, terminal problem and I/O module fault.

7. Can the IC200CHS122 be used with two-wire field devices?

Yes, the IC200CHS122 provides Y1–Y8 and Z1–Z8 common terminals that can be used for applicable two-wire field device connections. These common terminals provide a convenient method of organizing common connections without requiring additional external terminal blocks in suitable applications. However, the exact wiring arrangement depends on the type of VersaMax I/O module and the electrical characteristics of the connected field device. Before wiring, verify the module’s signal type, polarity, common arrangement and field device requirements. Incorrect common connections or reversed polarity can cause inaccurate input signals, output faults or unexpected behavior. Proper terminal identification should therefore be confirmed against the system wiring documentation before commissioning.

8. What should be considered when replacing or servicing the IC200CHS122?

Before replacing or servicing the IC200CHS122, verify the complete part number and confirm compatibility with the installed IC200CHS121, VersaMax I/O modules and existing field wiring configuration. The control system should be placed in the appropriate maintenance or safe state before disconnecting the terminal base. Existing field wiring should be clearly identified and documented, particularly for B1–B18, Y1–Y8 and Z1–Z8 terminals, to prevent incorrect reconnection. During inspection, check the fuses, terminal screws, field conductors, expansion cable and J2 connector for signs of looseness, corrosion, overheating, contamination or physical damage. After installing the replacement unit, reconnect the wiring carefully and verify that each circuit corresponds to the correct terminal. The system should then be restored according to the approved commissioning procedure, with particular attention given to fuse status, I/O signals, field device operation and PLC diagnostic information. A complete functional test should be performed before returning the control system to normal operation.
