1. What is the primary function of the GE IS200ATBAG1BAA1 Application I/O Terminal Board?

The IS200ATBAG1BAA1 is an Application I/O Terminal Board used in GE Mark VI control systems. Its primary function is to provide a convenient interface between external field wiring and application signals associated with the control assembly backplane. The board uses a 60-position terminal block and connects to the J6 and J7 interfaces of the CABP Control Assembly Backplane. It can handle a variety of signal groups, including digital inputs, analog inputs, digital outputs, analog outputs, tachometer signals, feedback signals, fault strings, and other application-specific connections. This arrangement simplifies field wiring and allows external control-system signals to be organized at a centralized terminal interface.

2. What type of system is the IS200ATBAG1BAA1 designed for?

The IS200ATBAG1BAA1 is designed for GE Mark VI control-system applications, particularly industrial turbine and drive-related control equipment. It is not a standalone PLC CPU or general-purpose I/O module. Instead, it functions as an interface board that connects external application wiring with signals available through the control assembly backplane. When used as part of a Mark VI system, the board works together with the associated backplane and other control components to route application signals between field devices and the control system. Compatibility with the specific system configuration should be confirmed before installation or replacement.

3. How many terminal connections are available on the IS200ATBAG1BAA1?

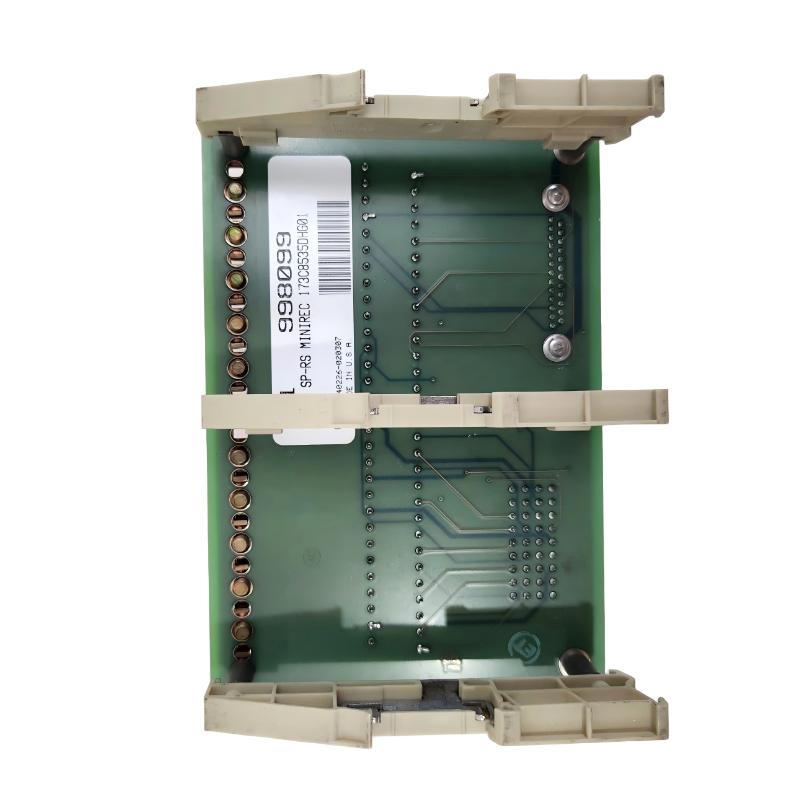

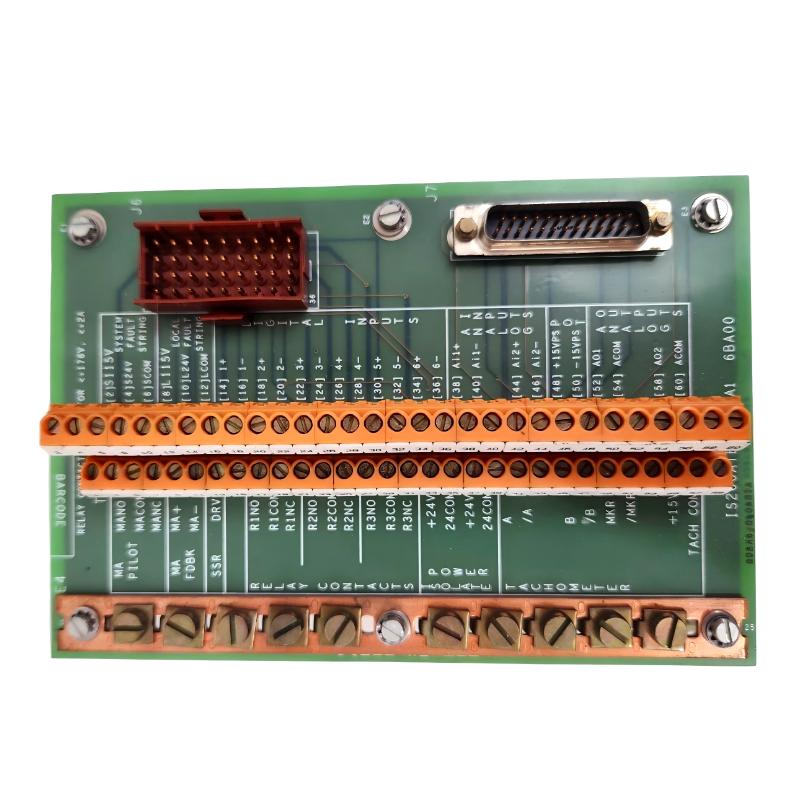

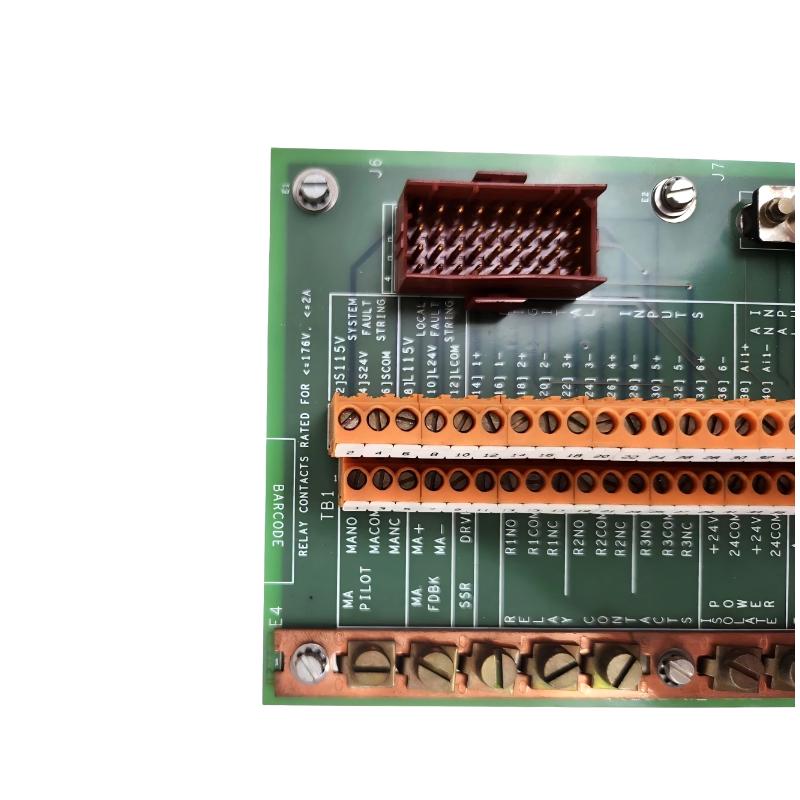

The IS200ATBAG1BAA1 uses a 60-position terminal block arranged in two rows of 30 terminals. These terminals are assigned to different signal groups rather than being dedicated to only one type of input or output. The available signal categories include system and local fault signals, digital inputs, analog inputs, tachometer signals, MA pilot and feedback signals, solid-state relay connections, digital outputs, potentiometer connections, and analog outputs. The exact function of each terminal should be determined from the correct system wiring documentation and board configuration before field wiring is modified.

4. What are the J6 and J7 connectors used for on the IS200ATBAG1BAA1?

J6 and J7 provide the board-level connection between the IS200ATBAG1BAA1 and the corresponding interfaces on the CABP Control Assembly Backplane. J6 is a 36-pin vertical male connector, while J7 is a 25-pin vertical male connector. These connectors carry the application signals that are subsequently made available through the board’s terminal block. During maintenance or replacement, both connectors should be inspected carefully for bent pins, contamination, mechanical damage, or poor seating. Incorrect connector installation can cause multiple signal channels to become unavailable or produce unexpected control-system behavior.

5. What types of signals can the IS200ATBAG1BAA1 handle?

The IS200ATBAG1BAA1 provides connections for a broad range of application signals. Its terminal arrangement includes digital input channels, analog input channels, digital output channels, analog output channels, tachometer connections, fault strings, MA pilot signals, feedback signals, solid-state relay connections, and potentiometer connections. This makes the board suitable for systems requiring multiple types of field interfaces through a single terminal assembly. Because different terminal positions have different electrical functions, wiring must always follow the appropriate Mark VI system documentation. Applying a signal to the wrong terminal can result in incorrect readings, unexpected outputs, or damage to connected circuitry.

6. What precautions should be taken when installing or replacing the IS200ATBAG1BAA1?

The IS200ATBAG1BAA1 should be treated as an electrostatic-sensitive printed circuit board during installation and maintenance. Technicians should use appropriate ESD protection, including a properly grounded wrist strap and suitable antistatic handling procedures. Before removing the existing board, the associated control equipment should be placed in a safe de-energized condition according to the site’s maintenance procedures. Field wiring should be identified and documented before disconnection so that each connection can be restored to the correct terminal. The J6 and J7 connectors should also be handled carefully to avoid bending or damaging their pins. After installation, verify all terminal connections and connector seating before returning the control system to service.

7. What should be checked if signals connected through the IS200ATBAG1BAA1 are abnormal?

Troubleshooting should begin by identifying the affected signal type and checking the corresponding terminal wiring. Loose terminals, damaged conductors, incorrect polarity, broken cables, and poor connector contact are common areas that should be inspected first. If several signal channels are affected simultaneously, the J6/J7 connections and the associated CABP backplane interface should be checked because a common connection problem can affect multiple channels. For analog signals, the field transmitter, signal range, reference connection, and associated wiring should also be verified. For digital outputs or relay-related signals, the external load and power supply should be checked. If field wiring and external devices are confirmed to be correct, further testing of the board and associated backplane circuitry may be required.

8. How can the IS200ATBAG1BAA1 be properly commissioned after installation?

After installation, commissioning should begin with a complete visual inspection of the board, connectors, terminal block, mounting points, and field wiring. Verify that the board is correctly positioned and that J6 and J7 are fully seated without damaged or bent pins. Each field connection should be compared with the approved system wiring documentation to confirm that signals are connected to the correct terminals. Digital inputs and outputs should then be tested individually, while analog inputs and outputs should be checked against their expected electrical values. Tachometer, feedback, fault, and relay-related signals should also be verified according to the specific application. Finally, the system should be monitored during normal operation to confirm stable signal transmission and to ensure that no unexpected alarms, signal fluctuations, or communication-related faults occur.
