1. What is the primary function of the GE IS200BPIAG1AEB Bridged Personalized Interface Card?

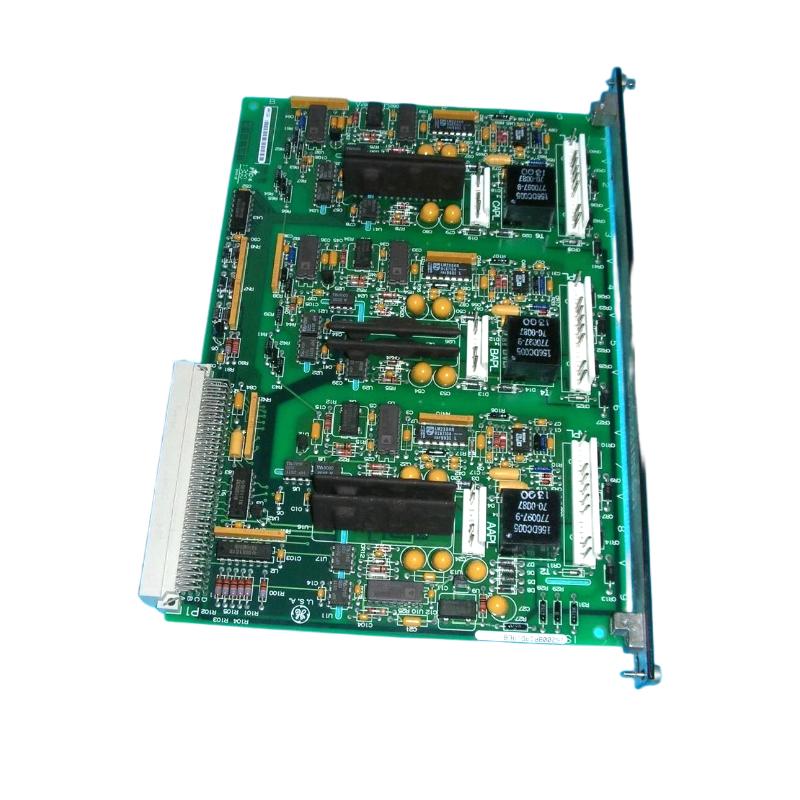

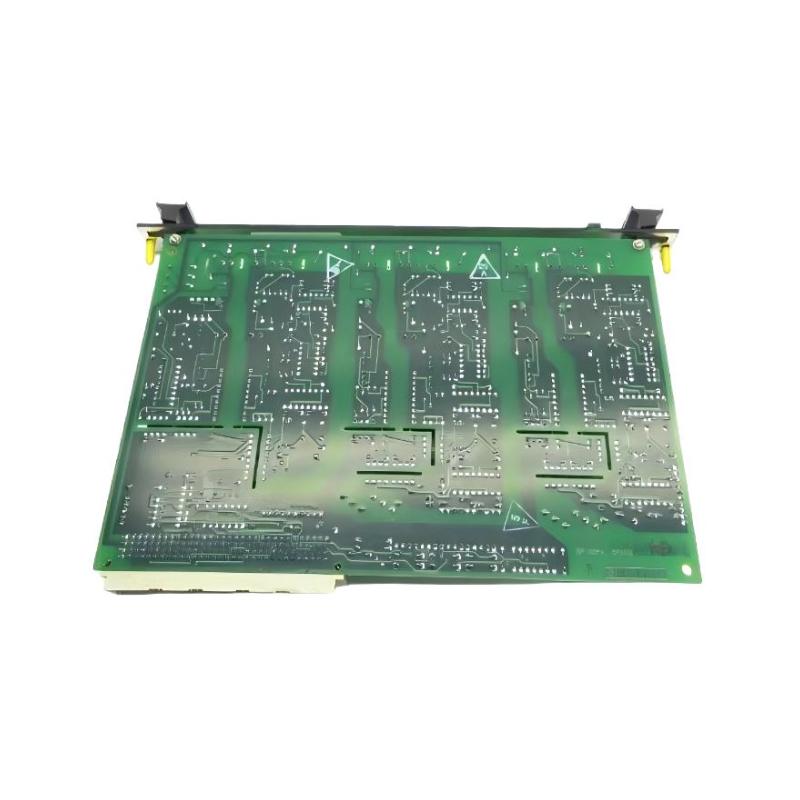

The IS200BPIAG1AEB is a Bridge Personality Interface Board used in GE Mark VI drive-control applications. Its main function is to provide the electrical interface between the control electronics and the power electronics of a three-phase IGBT AC drive. The board manages isolated gate-drive signals for the IGBT devices and receives feedback signals associated with bridge operation. It also provides circuits for monitoring DC-link voltage and phase-related output voltages, allowing the control system to supervise important operating conditions. By combining gate-drive, feedback, isolation, and protection functions on one interface board, the IS200BPIAG1AEB provides the communication path required between low-voltage control circuitry and the high-power IGBT bridge.

2. Which system is the IS200BPIAG1AEB designed for?

The IS200BPIAG1AEB was developed for the GE Mark VI Speedtronic control platform and is associated with IGBT three-phase AC drive applications. It is designed to operate as part of a larger control and power-electronics assembly rather than as an independent controller. The board is installed in a VME-type rack and connects to the drive bridge through dedicated phase connectors. Because the board is closely associated with the drive’s gate-control and feedback architecture, it should be replaced only with a compatible board and revision appropriate for the existing system. The rack location, board revision, connector configuration, and associated drive hardware should all be verified before replacement.

3. How many IGBT gate-driver circuits are included on the IS200BPIAG1AEB?

The IS200BPIAG1AEB contains six isolated IGBT gate-driver circuits, with two driver circuits associated with each of the three phases. These isolated driver channels provide the control interface required to operate the upper and lower IGBT devices in the corresponding bridge phase. Electrical isolation is important because the power-stage voltage can be significantly different from the low-voltage control electronics. The gate-driver circuits also incorporate protection-related functions, including monitoring associated with IGBT desaturation conditions. During troubleshooting, abnormal behavior on one phase should therefore be evaluated together with its corresponding gate-drive connections, feedback signals, and IGBT power devices.

4. What feedback functions are provided by the IS200BPIAG1AEB?

The IS200BPIAG1AEB includes isolated VCO-based feedback circuits used to monitor important drive operating conditions. The board provides three isolated shunt-current feedback circuits and also includes voltage feedback associated with the DC link, VAB, and VBC. These feedback paths allow the control system to obtain information about current and voltage conditions within the IGBT bridge. Accurate feedback is essential for stable drive operation because the control system uses these signals to supervise and regulate the power stage. If feedback values become abnormal, troubleshooting should include the associated sensors, signal paths, connectors, power devices, and the interface board itself rather than assuming that the control board is automatically the source of the problem.

5. What protection functions are available on the IS200BPIAG1AEB?

The IS200BPIAG1AEB incorporates hardware-level protection associated with the IGBT bridge, including phase overcurrent monitoring and IGBT desaturation fault detection. Desaturation monitoring can identify an abnormal condition in which an IGBT fails to operate as expected during conduction, potentially indicating excessive current or a power-device problem. The gate-driver circuitry also monitors the associated gate-drive supply conditions. These protection functions are important because faults in a high-power IGBT stage can develop very quickly and can damage expensive power components if they are not detected promptly. When a drive fault occurs, the interface board should therefore be evaluated together with the IGBT modules, DC-link circuitry, gate-drive wiring, and control logic.

6. What are the main connectors on the IS200BPIAG1AEB used for?

The board has seven primary connectors. The P1 connector interfaces the board with the VME rack and carries control and bridge-related signals. Six additional connectors—APL, BPL, CPL, AAPL, BAPL, and CAPL—are associated with the three drive phases and provide connections to the IGBT devices and related driver power circuits. Because these connectors carry different functions, they must be installed in their designated positions. During maintenance, technicians should inspect each connector for damaged pins, contamination, loose connections, or incorrect seating. A connector problem can interrupt gate-drive signals or feedback circuits and may result in drive faults, missing phase operation, or abnormal feedback readings.

7. What should be checked if the IS200BPIAG1AEB reports an IGBT or drive fault?

Troubleshooting should begin by identifying the exact fault condition and determining whether it is associated with a particular drive phase. The corresponding gate-driver connectors, IGBT connections, feedback circuits, and power-stage components should then be inspected. If a desaturation fault is present, the IGBT device, gate-drive voltage, gate wiring, and associated phase circuitry should be checked because the fault may originate outside the interface board. For feedback-related faults, inspect the VCO feedback paths, signal connections, and associated sensing components. The P1 rack connection should also be checked if multiple functions are affected simultaneously. Since the board is static-sensitive, any physical inspection or replacement should be performed using appropriate ESD precautions.

8. What precautions should be taken when installing or replacing the IS200BPIAG1AEB?

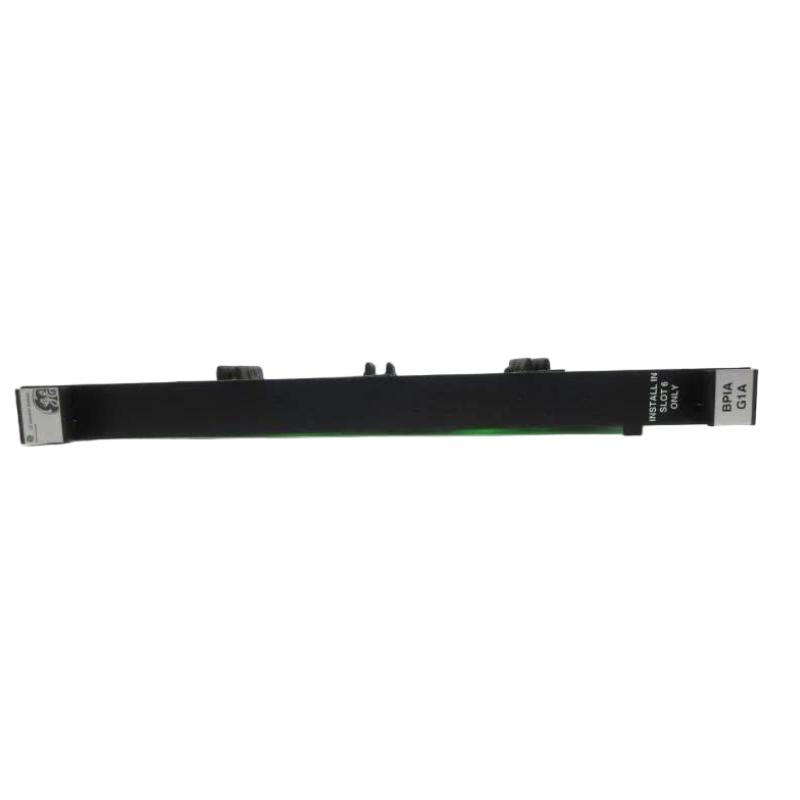

The IS200BPIAG1AEB is a static-sensitive PCB, so ESD protection should be used during handling, inspection, installation, and replacement. Before removing the board, the associated drive and control system should be placed in a safe de-energized condition according to the site’s electrical safety procedures. The existing board location, connector positions, and wiring should be documented before removal. During installation, the PCB should be inserted into the correct VME rack position and the P1 connector and phase-related connectors should be properly aligned and seated. The board should never be forced into the rack because incorrect alignment can damage connectors or the PCB. After installation, inspect all connections before energizing the drive, then verify gate-drive operation, feedback signals, phase status, and fault indications during controlled commissioning.
