1. What is the main function of the GE IS200DAMEG1ABA Gate Amplifier/Interface Board?

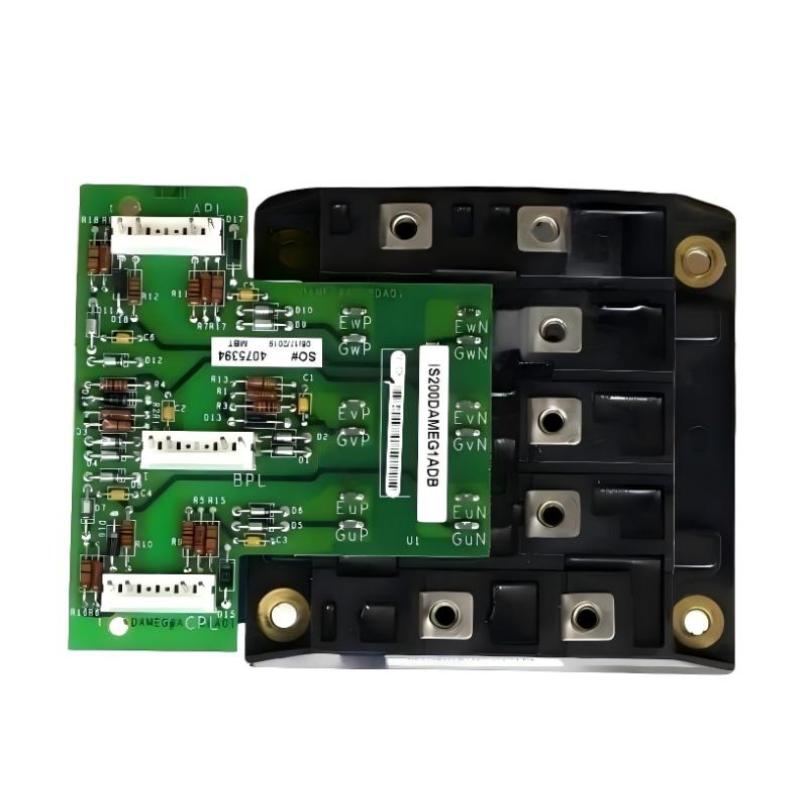

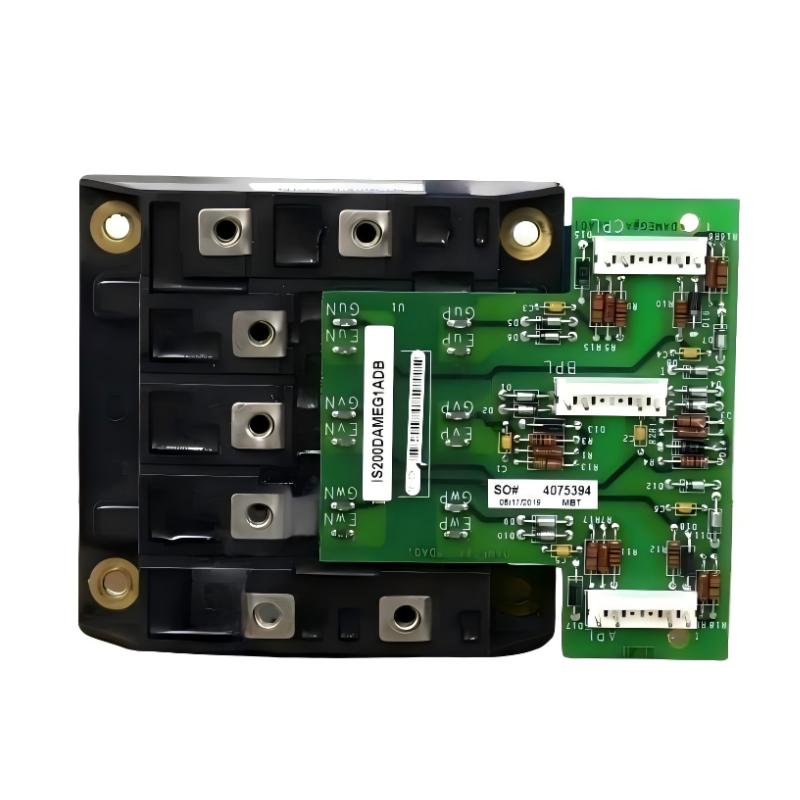

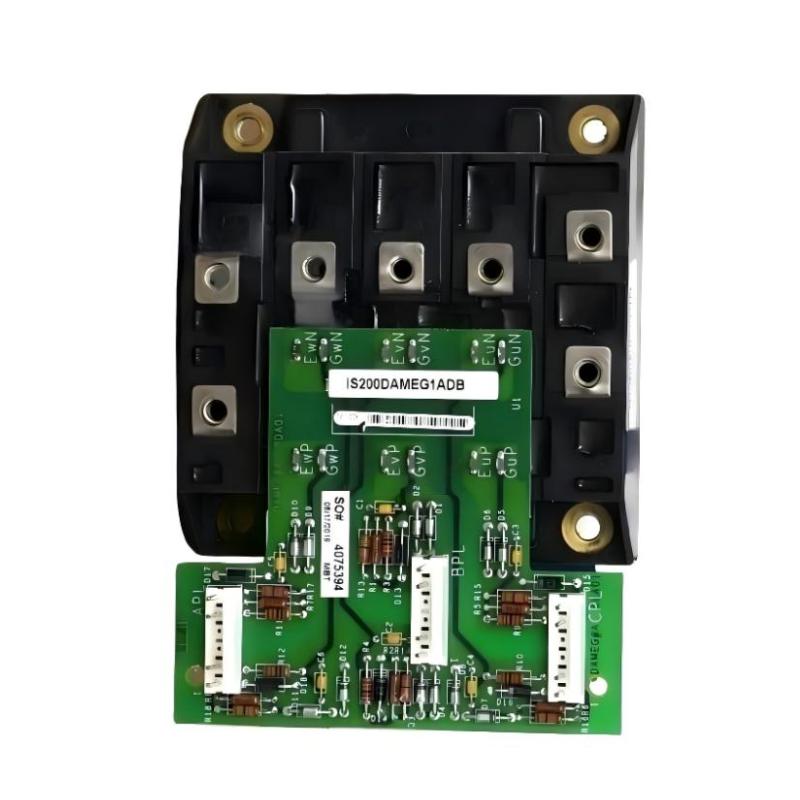

The IS200DAMEG1ABA is designed to provide the electrical interface between the IS200BPIA Bridge Personality Interface Board and the IGBT power module used in an Innovation Series low-voltage drive. Despite the “Gate Amplifier/Interface” terminology commonly used for this board family, the DAME version operates as a passive interface and does not amplify the gate signals. It receives the gate control signals generated by the BPIA and routes them to the appropriate IGBT gate connections. The board supports the three phases through the APL, BPL, and CPL interfaces. Its design allows one DAME board to interface with the single CM100TF-28H IGBT module containing the six IGBTs required for the three-phase bridge. This makes the IS200DAMEG1ABA an important interface component between the drive control electronics and its power switching section.

2. Does the IS200DAMEG1ABA require a separate power supply?

No. The IS200DAMEG1ABA is a passive interface board and does not have a separate external power input. Its primary function is to route the gate control signals generated by the BPIA control circuitry to the corresponding IGBT gate terminals. Because the board does not actively amplify or regenerate the gate signals, there is no dedicated power supply connection required for the DAME board itself. This is an important difference between the DAME version and other boards in the DAM family that may provide active gate-drive amplification. When troubleshooting the IS200DAMEG1ABA, technicians should therefore avoid treating it like an independently powered electronic module. Instead, attention should be given to the BPIA interface, APL/BPL/CPL signal connections, the associated IGBT module, and the physical connections between the board and the power section.

3. Which IGBT module is compatible with the IS200DAMEG1ABA?

The IS200DAMEG1ABA is designed to work with the CM100TF-28H IGBT module in the applicable Innovation Series low-voltage drive configuration. The CM100TF-28H contains the six IGBTs required to form the complete three-phase bridge, allowing a single DAME board to interface with all three phases. This configuration differs from arrangements where separate IGBT modules or separate interface boards are used for individual phase legs. The DAME board provides the gate signal routing required for the upper and lower IGBTs within the power module. When replacing the assembly, it is important to verify the exact IGBT module and complete drive configuration rather than selecting a replacement board solely by physical appearance. Compatibility between the DAME board, IGBT module, control rack, and drive power structure is essential for correct gate control and reliable operation.

4. What are the APL, BPL, and CPL connectors used for?

The APL, BPL, and CPL connectors provide the gate-control signal interfaces between the IS200DAMEG1ABA and the IS200BPIA Bridge Personality Interface Board. They correspond to the three phases of the drive power bridge. APL is associated with phase A, BPL with phase B, and CPL with phase C. The signals arriving through these connections are routed by the DAME board to the appropriate IGBT gate terminals within the associated power module. Because the gate-drive connections are directly involved in controlling the switching devices, incorrect connection of these interfaces can cause serious drive operating problems. During maintenance, technicians should identify each connector carefully before removal and verify that every cable is returned to its correct position. Loose, damaged, incorrectly connected, or contaminated connectors can interfere with gate signal transmission and may lead to phase-related drive faults or abnormal switching behavior.

5. How many IS200DAMEG1ABA boards are required for one drive?

In the applicable 65-frame drive configuration, one IS200DAMEG1ABA is used to interface all three phases. This is possible because the associated CM100TF-28H IGBT module contains all six IGBTs required for the three-phase power bridge. The DAME board provides the corresponding signal interfaces for phases A, B, and C through the APL, BPL, and CPL connectors. This single-board arrangement reduces the number of separate interface boards required within the power structure. When diagnosing a three-phase drive, this architecture is important because a problem associated with one phase does not necessarily mean that there is a dedicated interface board for that phase. The common DAME assembly should be considered together with the BPIA control interface, IGBT module, gate connections, and associated power wiring when investigating abnormal phase behavior.

6. Can the IS200DAMEG1ABA be replaced separately from the IGBT module?

The IS200DAMEG1ABA is soldered directly to the associated IGBT module, so it is not intended to be treated as a normal independently replaceable field board. The DAME board and the IGBT module form a combined assembly. If either component has suffered a failure, the complete assembly generally needs to be replaced rather than removing the DAME board as a separate plug-in component. This construction also means that troubleshooting should consider both components together. For example, an IGBT failure caused by an electrical fault can potentially affect the attached interface board, while damage to the gate interface can also affect proper IGBT switching. Before replacement, the drive should be completely de-energized and the DC bus voltage verified to be at a safe level. Proper electrostatic-discharge precautions should also be followed when handling the assembly.

7. What symptoms may indicate a problem with the IS200DAMEG1ABA?

Potential symptoms of a problem in the DAME/IGBT interface assembly can include phase-related drive faults, abnormal switching behavior, failure to produce the expected motor output, repeated power-device faults, or abnormal current behavior. However, these symptoms do not automatically prove that the DAME board itself has failed. Similar conditions can result from problems with the BPIA control board, APL/BPL/CPL connections, IGBT module, gate wiring, DC bus, motor circuit, or other components in the drive. A proper diagnosis should therefore begin by checking the drive fault history and identifying whether the problem is associated with a particular phase. The physical condition of the DAME assembly should then be inspected for cracked solder joints, discoloration, signs of overheating, damaged connectors, or other visible abnormalities. Signal and power checks should be performed using the appropriate drive service procedures rather than replacing the board solely based on a general drive fault.

8. What precautions should be taken when servicing the IS200DAMEG1ABA?

The IS200DAMEG1ABA is connected directly to the drive’s IGBT power section, so servicing requires strict electrical safety procedures. The drive must be completely de-energized before the assembly is handled, and the DC bus and other potentially hazardous circuits must be verified to have reached a safe voltage level using suitable test equipment. Technicians should also use appropriate electrostatic-discharge protection because the electronic circuitry and associated IGBT module can be sensitive to static electricity. The APL, BPL, and CPL connections should be identified and handled carefully to prevent connector or cable damage. Because the DAME board is soldered to the IGBT module, attempts to remove the board independently can damage the assembly and are not appropriate for normal field replacement. When reinstalling the combined assembly, the heatsink interface, mounting hardware, electrical connections, and thermal interface should all be checked according to the applicable drive maintenance procedure.
