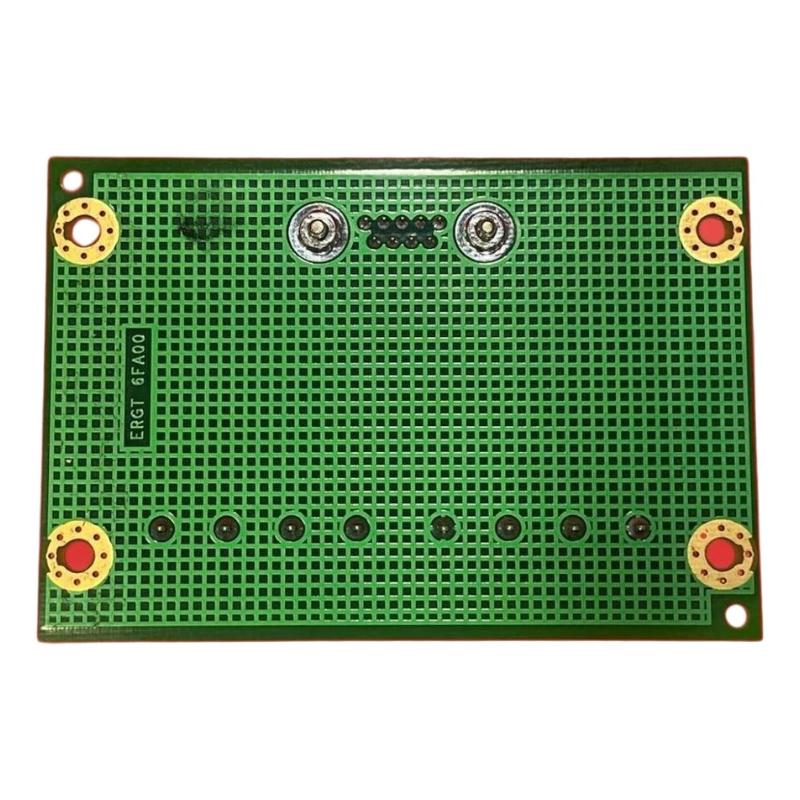

1. What is the main function of the GE IS200ERGTH1A?

The IS200ERGTH1A is a Ground Detector Terminal Board designed for the GE EX2100 excitation control system. Its primary purpose is to provide an interface between the Exciter Regulator Options Card (EROC) and a third-party ground detector. The board converts the signals available through the EROC 9-pin interface into terminal connections that can be wired to the external ground detection equipment. This allows the EX2100 regulator to receive important ground-monitoring information without requiring the external detector to connect directly to the control board. The IS200ERGTH1A supports several important ground-detection signals, including ground alarm, ground detector malfunction, and diode fault monitoring. By providing a dedicated terminal interface, the board simplifies field wiring and allows the external ground detector to be integrated into the excitation control architecture.

2. Does the IS200ERGTH1A require a separate power supply?

No. The IS200ERGTH1A does not require a separate external power supply for its interface function. The board primarily provides signal routing and terminal interfacing between the EROC board and the external third-party ground detector. This passive interface arrangement simplifies installation because there is no additional dedicated supply that needs to be connected directly to the terminal board. When troubleshooting an IS200ERGTH1A installation, technicians should therefore focus on the EROC connection, terminal wiring, external ground detector, and associated signal paths rather than looking for a separate board power input. Correct wiring is particularly important because the board is responsible for transferring several ground-monitoring signals between the excitation regulator and the external detector.

3. What type of ground detector can be connected to the IS200ERGTH1A?

The IS200ERGTH1A is designed to interface with a third-party ground detector used with the GE EX2100 excitation regulator. Instead of connecting the external detector directly through a specialized proprietary connector, the board provides terminal screw connections that simplify field wiring. The interface supports three important output functions from the ground detection system: a ground alarm, a ground detector malfunction indication, and a diode fault monitor signal. The exact external detector and its electrical characteristics should be verified against the specific EX2100 system design before installation. During commissioning, each signal should be checked individually to confirm that the external detector’s alarm and fault states are correctly received by the excitation control system. Proper terminal identification and wiring are essential because incorrect connections can result in missing or false ground-monitoring indications.

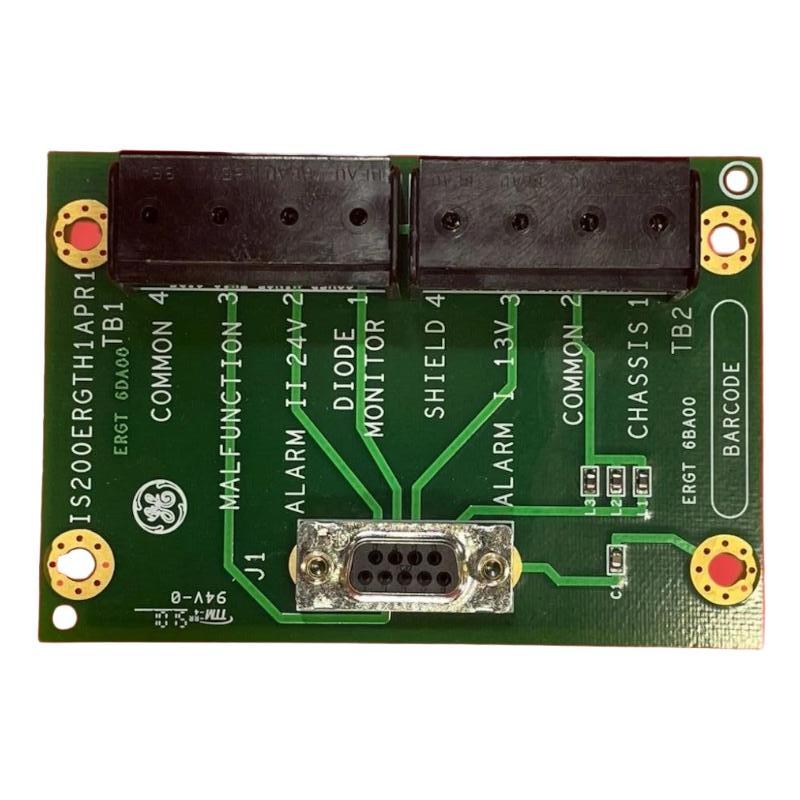

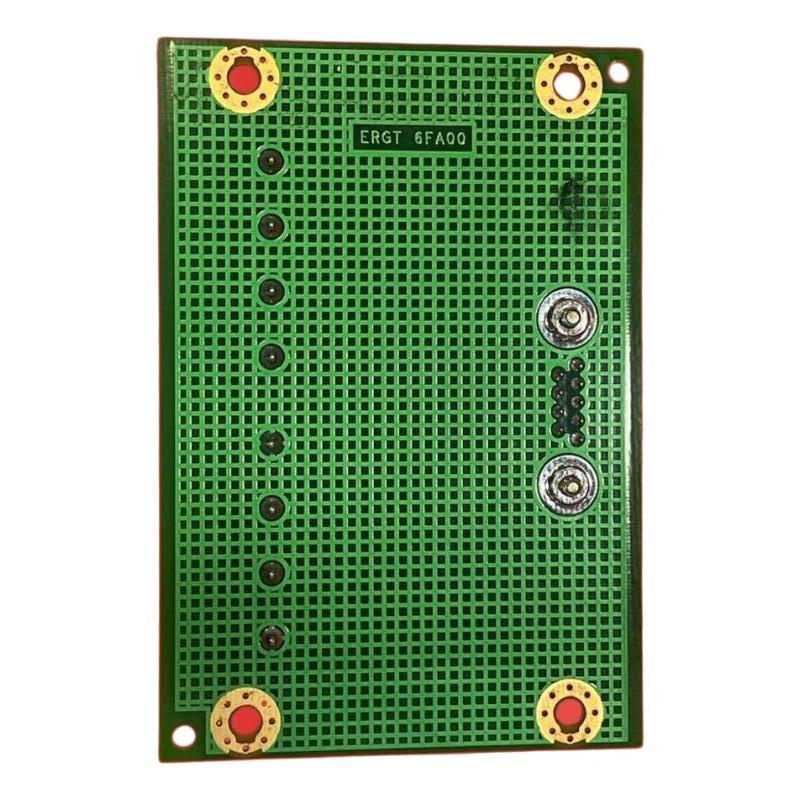

4. What are TB1 and TB2 used for on the IS200ERGTH1A?

TB1 and TB2 are the two four-position terminal strips provided on the IS200ERGTH1A for field-level connections to the external ground detection system. They provide convenient screw-terminal landing points for the signals exchanged between the third-party ground detector and the EX2100 excitation control system. The terminal functions include connections associated with ground detector malfunction, diode monitoring, alarm signals, common connections, and chassis-related connections. Before wiring the board, the terminal assignments should always be checked against the applicable EX2100 system documentation and the actual ground detector being installed. Incorrect terminal wiring can cause an alarm signal to be interpreted incorrectly or prevent the control system from recognizing a genuine ground detector fault. During maintenance, terminal screws should also be checked for secure connections and signs of corrosion, overheating, or mechanical damage.

5. How does the IS200ERGTH1A communicate with the EROC board?

The IS200ERGTH1A communicates with the EROC board through a 9-pin connector. The board receives the relevant interface signals from the EROC and converts them into accessible terminal screw connections for the external third-party ground detector. This arrangement separates the internal control electronics from the field wiring while providing a clear interface point for the ground detection equipment. The 9-pin connection is therefore an important part of the signal path, and a loose or damaged connector can prevent ground-monitoring information from reaching the excitation regulator correctly. When troubleshooting, technicians should inspect the connector for proper seating, damaged pins, contamination, or wiring problems. If the external ground detector is functioning correctly but the EX2100 system does not recognize its alarm or fault status, the 9-pin EROC-to-ERGTH1A interface should be included in the diagnostic process.

6. Can the IS200ERGTH1A be used in redundant excitation control systems?

Yes. The IS200ERGTH1A can be used in EX2100 configurations supporting simplex or redundant control arrangements. In a redundant control architecture, the ground detection interface must be integrated correctly with the corresponding control paths so that ground-related alarms and detector faults remain available to the appropriate control system. The exact wiring arrangement depends on the overall EX2100 system configuration and the third-party ground detector being used. When replacing an existing ERGTH board in a redundant system, the replacement board should match the original part number and hardware revision requirements. All field wiring should be documented before removal, and each terminal should be verified after installation. A redundant control system should also be tested after replacement to ensure that both control paths correctly receive the required ground detector information.

7. What symptoms may indicate a problem with the IS200ERGTH1A?

A problem involving the IS200ERGTH1A may appear as missing ground-detector information, incorrect ground alarms, a persistent ground-detector malfunction indication, or failure of the diode fault monitoring signal to reach the EX2100 control system. However, these symptoms do not necessarily mean that the terminal board itself has failed. Similar problems can be caused by a defective third-party ground detector, damaged field wiring, loose terminal connections, a poor 9-pin EROC connection, or an issue with the EROC board. Troubleshooting should therefore begin by identifying which signal is missing or incorrect. The terminal connections should then be inspected carefully, followed by the 9-pin interface and external detector wiring. If possible, the individual alarm and fault states should be simulated according to the system maintenance procedure to verify whether the corresponding signals are correctly transferred through the ERGTH1A and recognized by the EX2100 regulator.

8. What should be checked when replacing an IS200ERGTH1A?

Before replacing an IS200ERGTH1A, the excitation control system should be placed in a safe maintenance state and all applicable electrical safety procedures should be followed. The existing terminal wiring should be clearly identified and documented before disconnecting the board, particularly the connections on TB1 and TB2. The 9-pin EROC interface should also be inspected for damaged pins or loose connections. After installing the replacement board, each terminal should be checked against the correct wiring documentation, and the board should be securely mounted using the appropriate mounting arrangement. The external ground detector should then be tested to confirm that ground alarm, ground detector malfunction, and diode fault monitor signals are correctly transmitted to the EX2100 control system. In a redundant configuration, both control paths should be checked to ensure that the replacement board has not introduced an asymmetry between the redundant channels.
