1. What is the main function of the GE IS200EXAMG1BAA?

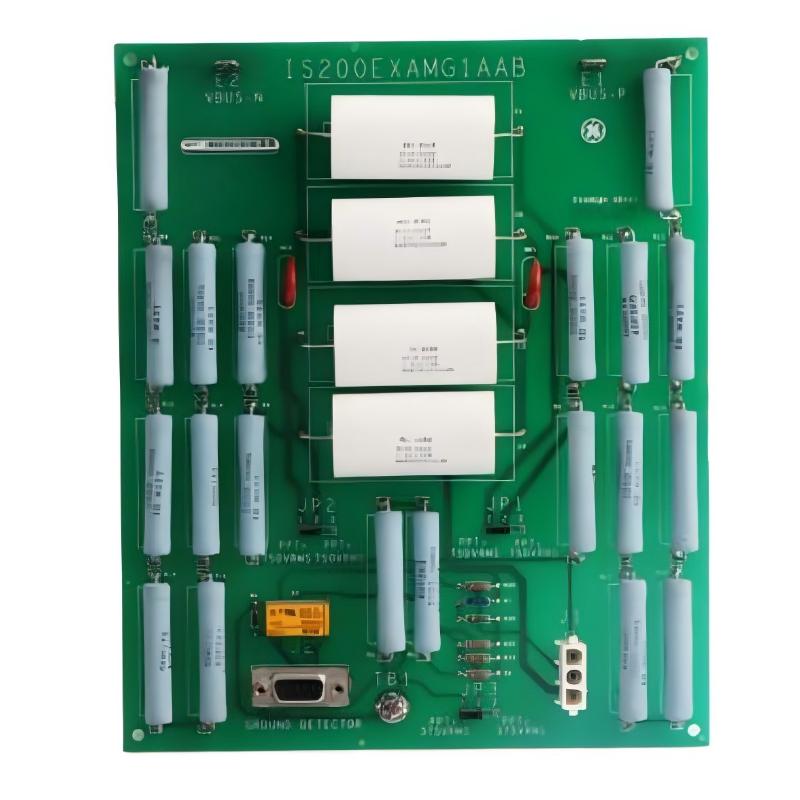

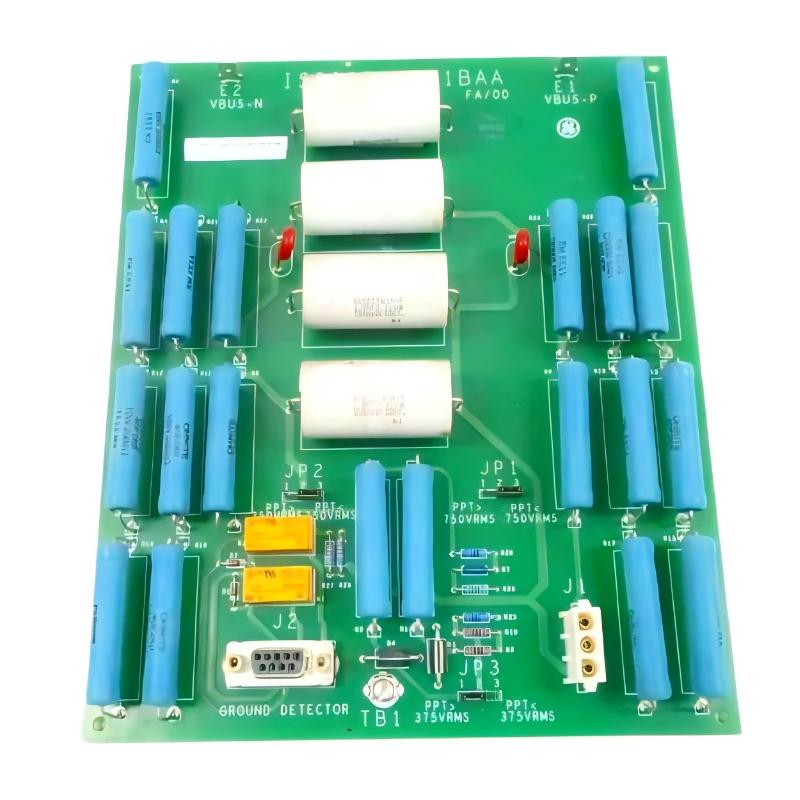

The IS200EXAMG1BAA is an Exciter Attenuation Module used in the GE EX2100 and EX2100e excitation control systems. Its main function is to provide controlled attenuation between the high-voltage exciter field bus and the low-level ground detection circuitry. The module allows high-voltage signals generated by the exciter bridge to be reduced to suitable levels for monitoring by the Exciter Ground Detector Module (EGDM). This arrangement prevents the sensitive control electronics from being directly exposed to the full field voltage while still allowing the excitation system to monitor field insulation and ground conditions. The EXAM also participates in the ground test circuit and provides an interface for field flashing relay auxiliary contacts. Because it is part of the field ground detection system, its condition can directly affect the ability of the excitation controller to recognize abnormal field-to-ground conditions.

2. How does the IS200EXAMG1BAA work with the EGDM module?

The IS200EXAMG1BAA and EGDM form complementary parts of the EX2100 ground detection system. The EXAM is primarily responsible for the high-voltage attenuation and field-side sensing network, while the EGDM receives and processes the resulting low-level signals to determine the condition of the excitation field circuit. The EXAM scales the field bus voltage through its internal electrical network and transfers the appropriate sensing information through the excitation system interface. During a ground detection test, the EXAM participates in establishing the required test path, allowing the EGDM to evaluate the electrical response of the field winding relative to ground. If a ground fault is detected, the associated control and protection functions can generate the appropriate alarm or protective response. Therefore, troubleshooting should normally consider the EXAM, EGDM, EPBP backplane, field wiring and grounding circuit as one complete detection path.

3. Can the IS200EXAMG1BAA be used in both Simplex and TMR systems?

Yes. The IS200EXAMG1BAA can be used in both Simplex and Triple Modular Redundant (TMR) EX2100 excitation control configurations. A typical system requires one EXAM module for the ground detection interface, while the surrounding control architecture determines how the detected information is processed. In a TMR configuration, the ground detection function must remain available to the appropriate redundant control paths, so the wiring and associated control logic must be configured correctly. The EXAM module provides the same fundamental attenuation and ground detection interface function in both configurations. When replacing the module in a TMR system, technicians should verify the exact system architecture, jumper settings, connector wiring and associated control interfaces rather than assuming that a configuration from another EX2100 installation can be copied directly. Functional testing should be performed after replacement to confirm that the ground detection system operates correctly across the required control paths.

4. What are JP1, JP2 and JP3 used for on the IS200EXAMG1BAA?

JP1, JP2 and JP3 are configuration jumpers provided on the IS200EXAMG1BAA. They are used to configure the module according to the potential transformer secondary voltage and the specific electrical arrangement of the excitation system. Correct jumper configuration is important because the EXAM attenuation and sensing network must operate within the intended electrical range. When installing a replacement module, the original jumper positions should be recorded before removing the existing board. The replacement should then be configured according to the original system documentation and applicable GE installation requirements. Incorrect jumper settings can affect the ground detection signal and may cause inaccurate detection, nuisance alarms or failure to recognize a genuine field ground condition. For this reason, technicians should never change JP1, JP2 or JP3 simply as a troubleshooting experiment without first confirming the required configuration for the particular excitation system.

5. What are the J1, J2, E1, E2 and TB1 connections used for?

The IS200EXAMG1BAA uses several connectors and terminals to interface with different parts of the excitation and ground detection system. J1 is a three-pin locking connector associated with the field flashing relay auxiliary contact circuit. J2 is a nine-pin D-sub connector used for ground-test signals, relay control and leakage-current-related monitoring. E1 and E2 are stab-on connections associated with the positive and negative field bus voltage connections, identified as Vbus-P and Vbus-N. TB1 provides the connection between the EXAM shield ground and the cabinet chassis ground. Each interface has a specific electrical function, so correct identification is important during maintenance. In particular, E1 and E2 are associated with the excitation field circuit and require appropriate electrical isolation and safety verification before handling. Loose connectors, damaged terminals or incorrect wiring can produce symptoms that resemble an EXAM board failure and should therefore be checked during troubleshooting.

6. What symptoms may indicate a faulty IS200EXAMG1BAA?

A faulty IS200EXAMG1BAA may result in abnormal field ground alarms, failure of the ground detection test, unstable ground detection results, incorrect leakage-current monitoring or unexpected behavior of the associated field flashing relay interface. The excitation controller may also report a ground-related condition when the actual field circuit is healthy if the attenuation or sensing network is operating incorrectly. However, these symptoms do not necessarily indicate that the EXAM board itself has failed. Similar problems can be caused by an EGDM module, EPBP backplane, field wiring, grounding connection, relay circuit or incorrect jumper configuration. A systematic diagnostic procedure should therefore begin with the alarm history and operating condition under which the fault occurred. The J1 and J2 connectors, E1 and E2 field connections, TB1 grounding connection and JP1/JP2/JP3 settings should then be checked. If the external wiring and associated modules are confirmed to be healthy, the EXAM can be evaluated as the likely source of the abnormal signal.

7. How does the IS200EXAMG1BAA participate in field ground fault detection?

The IS200EXAMG1BAA participates in field ground detection by creating the electrical interface between the excitation field circuit and the ground detection electronics. The excitation field can operate at a substantial DC voltage, so the monitoring circuit requires controlled attenuation before the signal reaches the low-level detection electronics. The EXAM performs this attenuation and provides the appropriate sensing path for the EGDM. During a ground test, the system applies a controlled low-frequency AC test signal relative to ground and evaluates the resulting electrical response. A healthy field circuit produces an expected response, while an insulation breakdown or direct ground connection changes the electrical characteristics of the test path. The detection system can then identify the abnormal condition and initiate the appropriate alarm or protective action. This makes the EXAM an important interface between the high-voltage field circuit and the electronic ground detection system.

8. What precautions should be taken when replacing the IS200EXAMG1BAA?

The IS200EXAMG1BAA should only be replaced after the excitation system has been safely shut down and the relevant field and bus circuits have been verified to be at a safe voltage. Because the module interfaces with the high-voltage exciter field circuit, simply opening the main control power supply is not sufficient to assume that all hazardous voltages have disappeared. Appropriate lockout and electrical verification procedures should be followed. Before removing the existing module, technicians should document the wiring at J1, J2, E1, E2 and TB1 and record the positions of JP1, JP2 and JP3. The replacement board should have the correct part number and compatible revision for the application. After installation, all connectors and grounding connections should be inspected for secure contact, and the jumper configuration should be verified against the system documentation. The excitation system should then undergo functional testing of the ground detection circuit, relay interface, alarm functions and related control signals before being returned to normal operation.
