1. What is the main function of the GE IS200REBFH1A PCB?

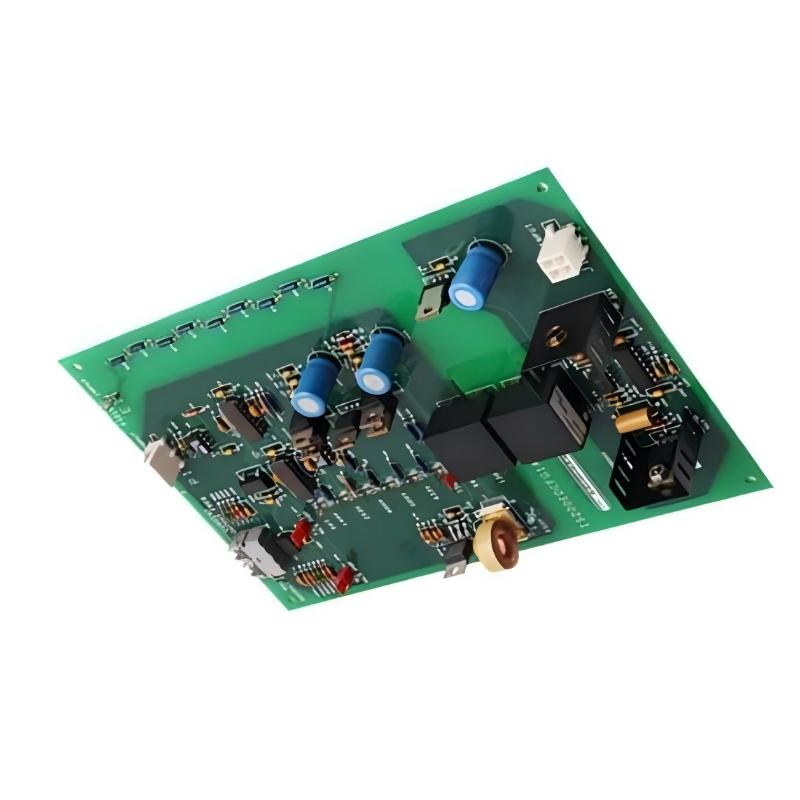

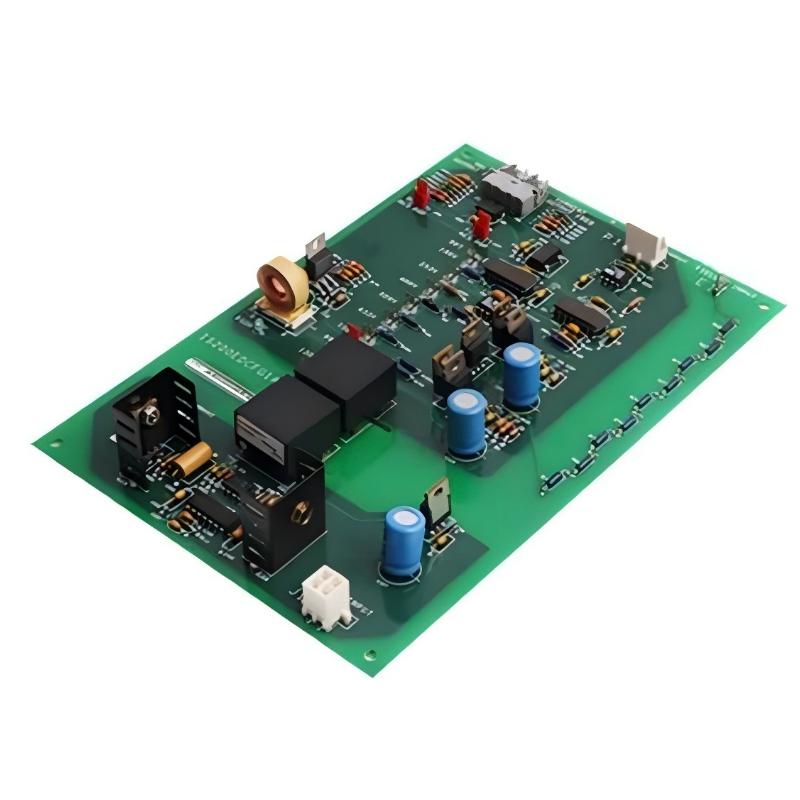

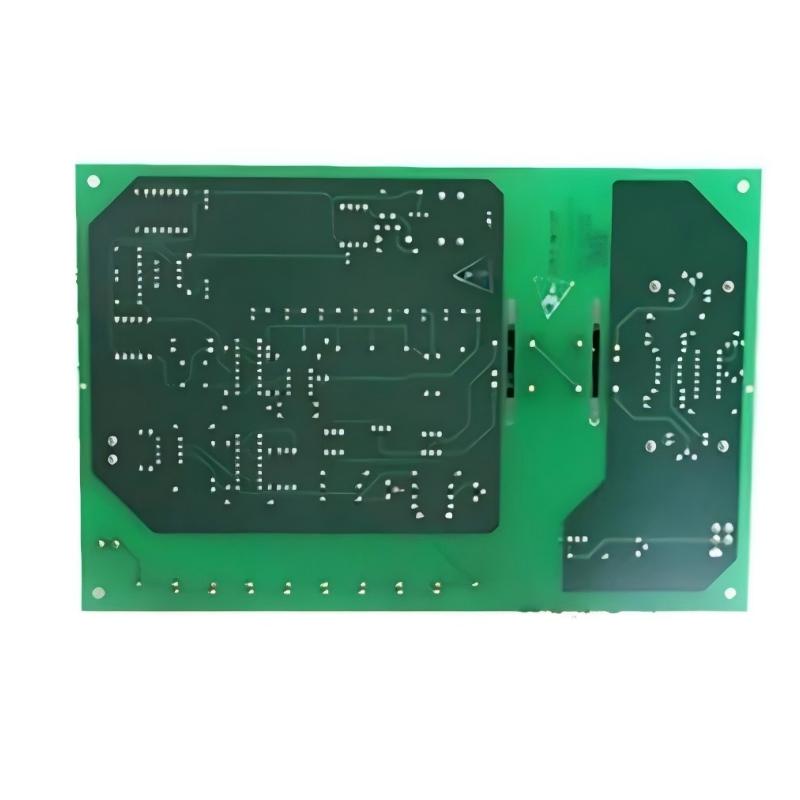

The GE IS200REBFH1A is a printed circuit board used within the GE Mark VI Speedtronic turbine control system. Its REBF functional designation identifies the board within the Mark VI hardware architecture. The board provides dedicated electronic circuitry for turbine control system interface and signal-related functions, while also incorporating protection components intended to help manage electrical disturbances. In a complete Mark VI installation, the board works together with other control, I/O, termination, and interface hardware rather than operating as an independent controller. Its actual role should therefore be considered in relation to the specific Mark VI cabinet and system configuration in which it is installed.

2. Which GE control system is the IS200REBFH1A designed for?

The IS200REBFH1A is associated with the GE Mark VI Speedtronic turbine control system. Mark VI is a turbine control platform designed for industrial turbine applications and incorporates distributed control, I/O, protection, monitoring, and communication functions. The IS200REBFH1A forms part of this larger hardware architecture and should be matched with the correct system revision and associated boards. When replacing a board, technicians should verify the complete part number, revision, system documentation, and existing cabinet configuration rather than selecting a replacement based only on the general board family.

3. What does the H1A designation indicate on the IS200REBFH1A?

The H1A designation identifies the specific hardware and revision configuration of the board. The complete GE part number is important because different hardware revisions can have differences in component selection, circuit implementation, or system compatibility. The IS200REBFH1A should therefore not automatically be treated as interchangeable with every REBF board carrying a different revision. Before replacing an installed board, engineers should compare the complete part number and revision information with the existing hardware and applicable system documentation. This is particularly important in turbine control systems because an apparently similar PCB may not provide identical compatibility.

4. What should be checked before installing an IS200REBFH1A replacement board?

Before installation, verify the complete part number, hardware revision, physical condition, connectors, and PCB components. The replacement should correspond to the existing Mark VI system configuration and the function performed by the original board. The control system should be placed in the appropriate maintenance condition and de-energized according to the site’s approved procedures before removing or installing circuit boards. Technicians should also inspect the associated connectors and wiring for signs of corrosion, contamination, mechanical damage, or loose connections. After installation, the board should be checked for correct seating, system recognition, diagnostic status, and proper operation before the turbine is returned to normal service.

5. What are common symptoms of an IS200REBFH1A-related problem?

Possible symptoms depend on the specific function assigned to the board within the Mark VI system. Abnormal system diagnostics, unexpected signal behavior, communication or interface problems, control alarms, or failure of an associated turbine function may indicate a problem with the board or its surrounding circuitry. However, these symptoms do not automatically prove that the PCB itself has failed. Technicians should first review Mark VI diagnostic information and compare the affected signal or function with the system documentation. Power supply conditions, connectors, termination boards, associated cables, and other related hardware should also be checked before replacing the IS200REBFH1A.

6. How should an IS200REBFH1A communication or signal problem be diagnosed?

Start by identifying exactly which turbine signal or system function is affected. Review the Mark VI diagnostic information to determine whether the system reports a board-related fault, an I/O problem, or another abnormal condition. Next, inspect the board installation, connectors, cables, and associated termination hardware. Power supply conditions should also be verified because unstable or missing power can create symptoms that appear to be board failures. If the external wiring and associated hardware are confirmed to be correct, the IS200REBFH1A can then be evaluated as a possible source of the problem. A controlled replacement with a known-compatible board can help confirm a suspected hardware fault, provided that the replacement procedure follows the site’s turbine maintenance requirements.

7. Does the IS200REBFH1A provide protection against electrical disturbances?

The IS200REBFH1A incorporates voltage suppression and voltage-limiting components as part of its circuit design. These components help protect sensitive electronic circuitry from certain electrical transients and abnormal voltage conditions. However, this protection should not be interpreted as immunity from severe electrical faults, incorrect wiring, overvoltage, or improper power supply conditions. The overall Mark VI system includes additional power distribution and protection mechanisms, so the board should be operated within the electrical conditions specified for the complete control system. If repeated board failures occur, the associated power supply and external circuitry should be investigated rather than simply replacing the PCB.

8. What maintenance practices can improve the reliability of the IS200REBFH1A?

Reliable operation starts with correct installation and a clean, controlled turbine control cabinet environment. Technicians should periodically inspect the board and its connectors for contamination, corrosion, loose connections, physical damage, or signs of overheating. The cabinet’s environmental conditions should also remain within the requirements of the Mark VI installation. When handling the PCB, appropriate electrostatic discharge precautions should be followed because static electricity can damage sensitive electronic components. Any diagnostic alarms should be investigated promptly instead of repeatedly resetting the system. If a board must be replaced, the complete part number and revision should be verified before installation, and the system should be functionally tested after replacement to confirm that the affected turbine control functions operate correctly.
