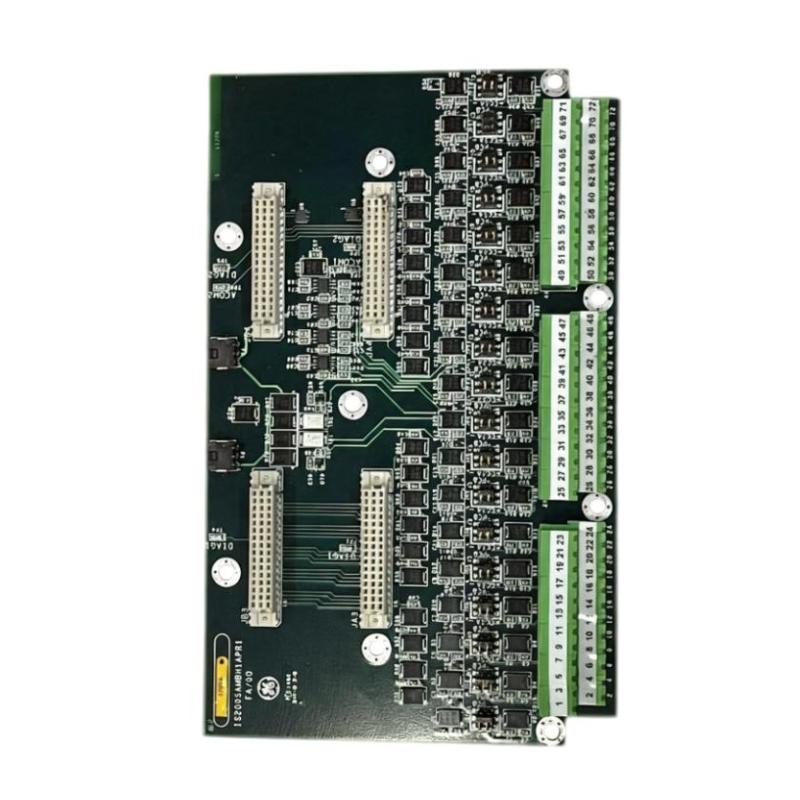

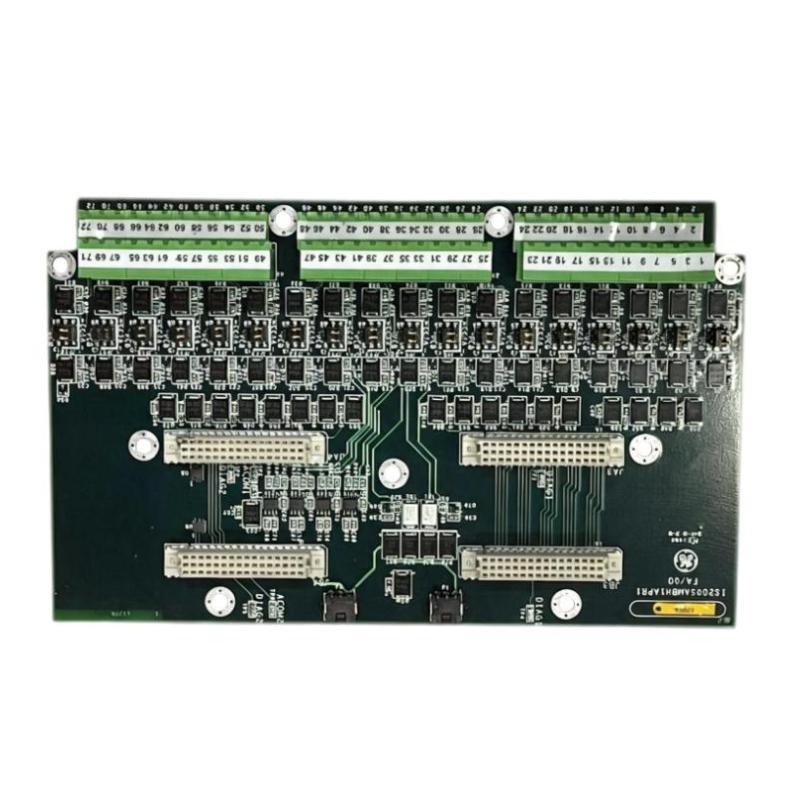

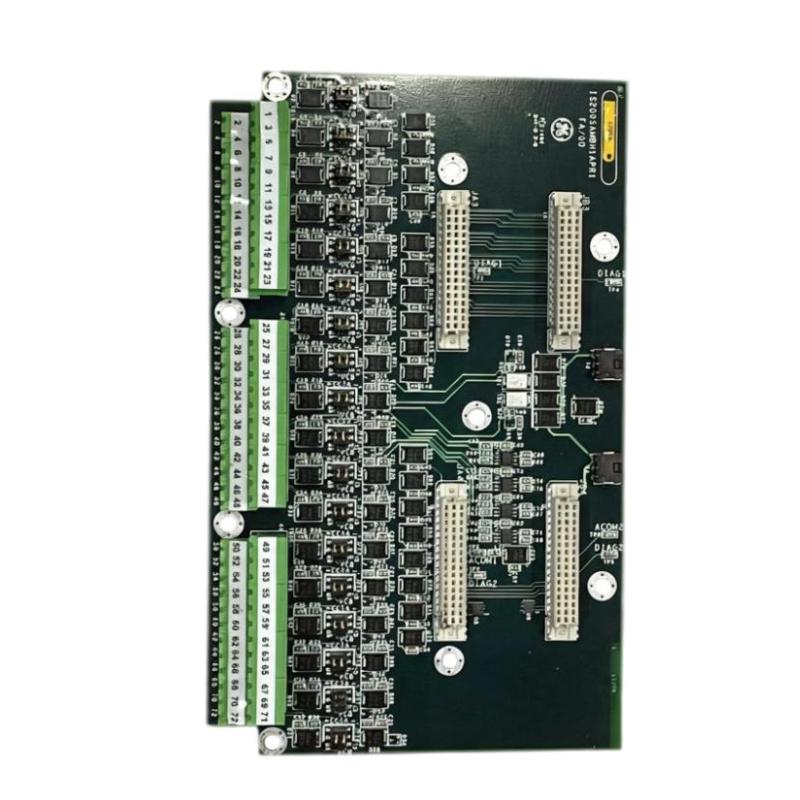

GE IS200SAMBH1A Acoustic Monitoring Terminal Board
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Model | IS200SAMBH1A |
| Product Type | Acoustic Monitoring Terminal Board |
| Board Type | Terminal / Interface Board |
| Main Function | Provides terminal interfacing and signal connection for acoustic monitoring functions |
| Application | Industrial turbine control, monitoring, and protection systems |
| Signal Function | Acquisition and routing of acoustic monitoring signals |
| System Integration | Designed for integration with compatible GE Mark VI control systems |
| Signal Interface | Connects field acoustic monitoring signals with the control system |
| Signal Processing | Supports signal transmission and interfacing between field devices and control electronics |
| Installation | Installed within a compatible GE control cabinet or system assembly |
| Connection | Field wiring and internal system connections through board terminals/connectors |
| Maintenance | Power-off inspection, terminal checking, signal testing, and board replacement |
| Troubleshooting Focus | Wiring, terminal connections, signal continuity, and board communication/interface status |
| Dimensions | 185 × 30 × 110 mm |
| Weight | 0.3 kg |
FAQ
1. What is the main function of the GE IS200SAMBH1A Acoustic Monitoring Terminal Board?
The IS200SAMBH1A is used as a terminal and interface board for acoustic monitoring functions within compatible GE control systems. It provides the electrical connection between field acoustic monitoring devices and the control system, allowing relevant signals to be routed for monitoring and control purposes.
2. What type of system is the IS200SAMBH1A typically used with?
The board is associated with GE industrial control equipment, particularly systems used for turbine monitoring and control. It is intended to work as part of a compatible control-system architecture rather than as a standalone monitoring device.
3. What should be checked if acoustic monitoring signals are missing?
Start by checking the field wiring and terminal connections. Verify that the acoustic monitoring device is receiving the required power and that the signal path has continuity. If the field device and wiring are normal, inspect the IS200SAMBH1A connections and the corresponding input status in the control system.
4. What can cause unstable or intermittent acoustic monitoring signals?
Intermittent signals can be caused by loose terminals, damaged field wiring, poor connector contact, electrical interference, or an unstable monitoring device. The board should also be checked for signs of contamination, physical damage, or abnormal connections that could affect signal transmission.
5. How can a fault in the IS200SAMBH1A be distinguished from a field sensor problem?
Compare the signal at the field device with the signal received by the control system. If the field device produces a stable signal but the corresponding signal is missing or abnormal at the system interface, the wiring or terminal board should be investigated. Cross-checking with another known-good channel can also help isolate the fault.
6. Can the IS200SAMBH1A be replaced while the control system is energized?
Replacement should normally be performed with the associated equipment safely shut down and power isolated. Unless the specific GE system documentation explicitly permits energized module replacement, the board should not be removed or installed while powered because this can create electrical and equipment risks.
7. What precautions should be taken when installing the IS200SAMBH1A?
Verify the exact board model and hardware configuration before installation. Field wiring should be identified and documented before disconnection, and all terminals and connectors should be seated correctly after installation. Anti-static handling procedures should also be followed when working with the circuit board.
8. What maintenance is recommended for the GE IS200SAMBH1A?
Maintenance should focus on checking terminal tightness, connector condition, field signal continuity, and visible signs of overheating or physical damage. When troubleshooting an acoustic monitoring problem, it is also important to check the complete signal path rather than replacing the board immediately, since wiring and field-device faults can produce similar symptoms.
GE IS200SAMBH1A Acoustic Monitoring Terminal Board is in stock. Please contact us for a quick quote and competitive pricing.
