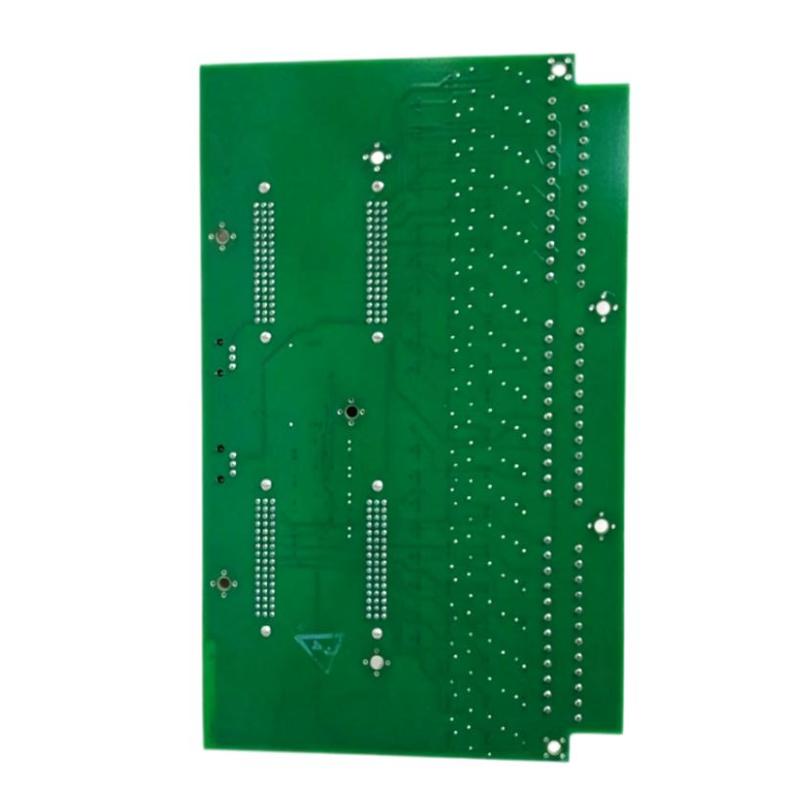

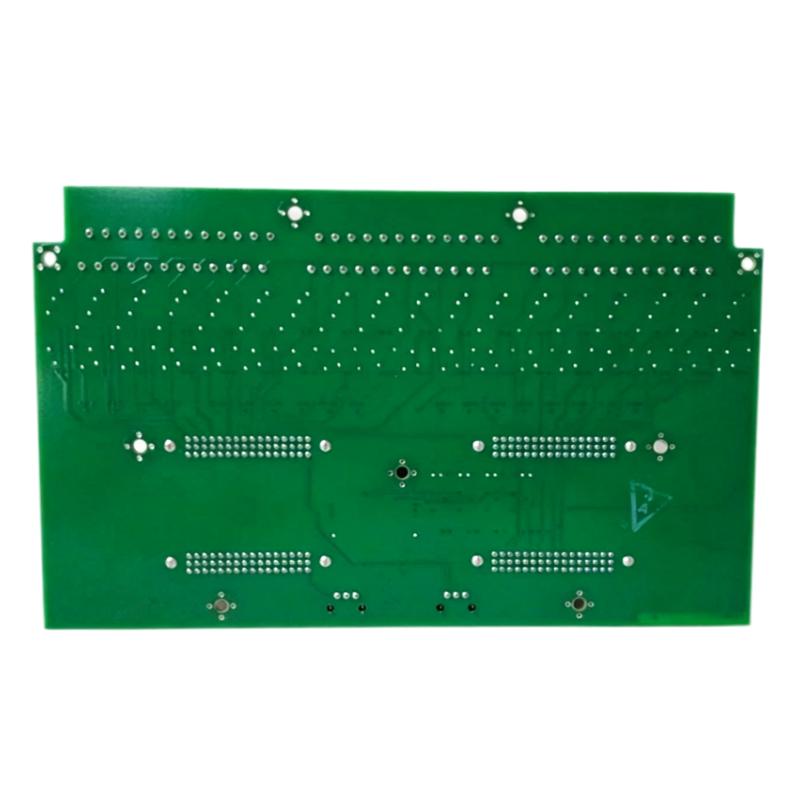

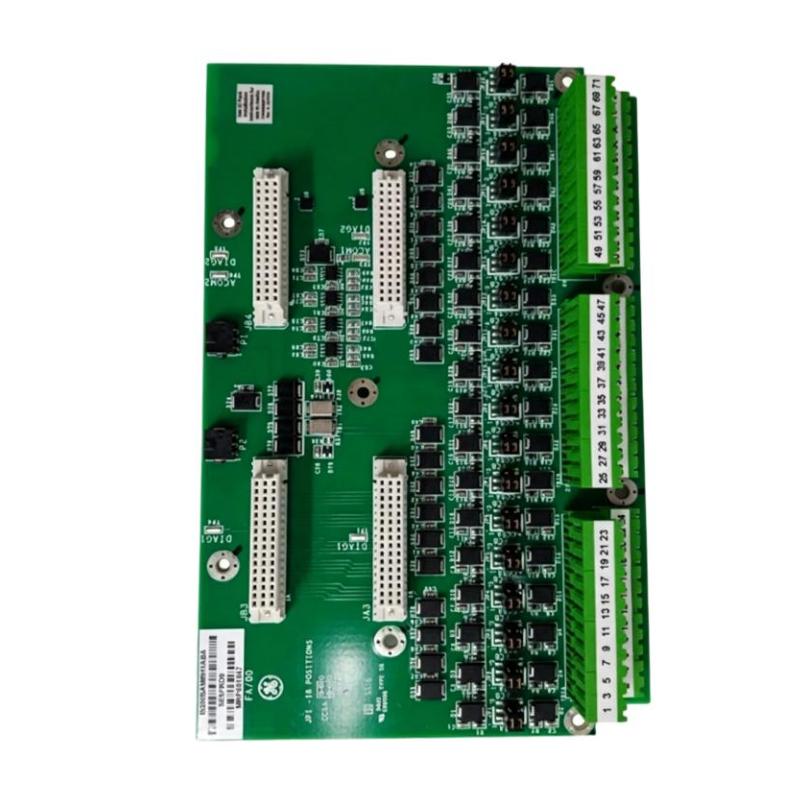

GE IS200SAMBH1ABA Acoustic Monitoring Terminal Board
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Model | IS200SAMBH1ABA |
| Product Type | Acoustic Monitoring Terminal Board |
| Board Type | Terminal / Interface Board |
| Main Function | Provides signal connection, terminal interfacing, and signal transmission for acoustic monitoring systems |
| Typical Application | Industrial turbine control, monitoring, and protection systems |
| Signal Function | Acquisition, connection, and transmission of acoustic monitoring signals |
| System Integration | Designed for compatible GE Mark VI control systems |
| Signal Interface | Connects field acoustic monitoring equipment with the control system |
| Signal Processing | Provides signal interfacing and transmission between field monitoring devices and control electronics |
| Installation | Installed inside a compatible GE control cabinet or system assembly |
| Connection | Field wiring and internal system connections through board terminals and connectors |
| Maintenance | Power-off inspection, terminal checking, signal testing, and board replacement |
| Troubleshooting Focus | Field wiring, terminal connections, connectors, signal continuity, and interface status |
| Dimensions | 185 × 30 × 110 mm |
| Weight | 0.3 kg |
FAQ
1. What is the main function of the GE IS200SAMBH1ABA Acoustic Monitoring Terminal Board?
The IS200SAMBH1ABA is used as an interface and terminal board for acoustic monitoring signals in compatible GE industrial control systems. It provides the connection path between field acoustic monitoring equipment and the control system, allowing monitoring signals to be transmitted for further system processing.
2. Where is the IS200SAMBH1ABA typically used?
The board is intended for GE industrial control and monitoring systems and can be used in turbine-related monitoring, control, and protection applications. Its actual application depends on the hardware configuration of the main control system and the installed acoustic monitoring equipment.
3. What should be checked if the IS200SAMBH1ABA does not receive an acoustic monitoring signal?
First verify that the field acoustic monitoring device is operating correctly. Then inspect the signal wiring, terminals, and connectors for loose connections, broken wires, or poor contact. If the field device and wiring are normal, check the corresponding IS200SAMBH1ABA channel and the signal status reported by the control system.
4. What can cause intermittent signal problems with the IS200SAMBH1ABA?
Intermittent signals can result from loose terminals, poor connector contact, damaged field wiring, electrical interference, or unstable operation of the connected monitoring equipment. On older systems, aging connections or circuit-board components should also be considered during troubleshooting.
5. How can a fault in the IS200SAMBH1ABA be distinguished from a field monitoring device fault?
The signal path should be checked from the field device toward the control system. If the monitoring device produces a stable signal but the control system receives an abnormal signal, inspect the wiring, terminals, connectors, and IS200SAMBH1ABA. Cross-checking with a known-good channel can also help identify the faulty section.
6. Should the system power be switched off before replacing the IS200SAMBH1ABA?
Unless the specific GE control system documentation confirms support for energized replacement, the system should be safely shut down and the relevant power isolated before removing the board. Anti-static handling procedures should also be followed to protect the circuit board and connected equipment.
7. What precautions should be taken when installing the IS200SAMBH1ABA?
Confirm that the board model and system configuration are compatible before installation. The original terminal wiring should be clearly identified before removal, and all terminals and connectors should be reconnected correctly. Avoid mechanical impact and electrostatic discharge during installation.
8. What maintenance is recommended for the GE IS200SAMBH1ABA?
Routine maintenance should include checking terminal tightness, connector condition, signal stability, and the board for visible signs of overheating, burning, or physical damage. When a monitoring signal becomes abnormal, check the field device, signal wiring, terminal board, and control system in sequence rather than immediately replacing the board.
GE IS200SAMBH1ABA Acoustic Monitoring Terminal Board is in stock. Please contact us for a quick quote and competitive pricing.
