1. What is the main function of the GE IS200SPROH1A?

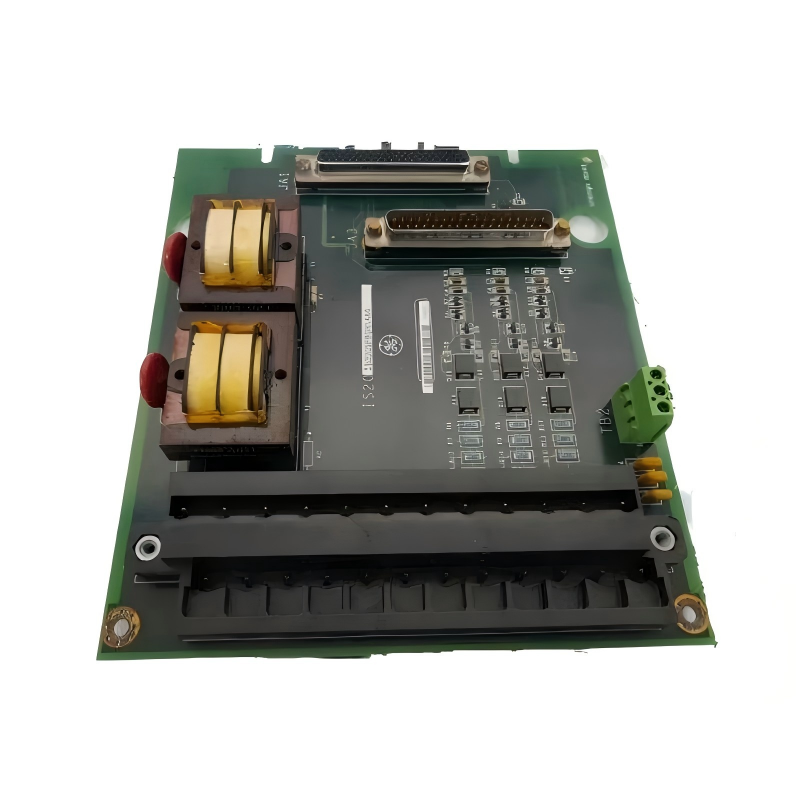

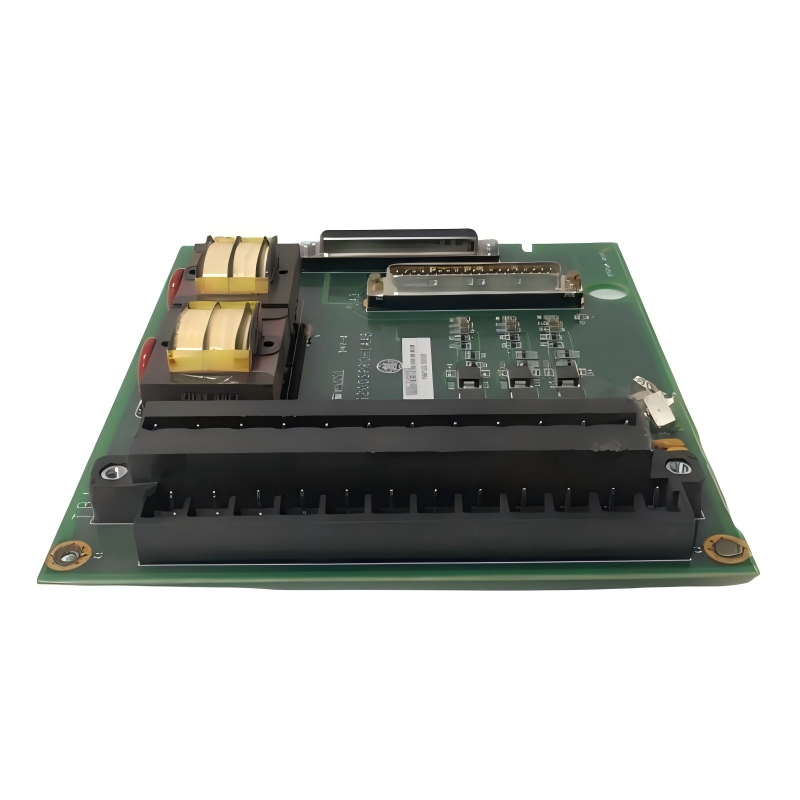

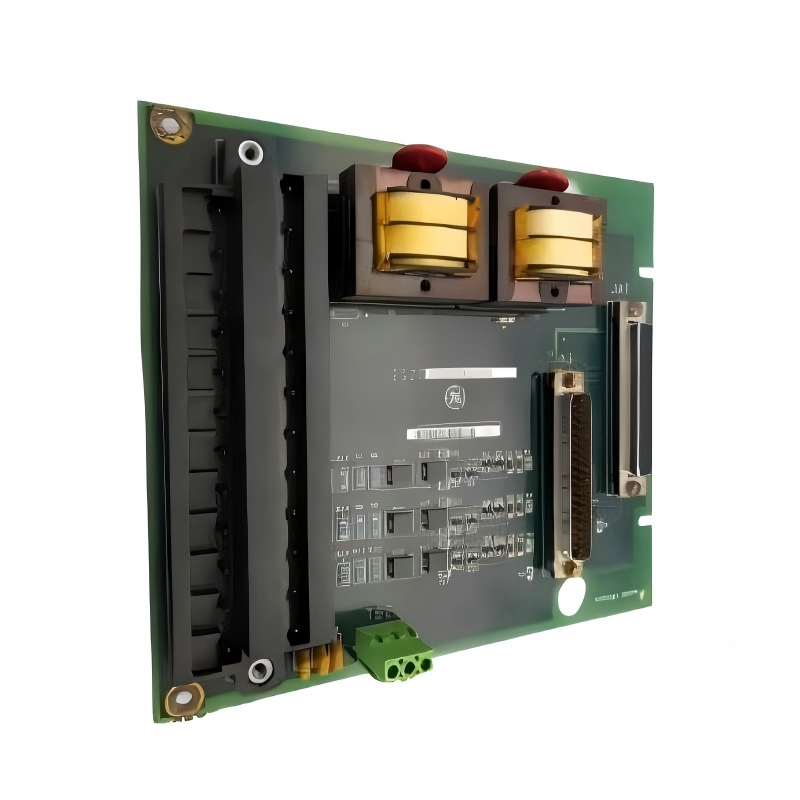

The GE IS200SPROH1A is a Spare Protection Terminal Board used within the GE Mark VI turbine control architecture. Its primary role is to provide an organized interface for protection-related field signals and associated control-system wiring. The board serves as a termination and signal-routing point between field devices and the corresponding Mark VI control or protection hardware. It is not intended to replace the main processing or protection controller itself. Instead, it forms part of the electrical interface that allows protection signals to be correctly connected to the appropriate control system components. Its exact signal assignment depends on the Mark VI cabinet design and the specific turbine application.

2. What type of signals can be connected through the IS200SPROH1A?

The IS200SPROH1A is intended for protection-related signal termination and interface applications within a Mark VI system. Depending on the system configuration, the associated terminal circuits can be used for field protection, monitoring, and control signals. The exact signal type and terminal assignment should always be determined from the applicable Mark VI system drawings and cabinet wiring documentation. Technicians should not assume that two terminal boards with similar physical construction have identical terminal assignments. Correct identification of each field signal is important because an incorrectly terminated protection circuit can affect alarm, monitoring, or protective functions.

3. Is the IS200SPROH1A a protection controller?

No. The IS200SPROH1A is a protection terminal board rather than a standalone protection controller. Its primary purpose is to provide the electrical termination and interface required for protection-related signals within the Mark VI architecture. Protection processing, control logic, monitoring decisions, and system-level functions are handled by the appropriate Mark VI control and protection hardware. The terminal board therefore works as part of a larger system rather than independently. When troubleshooting a protection problem, technicians should examine the terminal board, field wiring, associated I/O hardware, power supplies, and control logic as a complete signal path.

4. What should be checked if a protection signal connected to the IS200SPROH1A is missing?

The first step is to identify the exact protection signal and its expected terminal location using the system wiring documentation. Next, inspect the field wiring, terminal connections, cable continuity, and associated field device. The terminal board should also be checked for loose connections, damaged terminals, contamination, or other physical problems. If the field signal reaches the terminal board correctly but is not detected by the Mark VI system, the associated I/O module, interface wiring, and system diagnostics should be examined. Power supply conditions should also be verified where applicable. A structured signal-path check from the field device through the terminal board and into the Mark VI input hardware is usually the most effective way to locate the problem.

5. What are common causes of IS200SPROH1A-related signal problems?

Signal problems can result from loose terminal connections, damaged field wiring, incorrect termination, corrosion, contamination, or faults in associated field devices. Problems can also occur farther downstream in the signal path, such as an I/O module issue, power supply problem, or incorrect system configuration. Therefore, an abnormal signal should not automatically be attributed to the IS200SPROH1A itself. Technicians should compare the actual field signal with the value or state expected by the Mark VI system and progressively check each connection point. If multiple unrelated signals become abnormal simultaneously, the investigation should also include common wiring, power, and interface components rather than focusing on a single terminal circuit.

6. How should the IS200SPROH1A be installed or replaced?

Before replacing the IS200SPROH1A, the complete part number and board revision should be compared with the existing board and applicable Mark VI documentation. The system should be placed in the appropriate maintenance condition, and electrical isolation should be completed according to the site’s approved procedures. Field wires should be clearly identified before disconnecting them so that each conductor can be returned to the correct terminal. After installation, technicians should carefully inspect terminal tightness, connector seating, wiring routing, and grounding arrangements. The relevant protection signals should then be verified using the Mark VI diagnostic system and appropriate field tests before the turbine control system is returned to normal operation.

7. Can a similar GE terminal board be used as a replacement for IS200SPROH1A?

A visually similar GE terminal board should not automatically be considered a suitable replacement. Terminal boards can have different electrical functions, terminal assignments, circuit configurations, and system compatibility even when their physical appearance is similar. The complete IS200SPROH1A part number and revision should therefore be verified before installation. Engineers should also compare the terminal assignments with the applicable Mark VI system drawings and confirm that the replacement board matches the specific turbine control cabinet configuration. Using an incorrect terminal board in a protection circuit can result in incorrect signal routing and may affect the reliability of important monitoring or protection functions.

8. What maintenance practices help keep the IS200SPROH1A reliable?

Routine maintenance should focus on terminal connections, field wiring, connectors, grounding, and the surrounding control cabinet environment. Technicians should periodically inspect for loose terminals, corrosion, contamination, damaged insulation, or signs of overheating. Protection-related signals should also be compared with expected operating conditions when maintenance testing is performed. If an intermittent protection signal occurs, the terminal connections and field wiring should be checked carefully because a marginal connection can produce faults that appear and disappear with vibration or temperature changes. When working on the board, appropriate electrostatic-discharge precautions should be followed for exposed electronic circuitry. Any replacement should use the correct part number and revision, followed by a functional verification of the affected protection and monitoring circuits before returning the system to service.
