1. What is the main function of the GE IS200WEORG1ACD?

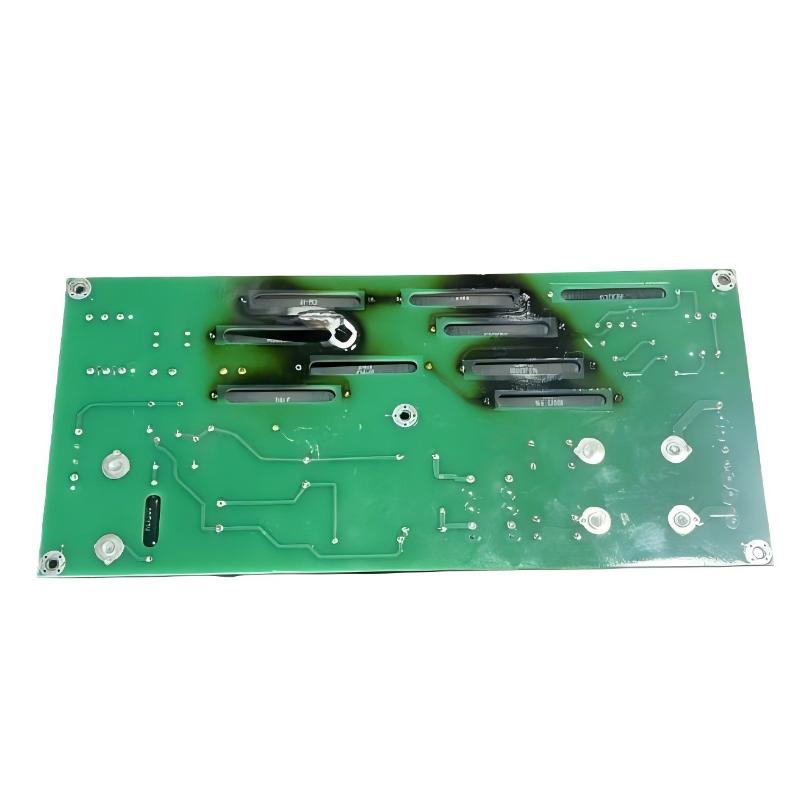

The GE IS200WEORG1ACD is a wind turbine output board used in GE Mark VIe control systems. The board provides an electrical interface between the wind turbine control architecture and associated output or field circuits. It contains multiple connection points, protective components, resistors, capacitors, jumpers, and fuses that support its role within the overall control system. The exact output signal assignment depends on the specific Mark VIe wind turbine configuration in which the board is installed. It should therefore be treated as part of a larger control architecture rather than as an independent wind turbine controller.

2. Which control system is the IS200WEORG1ACD compatible with?

The IS200WEORG1ACD is associated with the GE Mark VIe wind turbine control platform. Mark VIe systems use distributed control hardware to monitor turbine operating conditions and coordinate control functions through multiple interface and I/O boards. The WEORG board forms part of this architecture and works together with other system hardware to provide the required turbine output and interface functions. Before installing a replacement, the complete IS200WEORG1ACD part number and revision should be checked against the existing board and the turbine’s system configuration to ensure proper compatibility.

3. What does the WEOR designation mean on the IS200WEORG1ACD?

WEOR is the functional acronym associated with the IS200WEORG1ACD board. It identifies the board’s functional family within the GE Mark VIe hardware architecture. The complete part number is still required for correct identification because the revision information contained in the model number distinguishes the specific hardware configuration. In this case, the board includes functional revisions A and C and artwork revision D. When ordering or replacing the board, technicians should use the complete part number rather than relying only on the WEOR designation.

4. What type of protection components are installed on the IS200WEORG1ACD?

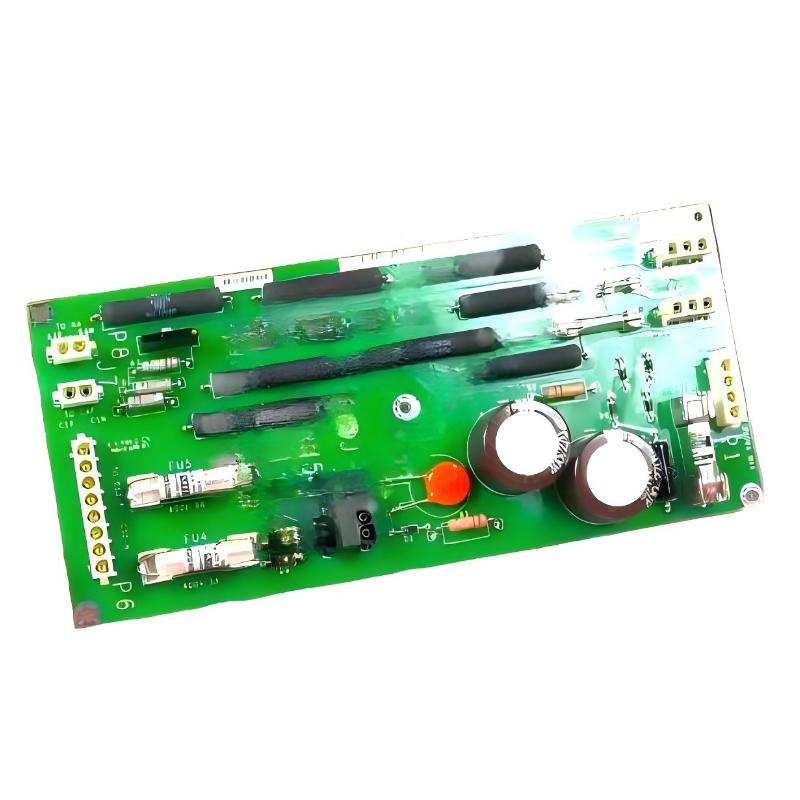

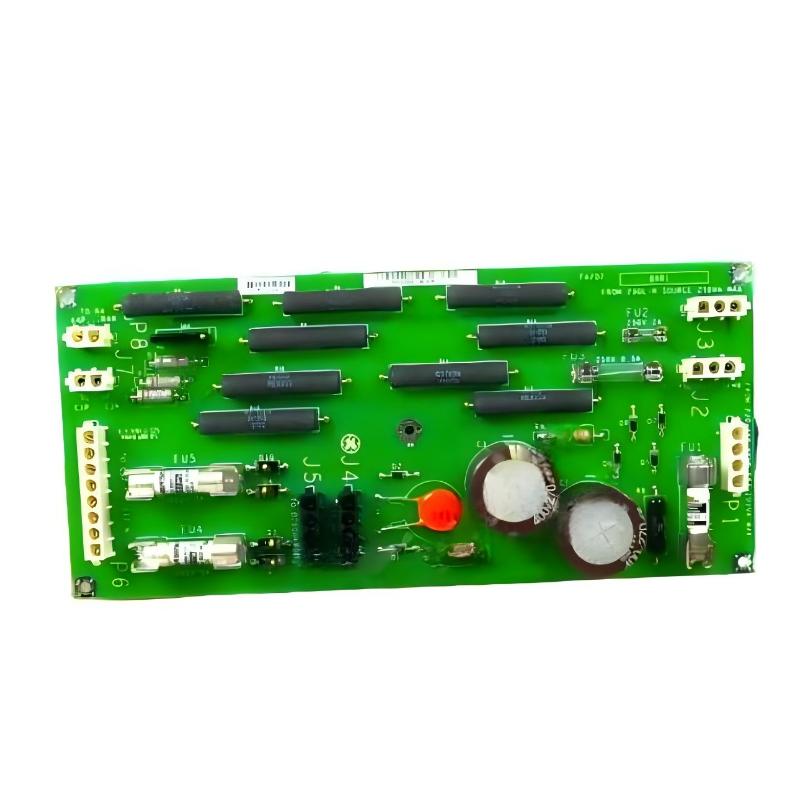

The IS200WEORG1ACD includes five identified fuse positions, designated FU1 through FU5. The associated fuses are rated at 600 V and 5 A. These components provide circuit protection for the relevant board circuits and help limit the effects of certain overcurrent conditions. The board also contains resistors and capacitors that form part of its electrical circuitry. If a fuse is found to be open, technicians should not simply replace it repeatedly without determining why the original fuse operated. The associated circuit, wiring, and connected field equipment should be checked for short circuits, overloads, or other abnormal conditions.

5. What are common symptoms of an IS200WEORG1ACD fault?

A fault involving the IS200WEORG1ACD may appear as an abnormal wind turbine output signal, loss of a related control function, system diagnostic alarm, or unexpected field-device behavior. However, these symptoms do not necessarily mean that the board itself has failed. Loose connectors, damaged field wiring, blown fuses, incorrect system conditions, power problems, or faults in associated control hardware can produce similar symptoms. Troubleshooting should therefore begin by identifying the exact output or function affected and reviewing the Mark VIe diagnostic information. The corresponding wiring, fuse circuits, connectors, and associated I/O hardware should then be checked systematically before replacing the PCB.

6. How should a blown fuse on the IS200WEORG1ACD be investigated?

When one of the board fuses is found to be open, the first step is to identify which fuse position is affected and determine which circuit it protects. The associated wiring and connected field equipment should then be inspected for short circuits, excessive current, damaged insulation, or incorrect connections. The board itself should also be checked for visible component damage or signs of overheating. A replacement fuse should only be installed after the underlying cause has been investigated and the replacement rating has been confirmed. Repeated fuse failures usually indicate that an external or internal electrical problem remains unresolved, so replacing the fuse alone may not correct the original fault.

7. What should be checked if the IS200WEORG1ACD output signal is unstable or missing?

Start by identifying the specific output channel and confirming whether the Mark VIe control system is generating the expected command. Next, inspect the relevant board connector, field wiring, terminal connections, and connected device. Check the appropriate fuse circuit and verify that the board is receiving the required power. If the field wiring and external equipment are normal, system diagnostics should be reviewed for board, I/O, or communication-related alarms. It is also useful to compare the affected channel with a known-good channel where the system configuration allows this. A systematic check of the complete signal path can help distinguish between a PCB fault and a problem elsewhere in the turbine control system.

8. What precautions should be taken when replacing the IS200WEORG1ACD?

Before replacing the IS200WEORG1ACD, verify the complete part number, including the functional and artwork revisions, against the original board and applicable Mark VIe documentation. The turbine control system should be placed into the appropriate maintenance condition, and all relevant electrical energy sources should be isolated according to site safety procedures. Before removing the board, all connected cables and terminals should be clearly identified to prevent incorrect reconnection. After installing the replacement, check the connectors, fuse circuits, jumpers, and field wiring carefully. The system should then be safely powered and checked through its diagnostic functions. Relevant output signals should be verified under controlled conditions before the wind turbine is returned to normal operation.
