1. What is the primary function of the GE IS410JPDHG1A?

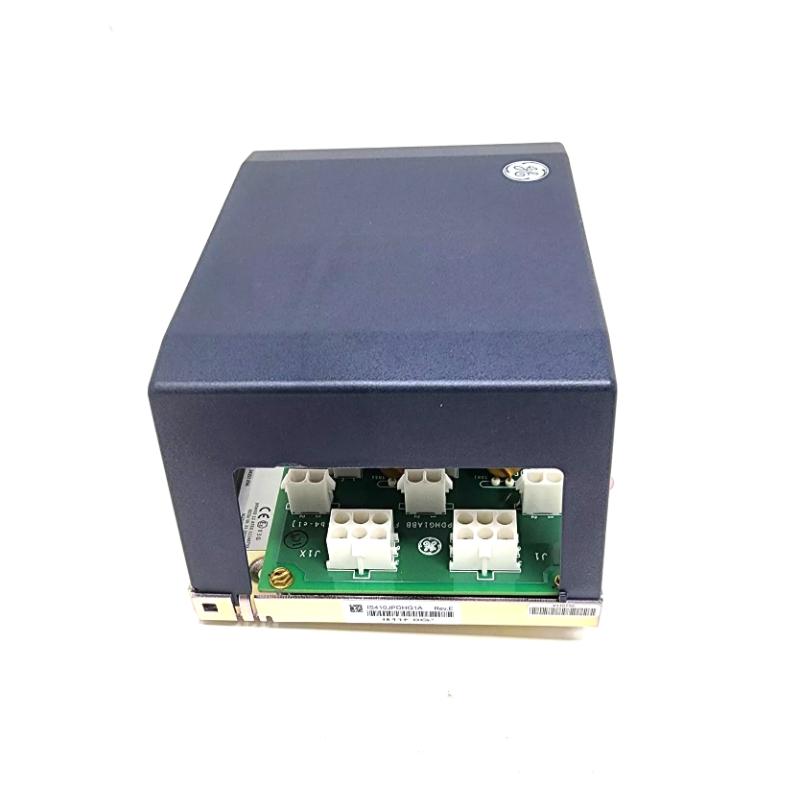

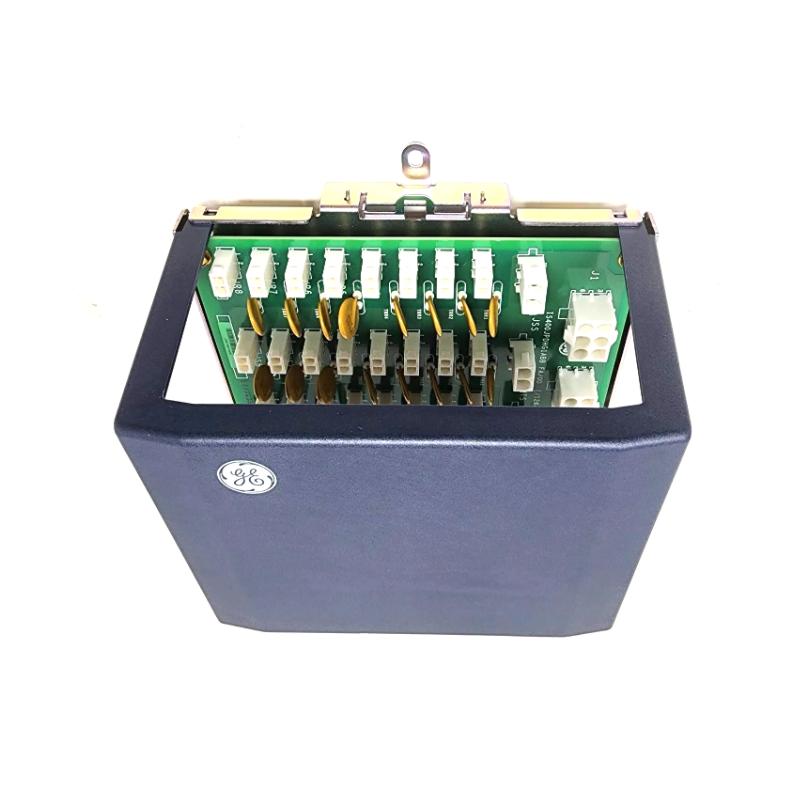

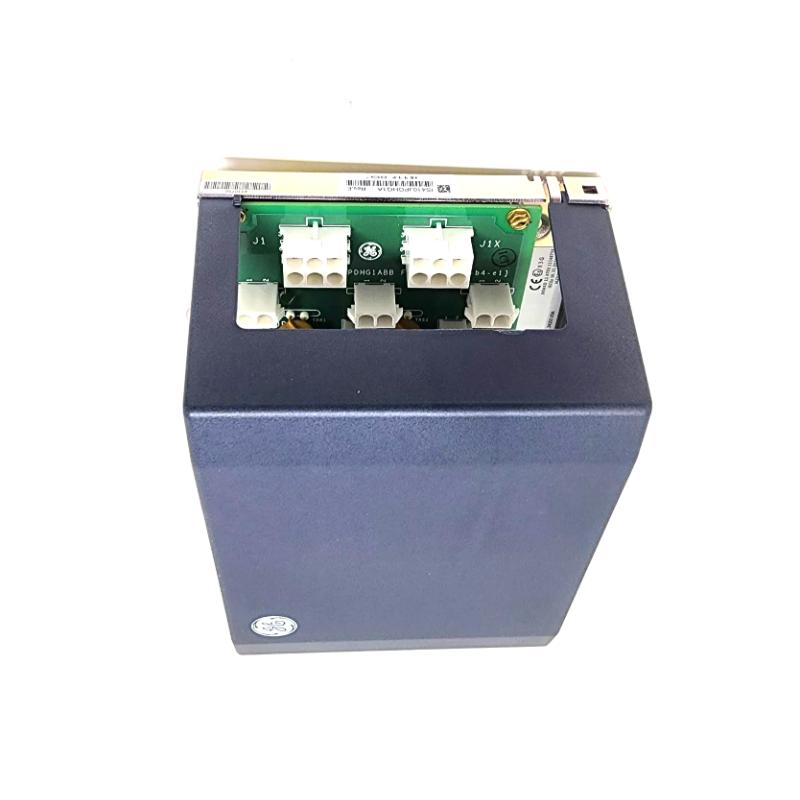

The IS410JPDHG1A is a high-density control power distribution module designed for GE Mark VIe and Mark VIeS control systems. Its main function is to receive control power and distribute it to multiple I/O Packs and associated control components. The module provides multiple independently protected output branches, allowing several devices to receive power from a centralized distribution point. It is particularly useful in turbine and power-generation control cabinets where reliable and organized power distribution is required.

2. What input voltage does the IS410JPDHG1A use?
The IS410JPDHG1A is designed for a nominal 28 VDC control power supply, with an input operating range of approximately 22.5–28.6 VDC. The module can accept redundant control power inputs depending on the system architecture. Before installation, the actual cabinet supply should be checked to ensure that the voltage remains within the permitted operating range. Incorrect supply voltage can result in unreliable operation or damage to connected control components.

3. How many output channels does the IS410JPDHG1A provide?
The module provides up to 24 power distribution output channels. These are arranged into three groups, identified as JR1–JR8, JS1–JS8 and JT1–JT8. Each output channel is designed to provide power to an individual connected load or I/O Pack, with a maximum output current of approximately 0.8 A per channel. This high-density arrangement allows multiple Mark VIe control components to receive separately distributed power from a single module.

4. Does the IS410JPDHG1A support redundant power configurations?
Yes. The IS410JPDHG1A supports Simplex, Dual and TMR control power configurations. The specific arrangement depends on the Mark VIe or Mark VIeS system architecture. Redundant power distribution is particularly important in turbine and power-generation applications because it can help maintain control-system availability if one power source or distribution path becomes unavailable. When installing the module in a redundant system, the R, S and T power paths should be connected according to the approved system design.

5. How should an output channel fault on the IS410JPDHG1A be diagnosed?
If one output channel stops supplying power, first check the connected I/O Pack or field load for a short circuit or excessive current demand. The associated wiring and connectors should also be inspected for loose connections or damaged conductors. Because the output branches have individual protection, a problem affecting one channel may not necessarily interrupt the other channels. If the connected load is confirmed to be healthy but the output remains unavailable, check the module’s power input, diagnostic information and associated power-monitoring I/O Pack. This process helps determine whether the problem originates from the load, wiring or distribution module.

6. What is the role of the IS420PPDAH1B with the IS410JPDHG1A?
The IS420PPDAH1B Power Distribution I/O Pack is used to monitor power distribution conditions and provide relevant status information to the GE control system. When installed as part of the system, it can help the controller identify power-related conditions and diagnostic information associated with the distribution architecture. This monitoring function is valuable for maintenance because it allows abnormal power conditions to be identified without relying only on manual measurements. The exact monitoring configuration depends on the Mark VIe or Mark VIeS system design.

7. Can the IS410JPDHG1A be used in hazardous industrial environments?
The IS410JPDHG1A is available for applications involving Class 1, Division 2, Class 1, Zone 2 and applicable ATEX environments when installed according to the required certification conditions. GE documentation specifies operation in suitable hazardous-location applications and provides environmental requirements for the module. The complete installation must still comply with the applicable enclosure, power-supply, wiring and hazardous-area requirements. Certification should be checked against the exact installation environment before the module is commissioned.

8. What should be checked after installing or replacing an IS410JPDHG1A?
After installation, verify that the module is securely mounted on the DIN rail and that all control-power input and output connections are correctly wired. Check the incoming 28 VDC supply and confirm that the voltage remains within the permitted range. Each connected output should then be checked to confirm that the associated I/O Pack receives the correct power. If the system includes redundant R/S/T power paths, each path should be verified according to the system commissioning procedure. Finally, review the Mark VIe or Mark VIeS diagnostic information and power-monitoring status to ensure that no abnormal power, communication or output-channel conditions are present.
