1. What is the primary function of the GE IS400UCLIH1A?

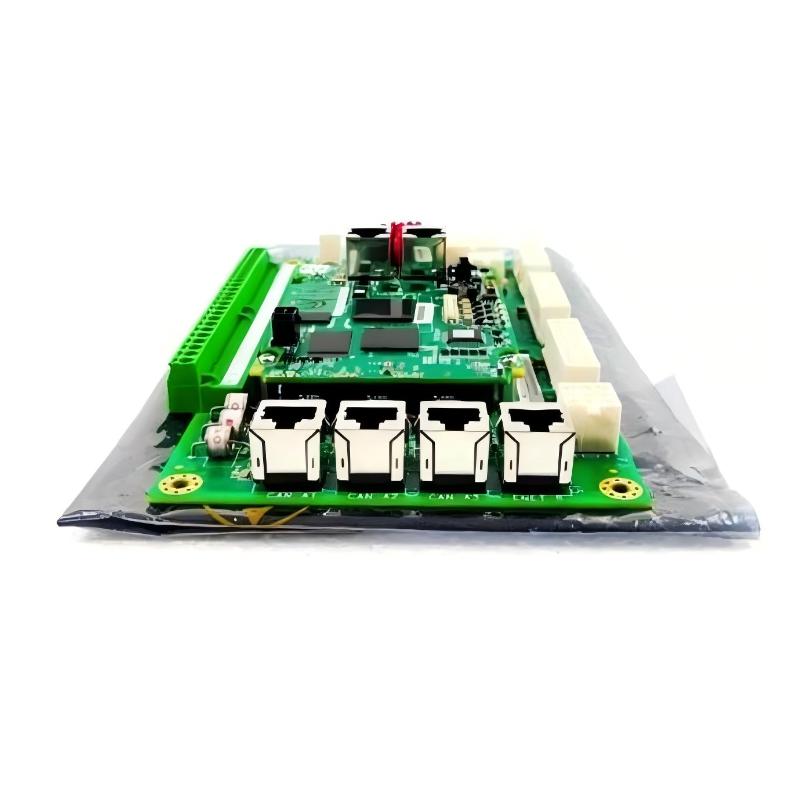

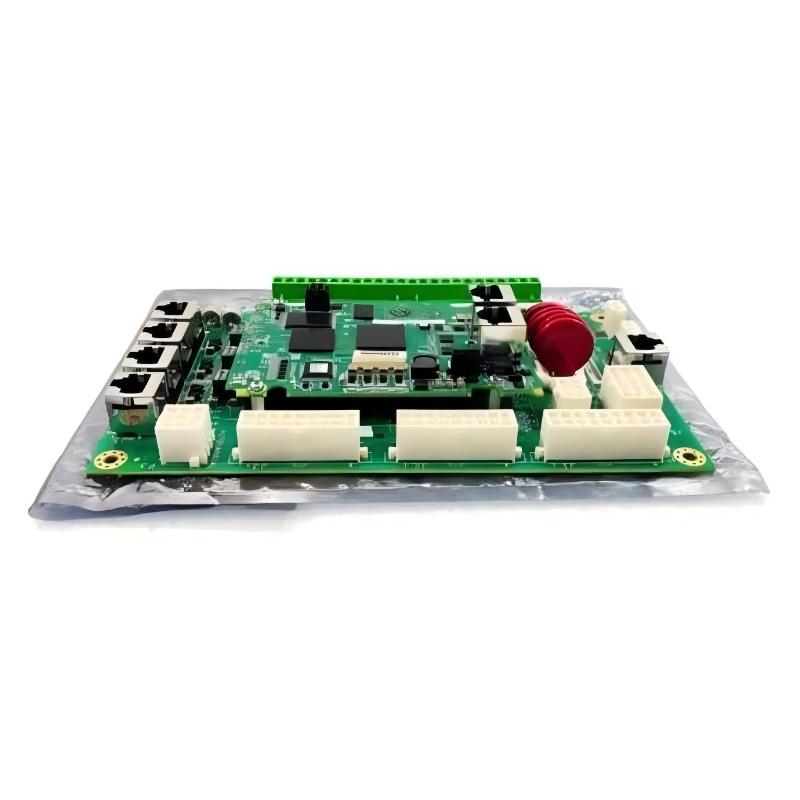

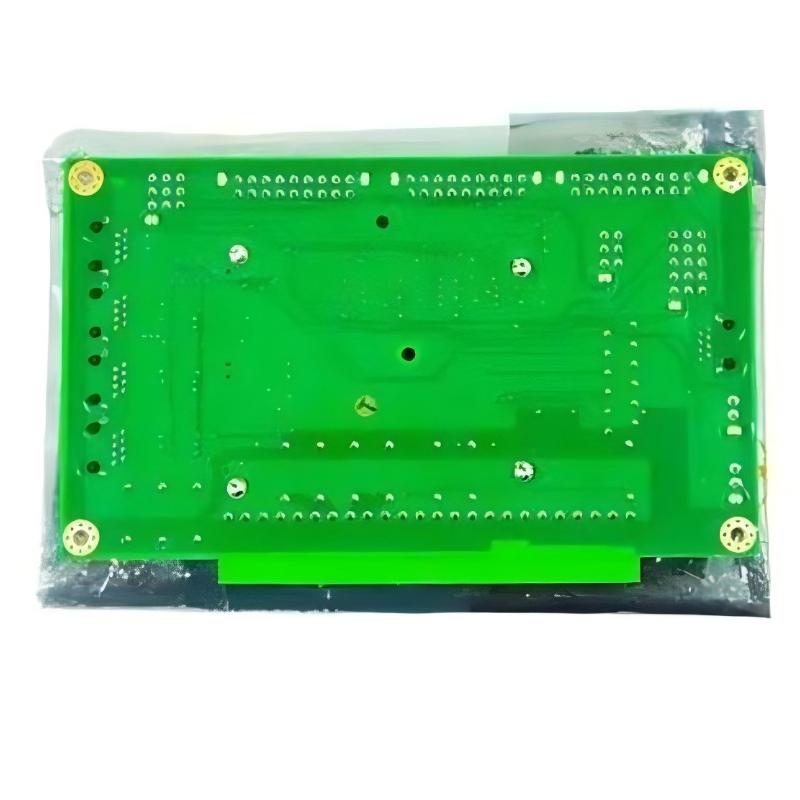

The IS400UCLIH1A is an Application Control Layer module used within GE control-system architectures. Its main purpose is to execute application-level control functions and coordinate data exchange between the control application and associated I/O or system components. In turbine and power-generation applications, the module can participate in real-time control operations where deterministic processing and reliable communication are important. It forms part of the control architecture rather than functioning as a simple field signal interface, making its correct configuration important for overall system operation.

2. Which GE control systems are associated with the IS400UCLIH1A?
The IS400UCLIH1A is associated with GE Mark VIe and Mark VIeS control-system architectures. These platforms are used for turbine control, power-generation systems and other industrial automation applications. The exact role of the module depends on the system configuration in which it is installed. Before replacing an existing unit, engineers should verify the complete system architecture, module identification, firmware requirements and application configuration to ensure that the replacement is compatible with the installed control system.

3. How does the IS400UCLIH1A communicate with other control-system components?
The module operates within the GE control-system communication architecture and can exchange control and system data through Ethernet-based networks such as IONet and associated control-system networks. Communication allows application control functions to interact with distributed I/O and other control components. If communication problems occur, technicians should check network connections, module status, system configuration and diagnostic information rather than immediately assuming that the module has failed. Proper network configuration is essential for stable real-time control operation.

4. Does the IS400UCLIH1A support redundant control configurations?
The IS400UCLIH1A can be used in control architectures that employ redundancy, depending on the specific GE system configuration. Redundant control arrangements are commonly used in critical turbine and power-generation applications to improve availability and reduce the effect of an individual hardware failure. The actual redundancy method depends on the installed controllers, communication architecture, application configuration and associated modules. When replacing a module in a redundant system, all relevant control paths should be checked to ensure that the replacement integrates correctly with the existing architecture.

5. What are common symptoms of an IS400UCLIH1A control module problem?
Possible symptoms include loss of communication, abnormal control-system diagnostics, failure of application logic execution, unexpected controller status changes or loss of communication with associated I/O components. The symptoms may also be caused by external network problems, configuration errors, power issues or other components in the control architecture. Troubleshooting should therefore begin with system diagnostics and module status information. If the module is correctly powered and configured but consistently reports hardware-related faults or fails to communicate with the control network, further module-level testing may be required.

6. How should the IS400UCLIH1A be troubleshot when communication is lost?
First verify the module’s power and physical installation, then check all associated communication connections. The control system should be examined for network alarms, module diagnostic messages and communication status. If other modules on the same network are also unavailable, the problem may be related to the network or common infrastructure rather than the IS400UCLIH1A. If only this module is affected, check its configuration, identification and communication parameters. Comparing the module’s status with other healthy control modules can help determine whether the problem is caused by the network, configuration or hardware.

7. What should be checked before replacing an IS400UCLIH1A?
Before replacement, confirm the complete model number and verify that the replacement unit matches the installed control-system architecture. The current application configuration, communication settings and module identification should be documented before removal. The system should be placed into the appropriate maintenance or shutdown condition according to the site’s operating procedure. Connections should be clearly identified, and appropriate electrostatic-discharge precautions should be used when handling the replacement module. After installation, the control system should be checked for hardware recognition, communication status and application execution before normal operation is restored.

8. What should be verified after installing a replacement IS400UCLIH1A?
