1. What is the primary function of the GE IS400TCASH1A?

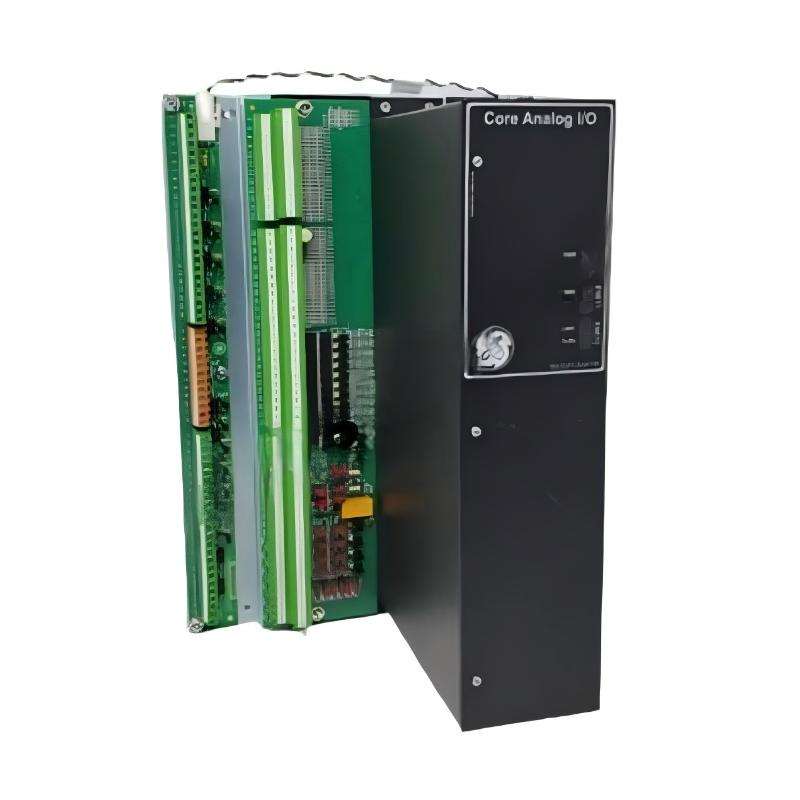

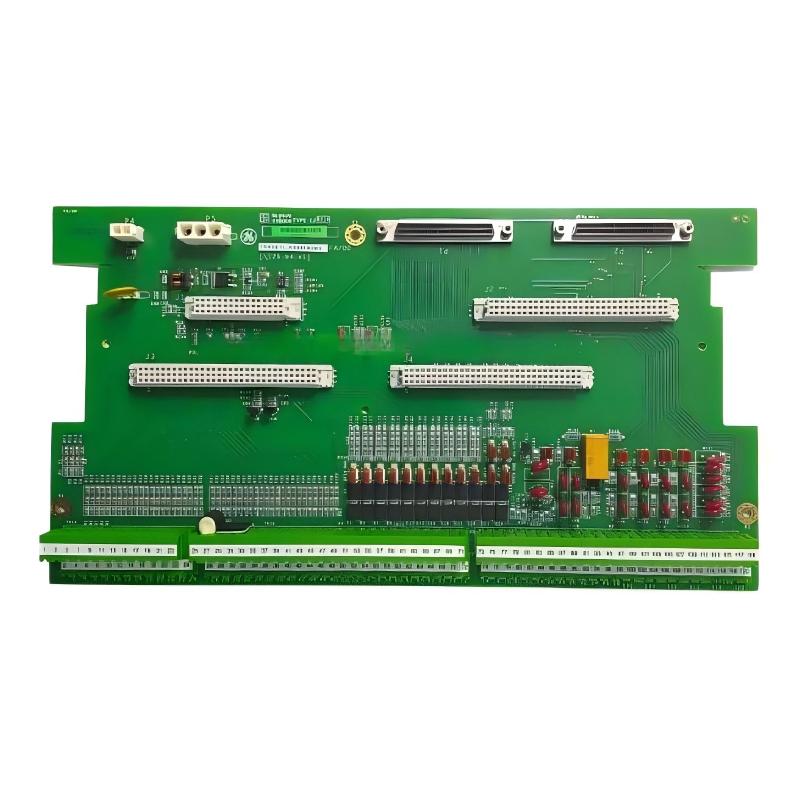

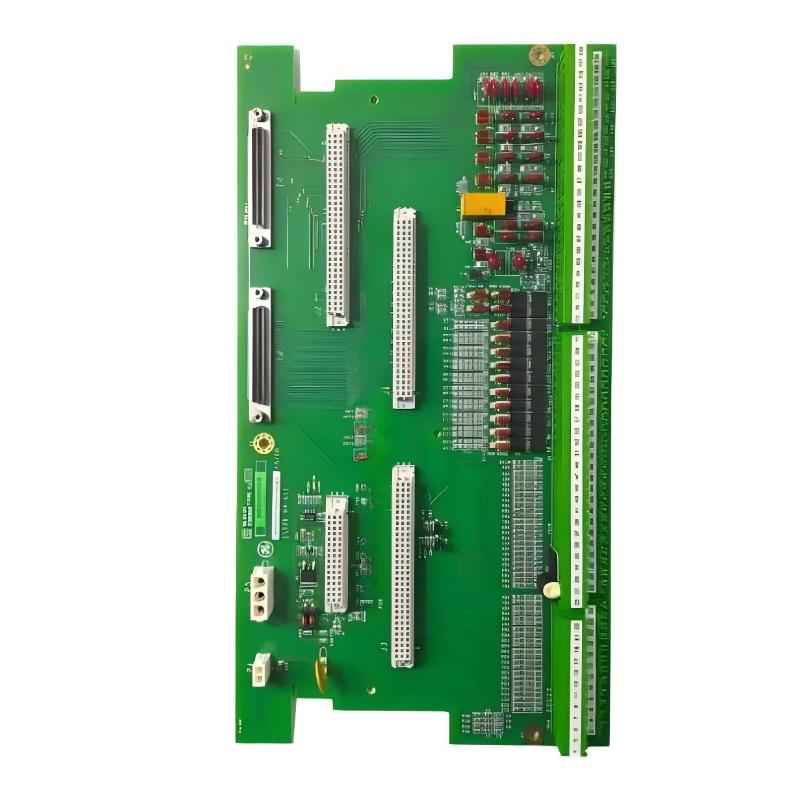

The IS400TCASH1A is a terminal board used as part of the GE Mark VIe PCAA Core Analog I/O assembly. Its primary function is to provide field wiring terminals and route electrical signals between connected field devices and the PCAA processing circuitry. It supports multiple signal types, including thermocouple inputs, 4–20 mA analog signals, LVDT excitation, servo outputs and pulse inputs. This makes the board suitable for turbine control, power generation and industrial automation applications where multiple analog and control signals must be connected to the control system.

2. How does the IS400TCASH1A connect to the PCAA I/O system?
The IS400TCASH1A provides the physical terminal and signal-routing interface for the PCAA I/O system. It works with the associated PCAA electronics and can connect to a TCAT terminal board when additional field I/O or redundant signal distribution is required. The board receives 28 VDC operating power through the P5 connector and provides the corresponding power path through P4 where applicable. In TMR configurations, the TCAT connection is required to establish the complete redundant I/O signal arrangement.

3. What types of analog signals can the IS400TCASH1A handle?
The PCAA system associated with the IS400TCASH1A supports several types of analog signals. It provides 10 direct 4–20 mA inputs and two configurable inputs that can accept either 4–20 mA or ±10 V signals. The system also provides two direct 4–20 mA outputs, with additional voted outputs available through the TCAT interface. These functions allow the board to interface with transmitters, sensors, actuators and other instrumentation commonly found in turbine and industrial control systems.

4. How many thermocouple inputs are supported by the IS400TCASH1A?
The PCAA system supports 25 thermocouple inputs. Compatible thermocouple types include E, J, K, S and T. The appropriate sensor type must be selected in the control system configuration so that the input can be interpreted correctly. The PCAA system also provides integrated cold-junction compensation for thermocouple measurements. During commissioning, technicians should verify the thermocouple type, polarity, wiring condition and configured engineering units to ensure that temperature readings are accurate and stable.

5. Can the IS400TCASH1A be used in TMR redundant control systems?
Yes. The PCAA architecture supports both Simplex and TMR configurations. In a TMR system, the TCAT connection is required to distribute field signals appropriately among the redundant PCAA modules. The IONet connection arrangement also depends on the selected control-system configuration. When replacing an IS400TCASH1A in a TMR installation, the complete signal-routing arrangement, cable connections, module identification and system configuration should be checked carefully. This ensures that all redundant signal paths are correctly established before the system is returned to normal operation.

6. What should be checked if the IS400TCASH1A has abnormal analog input readings?
Troubleshooting should begin with the field wiring and terminal connections. Check whether the connected transmitter or sensor is producing the expected signal and verify that the wiring polarity is correct. For a 4–20 mA input, the actual current should be measured and compared with the value displayed by the control system. For configurable 4–20 mA or ±10 V channels, confirm that the selected software configuration corresponds to the actual field signal. The PCAA electronics, power supply, IONet communication and system diagnostic information should then be checked. If several channels are affected simultaneously, common power, configuration or communication problems should be investigated before replacing individual components.

7. What is the purpose of the LVDT and servo interfaces on the PCAA system?
The LVDT and servo interfaces allow the PCAA system to monitor equipment position and control associated actuators. The system provides six LVDT excitation outputs, with an excitation signal of approximately 7 Vrms at 3.2 kHz and drive capability up to 60 mA. It also provides six servo coil driver outputs with a fixed ±10 mA output range. These functions are particularly important in turbine control applications, where valve position feedback and actuator control are required for stable and accurate operation. Correct wiring, signal configuration and commissioning are important to ensure reliable feedback and control performance.

8. What should be verified after installing or replacing the IS400TCASH1A?
After installation, verify that all field terminals, PCAA connections and associated cables are properly seated and securely connected. The 28 VDC supply through the P5 connector should be checked, along with the relevant P4 power connection where applicable. If a TCAT board is used, the associated cable connections should be carefully inspected. The Mark VIe control system should then be checked for hardware diagnostic alarms, I/O communication status and electronic identification. Finally, all application-specific thermocouple inputs, analog channels, pulse inputs, LVDT interfaces and servo outputs should be functionally tested. Any abnormal readings should be investigated before the control system is returned to normal service.
