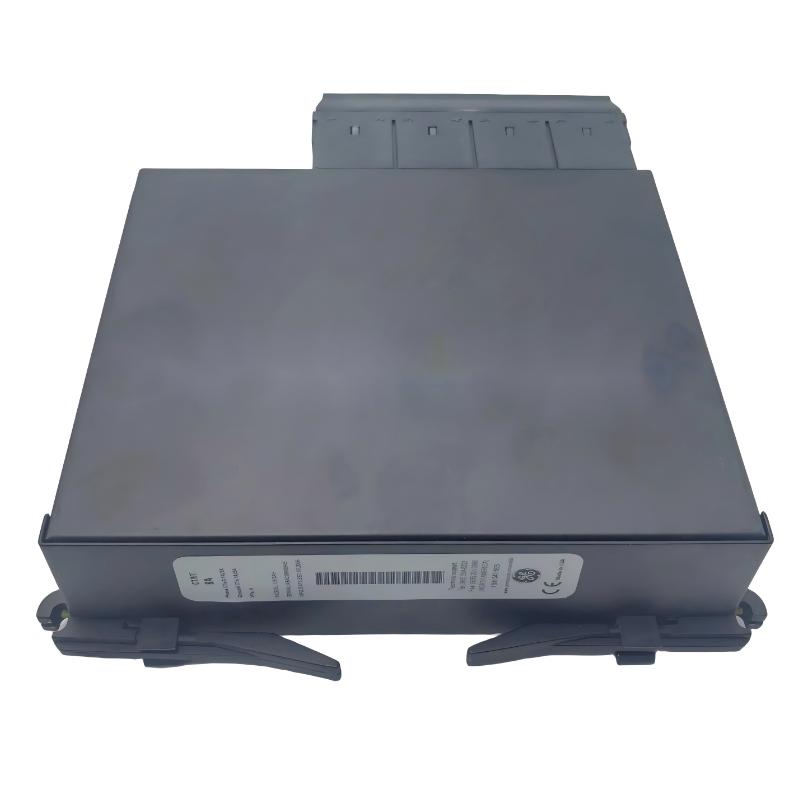

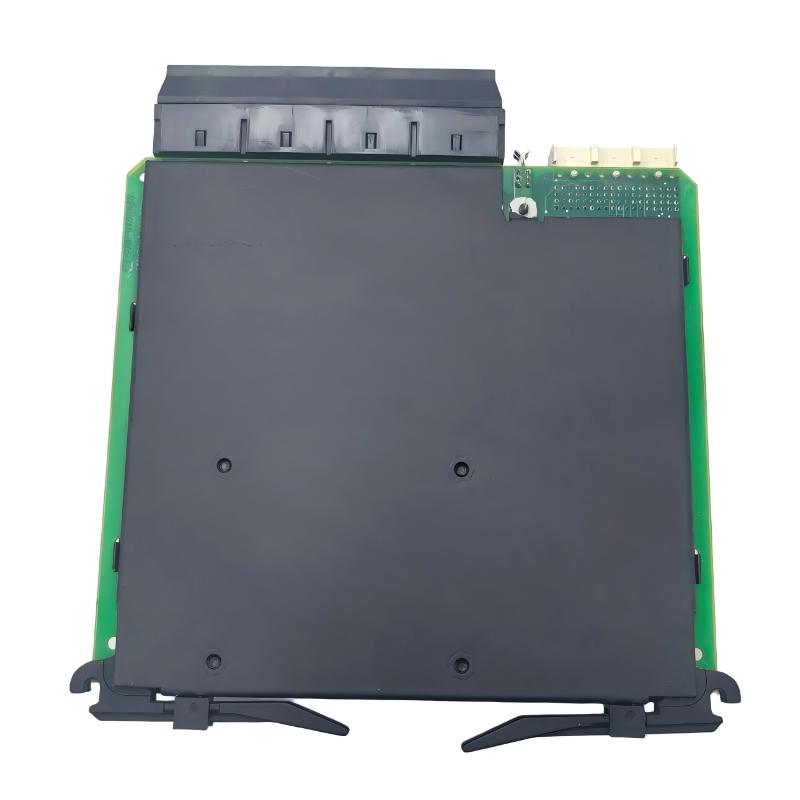

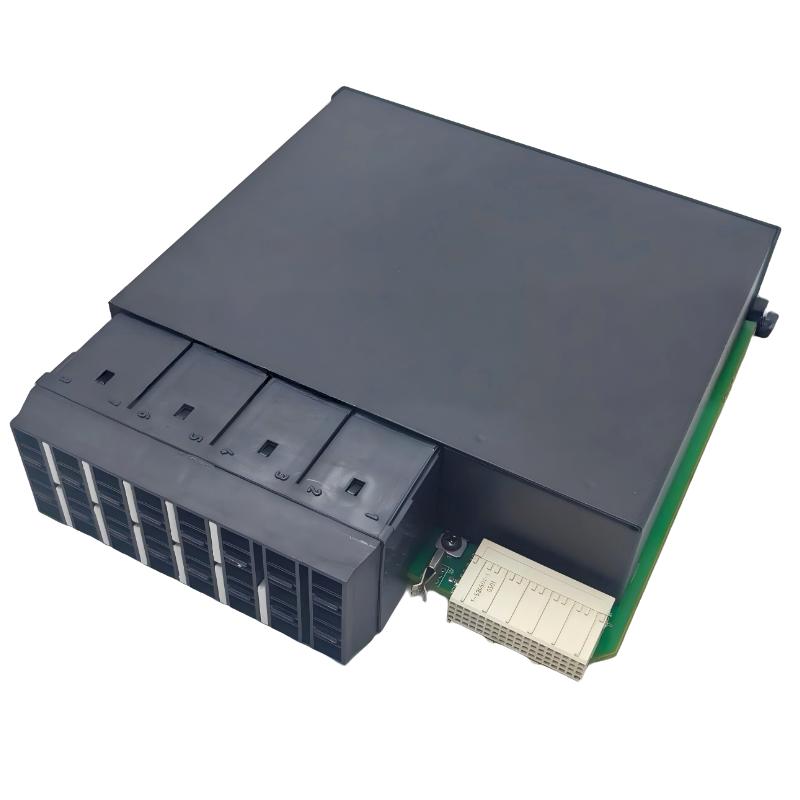

GE UR 8AH General-Purpose Relay Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | GE Multilin |
| Model | UR 8AH |
| Product Type | CT/VT Module |
| Product Series | Universal Relay (UR) Series |
| Module Function | AC current and voltage signal acquisition for protection, measurement and monitoring |
| Phase CT Inputs | 3 phase CT inputs |
| Ground CT Inputs | 1 ground CT input |
| CT Rating | 1 A / 5 A selectable |
| VT Inputs | 4 voltage transformer inputs |
| CT Configuration | 3 phase CTs + 1 ground CT |
| VT Configuration | 4 VTs |
| Analog Signal Type | AC current and AC voltage |
| Typical Applications | Power system protection, metering, monitoring, fault detection and control |
| Compatible System | GE Multilin Universal Relay systems |
| Configuration Software | EnerVista UR |
| Installation | Modular plug-in installation |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Input Frequency | 20–65 Hz |
| CT Secondary Rating | 1 A or 5 A |
| VT Secondary Range | 50.0–240.0 V |
| Typical Relay Burden | < 0.2 VA for CT inputs; < 0.25 VA for VT inputs |
| Dimensions | 120 × 30 × 100 mm |
| Weight | 1.15 kg |
FAQ
1. What is the GE Multilin UR 8AH module used for?
The GE Multilin UR 8AH is a CT/VT input module designed for Universal Relay systems. It provides the relay with analog current and voltage signals from the power system. These signals can be used by the host relay for protection calculations, electrical measurements, fault detection, monitoring and control functions. The module is particularly useful in applications where phase current, ground current and multiple voltage measurements must be connected directly to a GE Multilin UR relay.
2. How many CT and VT inputs does the UR 8AH provide?
The UR 8AH provides three phase CT inputs, one ground CT input and four VT inputs. The CT section can accept 1 A or 5 A secondary current signals depending on the selected configuration. The four voltage inputs allow the relay to acquire the required AC voltage signals for protection and measurement functions.
3. What CT secondary ratings are supported by the UR 8AH?
The CT inputs support standard 1 A and 5 A secondary ratings. The correct rating must match the secondary output of the installed current transformers and the configuration of the host UR relay. Incorrect CT configuration can result in inaccurate measurements or improper protection calculations, so the CT ratio and secondary rating should always be verified before commissioning.
4. What voltage signals can be connected to the UR 8AH?
The module provides four VT inputs for AC voltage measurement, with a specified VT secondary range of approximately 50.0 to 240.0 V. The actual voltage transformer ratio and secondary voltage should be entered correctly in the UR relay settings so that measured values and protection elements are calculated accurately.
5. Can the UR 8AH be used for power system protection?
Yes. The UR 8AH supplies the host Universal Relay with the current and voltage measurements required by many protection functions. Depending on the specific UR relay model and installed software options, these signals can be used for overcurrent, voltage, power, frequency, directional and other protection-related calculations. The CT and VT configuration must be correctly matched to the protection scheme.
6. How is the UR 8AH configured in a GE Multilin UR relay?
The CT and VT characteristics are configured as part of the host UR relay settings. Parameters such as CT secondary rating, CT ratios, VT ratios, nominal frequency and related measurement settings should correspond to the actual power system installation. EnerVista UR software can be used to review and configure these parameters, while the relay interface can also be used for local setting and verification.
7. What should be checked if the UR 8AH current or voltage measurements are incorrect?
Start by checking the CT and VT wiring, terminal connections and transformer secondary circuits. Then verify the CT ratio, 1 A/5 A selection, VT ratio, phase assignments and nominal system frequency in the relay configuration. Incorrect phase connections or reversed CT polarity can also affect calculated quantities and directional protection. If the external wiring and settings are correct, the module and its connection to the UR relay should be inspected.
8. What precautions should be taken when replacing a UR 8AH module?
Before replacing the UR 8AH, the associated protection system should be placed in a safe maintenance condition and the applicable CT and VT circuits should be handled according to site safety procedures. CT secondary circuits require particular care because an improperly opened energized CT circuit can create dangerous voltage. After installation, verify all current and voltage connections, confirm the relay configuration, and perform appropriate secondary injection or functional testing before returning the protection system to service.
GE UR 8AH General-Purpose Relay Module is in stock. Please contact us for a quick quote and competitive pricing.
