1. What is the HIMA F3117 used for?

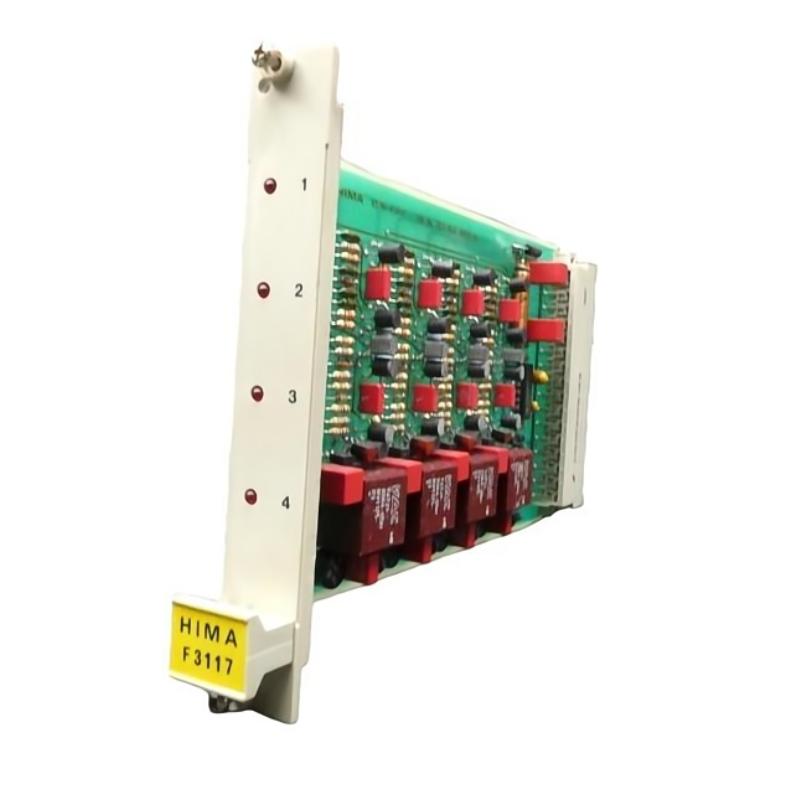

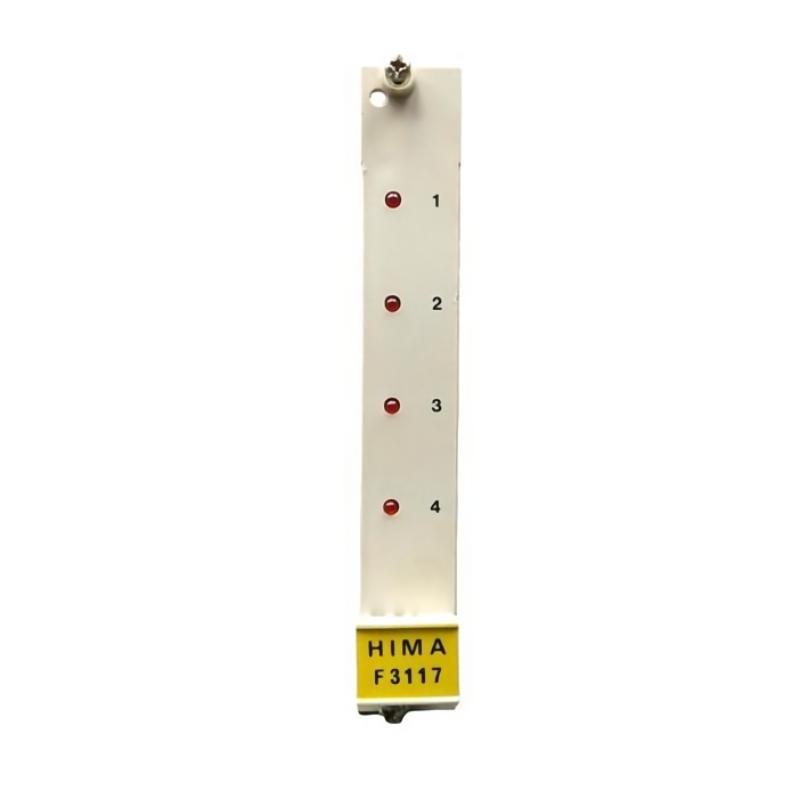

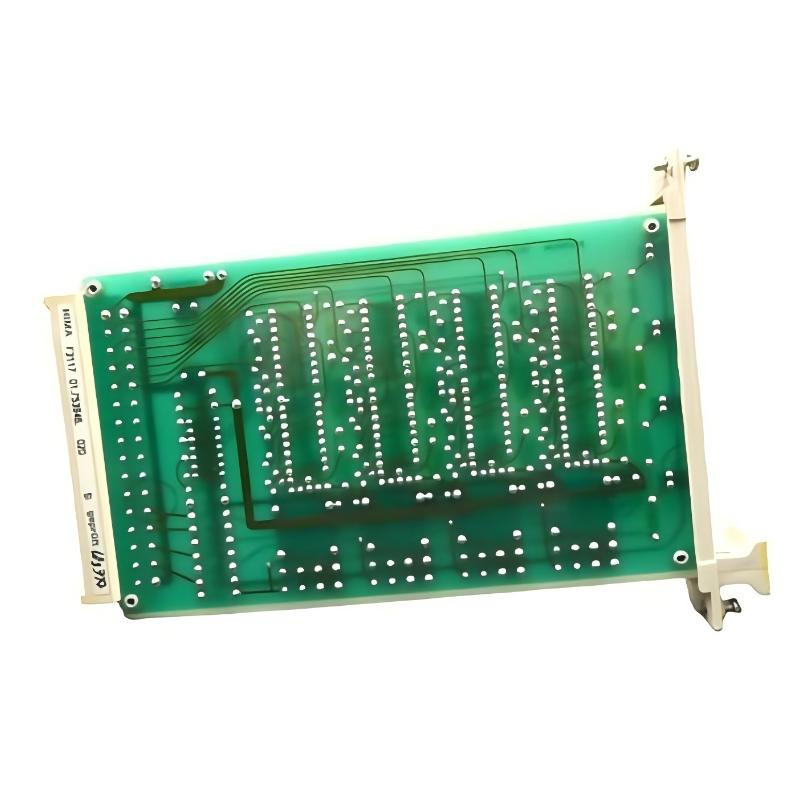

The HIMA F3117 is a four-channel safety relay amplifier switch module designed for integration into HIMA Planar F systems. Its primary purpose is to provide relay-based signal switching and interface functions within safety-related control circuits. The module can be used between the safety control system and external electrical circuits for applications such as equipment interlocking, shutdown commands, alarm circuits and other safety-related switching functions. Its four independent channels allow different control functions to be handled within the same module while maintaining the required system architecture.

2. How many independent relay channels does the F3117 provide?
The F3117 provides four independent relay channels. Each channel can be assigned to a separate switching function according to the system’s approved control logic and wiring design. For example, individual channels can be associated with equipment shutdown circuits, safety interlocks, alarm outputs or other external control circuits. When configuring the module, each channel should be clearly identified and documented so that maintenance personnel can understand its function and verify the correct response during commissioning and periodic testing.

3. What is the purpose of the relay amplifier function in the F3117?
The relay amplifier interface allows a control signal generated by the safety system to be transferred to an external circuit through a relay switching interface. This provides an electrical interface between the internal control system and connected external equipment. Relay outputs are commonly useful for controlling contactors, interlocking circuits, alarm devices and other electrical control circuits. The actual connected load must be compatible with the applicable relay and system requirements, and the external circuit should always be designed according to the approved electrical and safety documentation.

4. What safety applications can the F3117 be used for?
The F3117 can be incorporated into safety-related applications such as industrial process protection, equipment interlocking, emergency shutdown, alarm handling and other relay-based safety circuits. For example, separate relay channels can be used to control different shutdown or interlocking circuits. When a defined safety condition occurs, the relevant relay channel can change state according to the configured safety logic. The F3117 itself should not be considered an independent safety function; the final safety performance depends on the complete Planar F architecture, application logic, field devices, wiring and correctly implemented safety procedures.

5. What should be checked if one F3117 relay channel does not operate?
Troubleshooting should begin by confirming whether the safety system is actually issuing the expected command to the affected channel. Next, check that the F3117 is correctly installed and that its system interface is properly connected. The external wiring and connected load should then be inspected for open circuits, short circuits, incorrect connections or excessive electrical loading. System diagnostic information should also be reviewed for module or channel-related faults. If the control logic, installation and external circuit are all normal but the relay still fails to operate, the channel should be investigated according to the approved HIMA maintenance procedure rather than repeatedly forcing the output.

6. What installation precautions should be followed for the F3117?
Before installing the F3117, the system should be placed in the appropriate maintenance or safe state in accordance with the site’s safety procedures. Confirm that the replacement or new module is compatible with the existing Planar F configuration and install it in the designated module position. The module should be seated correctly without excessive mechanical force, and the system interface should be free from contamination or damage. External wiring must follow the approved circuit diagrams, with particular attention to relay contact assignments and safety-loop connections. After installation, inspect the module status and system diagnostics before performing controlled functional tests.

7. Does replacing the F3117 require system reconfiguration?
Whether additional configuration is required depends on the specific Planar F system architecture and the way the original module was implemented. Before replacement, the existing wiring, channel assignments and relevant system configuration should be documented. The replacement module must match the intended system design and should be installed in the correct position. After installation, verify the module status, system diagnostics and operation of all four relay channels used by the application. If the channels are involved in safety interlocks, shutdown functions or alarms, each affected function should be fully tested to confirm that the replacement behaves exactly as required by the approved safety logic.

8. How should the safety functions be verified after installing or replacing an F3117?
After installation or replacement, first verify that the module is correctly seated, the system reports normal status and there are no active diagnostic faults associated with the module. Each relay channel used by the application should then be tested according to the approved commissioning or maintenance procedure. The test should confirm that the expected control command produces the correct relay response and that the associated external equipment reacts properly. Safety interlocks, shutdown circuits and alarm functions should also be tested under controlled conditions, including the applicable defined fault conditions. Test results should be recorded as required by the site’s maintenance documentation. The system should only be returned to normal service after all relevant safety functions have been verified and confirmed to operate according to the approved design.
