1. What is the HIMA F7102 used for?

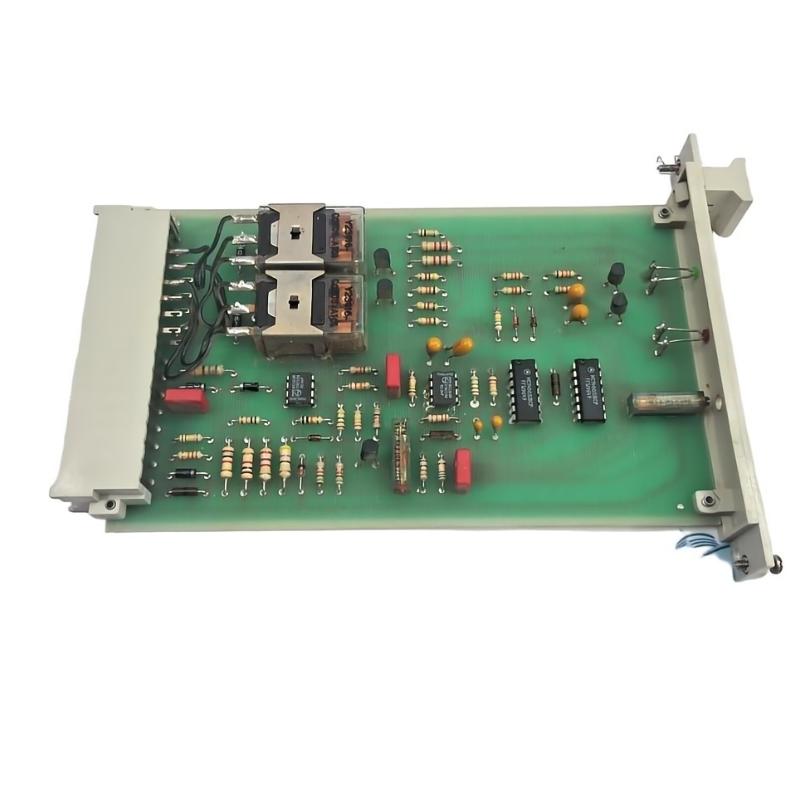

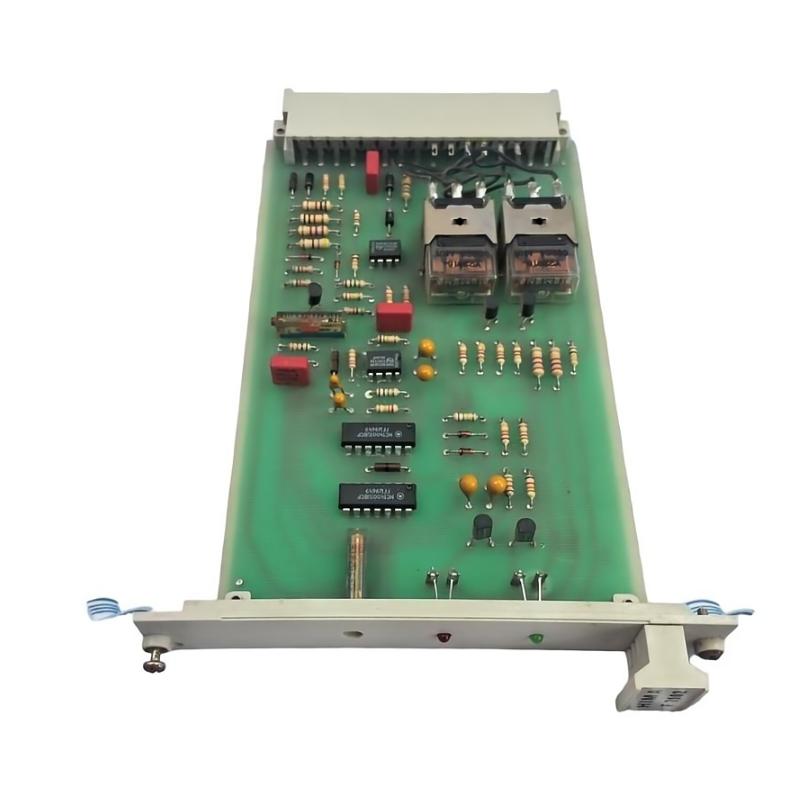

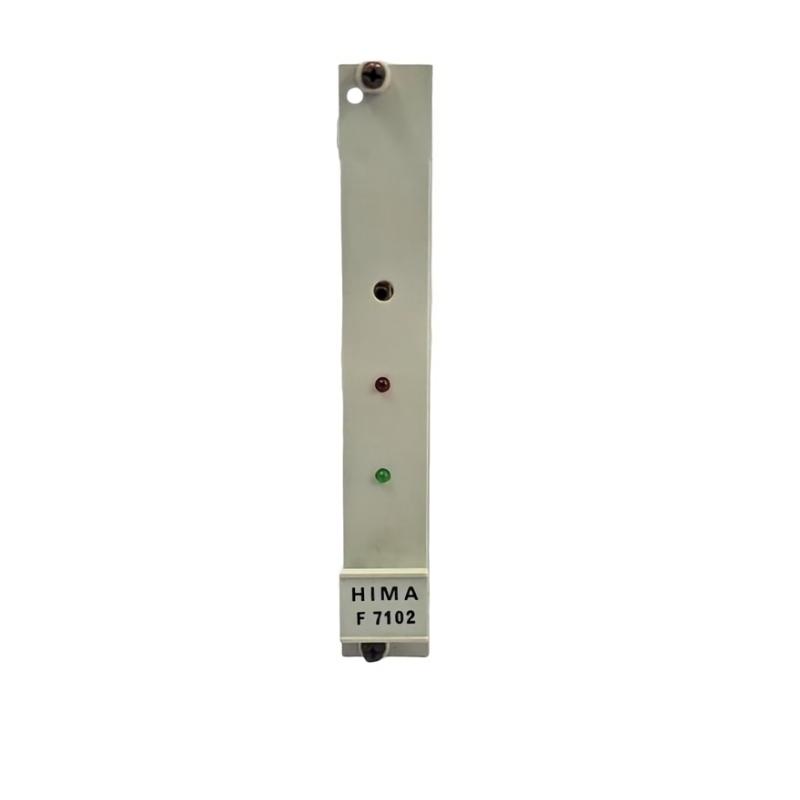

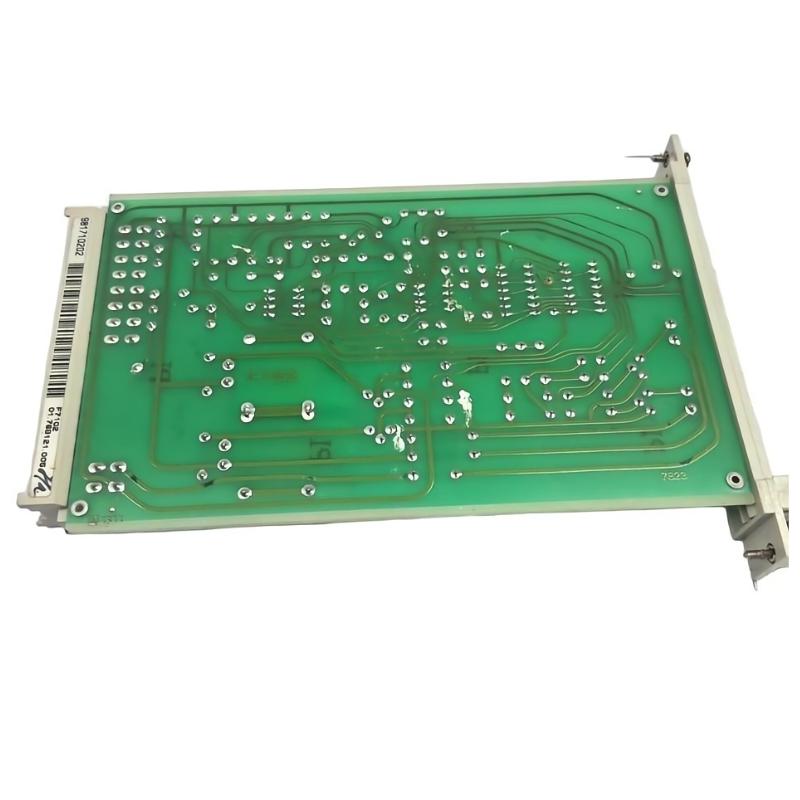

The HIMA F7102 is an insulation monitoring module designed for use in Planar F systems. Its primary function is to continuously monitor the insulation condition of the associated electrical system and detect a deterioration in insulation resistance. When the measured insulation condition reaches a configured alarm level, the module can generate an appropriate alarm indication. Insulation monitoring is particularly important in safety-related industrial equipment because deterioration of insulation can lead to leakage currents, ground faults, unexpected equipment behavior, or reduced system reliability. By continuously monitoring insulation condition, the F7102 helps maintenance personnel identify potential electrical problems at an early stage before they develop into more serious system faults.

2. What measuring principle does the F7102 use for insulation monitoring?

The F7102 uses a pulse measuring method to monitor insulation condition. The module applies an appropriate measuring signal to the monitored system and evaluates the resulting electrical response to determine the insulation condition. Its specified measurement range covers approximately 1 kΩ to 10 MΩ, allowing it to detect significant changes in insulation resistance. The actual measurement result is influenced not only by the monitoring module but also by the electrical structure of the monitored system, wiring, grounding conditions, and connected equipment. For this reason, an insulation fault should be investigated together with the overall electrical system rather than judging the condition of the F7102 from a single measurement or alarm indication.

3. What is the insulation measurement range of the F7102?

The F7102 provides an insulation measurement range of 1 kΩ to 10 MΩ with a measurement resolution of 1 kΩ. It also provides two configurable alarm levels, allowing the insulation condition to be monitored at different stages of deterioration. For example, one threshold can be used as an early warning level to identify a gradual reduction in insulation resistance, while another can be configured for a more serious fault condition. The appropriate thresholds should be selected according to the electrical characteristics and safety requirements of the monitored installation. After configuring the alarm levels, functional testing should be performed to confirm that the monitoring system responds correctly to the intended insulation conditions.

4. Can the alarm thresholds of the F7102 be configured?

Yes. The F7102 provides two configurable alarm thresholds that can be adjusted according to the requirements of the monitored electrical system. Two alarm levels allow the system to distinguish between different degrees of insulation deterioration instead of waiting until a severe fault occurs. When configuring the thresholds, engineers should consider the rated electrical conditions of the installation, the expected insulation resistance, the characteristics of connected equipment, and the required safety response. Setting the threshold too high may result in unnecessary alarms, while setting it too low could delay detection of an actual insulation problem. After changing the configuration, the alarm behavior should be verified through appropriate testing.

5. What is the response time of the F7102?

The specified response time of the F7102 is less than 2 seconds. This allows the module to recognize a qualifying insulation condition and provide the corresponding alarm indication within a relatively short period. However, the response time of the complete alarm or safety function can be longer because it may also include signal transmission, application logic, communication processing, and the response of downstream devices. Therefore, the module’s response time should not be considered the total response time of an entire safety loop. If an installation appears to respond slowly, technicians should examine the complete signal path, including the insulation condition, F7102 configuration, system processing, and subsequent alarm logic.

6. What power supply does the F7102 require?

The F7102 operates from a 24 VDC supply with a specified tolerance of ±10%, and its typical power consumption is approximately 3.5 W. The power supply should be stable and capable of supporting the module under normal operating conditions. During commissioning, technicians should verify the actual voltage at the module terminals and inspect the power wiring for loose connections, excessive voltage drop, or other supply problems. An unstable supply can cause unexpected module behavior, repeated resets, incorrect alarm indications, or failure to start correctly. If the F7102 behaves abnormally, checking the power supply should therefore be one of the first diagnostic steps before assuming that the monitoring module itself has failed.

7. What should be checked if the F7102 continuously reports an insulation fault?

If the F7102 continuously reports an insulation fault, first verify that the configured alarm thresholds are appropriate for the monitored installation. The next step is to determine whether the monitored electrical system actually has a reduced insulation resistance. The system can be divided into individual circuits or sections and checked progressively to identify the area responsible for the abnormal reading. Particular attention should be given to field cables, terminals, junction boxes, motors, instruments, and other equipment that may be affected by moisture, contamination, mechanical damage, or insulation aging. If independent measurements indicate that the insulation condition is normal while the F7102 continues to report a fault, the module wiring, measuring circuit, and configuration should be inspected. For long-running installations, environmental conditions such as humidity and temperature should also be considered.

8. What are the common causes of insulation monitoring faults on the F7102?

Common causes include deteriorated cable insulation, moisture ingress, damaged wiring, incorrect grounding, contaminated terminals, reduced insulation resistance in field equipment, and incorrectly configured alarm thresholds. In some installations, several electrical loads may be connected to the same monitored network, meaning the insulation condition of one device can influence the overall measurement. When an abnormal condition occurs, technicians should first verify the F7102’s 24 VDC supply, then inspect the module wiring and alarm configuration before systematically testing the monitored circuits. If disconnecting a particular branch causes the insulation condition to return to normal, the fault can be narrowed down to that branch for further investigation. In safety-related systems, simply suppressing the alarm or increasing the threshold should not be used as a shortcut to restore operation. The underlying insulation problem should be identified and corrected according to the applicable maintenance and safety procedures.
