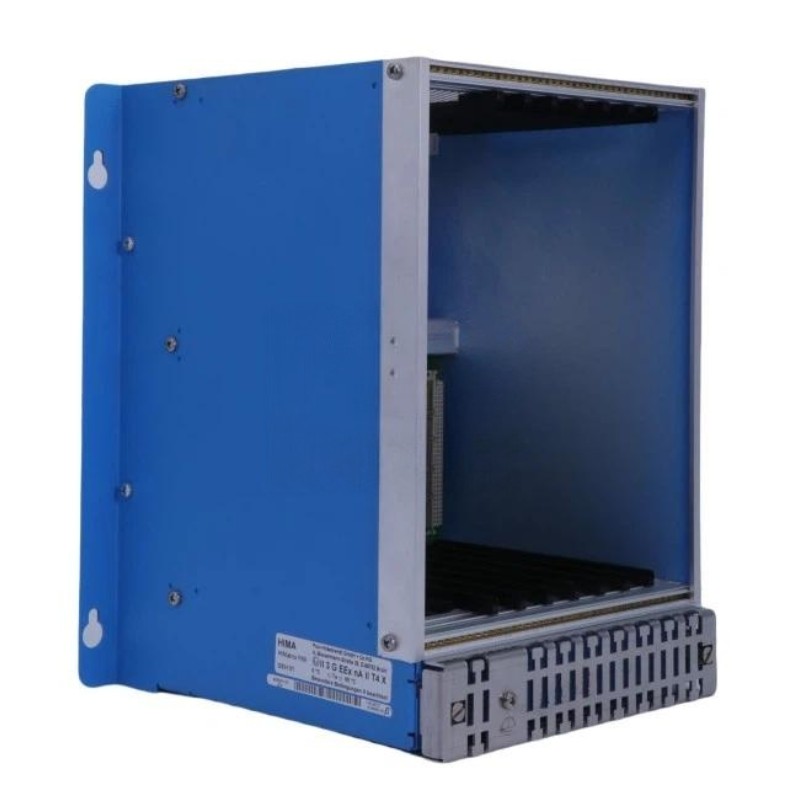

1. What is the HIMA F60 GEH 01 used for?

The HIMA F60 GEH 01 is a dedicated system rack for the HIMatrix F60 platform. Its primary purpose is to provide a structured mechanical and electrical platform for installing the F60 power supply, central processing unit, and compatible I/O modules. The rack contains the internal backplane connections required for communication and system integration between the installed modules. A typical configuration consists of one power supply module, one CPU module, and up to six I/O modules. This modular structure allows engineers to build an F60 control system according to the required number and type of field signals. The GEH 01 itself does not execute the application program or safety logic; those functions are handled by the installed processing and I/O modules.

2. Which HIMatrix F60 modules can be installed in the F60 GEH 01?

The F60 GEH 01 is designed to accommodate compatible HIMatrix F60 system modules. The first slot is intended for the power supply module, while the second slot is assigned to the central processing module. The remaining six positions can be used for compatible F60 I/O modules according to the system design. Depending on the application, these I/O positions can be populated with digital input, digital output, analog input, analog output, communication, or other supported functional modules. Before installation, the module type and system configuration should be checked carefully to ensure compatibility. Correct slot assignment is important because the F60 system uses a defined modular architecture, and incorrect positioning can result in configuration errors or prevent the system from starting correctly.

3. How many modules can the F60 GEH 01 accommodate?

The F60 GEH 01 provides eight module positions in total. The first position is reserved for the power supply module, and the second position is used for the central processing module. Positions three through eight are available for I/O modules, giving the rack a maximum capacity of six I/O modules in addition to the power supply and CPU. This arrangement provides a compact way to combine the main controller and field signal interfaces within one rack. When designing a system, engineers should calculate the required number of input and output channels in advance and select the appropriate I/O modules. If additional capacity is required, the overall system architecture should be evaluated rather than attempting to exceed the rack’s intended module configuration.

4. Does the F60 GEH 01 itself provide safety functions?

The F60 GEH 01 is primarily a mechanical and electrical infrastructure component and does not independently execute safety logic. The actual safety-related processing is performed by the F60 central processing module together with the appropriate safety I/O modules, application program, field devices, and system configuration. The rack provides the physical mounting structure and backplane connections that allow these components to operate together as an integrated system. Although the rack does not perform safety calculations itself, its mechanical integrity and electrical connections remain important to overall system reliability. A poorly installed rack, damaged backplane connector, or unreliable module connection can affect the operation of the complete safety system, so installation quality should be treated as an important part of system commissioning.

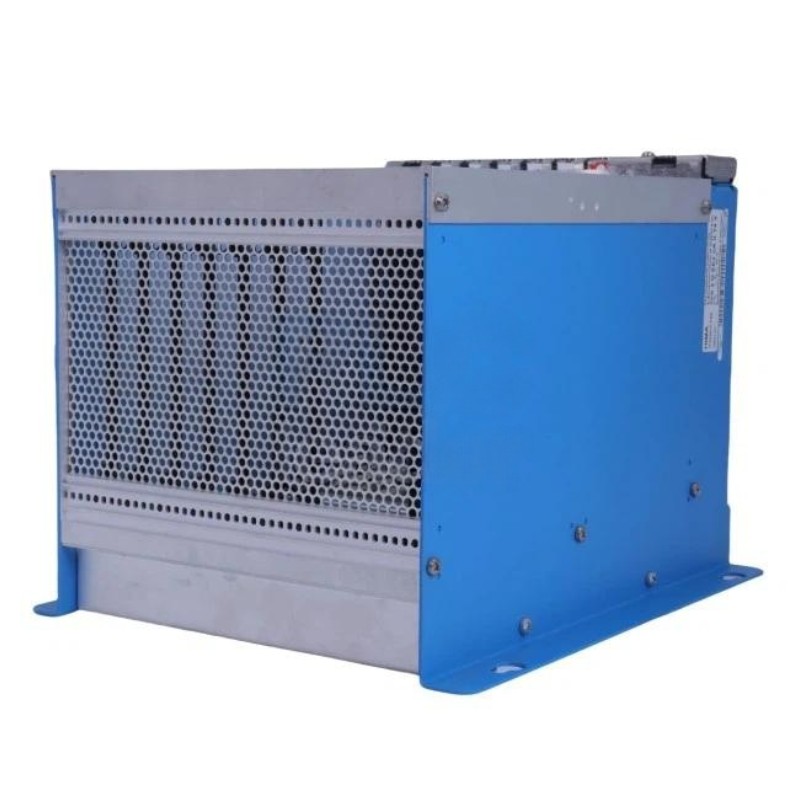

5. How is the F60 GEH 01 cooled?

The F60 GEH 01 uses two integrated fans to provide forced-air circulation inside the rack. Active airflow helps remove heat generated by the power supply, CPU, and installed I/O modules during continuous operation. Proper ventilation is therefore important when installing the rack inside a control cabinet. The area around the rack should not be unnecessarily obstructed, and hot-air sources should be kept away from the system whenever possible. Cabinet temperature should also be considered because the operating temperature of the F60 system depends not only on the rack itself but also on the surrounding installation environment. If the fans become contaminated, blocked, or fail to operate correctly, the internal temperature may increase and could affect the long-term reliability of the installed modules.

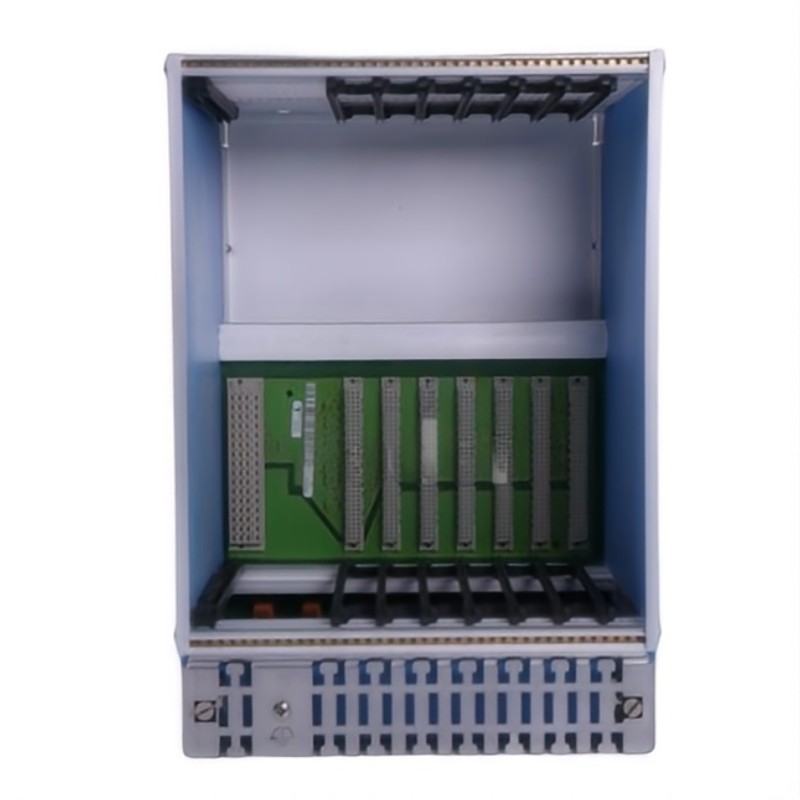

6. What is the purpose of the backplane in the F60 GEH 01?

The backplane is an important internal part of the F60 GEH 01 because it provides the electrical connections between the installed system modules. When the power supply, CPU, and I/O modules are correctly inserted into their designated positions, the backplane provides the internal connections required for system communication and module integration. It also ensures that the modules are positioned consistently within the rack. If multiple modules suddenly become unavailable, are not recognized by the CPU, or show related communication problems, the backplane and module seating should be considered during troubleshooting. When installing or removing modules, excessive mechanical force should be avoided because damage to the backplane connector can affect several modules at the same time and may require rack-level maintenance.

7. What should be considered when installing the F60 GEH 01?

The rack should be mounted securely in a suitable control cabinet and installed in an environment that meets the specified temperature, humidity, ventilation, and protection requirements. Before inserting the modules, the rack should be positioned correctly and the appropriate mounting hardware should be secured. The power supply, CPU, and I/O modules must then be installed in their designated positions, with particular attention to guide rails and connector alignment. Modules should never be forced into position because incorrect alignment can damage the backplane connector or module interface. After installation, the technician should verify the module locking mechanism, power connections, grounding arrangements, communication connections, and cabinet ventilation. Before commissioning the complete system, all module positions and the software configuration should be checked against the approved system design.

8. How should power or communication problems involving the F60 GEH 01 be diagnosed?

When several F60 modules experience communication, identification, or power-related problems at the same time, the rack-level connections should be checked before replacing individual I/O modules. First verify that the system power supply is stable and that the power supply module is correctly installed. Next, confirm that the CPU and affected I/O modules are fully seated in their designated positions and that there is no visible contamination or mechanical damage around the backplane connectors. If only one module is affected, compare its status with other functioning modules and review the system diagnostic information. If multiple adjacent modules are affected, the backplane connection or power distribution should receive particular attention. The engineering software can then be used to determine whether the problem is related to module configuration, communication, or hardware status. In a safety-related installation, troubleshooting should follow the approved maintenance procedure and should not rely on bypassing or disabling a safety function simply to restore normal operation.
