1. What is the main function of the HIMA X-CB 005 04?

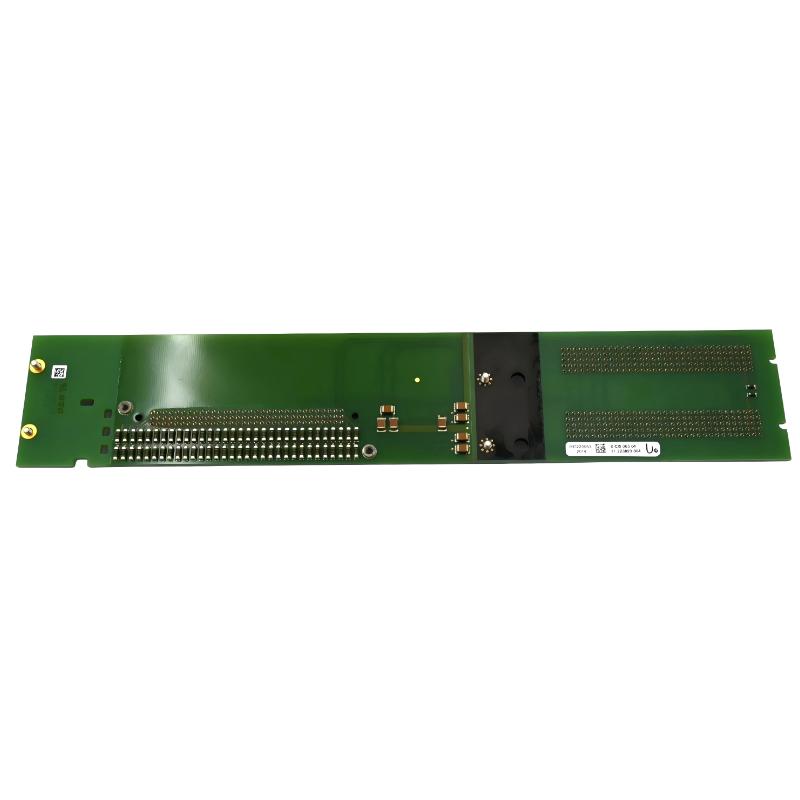

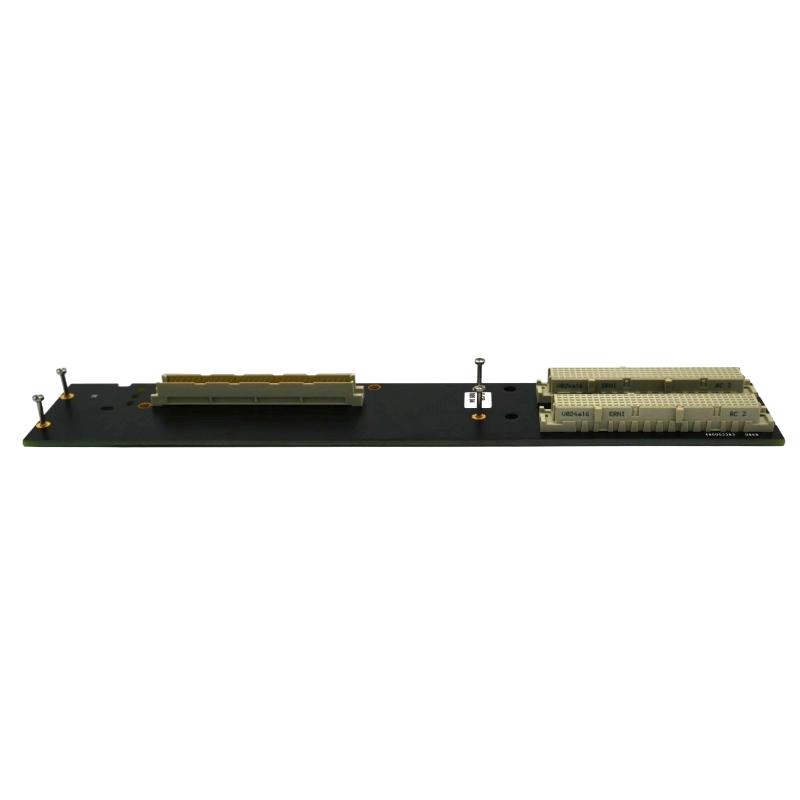

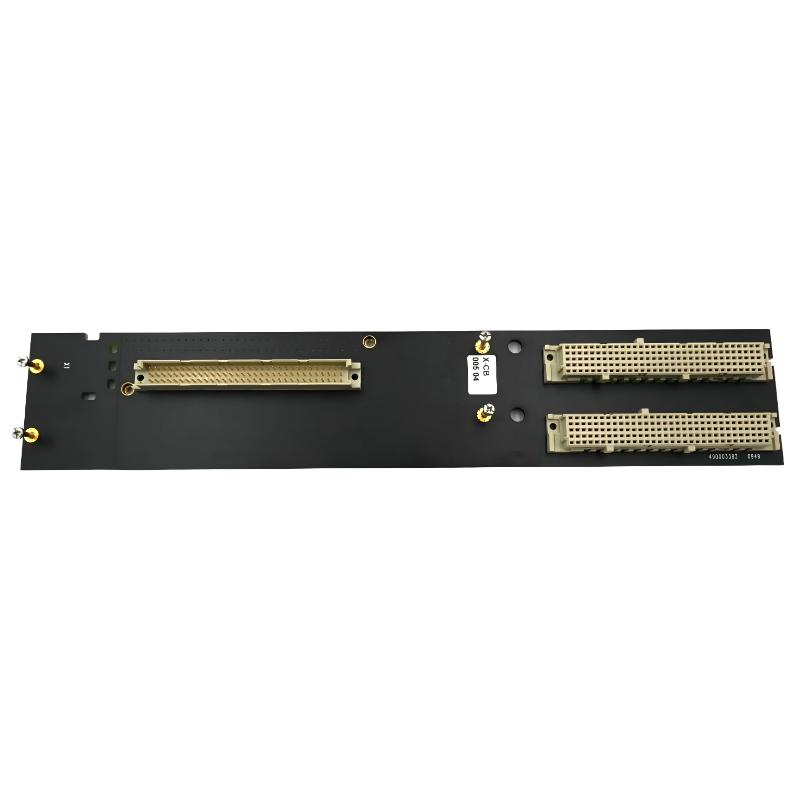

The HIMA X-CB 005 04 is a redundant connector board designed for the HIMax safety control system. Its primary purpose is to establish a reliable signal interface between a HIMax I/O module and the field termination area. The board uses a system cable connection and is equipped with a cable plug, allowing signals from the I/O module to be transferred to the field termination assembly. Compared with a conventional single-path connector board, the X-CB 005 04 is intended for redundant architectures and can be used together with compatible HIMax I/O modules, system cables, and field termination assemblies to build highly available safety control systems.

2. What is the difference between X-CB 005 04 and ordering number 985220061?

X-CB 005 04 is the product model, while 985220061 is the corresponding ordering number. When purchasing, stocking, or replacing the component, both identifiers should be checked. The complete identification is HIMA X-CB 005 04 / 985220061. HIMax systems contain several connector boards with similar product designations, but their connection methods, redundancy configurations, and compatible I/O modules can differ. Therefore, the replacement should not be selected solely according to physical appearance. The existing I/O module and complete field connection architecture should be checked before selecting a replacement.

3. How does the X-CB 005 04 differ from other X-CB 005 series connector boards?

The X-CB 005 series includes connector boards designed for specific HIMax I/O modules and different field connection configurations. For example, some variants use screw terminals, while the X-CB 005 04 is a redundant connector board with a cable plug. This makes it suitable for applications where system cables are used for field termination and redundant signal paths are required. The correct connector board should therefore be selected according to the I/O module type, field wiring arrangement, system cable configuration, and redundancy requirements rather than simply choosing another product from the same series.

4. Which HIMax I/O modules can be used with the X-CB 005 04?

The X-CB 005 04 is designed for compatible HIMax I/O modules, including the X-DI 32 05 and other modules with the corresponding hardware configuration. The HIMax system documentation identifies the X-CB 005 04 as a redundant connector board that can be used with the X-DI 32 05 together with the appropriate system cable and field termination arrangement. Before installation, the I/O module, connector board, system cable, and field termination assembly should all be checked for compatibility. An incorrect combination can lead to installation problems, channel faults, or system diagnostic alarms.

5. What is the purpose of the redundancy provided by the X-CB 005 04?

The redundant design of the X-CB 005 04 is intended to improve the availability and reliability of signal connections within a HIMax safety control system. In applications using redundant I/O architectures, the connector board can work together with compatible I/O modules, system cables, and field termination assemblies to provide redundant signal paths. If a hardware path develops a fault, the overall HIMax architecture can detect and manage the fault according to its configured redundancy strategy. The connector board itself does not independently provide the complete redundancy function; the final redundancy performance depends on the complete HIMax hardware, software, and field signal architecture.

6. How are field devices connected through the X-CB 005 04?

The X-CB 005 04 uses a system cable connection. Field devices are normally connected to the field termination assembly, and the corresponding signals are then transferred through the system cable to the connector board and HIMax I/O module. This architecture provides a more organized cabinet wiring structure and reduces the amount of direct point-to-point wiring associated with the I/O module. It can also simplify I/O module replacement because field wiring does not necessarily need to be disconnected directly from the I/O module. During installation, the correct system cable should be selected and the cable plug should be fully inserted and secured. In redundant systems, both signal paths should be checked independently.

7. How should an I/O signal fault involving the X-CB 005 04 be diagnosed?

Troubleshooting should begin by checking the connection between the I/O module and the X-CB 005 04. Confirm that the module is fully seated and that the connector is properly engaged. Next, inspect both ends of the system cable and check for loose connections, mechanical damage, or wiring problems. The field termination assembly and connected field device should then be inspected. If the field device and wiring appear normal, the HIMax diagnostic system should be used to check the relevant I/O module and channel status. For redundant architectures, both signal paths should be compared. If only one path is affected, attention should focus on the connector board, system cable, or field termination components associated with that path. If several channels fail simultaneously, common power, system configuration, and module-level conditions should also be investigated.

8. What should be considered when replacing the HIMA X-CB 005 04?

Before replacement, confirm the complete product identification as X-CB 005 04 985220061 and verify compatibility with the existing HIMax I/O module, system cable, and field termination assembly. The system should be placed in the appropriate maintenance or safe state according to the site’s safety procedures. Before removing the board, system cable connections should be clearly identified to prevent channel or path mix-ups during reinstallation. After installing the replacement connector board, verify its position and mechanical fixation on the HIMax Base Plate and make sure the system cable connector is fully engaged. The compatible I/O module can then be installed and the HIMax diagnostic system checked for module and channel status. For safety-related applications, the affected field signals and redundant paths should be functionally tested before the system is returned to normal operation.
