Technical Specifications

FAQ

1. What is the main function of the HIMA X-FTA 002 01?

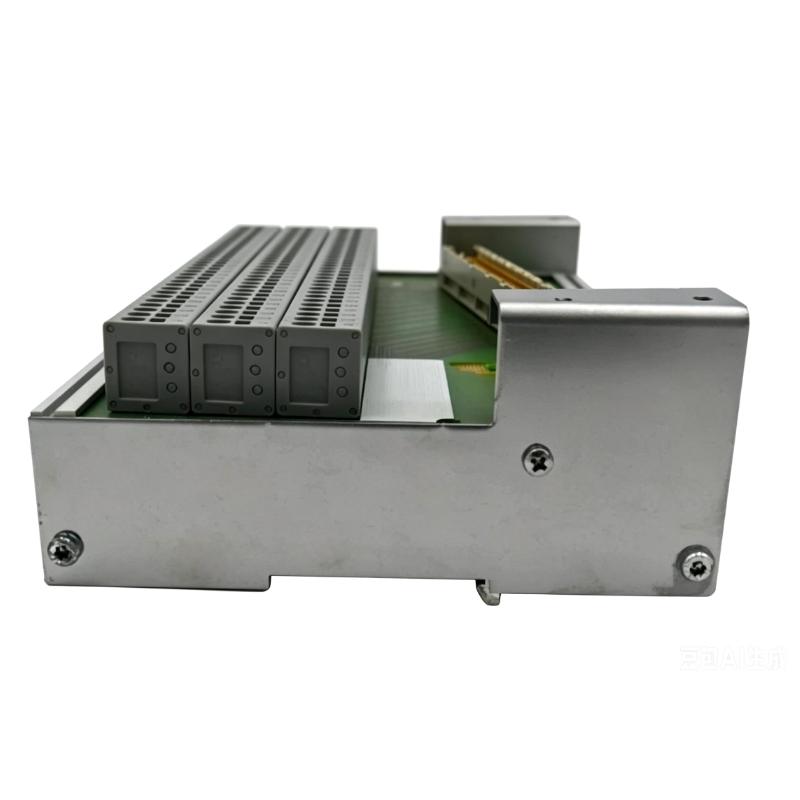

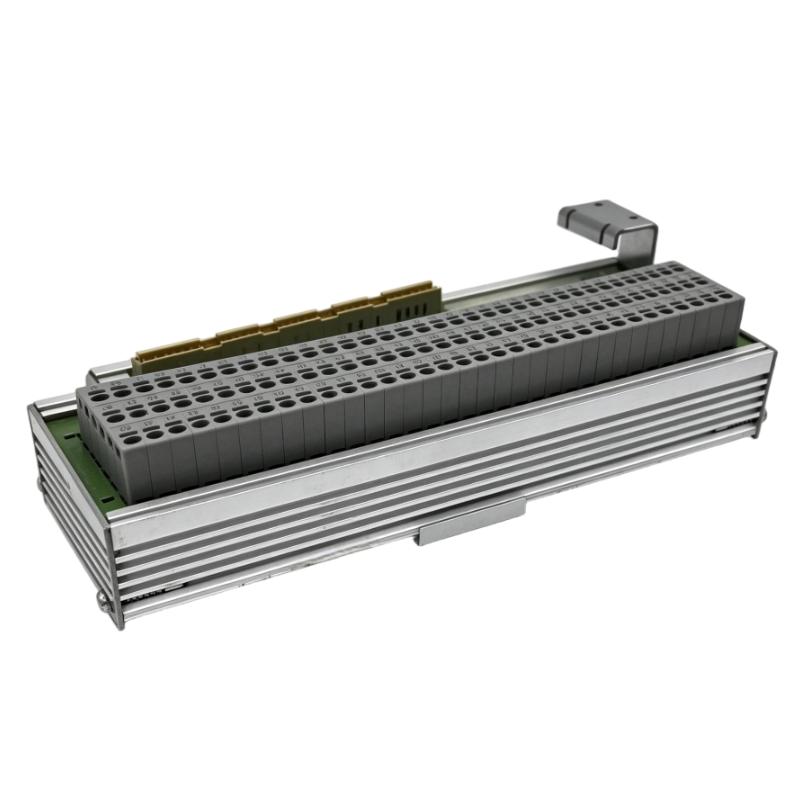

The HIMA X-FTA 002 01 is a Field Termination Assembly designed for the HIMax programmable electronic system. Its primary function is to provide an organized interface between field devices, such as sensors, transmitters and actuators, and the corresponding HIMax I/O modules. The field wiring is terminated at the FTA and then connected to the I/O module through the appropriate system cable. This architecture helps separate field wiring from the control electronics, reduces point-to-point wiring inside the cabinet and makes installation, commissioning and maintenance more manageable.

2. Which HIMax I/O modules can be used with the X-FTA 002 01?

The X-FTA 002 01 can be used with a range of HIMax I/O modules, including various X-DI digital input modules, X-AI analog input modules, X-CI counter input modules, X-DO digital output modules and X-AO analog output modules. Examples include X-DI 32 01, X-DI 32 02, X-DI 32 03, X-DI 32 04, X-DI 32 05, X-AI 32 01, X-AI 32 02, X-CI 24 01, X-DO 32 01 and X-AO 16 01. The exact combination should always be verified against the specific HIMax hardware configuration, system cable arrangement and field termination requirements before installation.

3. How is the X-FTA 002 01 connected to a HIMax I/O module?

The X-FTA 002 01 is normally installed on a 35 mm DIN rail and connected to the corresponding HIMax I/O module using the appropriate system cable. Field devices are connected to the terminals of the FTA, while the system cable transfers the corresponding signals between the field termination assembly and the I/O module. This arrangement creates a structured interface between the field wiring and the control system. During installation, technicians should confirm that the correct system cable is being used and that all connectors are fully seated. Incorrect cable selection or incomplete connections can result in missing signals, channel faults or incorrect I/O operation.

4. What is the maximum rated current of the X-FTA 002 01 terminals?

The rated terminal current of the X-FTA 002 01 is 0.75 A per channel. The actual operating current depends on the connected field device and the overall circuit design. When designing or modifying a field circuit, the current requirements of the connected sensor, transmitter or actuator should be checked together with the characteristics of the corresponding HIMax I/O module. Cable size, terminal capacity and power supply conditions should also be considered. The terminal rating should not be treated as the allowable load for every application without checking the complete electrical circuit.

5. How is the X-FTA 002 01 installed?

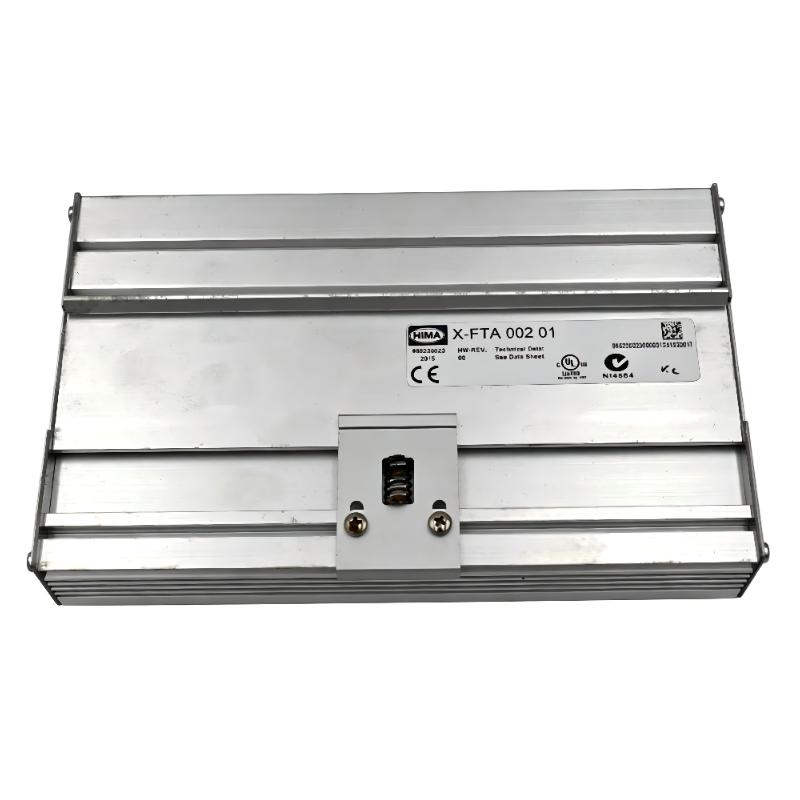

The X-FTA 002 01 is designed for 35 mm DIN rail installation and can be installed horizontally or vertically depending on the control cabinet layout. Before installation, the DIN rail should be securely mounted and sufficient space should be provided for field wiring and system cable connections. The FTA should be firmly locked onto the rail before the field wiring is connected. Cable routing should also be arranged to avoid excessive mechanical stress on terminals and connectors. Proper installation helps maintain reliable electrical connections and makes later inspection or replacement easier.

6. How should a field signal fault on the X-FTA 002 01 be diagnosed?

Troubleshooting should normally begin with the field device and progress toward the HIMax I/O module. First check the sensor or transmitter and confirm that it is operating correctly. Then inspect the field wiring, terminal connections, cable condition and signal polarity. After that, check the connection between the X-FTA 002 01 and the system cable, followed by the corresponding I/O module diagnostics. If the field signal is correct at the FTA but the HIMax system displays an abnormal value, the system cable, I/O channel configuration and module diagnostics should be examined. If several channels fail simultaneously, common wiring, power supply or system cable problems should be investigated before assuming that multiple field devices have failed independently.

7. Is the X-FTA 002 01 suitable for safety control applications?

The X-FTA 002 01 is part of the HIMax field termination architecture and can be used in HIMax safety control applications. Its role is to provide an organized field connection between external devices and compatible HIMax I/O modules. However, the safety integrity of a complete control function is not determined by the field termination assembly alone. The overall safety architecture depends on the selected I/O modules, connector boards, system cables, field devices, application software and system configuration. For SIL-related applications, the complete safety loop should therefore be designed, verified and tested according to the applicable project requirements.

8. What should be considered when replacing the X-FTA 002 01?

Before replacing the X-FTA 002 01, confirm that the replacement unit is compatible with the installed HIMax I/O module, system cable and field wiring arrangement. The system should be placed in the appropriate maintenance or safe state before work begins, following the site’s electrical safety procedures. Field wires should be clearly identified before removal to prevent channel mix-ups during reinstallation. After installing the replacement FTA, check the DIN rail mounting, field terminals and system cable connections carefully. Once the system is powered again, inspect the HIMax diagnostic information and verify the associated I/O channels individually. For safety-related applications, the affected signal loops and required safety functions should be fully tested before the system is returned to normal operation.
