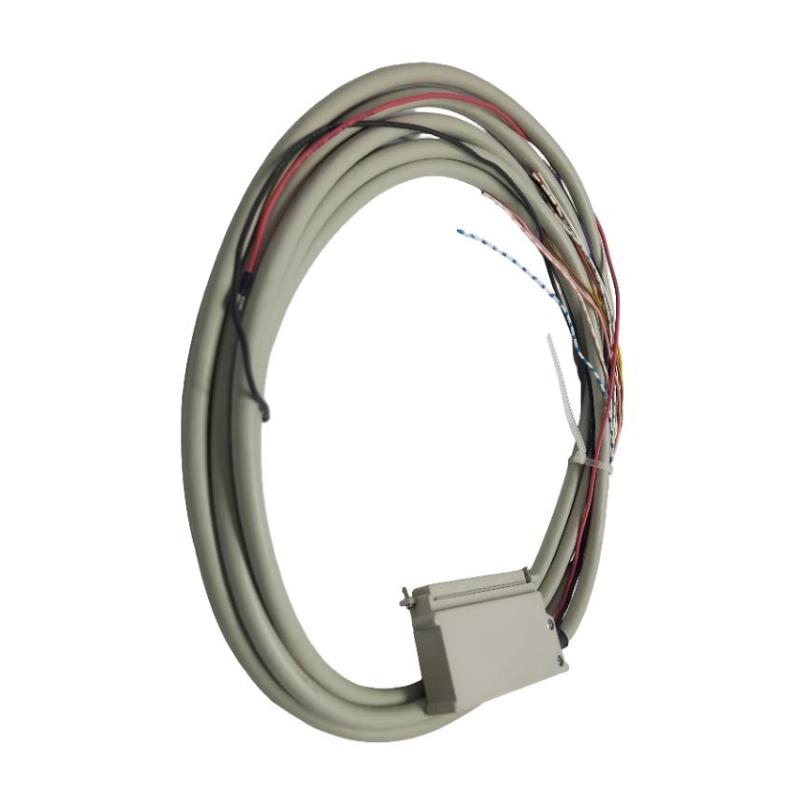

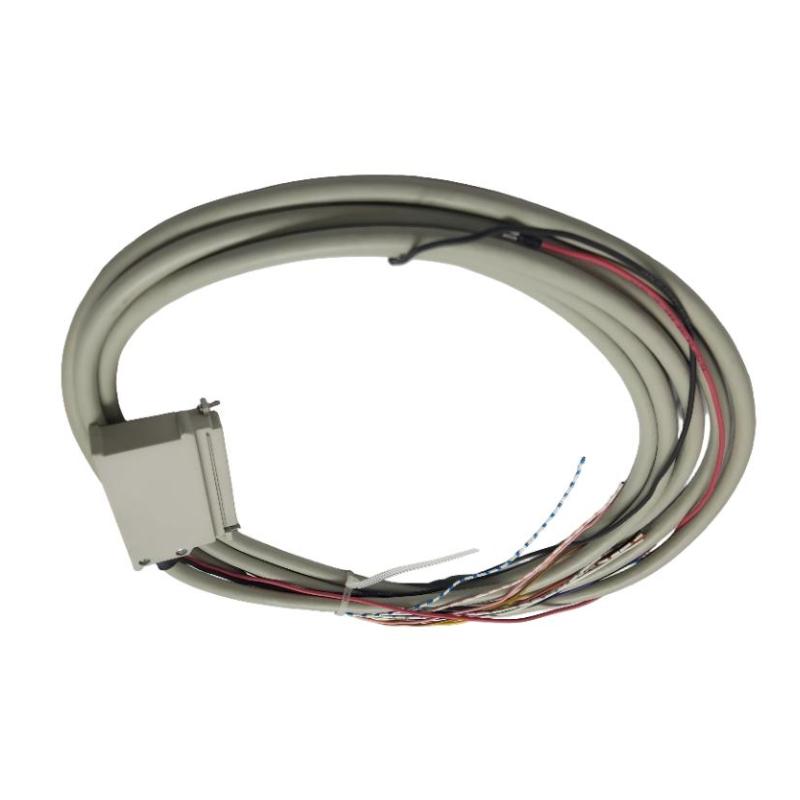

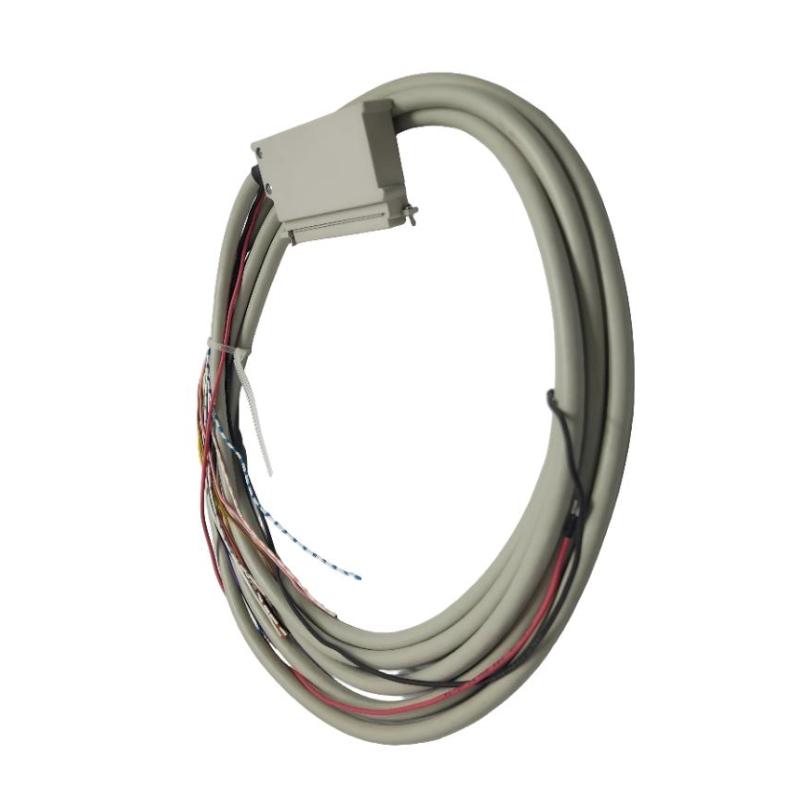

HIMA Z7108/3237/C7/R2 Cable Plug
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | HIMA |
| Model | Z7108/3237/C7/R2 |
| Product Type | Cable Plug / Cable Connector Assembly |
| Compatible Module | HIMA F 3237 8-Channel Safety Digital Input Module |
| Main Function | Provides a dedicated field-cable connection for the F 3237 input module |
| Cable Length | 7 meters |
| Cable Configuration | Prefabricated cable assembly |
| Connector Type | Z7108 front/rear connection plug for F 3237 |
| Cable Type | Shielded industrial multi-core cable |
| Signal Application | Safety digital input signals |
| Number of Supported Channels | 8 channels |
| R2 Configuration | R2 cable and wiring configuration |
| Typical Field Devices | Digital contacts, switches and compatible proximity sensors |
| Installation | Connection between the F 3237 module and field termination |
| Typical Applications | Safety PLC systems, ESD, F&G, BMS and industrial process monitoring |
| Cable Routing | Control cabinet to field termination |
| Operating Temperature | -20 to +70 °C |
| Rated Voltage | Up to 250 V DC |
| Maximum Single-Core Current | Up to 3 A |
| Shipping Weight | 3 kg |
FAQ
1. What is the main function of the HIMA Z7108/3237/C7/R2 Cable Plug?
The HIMA Z7108/3237/C7/R2 is a prefabricated cable connection assembly designed for the F 3237 safety digital input module. It provides an organized connection between the module and field wiring, reducing the need to prepare individual connections inside the control cabinet. The C7 configuration provides a 7-meter cable length.
2. What does C7 mean in the Z7108/3237/C7/R2 model designation?
C7 identifies the 7-meter cable version of the Z7108/3237 cable assembly. Other cable-length versions can use different suffixes, so the C7 designation is important when replacing an existing cable assembly or ordering a spare part.
3. What does the R2 designation represent?
R2 identifies the specific cable and wiring configuration of the assembly. It should be treated as part of the complete product designation because different suffix configurations may have different wiring arrangements or application requirements. The complete Z7108/3237/C7/R2 model should therefore be matched when replacing the original assembly.
4. Which HIMA module is the Z7108/3237/C7/R2 designed for?
The cable assembly is designed for the HIMA F 3237 8-channel safety digital input module. The connector and cable wiring are arranged for the corresponding F 3237 interface, so compatibility should be verified before connecting the assembly to another HIMA input module.
5. How many input channels can the Z7108/3237/C7/R2 support?
The cable assembly is intended for the eight-channel F 3237 input module. Its individual conductors provide the connection between the module channels and the corresponding field devices or field termination points. Correct channel identification is important during installation to avoid signal cross-connection.
6. What should be checked when installing the Z7108/3237/C7/R2?
Before installation, verify the complete model number, cable length, connector orientation, channel assignment and field wiring. The connector should be fully seated and secured, while the cable should be routed to avoid excessive mechanical stress, sharp bends and sources of electrical interference. After installation, each input channel should be functionally tested.
7. How should a signal fault involving the Z7108/3237/C7/R2 be diagnosed?
Begin by checking the connector seating and the physical condition of the cable. Next, verify cable continuity and the wiring of the affected channel at the field termination. If the cable is intact, check the connected field device and the corresponding F 3237 input channel. System diagnostics should then be used to determine whether the problem is in the field circuit, cable assembly or input module.
8. Where is the HIMA Z7108/3237/C7/R2 typically used?
The cable assembly is typically used in HIMA safety-control and industrial automation installations where an F 3237 safety digital input module is connected to field devices. Typical applications include Emergency Shutdown (ESD), Fire and Gas (F&G), Burner Management Systems (BMS), process monitoring and other safety-related input applications.
HIMA Z7108/3237/C7/R2 Cable Plug is in stock. Please contact us for a quick quote and competitive pricing.
