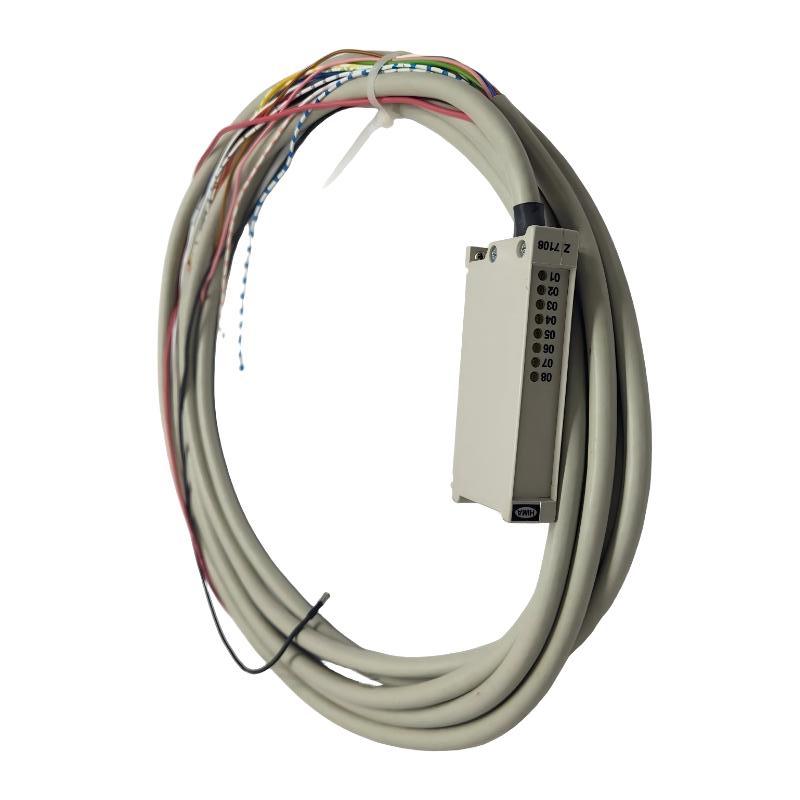

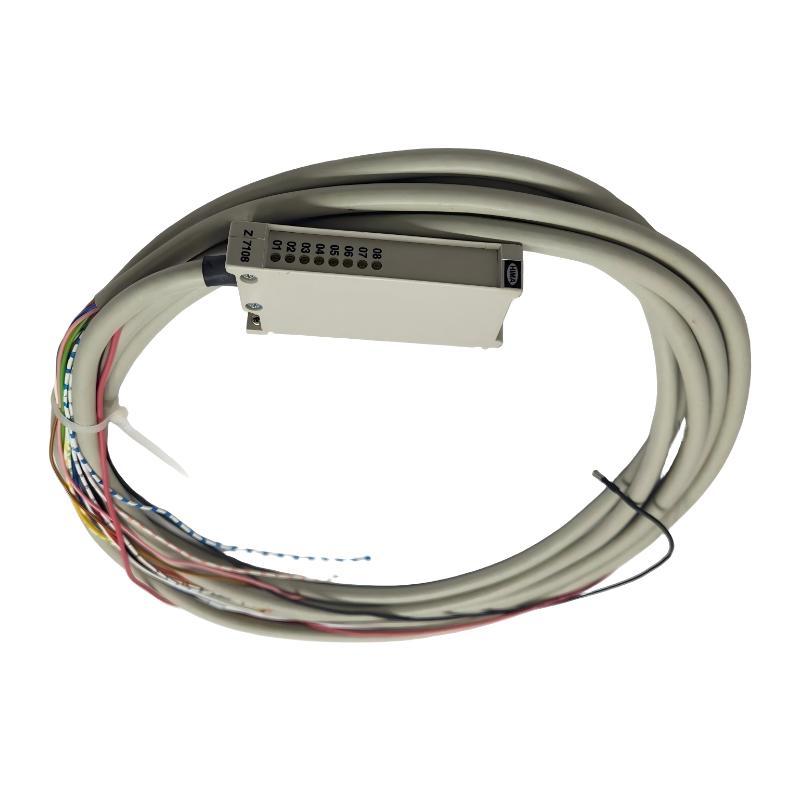

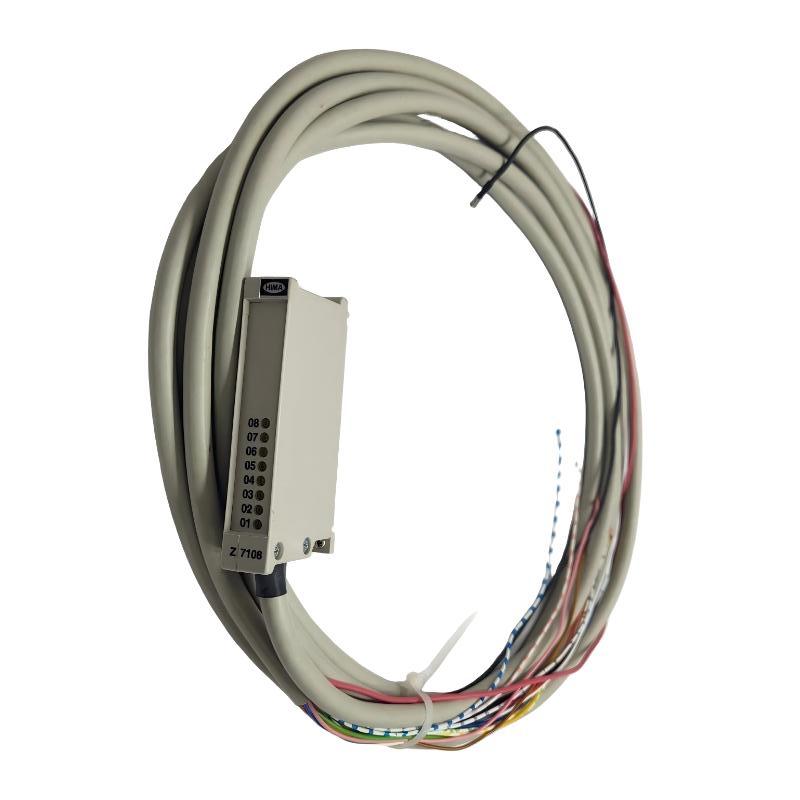

HIMA Z7108/3237/W/R1 Cable Plug
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | HIMA |
| Model | Z7108/3237/W/R1 |
| Product Type | Cable Plug |
| Compatible Module | HIMA F 3237 8-Channel Input Module |
| Main Function | Provides a dedicated cable connection between field wiring and the F 3237 input module |
| Number of Input Channels | 8 channels |
| Application Signal | Industrial digital input and NAMUR proximity switch connections |
| Special Application | Redundant connection of safety-related NAMUR proximity switches |
| Resistor Configuration | R1–R8, 390 Ω each for the specified NAMUR redundant connection |
| Cable Configuration | Dedicated HIMA cable plug configuration |
| Cable Length | Optional |
| Typical Installation | HIMA safety control systems, control cabinets and industrial automation equipment |
| Typical Applications | Safety input signal connection, NAMUR proximity switch connection and industrial process monitoring |
| Shipping Weight | 3 kg |
FAQ
1. What is the main function of the HIMA Z7108/3237/W/R1 Cable Plug?
The HIMA Z7108/3237/W/R1 is a dedicated cable plug designed for use with the HIMA F 3237 input module. It provides the required connection between field wiring and the module input channels. Unlike a general-purpose connector, its wiring arrangement is designed around the F 3237 channel configuration and should be used with the appropriate HIMA cable and connection scheme.
2. What is the relationship between the Z7108/3237/W/R1 and the HIMA F 3237?
The Z7108/3237/W/R1 is a special cable-plug configuration associated with the F 3237 input module. The F 3237 provides eight input channels, while the cable plug establishes the corresponding field connections. When replacing the plug, the connector type, channel assignment and wiring configuration should all be checked against the F 3237 installation requirements.
3. Can the Z7108/3237/W/R1 be used with NAMUR proximity switches?
Yes. The Z7108/3237/W/R1 is a special cable-plug configuration intended for redundant connection of NAMUR proximity switches in the applicable F 3237 circuit. The relevant HIMA documentation specifies the R1 configuration with resistors R1–R8 of 390 Ω for this application. The wiring should follow the specified HIMA connection arrangement rather than a standard digital-input wiring method.
4. What does the R1 designation mean in Z7108/3237/W/R1?
The R1 designation identifies the special resistor configuration of the cable plug. For the specified redundant NAMUR proximity-switch connection, resistors R1 through R8 are 390 Ω. This resistor arrangement is part of the dedicated connection design and should not be changed without checking the applicable F 3237 circuit requirements.
5. Is the cable length of the Z7108/3237/W/R1 fixed?
No. The available product specification identifies the cable length as optional. This allows the cable assembly to be configured according to the distance between the HIMA control equipment and the field connection point. The selected cable length should still meet the electrical and installation requirements of the F 3237 input circuit.
6. What should be checked when replacing the Z7108/3237/W/R1?
Before replacement, verify the complete model designation, connector configuration, channel assignment, cable arrangement and intended application. Particular attention should be given to NAMUR proximity-switch circuits because the special resistor configuration is part of the connection design. After installation, each input channel should be checked for correct signal operation and diagnostic status.
7. How should an input-channel fault related to the Z7108/3237/W/R1 be diagnosed?
Start by checking that the cable plug is fully seated and that its contacts are clean and secure. Then check cable continuity, channel wiring and the connected field device. For NAMUR applications, the associated resistor configuration should also be verified. If the external wiring is normal but the input remains faulty, the F 3237 module and its diagnostic information should be checked.
8. Where is the HIMA Z7108/3237/W/R1 typically used?
The cable plug is primarily used in HIMA safety-control and industrial automation installations involving the F 3237 input module. Typical applications include safety-related input circuits, NAMUR proximity-switch monitoring, field signal acquisition and industrial process monitoring where a dedicated HIMA connection arrangement is required.
HIMA Z7108/3237/W/R1 Cable Plug is in stock. Please contact us for a quick quote and competitive pricing.
