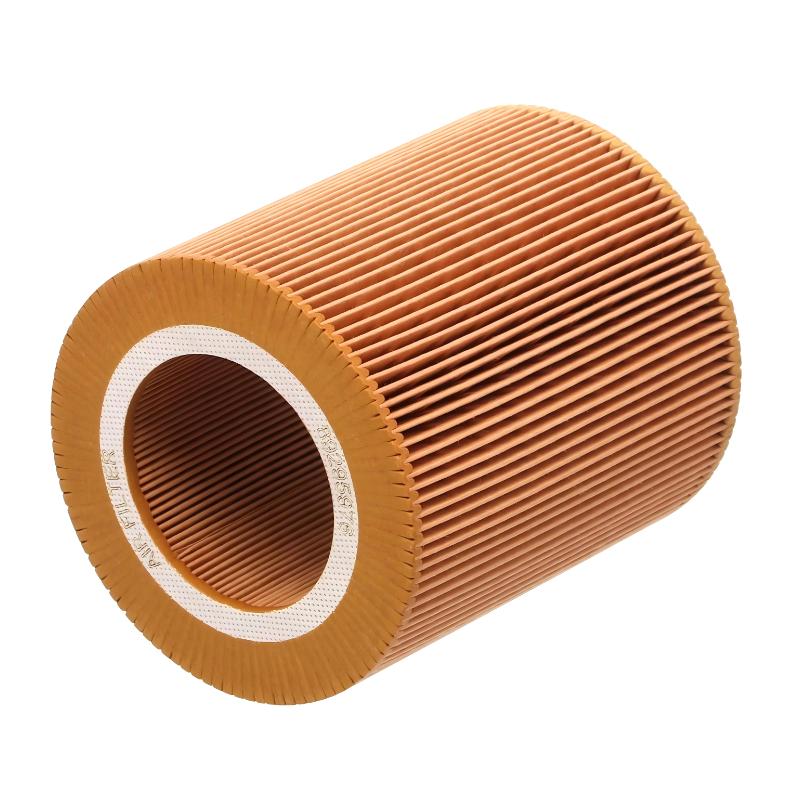

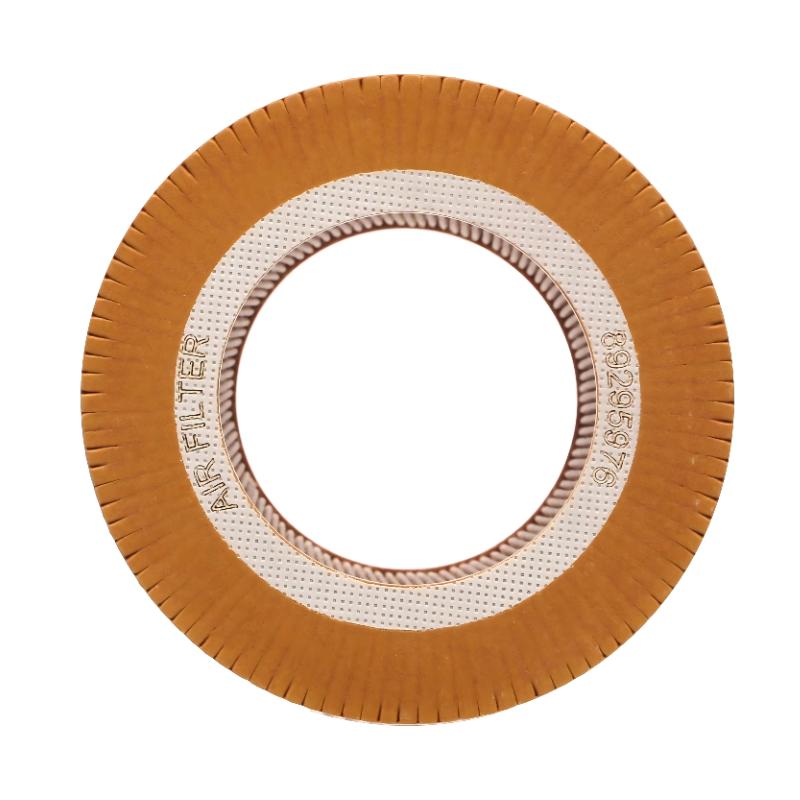

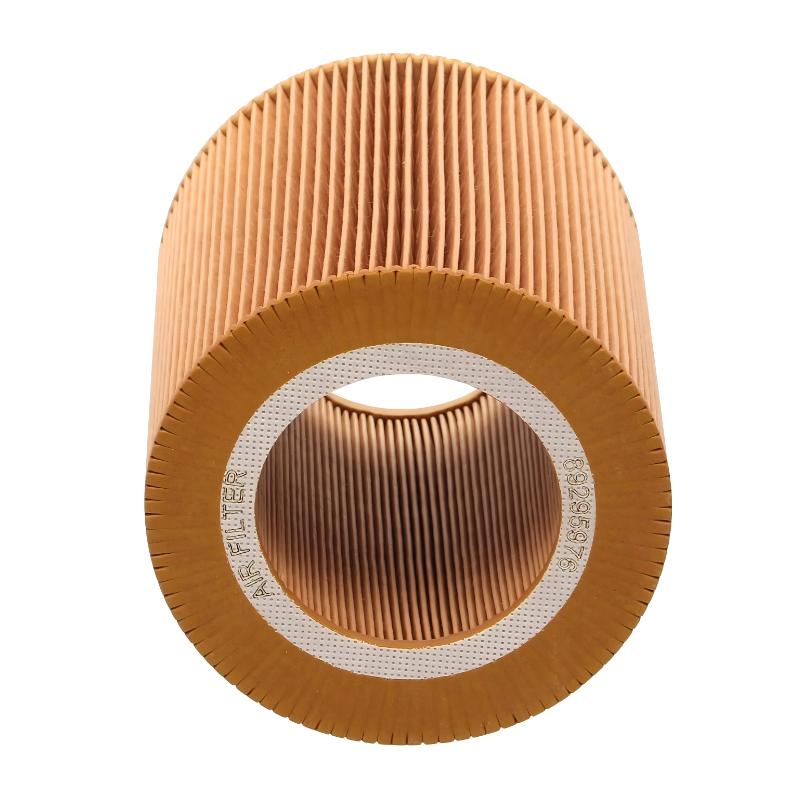

Ingersoll Rand 47627049001 89295976 Air Filter
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Ingersoll Rand |
| Model | 47627049001 |
| Ordering Number | 89295976 |
| Product Type | Air Filter |
| Filter Type | Inlet Air Filter Element |
| Application | Rotary Screw Air Compressors |
| Compatible Compressor Range | 20–30 hp rotary screw air compressors |
| Compatible Series | UP6 Series and applicable compatible models |
| Filter Media | Pleated Cellulose |
| Filtration Efficiency | 99.9% at 3 microns and above |
| Filtration Function | Removes dust, dirt and airborne particles from intake air |
| Installation Position | Compressor Air Intake |
| Filter Structure | Cylindrical replacement filter element |
| Maintenance Function | Protects the compression stage and helps maintain stable intake airflow |
| Replacement Requirement | Replace during routine maintenance or when the element becomes clogged or defective |
| Cross-Reference | Atlas Copco 1613872000, HIFI SA 19367, Fleetguard AF26419, MANN C1250 |
| Dimensions | 134 × 55 × 116 mm |
| Weight | 0.45 kg |
FAQ
1. What is the difference between model 47627049001 and ordering number 89295976?
47627049001 is the product model, while 89295976 is the ordering number used to identify and purchase the air filter element. When ordering a replacement, it is recommended to provide both numbers for verification.
2. What is the main function of the Ingersoll Rand 47627049001 89295976 Air Filter?
The filter removes dust, dirt and other airborne particles from the compressor intake air before the air enters the compression stage. This helps reduce contamination of internal compressor components and supports stable compressor operation.
3. Which compressors can use the 89295976 air filter?
The 89295976 is used with applicable Ingersoll Rand rotary screw air compressors, including certain 20–30 hp and UP6-series configurations. The exact compressor model and serial number should be checked before replacement.
4. What type of filter media is used in 89295976?
The filter uses pleated cellulose media. The pleated structure increases the effective filtration area while maintaining airflow, and the filtration efficiency is specified at approximately 99.9% for particles around 3 microns and above.
5. What problems can occur if the air filter becomes heavily clogged?
A clogged filter can increase intake pressure drop and restrict the amount of air entering the compressor. This may reduce compressor efficiency, increase energy consumption, raise operating temperature and potentially trigger airflow or maintenance-related alarms.
6. How can I determine whether the 89295976 air filter needs replacement?
Check the filter differential pressure or compressor maintenance indicators where available. A visibly contaminated element, reduced intake airflow, increased pressure drop or deterioration in compressor performance can also indicate that replacement is required.
7. Can the 89295976 filter be replaced by a cross-reference filter?
Compatible alternatives exist, but the replacement should match the original element’s filtration performance, sealing arrangement, airflow capacity and installation dimensions. A cross-reference number alone should not be used without confirming compatibility with the specific compressor.
8. What should be checked when installing a new 89295976 air filter?
Confirm the correct part number, inspect the filter housing and sealing surfaces, remove accumulated dust from the housing, install the element in the correct orientation and ensure the housing is properly closed. After installation, check for air leakage and verify that the compressor intake system operates normally.
Ingersoll Rand 47627049001 89295976 Air Filter is in stock. Please contact us for a quick quote and competitive pricing.
