Ingersoll Rand 47627051001 22064695 Minimum Pressure Valve Kit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Ingersoll Rand |
| Model | 47627051001 |
| Ordering Number | 22064695 |
| Product Type | Minimum Pressure Valve Kit |
| Valve Type | Minimum Pressure Valve (MPV) / Minimum Pressure Check Valve |
| Application | Oil-injected rotary screw air compressors |
| Compatible Equipment | Selected Ingersoll Rand UP5 and UP6 series compressors |
| Typical Application | Compressor oil separation and pressure control system |
| Installation Position | Separator tank outlet / compressed-air discharge section |
| Main Function | Maintains the required minimum pressure inside the separator tank during startup and low-load operation |
| Pressure Control Function | Helps establish sufficient separator tank pressure before allowing compressed air to flow downstream |
| Oil System Function | Supports proper oil circulation during compressor startup and load changes |
| Backflow Protection | Helps prevent high-pressure downstream air from flowing back into the compressor |
| Kit Type | Minimum pressure valve service and repair kit |

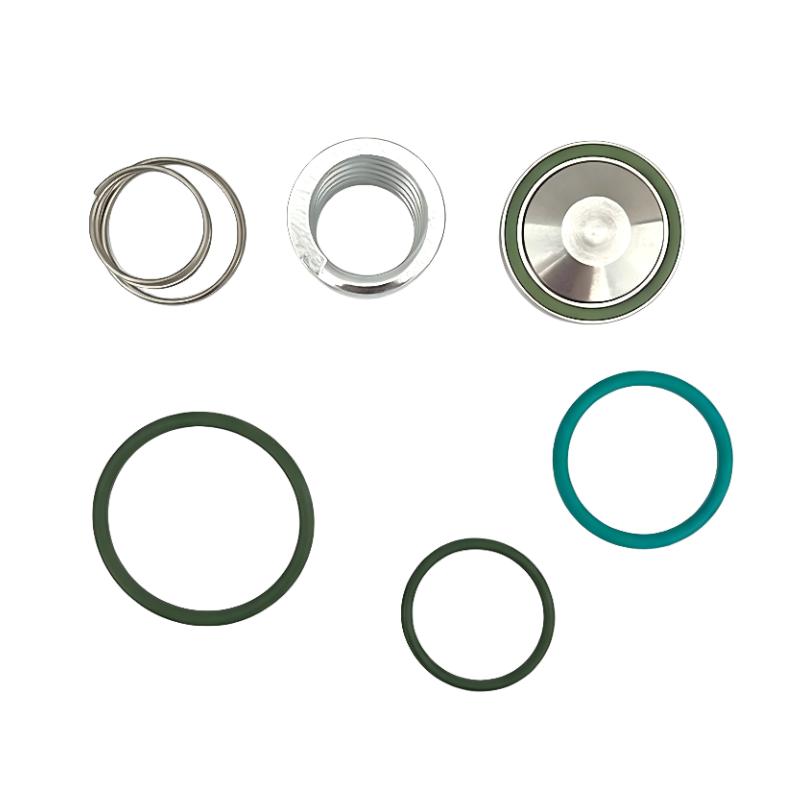

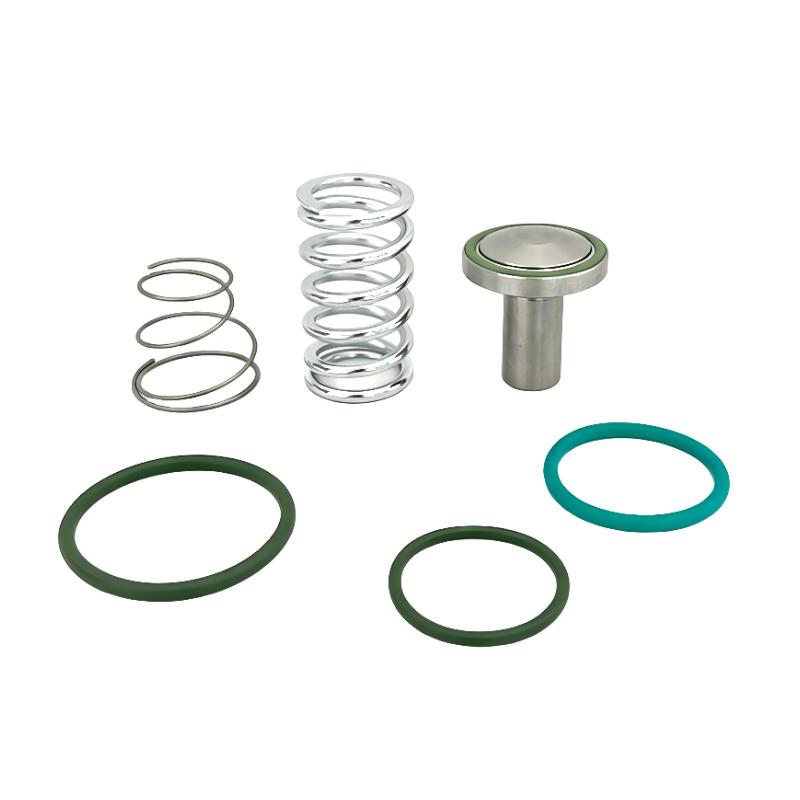

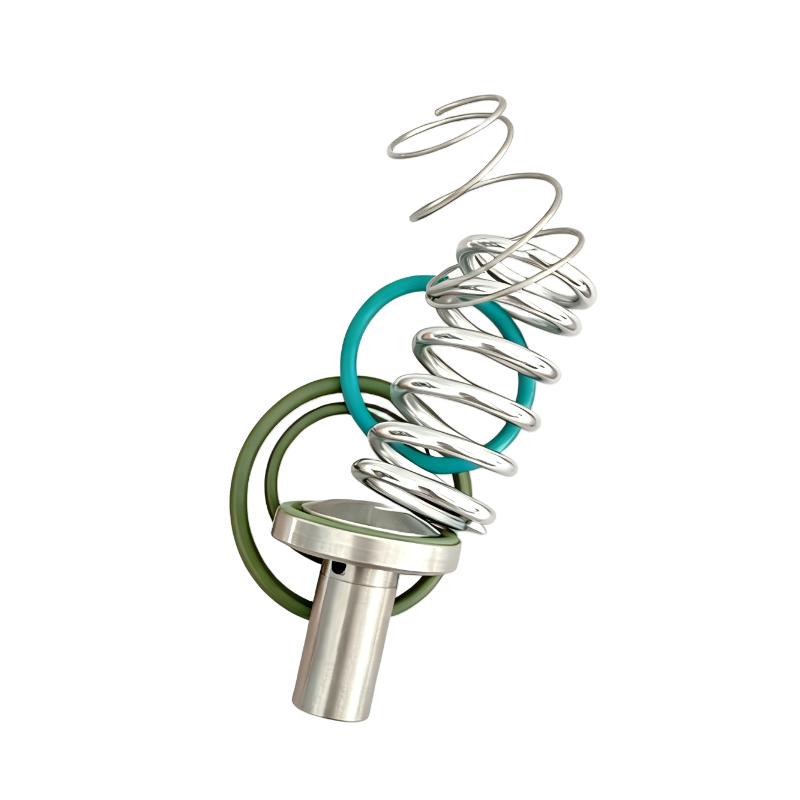

| Typical Components | Spring, piston/valve components, sealing elements and related internal service parts |
| Service Application | Minimum pressure valve overhaul, corrective maintenance and component replacement |
| Common Replacement Conditions | Valve leakage, unstable pressure, worn internal components or abnormal valve operation |
| Maintenance Requirement | Inspect the valve body, spring, piston/valve assembly and sealing surfaces during service |
| Installation Requirement | Fully depressurize the compressor and separator system before valve disassembly |
| Dimensions | 100 × 15 × 80 mm |
| Weight | 0.1 kg |
FAQ
Q1: What is the main function of the Ingersoll Rand 22064695 minimum pressure valve kit?
The 22064695 kit is used to service the minimum pressure valve in an oil-injected rotary screw compressor. The valve maintains sufficient pressure inside the separator tank during startup and low-load operation, allowing the lubrication system to establish proper oil circulation. Once the internal pressure reaches the required operating condition, the valve allows compressed air to flow downstream.
Q2: What is the difference between model 47627051001 and ordering number 22064695?
47627051001 is the product model, while 22064695 is the ordering number used to identify the minimum pressure valve kit. When purchasing or replacing the component, both numbers should be checked against the compressor model and service documentation to ensure the correct kit is selected.
Q3: Which Ingersoll Rand compressors can use the 22064695 kit?
The 22064695 minimum pressure valve kit is used on selected Ingersoll Rand rotary screw compressor configurations, including certain UP5 and UP6 series machines. Compatibility can vary according to compressor model, power rating, production version and valve configuration, so the compressor model and serial number should be verified before ordering.
Q4: What happens if the minimum pressure valve does not operate correctly?
A malfunctioning minimum pressure valve can cause abnormal separator tank pressure during startup or operation. If the valve leaks or opens too early, the compressor may have difficulty building internal pressure, which can affect oil circulation and separation performance. A valve that does not open correctly can also increase pressure drop and restrict compressed-air delivery.
Q5: What components are normally serviced with the 22064695 kit?
The kit is intended to replace the internal service components of the minimum pressure valve. Depending on the specific valve configuration, these components can include the spring, piston or valve assembly, sealing elements and related retaining parts. The internal components should be inspected for wear, contamination and damage during the repair.
Q6: When should the minimum pressure valve be inspected or repaired?
Inspection is recommended when the compressor shows unstable separator pressure, abnormal startup behavior, poor pressure build-up, increased oil carryover or suspected internal leakage. The valve should also be checked during scheduled compressor maintenance when the minimum pressure valve is removed or serviced.
Q7: How does the minimum pressure valve help protect the compressor lubrication system?
During startup, the compressor needs sufficient pressure in the separator tank to maintain proper oil circulation. The minimum pressure valve helps retain pressure in the tank until the required pressure level is reached. This supports lubrication of the air end and other oil-lubricated components and helps maintain stable operation during startup and load changes.
Q8: What precautions should be taken when installing the 22064695 repair kit?
Before servicing the valve, shut down the compressor, isolate the power supply and completely release pressure from the separator and associated air system. Clean the valve and surrounding area before disassembly, then inspect the valve body, piston, spring and sealing surfaces. Install the replacement components in the correct orientation and follow the compressor’s specified assembly procedure. After reassembly, check for air leakage and verify that separator pressure and compressor operation return to normal.
Ingersoll Rand 47627051001 22064695 Minimum Pressure Valve Kit is in stock. Please contact us for a quick quote and competitive pricing.
