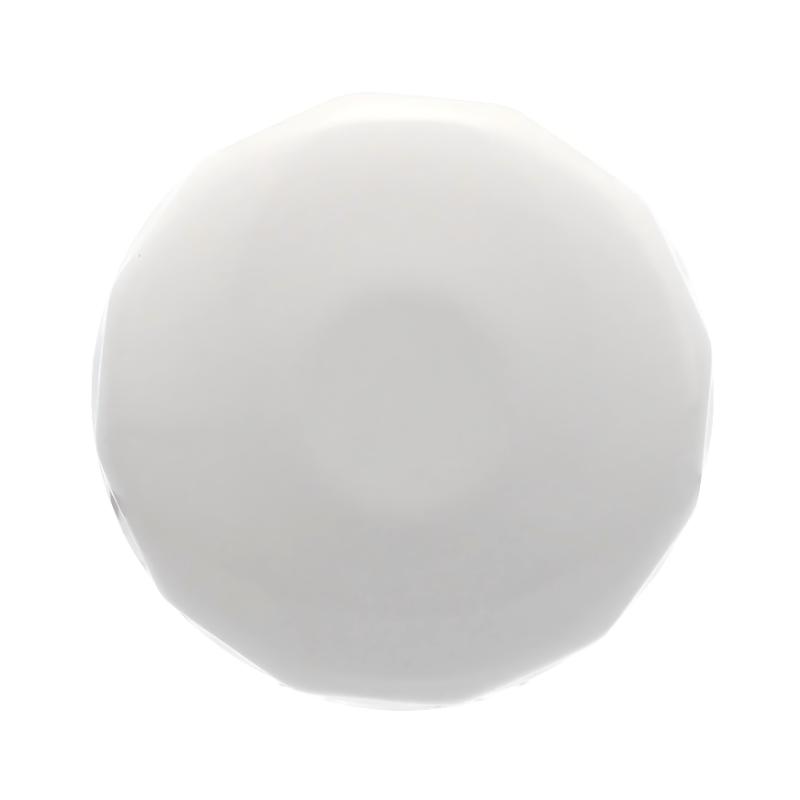

Ingersoll Rand 47627050001 54672654 Oil Filter
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Ingersoll Rand |
| Model | 47627049001 |
| Ordering Number | 54672654 |
| Product Type | Oil Filter |
| Filter Type | Spin-On Oil Filter |
| Application | Rotary Screw Air Compressors |
| Compatible Series | UP5 and UP6 Series |
| Filter Media | Enhanced Cellulose |
| Main Function | Removes particles, dust and debris from compressor oil |
| Installation Position | Compressor Lubrication Oil Circuit |
| Thread Size | 1″-12 UNF |
| Bypass Valve | Yes |
| Bypass Valve Opening Pressure | Approx. 2.5 bar |
| Filtration Function | Protects bearings, rotors and other lubricated components from oil contamination |
| Recommended Replacement Interval | Approximately every 2,000 operating hours or once a year |
| Maintenance Requirement | Replace the filter when the specified service interval is reached or when excessive contamination/restriction is detected |
| Dimensions | 208 × 50 × 95 mm |
| Weight | 0.91 kg |
FAQ
1. What is the difference between Ingersoll Rand 47627049001 and 54672654?
47627049001 is the model number specified for this product, while 54672654 is the ordering number used for procurement and spare-parts identification. When ordering a replacement oil filter, the ordering number should be checked against the compressor parts documentation and the original filter marking to ensure the correct component is selected.
2. What is the main function of the Ingersoll Rand 54672654 Oil Filter?
The 54672654 oil filter removes solid contaminants, dust, debris and wear particles from the compressor’s lubricating oil. Clean oil is important for maintaining proper lubrication and cooling of the airend and other moving components. Effective filtration helps reduce abrasive contamination and supports stable compressor operation.
3. Which Ingersoll Rand compressors can use the 54672654 Oil Filter?
The 54672654 is used on applicable Ingersoll Rand rotary screw compressors, including certain UP5 and UP6 configurations. Compatibility can vary according to compressor model, horsepower, package configuration and production version. The compressor model and serial number should therefore be checked before ordering.
4. What is the thread specification of the 54672654 Oil Filter?
The filter uses a 1″-12 UNF threaded connection. During replacement, the mounting connection should be inspected for damaged threads, contamination or abnormal wear. The new filter should engage smoothly without excessive force, and the sealing area should be clean to prevent leakage after installation.
5. What is the purpose of the bypass valve in the 54672654 filter?
The bypass valve provides an alternative oil-flow path when the pressure differential across the filter becomes excessive, such as when the filter is heavily contaminated or oil viscosity is high during certain operating conditions. Its purpose is to help maintain oil circulation and prevent insufficient lubrication caused by excessive filter restriction.
6. How often should the 54672654 Oil Filter be replaced?
A commonly specified maintenance interval is approximately every 2,000 operating hours or once per year, whichever occurs first. Actual replacement requirements can vary with compressor load, oil condition, ambient temperature, dust levels and operating environment. The maintenance schedule for the specific compressor should take priority.
7. What symptoms may indicate that the 54672654 Oil Filter requires replacement?
Possible indications include increased oil pressure differential, restricted oil flow, abnormal compressor temperature, lubrication-related alarms or deterioration in compressor operating performance. If the filter becomes heavily contaminated, continued operation may increase the risk of inadequate lubrication and accelerated wear of internal components.
8. What should be checked when replacing the 54672654 Oil Filter?
Before installation, verify the correct ordering number and inspect the filter mounting area for contamination or damage. The sealing surface should be clean, and the filter gasket should be properly positioned and lubricated according to the applicable maintenance procedure. After installation, check for oil leakage and verify oil pressure, temperature and overall compressor operation before returning the equipment to normal service.
Ingersoll Rand 47627050001 54672654 Oil Filter is in stock. Please contact us for a quick quote and competitive pricing.
