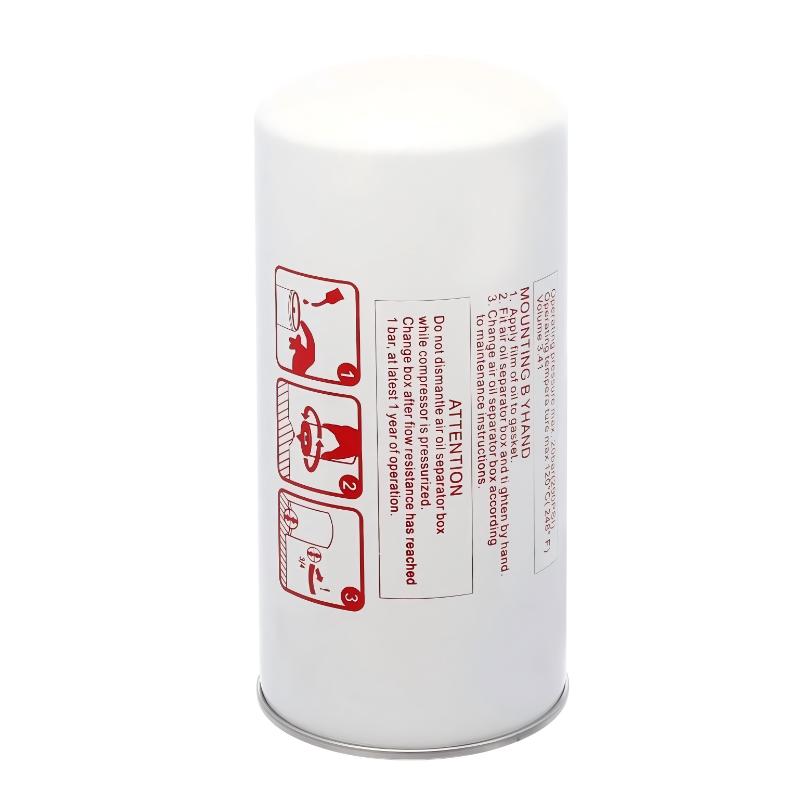

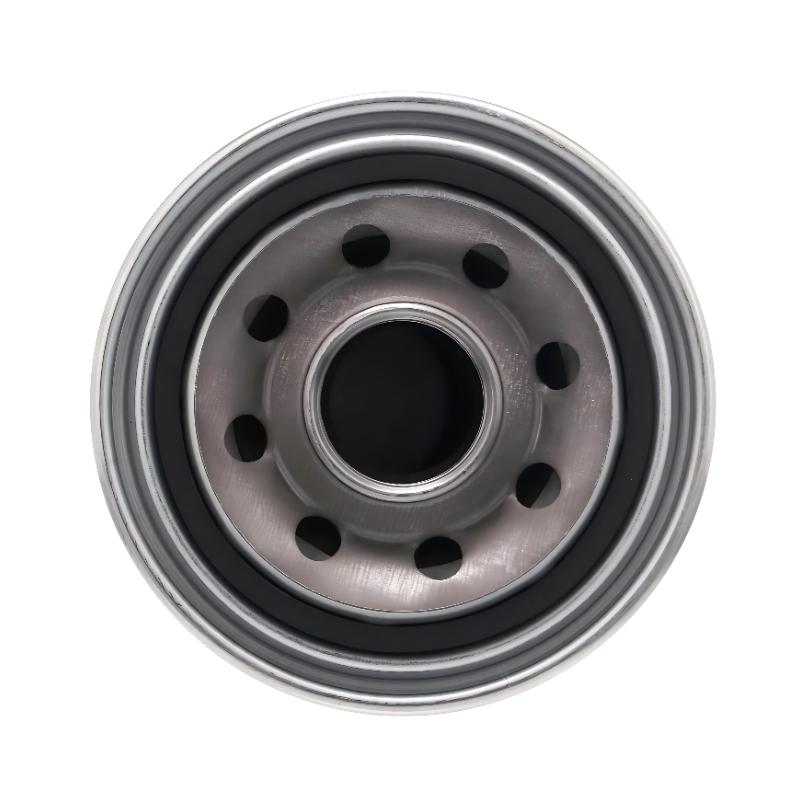

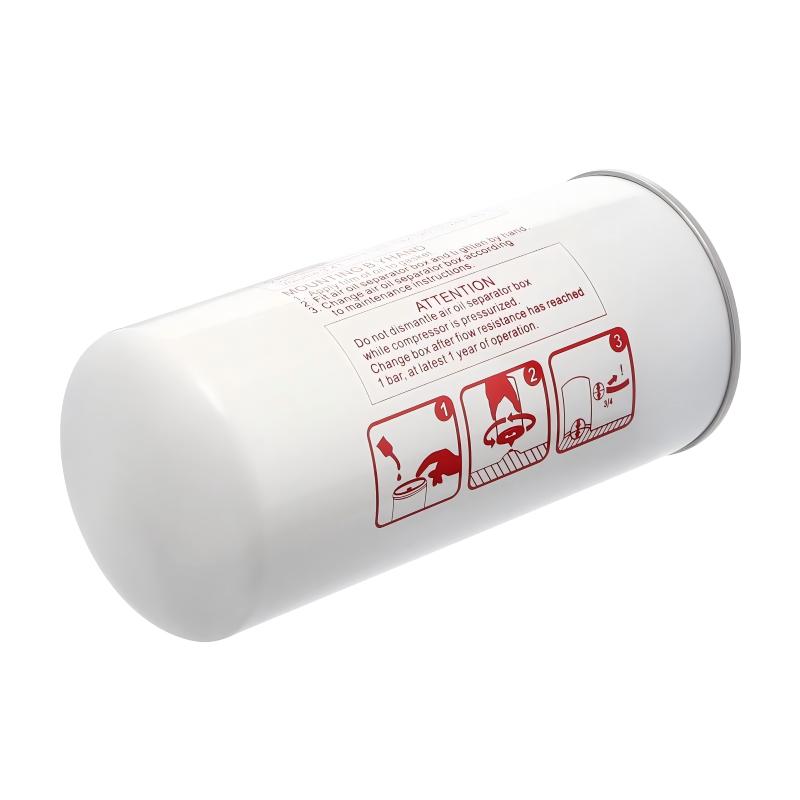

Ingersoll Rand 47627050001 54749247 Air-Oil Separator
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Ingersoll Rand |
| Model | 47627050001 |
| Ordering Number | 54749247 |
| Product Type | Air-Oil Separator |
| Separator Type | Coalescing Oil Separator Element |
| Application | Rotary Screw Air Compressors |
| Compatible Equipment | Applicable Ingersoll Rand UP5 and UP6 Series Compressors |
| Main Function | Separates oil mist and oil droplets from compressed air and returns separated oil to the lubrication system |
| Separation Principle | Coalescing Filtration |
| Filter Media | Microglass Fiber Coalescing Media |
| Installation Position | Compressor Oil-Air Separation System |
| Main Benefit | Reduces oil carryover in compressed air and helps maintain stable compressor operation |
| Maintenance | Inspect and replace according to the compressor maintenance schedule |
| Replacement Indications | Increased pressure drop, excessive oil carryover, abnormal oil consumption or separator-related alarms |
| Included Components | Separator Element and Sealing Components, depending on the applicable configuration |
| Dimensions | 302 × 45 × 136 mm |
| Weight | 1.2 kg |
FAQ
1. What is the difference between Ingersoll Rand 47627050001 and 54749247?
47627050001 is the model number specified for this product, while 54749247 is the ordering number used for spare-parts identification and procurement. When replacing the separator, the ordering number should be checked against the compressor parts documentation, equipment model and serial number to ensure that the correct separator element is selected.
2. What is the main function of the Ingersoll Rand 54749247 Air-Oil Separator?
The 54749247 Air-Oil Separator separates fine oil mist and oil droplets from the compressed-air stream after the compression process. The coalescing media collects the small oil droplets and allows the separated oil to return to the compressor lubrication circuit. This helps reduce oil carryover into the compressed-air system and supports efficient lubricant recovery.
3. Which Ingersoll Rand compressors use the 54749247 separator?
The 54749247 is used with applicable Ingersoll Rand rotary screw compressor configurations, including UP5 and UP6 series equipment. It is associated with certain compressor models in the applicable power range. Because separator configurations can vary between models and production versions, the compressor model and serial number should be verified before ordering.
4. How does the 54749247 Air-Oil Separator remove oil from compressed air?
During compression, small quantities of lubricating oil become suspended in the compressed-air stream. The separator uses coalescing media to capture and combine these fine oil droplets into larger droplets. The collected oil then drains back into the compressor oil circuit, while the compressed air continues toward the discharge system with significantly reduced oil carryover.
5. What happens when the 54749247 separator becomes restricted?
As the separator becomes contaminated, pressure drop across the element can increase. Excessive restriction may increase compressor operating losses and contribute to higher energy consumption. Depending on the severity of the restriction, the compressor may also show abnormal operating pressure, elevated temperature or a separator-related maintenance indication.
6. How can I tell when the 54749247 Air-Oil Separator needs to be replaced?
Replacement should be based on the compressor maintenance schedule together with actual operating conditions. Common indications include increased pressure differential, rising oil carryover in the compressed air, abnormal oil consumption, reduced compressor efficiency or a separator-related alarm. A separator that is damaged or contaminated should also be replaced rather than kept in service.
7. What other components should be checked when replacing the 54749247 separator?
The separator mounting area, sealing surfaces, O-rings, oil return line and related fittings should be inspected during replacement. The oil return path is particularly important because a blocked or restricted return line can prevent separated oil from flowing back into the sump. The separator tank and connections should also be checked for contamination, leakage or mechanical damage.
8. What precautions should be taken when installing the 54749247 Air-Oil Separator?
The compressor must be shut down and the system fully depressurized before separator maintenance begins. The mounting area should be clean, and all sealing components should be correctly positioned before installation. Avoid damaging the separator media or sealing surfaces during assembly. After installation, check the connections for leaks and monitor compressor pressure, temperature, oil carryover and separator differential pressure during initial operation to confirm that the separation system is functioning normally.
Ingersoll Rand 47627050001 54749247 Air-Oil Separator is in stock. Please contact us for a quick quote and competitive pricing.
