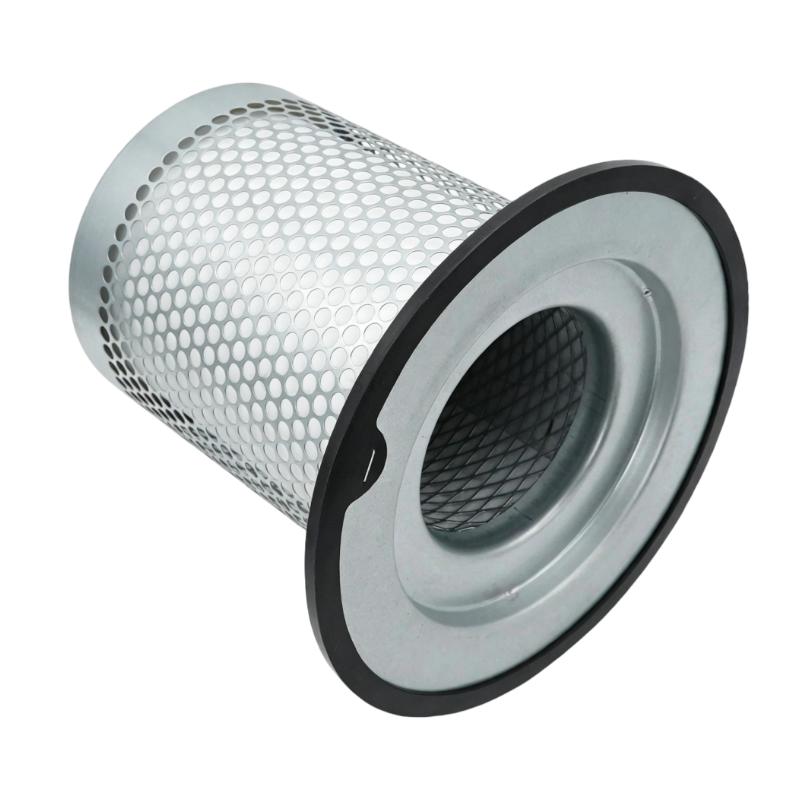

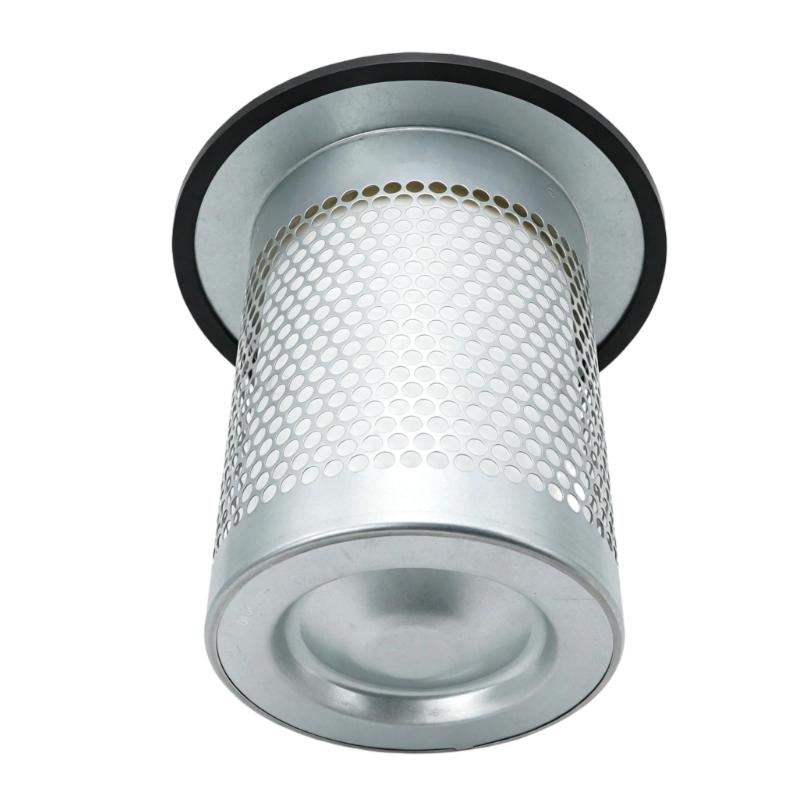

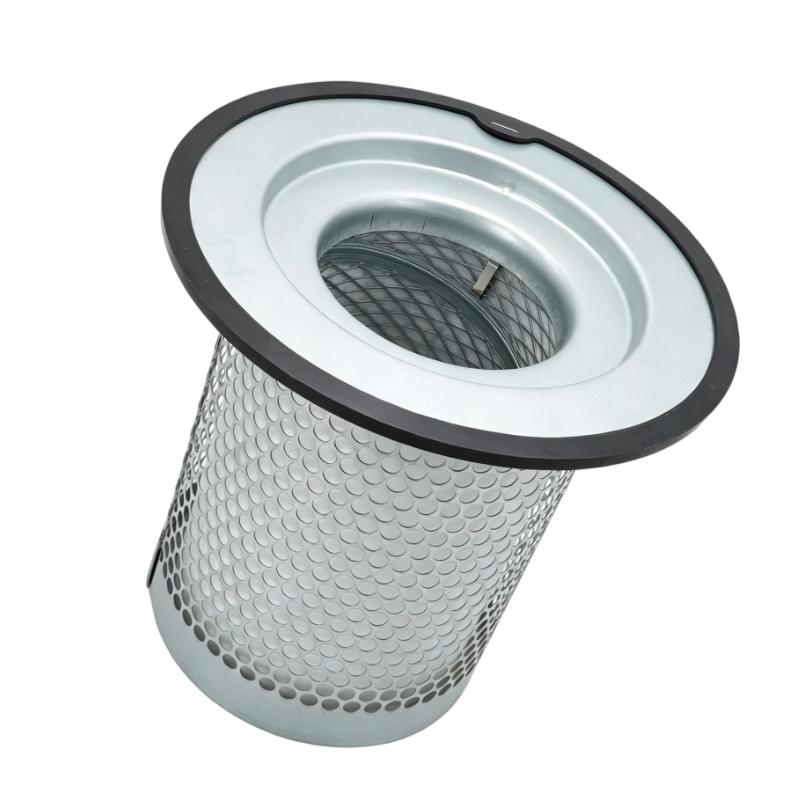

Ingersoll Rand 47704430001 23708423 Air-Oil Separator
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Model | 47704430001 |
| Ordering Number | 23708423 |
| Product Name | Air-Oil Separator |
| Product Type | Compressor Air-Oil Separator Element |
| Application | Oil-injected rotary screw air compressors |
| Main Function | Separates lubricating oil from compressed air |
| Separation Principle | Coalescing separation |
| Primary Purpose | Reduces oil carryover in the compressed air stream and supports oil recovery within the compressor system |
| Installation Location | Air-oil separator housing or separator tank |
| Filtration Performance | Depends on the separator specification and compressor operating conditions |
| Compatibility | Verify the model and ordering number against the compressor’s original parts list before installation |
| Maintenance Recommendation | Inspect and replace according to the manufacturer’s service interval and differential-pressure requirements |
| Outer Diameter | 240 mm |
| Weight | 4.9 kg |
FAQ
Q1: What is the main function of the Ingersoll Rand 47704430001 air-oil separator?
A: The air-oil separator removes most of the lubricating oil carried by compressed air inside an oil-injected compressor. The separated oil is returned to the lubrication circuit, helping reduce oil consumption and limit oil carryover downstream.
Q2: What are the common signs of a failing air-oil separator?
A: Common symptoms include increased oil consumption, excessive oil carryover into the compressed air, higher separator differential pressure, and abnormal compressor operating conditions. Check other possible causes, such as an oil return line blockage or incorrect oil level, before replacing the separator.
Q3: How does an air-oil separator work?
A: The separator element typically uses coalescing media to capture fine oil droplets suspended in compressed air. The droplets combine into larger drops and drain into the oil recovery system, while the compressed air continues toward the outlet.
Q4: Can a clogged separator affect compressor efficiency?
A: Yes. A restricted separator can increase the pressure difference across the element, forcing the compressor to work harder and potentially increasing energy consumption. Monitor differential pressure and follow the manufacturer’s replacement criteria.
Q5: How often should the air-oil separator be replaced?
A: The replacement interval depends on compressor operating hours, oil condition, air quality, and operating temperature. Follow the maintenance schedule for the specific compressor and replace the element earlier if differential pressure or oil carryover exceeds the permitted limits.
Q6: Can the air-oil separator be cleaned and reused?
A: Cleaning and reusing a coalescing separator is generally not recommended unless the manufacturer explicitly approves a specific procedure. Cleaning may damage the media or fail to remove embedded contaminants, reducing separation efficiency.
Q7: What should be checked before installing a replacement separator?
A: Confirm that model 47704430001 and ordering number 23708423 match the compressor’s parts list. Inspect the separator housing, sealing surfaces, and oil return components. Ensure the new element and seals are installed correctly according to the equipment service instructions.
Q8: What precautions should be taken when replacing the air-oil separator?
A: Shut down and isolate the compressor, allow hot components to cool, and fully release system pressure before opening the separator housing. Follow the manufacturer’s service procedure, install the replacement securely, and check for leaks and abnormal differential pressure after restarting.
Ingersoll Rand 47704430001 23708423 Air-Oil Separator is in stock. Please contact us for a quick quote and competitive pricing.
