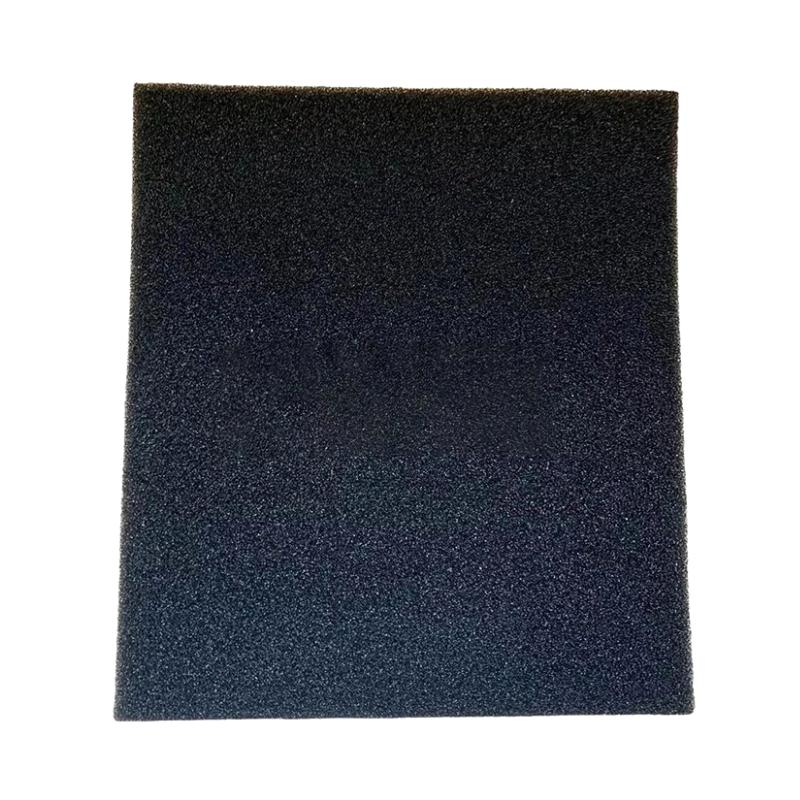

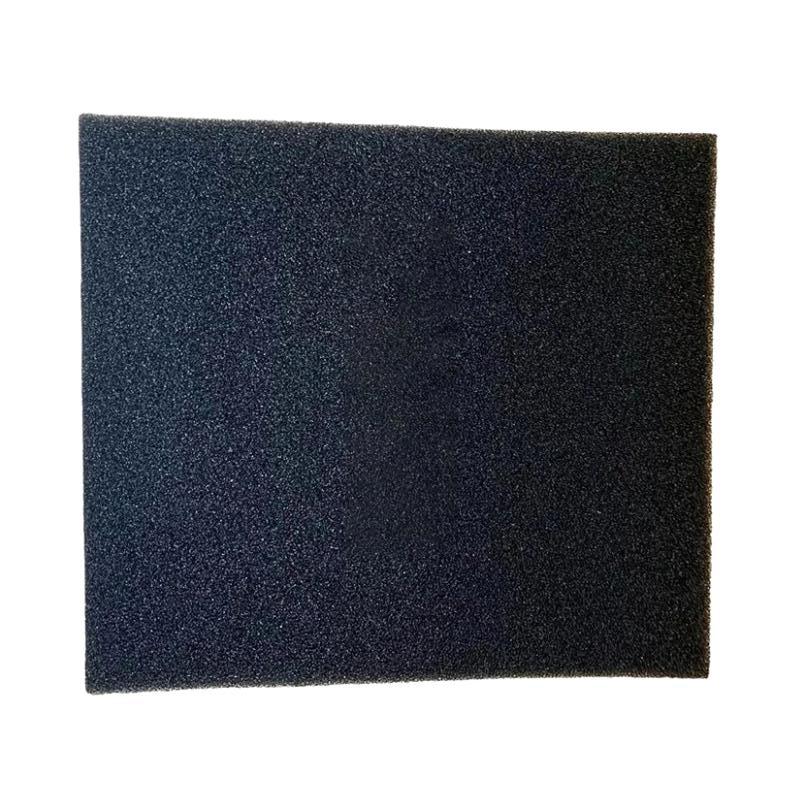

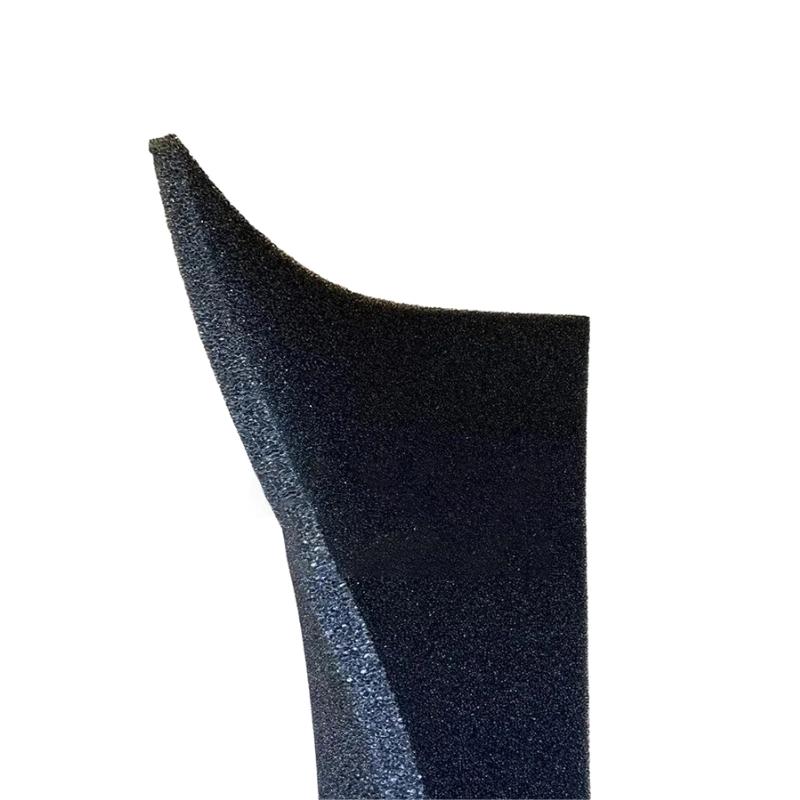

Q1: What is the main function of the Ingersoll Rand 47569978001 Gasket Pre-Filter?

The 47569978001 Gasket Pre-Filter is associated with the intake pre-filtration assembly of an industrial air compressor. Its function is to support the initial filtration or sealing process, depending on the actual component construction. By helping control the entry of dust and larger airborne particles, it can reduce the contamination load on downstream filtration components and help protect the compressor’s internal air path.

Q2: What is the difference between a pre-filter pad and a standard air filter element?

A pre-filter pad generally performs an initial filtration function, capturing larger airborne particles before the intake air reaches the main filter. A standard air filter element is designed to provide further filtration and remove finer contaminants. These components work at different stages of the intake filtration system. Their filtration efficiency, airflow resistance, and installation structures are not necessarily interchangeable.

Q3: Where is the Gasket Pre-Filter installed in an air compressor?

The component is intended for the designated intake pre-filter assembly or its supporting filter frame. The exact installation position depends on the compressor model and the design of its air intake housing. During installation, the component should be positioned according to the equipment’s maintenance documentation to ensure that incoming air follows the intended filtration path without bypassing the pre-filter section.

Q4: How often should the pre-filter pad be inspected or replaced?

The inspection interval depends on compressor operating hours, ambient air quality, dust concentration, and working conditions. In dusty industrial environments, more frequent inspections may be necessary. During maintenance, check for accumulated contaminants, deformation, deterioration, tearing, or loss of sealing performance. Replace the component when it can no longer maintain its intended filtration or sealing function. The equipment manufacturer’s maintenance schedule should take priority over a fixed replacement interval.

Q5: What problems can a clogged or contaminated pre-filter cause?

A heavily contaminated pre-filter can restrict the airflow entering the compressor. Increased intake resistance may reduce available airflow, affect compressor performance, and increase energy consumption. It can also place additional demand on the downstream air filter. If the restriction becomes severe, the compressor may experience abnormal intake conditions or trigger a filter-related maintenance alarm, depending on the control system.

Q6: What happens if the pre-filter gasket is damaged or incorrectly installed?

A damaged, folded, or incorrectly positioned component may create gaps in the intake assembly. These gaps can allow unfiltered air to bypass the intended filtration area, carrying dust and other contaminants into the downstream filter system. This increases the filtration load and may contribute to premature wear or contamination of internal compressor components. After installation, inspect the seating surface and surrounding frame to ensure the component is properly positioned and securely fitted.

Q7: What should technicians check when replacing the Ingersoll Rand pre-filter component?

Before replacement, technicians should verify the part number and confirm compatibility with the specific compressor configuration. The filter housing, supporting frame, contact surfaces, and retaining components should be inspected for damage or accumulated dust. Remove loose contaminants without allowing them to enter the compressor intake. Install the replacement component in the specified position, making sure it is flat, secure, and correctly aligned. After assembly, check for loose sections or visible gaps that could cause air bypass.

Q8: Can a standard foam pad or another filter material be used as a substitute?

Using an unapproved material as a substitute is not recommended unless its suitability has been confirmed. Different materials have different filtration efficiencies, airflow resistance, temperature tolerances, and mechanical properties. A material that is too dense may restrict intake airflow, while one that is too porous may allow excessive dust to pass through. Any alternative should meet the compressor manufacturer’s requirements for filtration performance, airflow capacity, material durability, and installation compatibility.
