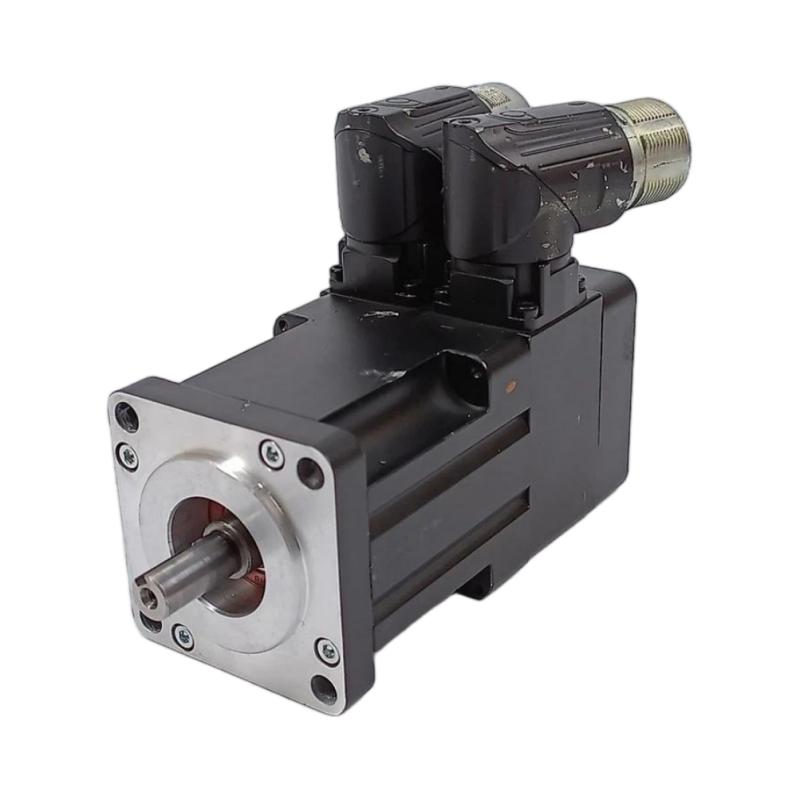

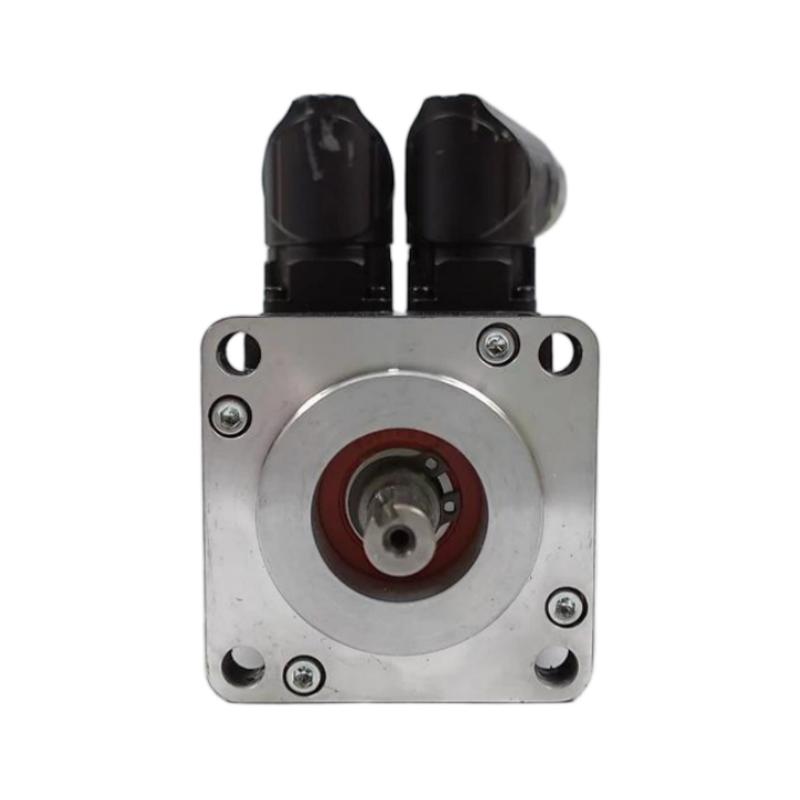

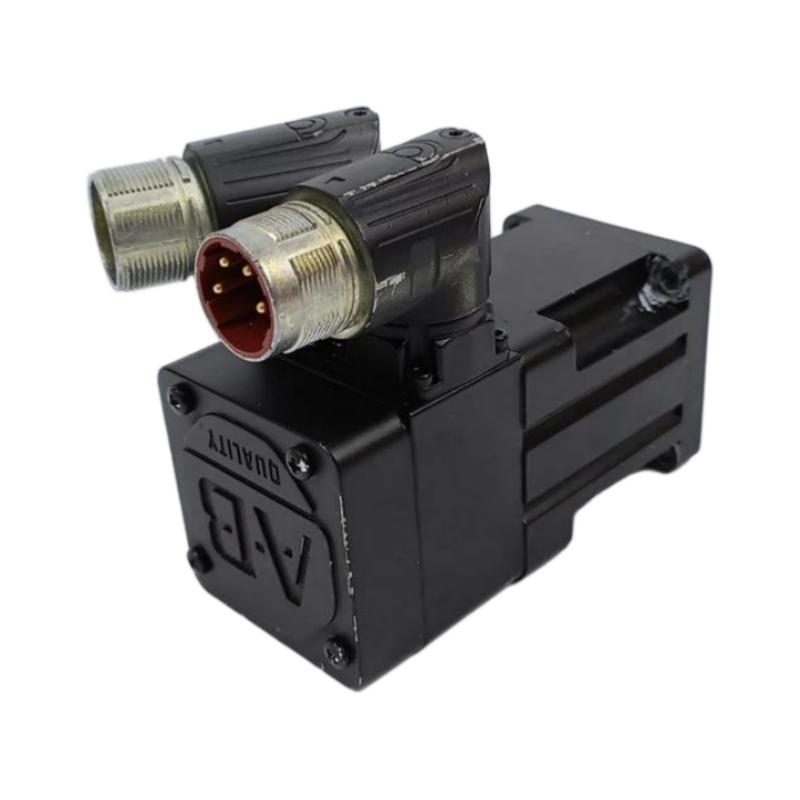

Allen-Bradley MPL-B220H-V-X253 MPAS Linear Stage Spare Servo Motor
The Allen-Bradley MPL-B220H-V-X253 is a brushless AC servo motor used as a spare motor for compatible MPAS ballscrew linear stages. It is the 400 V-class motor option with a holding brake, designed for applications requiring controlled linear positioning and secure load holding when the system is stopped.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-B220H-V-X253 |
| Product Type | MPAS linear stage spare servo motor |
| Product Family | MPL low-inertia servo motor |
| Motor Technology | Brushless AC servo |
| Voltage Class | 400 V class |
| Rated Supply | 460 V RMS line-to-line, three-phase |
| Rated Power | 0.37 kW |
| Maximum Speed | 3500 RPM |
| Continuous Stall Torque | 1.61 N·m |
| Continuous Current | 3.3 A, zero-to-peak |
| Maximum Frequency | 233 Hz |
| Enclosure Rating | IP66 with shaft seal |
| Insulation Class | Class F (155°C) |
| Brake | Holding brake; verify brake details in the official documentation |
| Compatible Equipment | Compatible MPAS-Bxxxx2-V20S4A ballscrew linear stages |
| Dimensions | 63 mm × 63 mm × 150 mm |
| Weight | Approximately 2.48 kg (5.47 lb); confirm for the supplied unit |
FAQ
Q1: What is the Allen-Bradley MPL-B220H-V-X253?
It is a spare servo motor designed for compatible MPAS ballscrew linear stages in industrial motion-control systems.
Q2: What voltage does this motor use?
It is a 400 V-class motor, with product listings specifying 460 V RMS line-to-line, three-phase operation.
Q3: What is the rated power of the MPL-B220H-V-X253?
The listed rated power is 0.37 kW.
Q4: Does this motor include a holding brake?
Yes. This model is associated with the MPAS linear-stage configuration with a brake. Confirm brake specifications before installation.
Q5: What is the maximum speed?
Available product specifications list a maximum speed of 3500 RPM.
Q6: What are the dimensions and weight?
The exact dimensions should be checked against the manufacturer’s drawing. A supplier listing gives a weight of approximately 2.48 kg.
Q7: Is this motor compatible with every MPAS linear stage?
No. It is intended for compatible 400 V-class MPAS ballscrew stages with the appropriate brake configuration. Verify the complete stage catalog number.
Q8: What should be checked before replacing the motor?
Confirm the motor catalog number, voltage class, brake wiring, mounting interface, coupling, feedback connections, and servo-drive compatibility.
