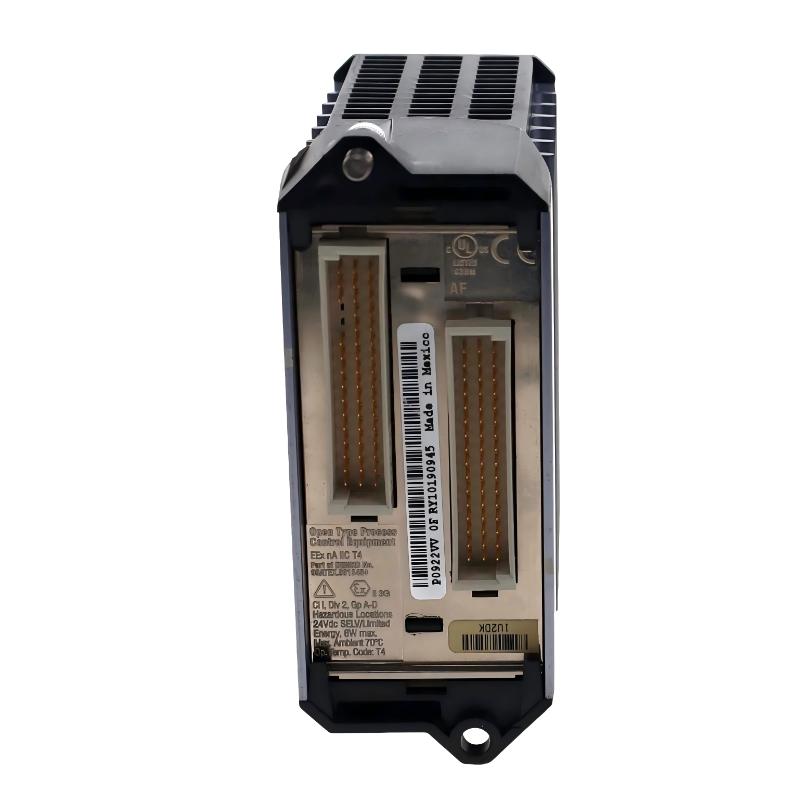

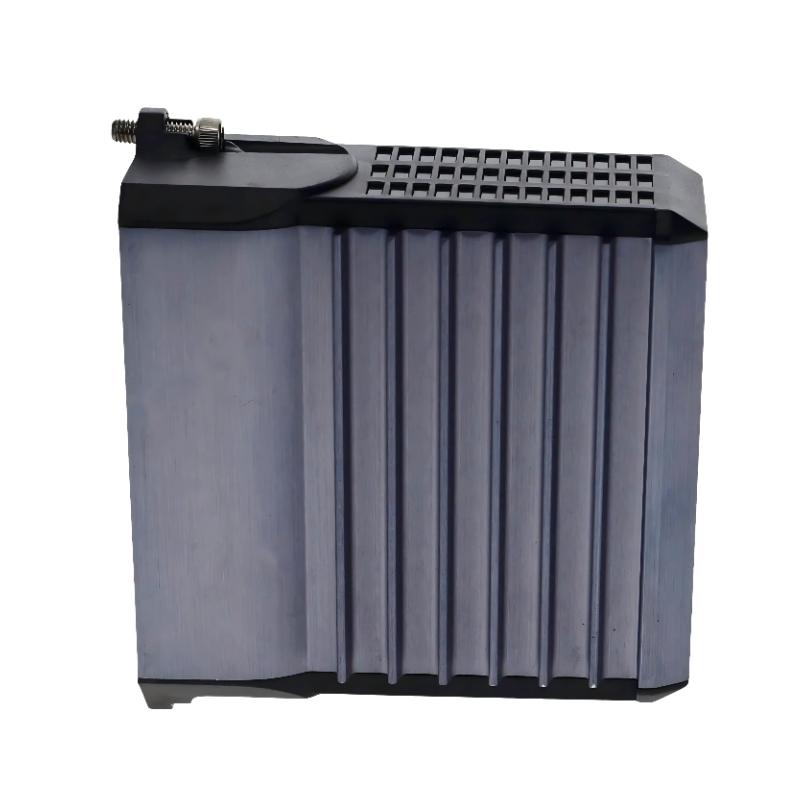

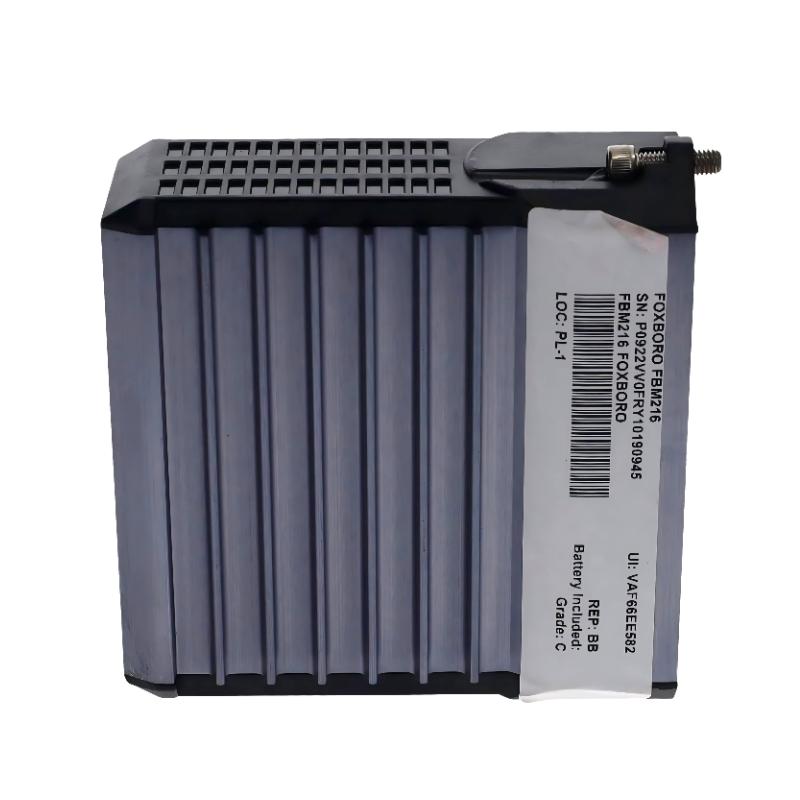

Foxboro FBM216 P0922VV Communication Redundant Input Interface Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Item | Specification |
|---|---|
| Brand | Foxboro |
| Model Number | FBM216 |
| Order Number | P0922VV |
| Product Name | Communication Redundant Input Interface Module |
| Product Type | HART Communication Redundant Input Interface Module |
| Product Series | Foxboro I/A Series |
| Input Channels | 8 channels |
| Channel Isolation | Group isolation design for 8 input channels |
| Input Signals | 4–20 mA analog signals with superimposed HART digital communication signals |
| Communication Protocol | HART Protocol v6 |
| Communication Mode | Point-to-point, master-slave, asynchronous, half-duplex |
| Communication Rate | 1200 baud |
| Communication Capacity | Up to 2 digital messages per second per field device |
| Data Verification | Per-byte parity checking and CRC checking |
| Analog Input Accuracy | ±0.075% of full scale |
| Resolution | 15 bit |
| Signal Update Time | 100 ms |
| Integration Time | 500 ms |
| Nominal Detection Resistance | 61.9 Ω |
| Minimum Input Resistance | 280 Ω |
| Minimum Compliance Voltage | 18 V DC at 20.5 mA |
| Maximum Communication Distance | Approximately 3030 m (10000 ft), subject to HART FSK physical-layer requirements |
| Redundancy | Supports module-level redundancy using two modules |
| Power Supply | Internal or external loop power, depending on the terminal assembly configuration |
| Operating Temperature | -20 to +70°C |
| Storage Temperature | -40 to +70°C |
| Relative Humidity | 5%–95%, non-condensing |
| Mounting | Modular baseplate installation; compatible with DIN rail or 19-inch rack configurations |
| Dimensions | 114 × 45 × 104 mm |
| Weight | 0.284 kg |
FAQ
Q1: What is the main function of the Foxboro FBM216 P0922VV Communication Redundant Input Interface Module?
The FBM216 is a HART communication redundant input interface module designed for the Foxboro I/A Series control system. It acquires 4–20 mA analog signals from field instruments and supports bidirectional communication through HART digital signals superimposed on the analog current. This allows the control system to receive process variables and instrument diagnostic information for centralized monitoring and management.
Q2: What types of field devices are supported by the FBM216 module?
The module supports standard 4–20 mA analog transmitters and intelligent field instruments compatible with the HART protocol. Typical applications include pressure transmitters, temperature transmitters, flow transmitters, and level transmitters. The actual wiring configuration should be selected according to the field device and terminal assembly requirements.
Q3: How does the FBM216 redundancy function work?
The FBM216 can operate with a second compatible module to provide fieldbus module-level redundancy. In a redundant configuration, one module operates as the primary module while the other acts as the tracking or standby module. If the primary module fails or requires replacement, the standby module can take over input processing, helping reduce the risk of control system interruption. Actual redundancy performance depends on the system configuration and associated hardware.
Q4: Which HART communication protocol version does the FBM216 support?
The FBM216 supports HART Protocol v6. It uses point-to-point, master-slave, asynchronous half-duplex communication at 1200 baud. The module can exchange digital information with compatible HART field devices, including instrument variables and diagnostic data.
Q5: What should be checked if the FBM216 experiences communication problems?
First, verify that the field instrument has a stable power supply and that the 4–20 mA loop current is within the expected range. Then inspect signal polarity, terminal connections, shield grounding, and possible electrical interference. Also check the HART address, communication settings, and protocol compatibility of the field device. If only one channel is affected, inspect the corresponding channel and terminal assembly for loose connections or damage.
Q6: Can the FBM216 process 4–20 mA analog signals and HART digital signals simultaneously?
Yes. HART digital communication signals are superimposed on the 4–20 mA analog current signal. The module can process analog process variables while exchanging digital information with intelligent field instruments. This maintains compatibility with conventional analog control loops while providing access to additional instrument diagnostics.
Q7: What precautions should be taken when installing or replacing an FBM216 module?
Before installation, verify the module model, order number, hardware revision, and compatibility with the control system. Inspect the baseplate, connectors, and terminal assembly for damage. Follow the system maintenance procedures for power isolation or online replacement. In redundant configurations, confirm that the standby module is operating correctly before replacing the active module to minimize disruption to field signal acquisition.
Q8: What could cause the FBM216 module to fail to acquire analog input signals?
Common causes include an open field circuit, abnormal transmitter power supply, reversed input polarity, loose terminal connections, incorrect channel configuration, or an internal module fault. Start by testing the input channel with a calibrated current source. Once the field loop and wiring have been verified, check the module status indicators, system diagnostic messages, and controller configuration.
Foxboro FBM216 P0922VV Communication Redundant Input Interface Module is in stock. Please contact us for a quick quote and competitive pricing.
