Q1: What is the main function of the Foxboro FBM215 P0917TQ module?

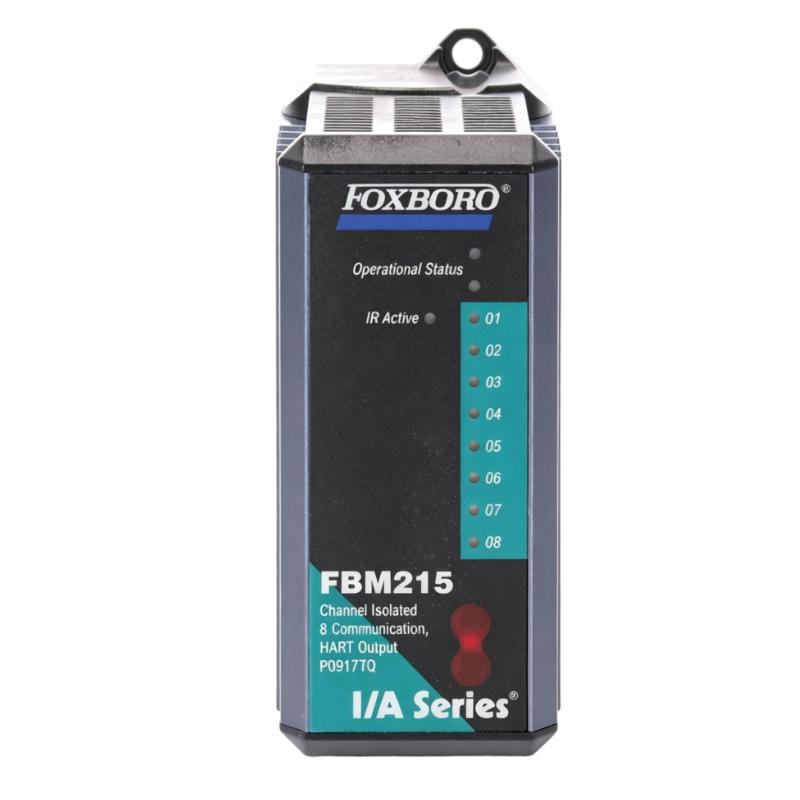

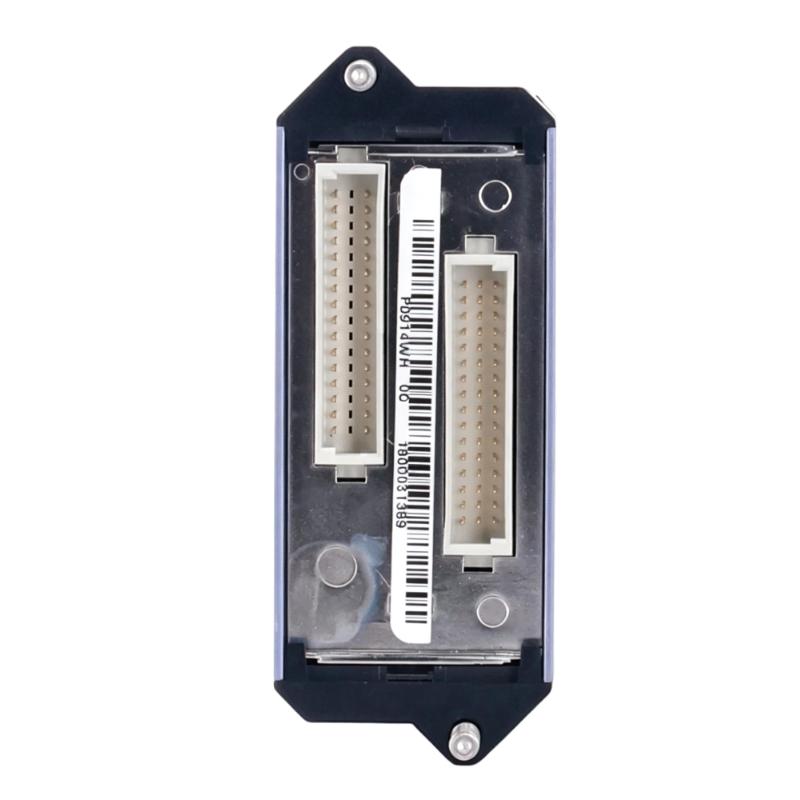

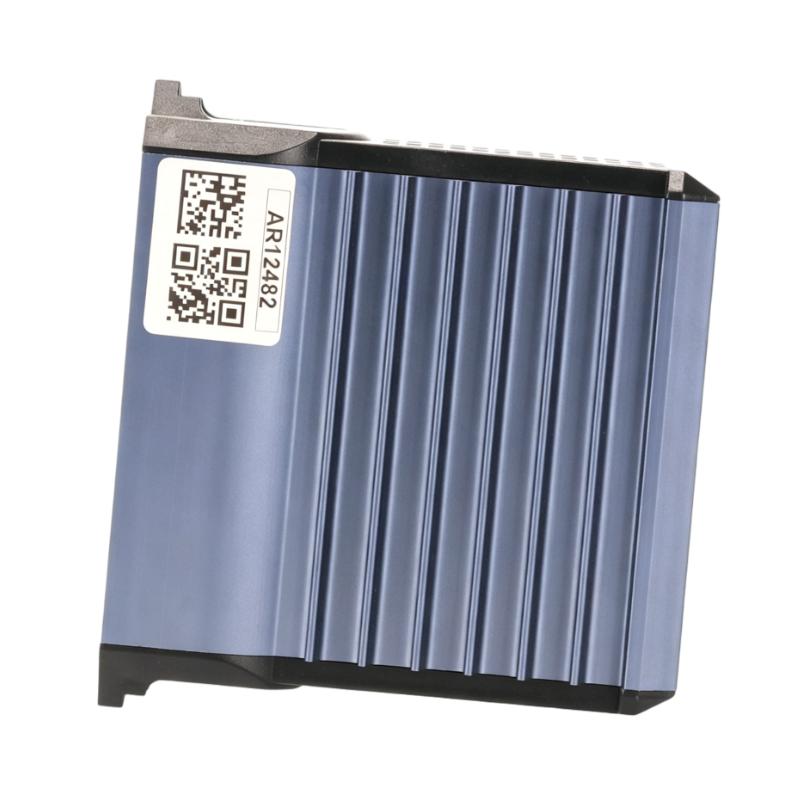

The Foxboro FBM215 P0917TQ is an eight-channel HART communication output interface module designed for industrial process control systems. It provides 4–20 mA analog output signals to control compatible field devices, while also supporting digital communication through HART signals superimposed on the analog current loop. This allows the control system to transmit control commands and access supported field-device information through the same signal wiring.

Q2: What is the difference between the FBM215 model number and the P0917TQ order number?

FBM215 identifies the module type, while P0917TQ is the specific order number associated with this version. Both identifiers are useful when purchasing replacement parts or checking system compatibility. For existing installations, it is also advisable to verify the module revision, mounting base, termination assembly and system configuration before ordering, particularly when maintaining an older Foxboro I/A Series DCS.

Q3: Can the FBM215 communicate with HART-compatible field instruments?

Yes. The FBM215 supports HART-compatible instruments using HART protocol versions 5, 6 or 7. Each channel can provide a 4–20 mA analog output with a superimposed HART digital signal, allowing communication with compatible smart field devices such as valve positioners. Actual communication depends on correct loop wiring, instrument configuration and the control system’s HART communication settings.

Q4: What is the advantage of having eight isolated output channels?

The eight isolated channels allow the module to control multiple field devices from one interface module while reducing the risk of electrical interference between channels. Galvanic isolation also helps prevent ground-loop problems and limits the transfer of electrical disturbances between field circuits and module logic. This is particularly useful in process plants where instruments and actuators may be distributed across different electrical environments.

Q5: What should be checked if a 4–20 mA output signal is incorrect or unstable?

Start by checking the control-system output command, channel configuration, field wiring and terminal connections. Confirm that the connected device’s input requirements are compatible with the module and that the total loop resistance does not exceed the specified load limit. Also inspect the field device, power supply and termination assembly. If the problem affects only one channel, compare its configuration and measured signal with a known-good channel before replacing the entire module.

Q6: Why might HART communication fail even when the analog output is working normally?

The 4–20 mA analog signal and HART digital communication use the same loop but perform different functions. An analog output may operate correctly even when digital communication is unavailable. Possible causes include incorrect HART configuration, incompatible field-device settings, wiring problems, excessive loop resistance or interference affecting the digital signal. Check the HART instrument version, loop conditions and control-system communication configuration to identify the cause.

Q7: Can the FBM215 be installed directly into any Foxboro DCS mounting base?

No. The FBM215 must be installed in a compatible Foxboro mounting base and connected through the appropriate termination assembly. Compatibility depends on the specific FBM version, hardware generation and system architecture. Before installation, verify the module part number against the system hardware documentation and confirm that the base, termination components and control processor support the intended configuration. Do not assume that all Foxboro FBM modules are interchangeable.

Q8: What maintenance checks help keep the FBM215 operating reliably?

Routine maintenance should include checking module status LEDs, reviewing DCS diagnostic messages, inspecting terminal connections and confirming that output signals match the control-system commands. It is also useful to monitor HART communication errors and investigate recurring channel faults rather than simply resetting the module. Before removing or replacing the FBM215, follow the site’s electrical safety procedures and the manufacturer’s instructions for module replacement. After installation, verify channel operation and field-device response before returning the control loop to normal service.
